GE

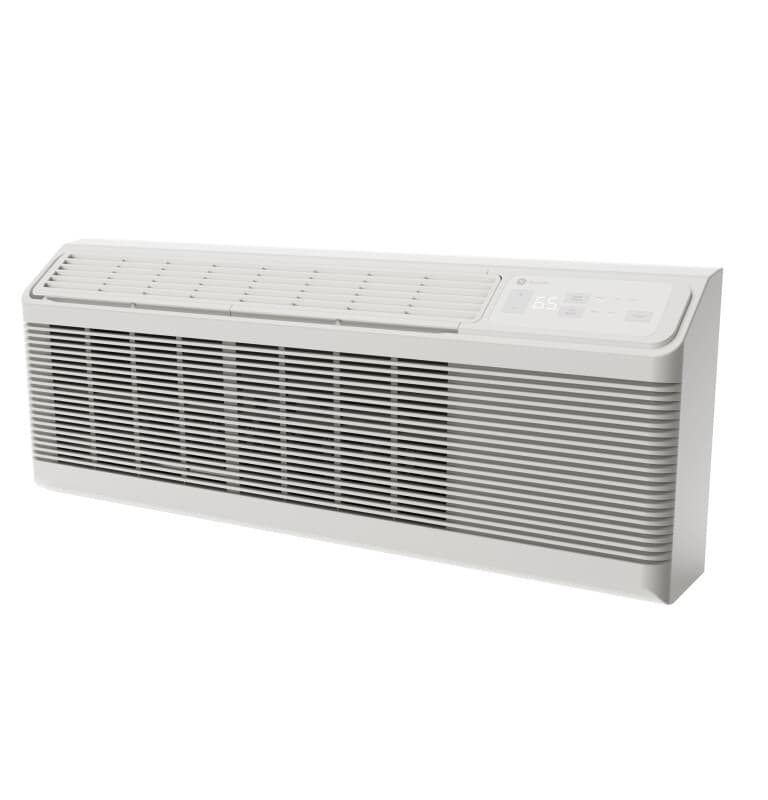

Zoneline Cooling and Fixed Speed Unit with Corrosion Protection 15,000 BTU, 230/208 Volt
Model: AZES15DCXXA
| Brand | GE |
| Model # | AZES15DCXXA |
| Width | 42 in. |
| Height | 16 in. |
| Depth | 20.81 in. |
$1,414.00
Ships When Available— Backorder OK
This item is on backorder and will ship when available.
Stack & Save
Save up to $1,000 on qualifying orders
Dimensions
Overall Width42 in
Overall Height16 in
Overall Depth20.8125 in
Net Weight107 lb
Width42 in.
Height16 in.
Length20.81 in.
Weight107 lbs.
Features
Zoneline FeaturesRandom Twist/Length Segment Tangential Blower
Louver StyleReversible
Control TypeStandard Microcomputer
Refrigerant Charge (oz.)34
Discharge Grille2-position
Fan Speed SelectionsHi/Low Cooling
Sensible Heat Ratio0.75
Power Factor95
Product TypePackaged Terminal Air Conditioners (PTAC)
Refrigerant TypeR454B
Filter TypeRigid Frame
Manual Vent ControlHidden
Chassis TypeSlide-In
Fan Motor2
Temperature LimitingElectronic 24-Step
Fan Speed ControlYes
Temperature Range60 - 85 F
Corrosion TreatedYes
Heat - CoolYes
Electronic Micro Computer ControlYes
Fan Cycle SwitchYes
Central Desk Control CompatibilityYes
Rotary CompressorYes
Vent Control3-position
Venting FeaturesConcealed Manual Vent Control
Heating SystemResistance only
Heat SentinelYes
Freeze SentinelYes
Power & Ratings
Cooling - Amperes; L.r.31.5
Cooling - Amperes; F.l. - Cooling6.3/6.7
Cooling - Amperes6.3/6.8
Cooling - Watts1400/1365
Voltage (min)208 V
Voltage (max)230 V
Hertz60
Capacity
CFM Indoor Fan Low330
CFM Indoor Fan High440
Cooling Eer (btuh / Watt)10.5 / 10.6
Dehumidification (pts./hr.)4.5 (High Speed)
Vent CFM (high Fan At Zero Esp)44.4
Cooling Btuh (max)14800
Cooling Btuh (min)14,500 Btu
Warranty
Warranty NotesSee written warranty for full details
Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 2-year entire appliance
Accessories
Accessories Required For InstallationOutdoor Grille
Appearance
Color AppearanceGrey White
