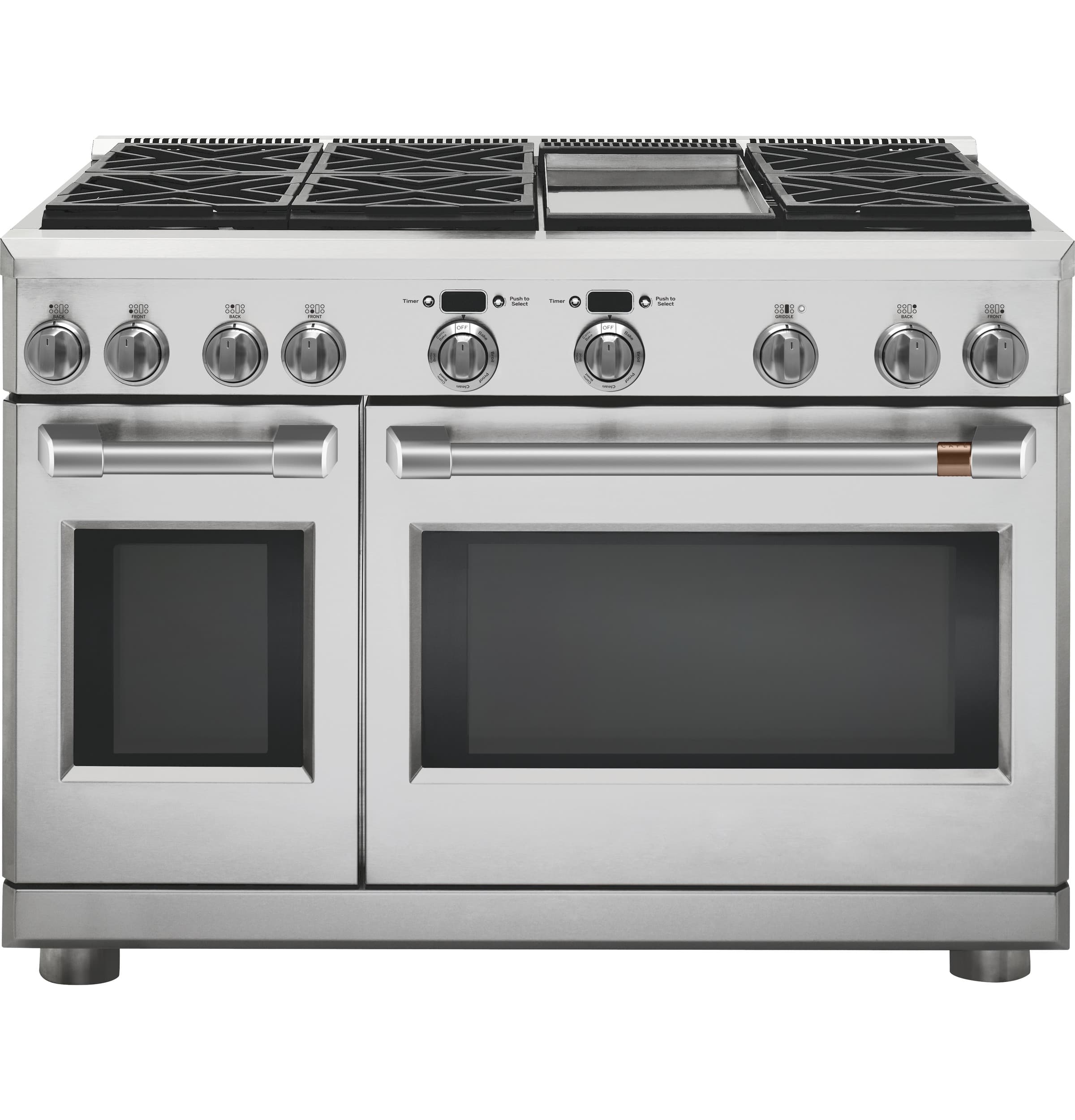

| Brand | Cafe |
| Model # | C2Y486P2MS1 |
| Width | 47.88 in. |
| Height | 35.25 in. |
| Depth | 30.75 in. |
$10,999.00
Ships When Available— Backorder OK
This item is on backorder and will ship when available.
Stack & Save
Save up to $1,000 on qualifying orders
Dimensions
Net Weight576 lb
Cabinet Width48 in
Interior Dimensions - Main Oven (wxhxd) (in.)28-1/4 x 14 x 20-3/8
Cabinet Opening30 in
Depth With Door Open43.875 in
Interior Dimensions - Companion Oven (wxhxd) (in.)12-1/4 x 16-3/8 x 21-3/8
Height To Cooking Surface (in.)35.25 - 36.75
Overall Depth30 3/4 in
Overall Height35 1/4 in
Overall Width47 7/8 in
Width47.88 in.
Height35.25 in.
Length30.75 in.
Weight576 lbs.
Warranty
Parts1 Year
Labor1 Year
Parts WarrantyLimited 1-year entire appliance
Labor WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details
Appearance
Cooktop Burner Grate ColorMatte Black
HandleCafé™
Frameless Oven Door(s)Stainless Steel
Toe KickCXPR8TKPMSS: 48" Stainless Steel (Optional)
InstallationPower Cord Included
Oven Door FeaturesBig Clear View Oven Window
Handle ColorBrushed Stainless
Control KnobsDishwasher Safe
Color AppearanceStainless Steel
Features
Cooking SystemReverse Air Convection
Cleaning TimeVariable with Delay Clean Option
Ignition SystemElectronic w/Auto Reignition
Burner - Right Rear18,000 BTU
Lower Oven FeaturesDual element bake
Oven Interior3 Halogen (Everyday Oven)
Oven Control FeaturesSelf-Clean Cool Down Time Display
Oven Rack Features4 Rack Positions (Everyday Oven)
Burner - Left Rear18,000 BTU
Oven Cleaning TypeSelf-Clean (Both Ovens)
Griddle18,000-BTU
Product TypeFree-Standing Single Oven
StyleCommercial
Cooktop TypeStandard Grates
Cooktop Burner Grate MaterialHeavy Cast
Fuel Type240V Electric and Natural Gas
Burner - Center18,000 BTU Left Front / 18,000 BTU Left Rear / 18,000 BTU Griddle Right
Control LocationFront controls
Dishwasher Safe KnobsYes
Cooktop Burner Grate FeaturesHeavy-Cast Edge-to-Edge Grates
Control TypeDigital Temperature Display
Burner - Left Front18,000 BTU
Leveling System4 Leveling Legs
Cooking TechnologyConvection
ConfigurationDouble Oven Range
Oven Features6-Pass Broil Element
Oven Cooking ModesConvection Roast (Both Ovens)
Cooktop Burner TypeSealed
Valves (degree Of Turn)270
Burner - Right Front18,000 BTU
Cooktop SurfaceGray
Oven Rack Positions (single Or Upper/lower)5 / 4
Self-clean Oven Door LockAutomatic
Accessories
Optional KitsCXPR8HKPMCU Brushed Copper
LP Conversion KitIncluded
Power & Ratings
Top Burner BTU Rating - Nat. Gas (000's BTU's)(6) 18.0
Volts/hertz/amps240V; 50A
Top Burner BTU Rating - LP (000's BTU's)(6) 15.0
Convection Wattage2500W
Bake/broil Wattage - Main Oven2700/4000W
Power ConnectionPower Cord - Included
Capacity
Capacity (cu. Ft.)5.75 Caterer Oven / 2.5 Everyday Oven
