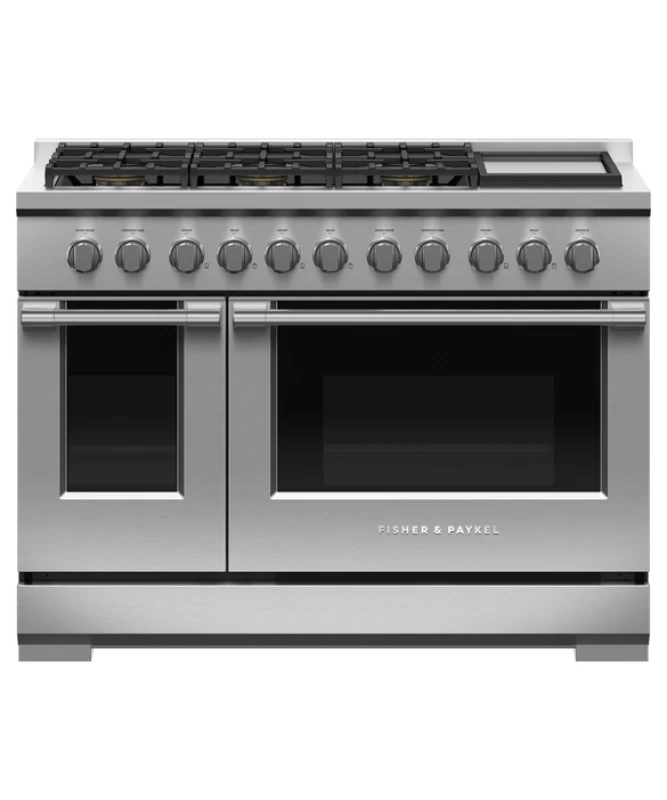

| Brand | Fisher Paykel |
| Model # | RGV3486GDN |
| Width | 47 in. |
| Height | 35 in. |
| Depth | 29 in. |
$0.00
Ships When Available— Backorder OK
Rebate Available
Mail-in rebate savings
Fisher And Paykel 15% And Warranty Extension Rebate
TieredUP TO 15% REBATE & WARRANTY EXTENSION
ManufacturerMail-InJan 1 – Dec 31, 2026
Open form to see all rebate tiersRebates applied via mail-in forms. Call (732) 426-0990 with questions.
This item is on backorder and will ship when available.
Lowest Price Guarantee
Need help? (732) 426-0990
Stack & Save
Save up to $1,000 on qualifying orders
Dimensions
Width47 in.
Height35 in.
Length29 in.
Burner Ratings
GeneralYes
Maximum Burner Power23500 BTU
Power Back Centre18500BTU
Power Back Left18500BTU
Power Back Right18500BTU
Power Front Centre18500BTU
Power Front Left23500BTU
Power Front Right18500BTU
Power Griddle16500BTU
Total Cooktop Power132500 BTU
Capacity
GeneralYes
Shelf Positions (main Oven)5
Shelf Positions (second Oven)5
Total Capacity (main Oven)5.3cu ft
Total Capacity Second Oven2.4cu ft
Usable Capacity (main Oven)3.9cu ft
Cleaning
GeneralYes
Easy Clean Porcelain BasepanYes
Controls
GeneralYes
Metal Illuminated DialsYes
Gas Requirements
GeneralYes
Fitting And Pipe½ NPT, min. ⅝" ∅ flex line
Supply Pressure (natural Gas)6" to 9" W.C
Oven Features
GeneralYes
Auto Re-ignition SystemYes
Broil PanYes
Electronic Oven ControlYes
Full Extension Telescopic Sliding ShelvesYes
Infrared BroilerYes
Oven Functions
GeneralYes
BakeYes
BroilYes
Convection BakeYes
Number Of Functions4
Slow CookYes
Oven Performance
GeneralYes
Bake Power19700BTU
Broil18500 BTU
Secondary Oven - Bake Power18000BTU
Power Requirements
GeneralYes
Connection3-prong grounding type plug
Power Supply120 V, 60 Hz
Service15 A
Rangetop Features
GeneralYes
Sealed Range TopYes
Vent Trim IncludedYes
Recommended Back Guards Ventilation
GeneralYes
Combustible SituationBGRV3-3048H
Non Combustible SituationBGRV2-3048 / BGRV2-1248
Recommended HoodHCB48-12_N (48" Professional Range Hood, Dual Blower)
Safety
GeneralYes
ADA CompliantYes
Secondary Oven Features
GeneralYes
3/4 Extension Racks2
Electronic Oven ControlYes
Internal LightYes
Secondary Oven Functions
GeneralYes
BakeYes
Convection BakeYes
Number Of Secondary Oven Functions4
ProofYes
Slow CookYes
Warranty
GeneralYes
Parts And LaborLimited 2 years
