Hotpoint

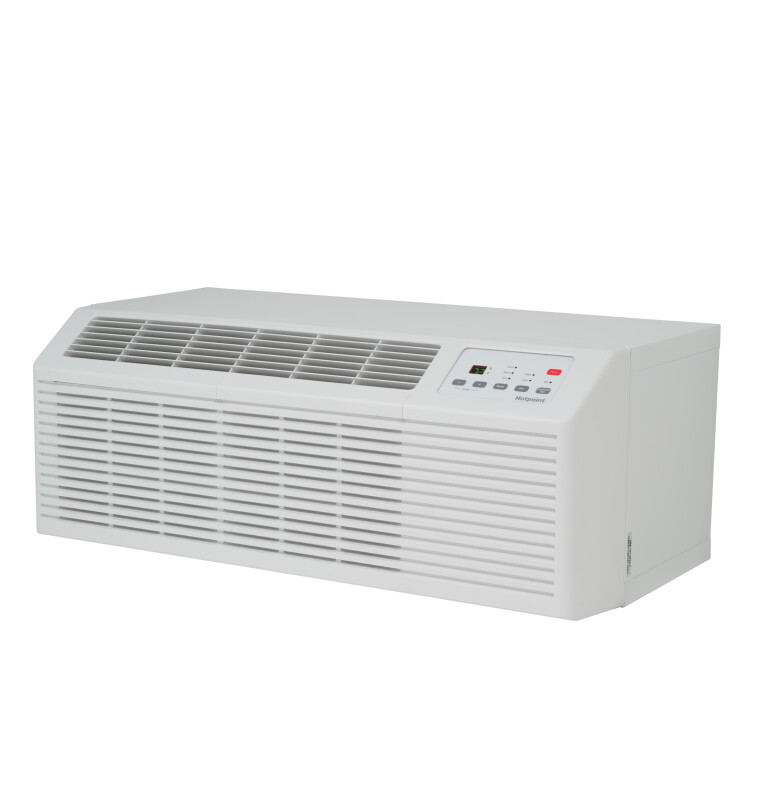

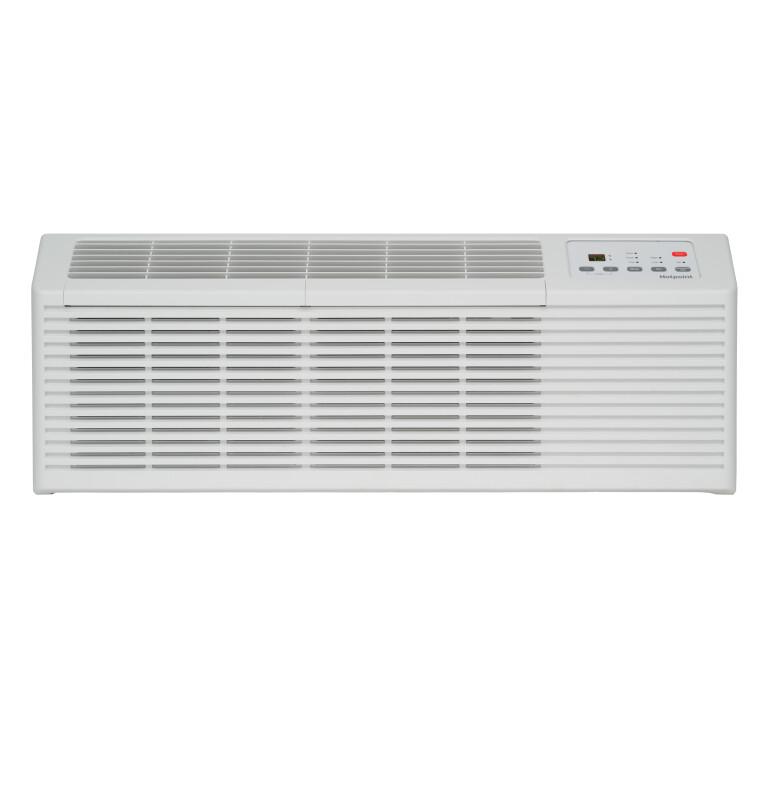

Hotpoint® PTAC Heat Pump with Electric Heat Backup 15,000 BTU, 230/208V, 20amp
Model: AHHS15D3XXA
| Brand | Hotpoint |
| Model # | AHHS15D3XXA |
| Width | 42.4 in. |
| Height | 16 in. |
| Depth | 20.9 in. |
$905.00
Ships When Available— Backorder OK
This item is on backorder and will ship when available.
Stack & Save
Save up to $1,000 on qualifying orders
Dimensions
Width42.4 in.
Height16 in.
Length20.9 in.
Weight97 lbs.
Capacity
Cooling Btuh (max)14700 Btu
Cooling Eer (btuh / Watt)9.7/9.7
Heating - Reverse Cycle - Btuh13700/13500
Cooling Btuh (min)14500 Btu
Features

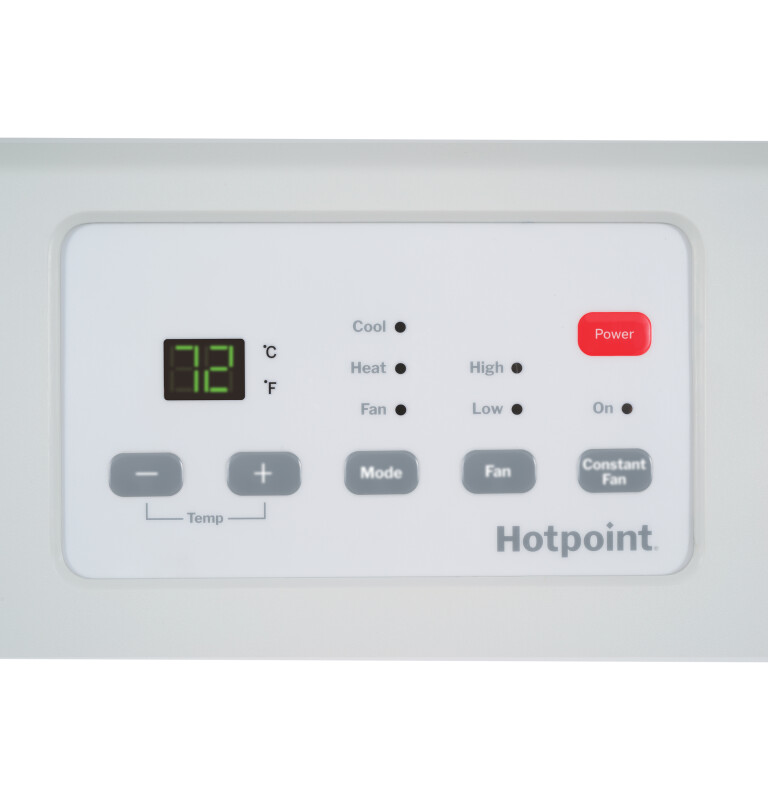

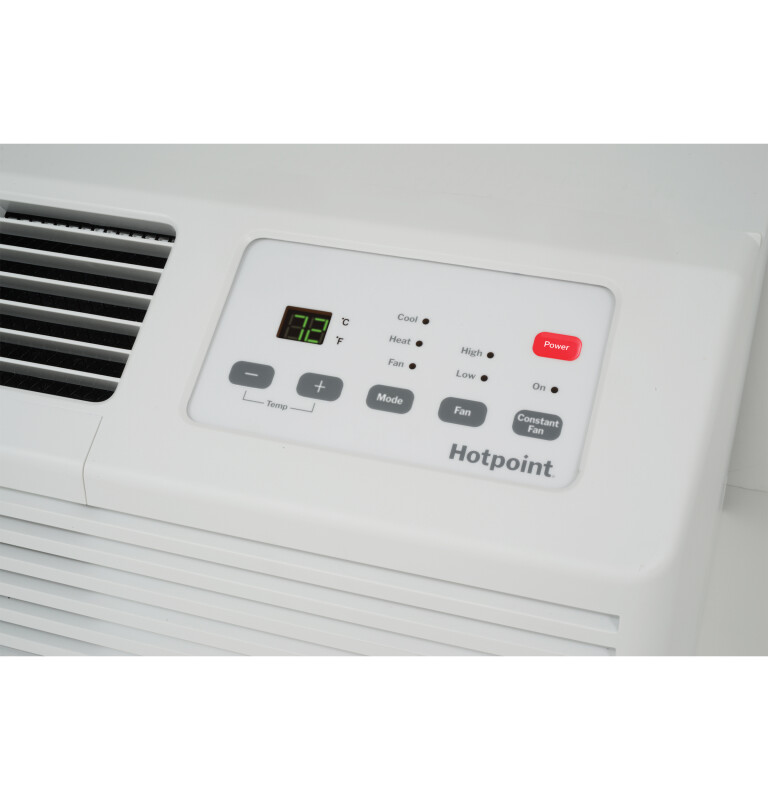

Control TypeElectronic
Fan Speed Selections2 Heating
Discharge Grille2-position
Product TypePackaged Terminal Air Conditioners (PTAC)
Refrigerant TypeR32
"smartfan" Fan CycleYes
Manual Vent ControlHidden
Chassis TypeSlide-In
Fan Motor1
Heat PumpYes
Unit FeaturesRemote Thermostat Compatibility (Accessory Kit Required)
Temperature Range62 - 80 F
Heat - CoolYes
Auto Power RecoveryYes
Rotary CompressorYes
Heating - Reverse Cycle - Cop3.0/3.0
Outdoor Vent / ExhaustYes
Venting FeaturesConcealed Manual Vent Control
Heating SystemHeat Pump with Resistance Backup
Warranty
Warranty NotesSee written warranty for full details
Labor WarrantyLimited 5-year sealed refrigerating system
Parts WarrantyLimited 5-year sealed refrigerating system
Power & Ratings
Heat Pump - Amps7.5/8.1
Cooling - Amperes7.2/6.7
Cooling - Watts1515/1490
Voltage (min)208 V
Heat Pump - Watts1335/1315
Voltage (max)230 V
Appearance
InstallationThrough-the-Wall
Color AppearanceWhite
