| Brand | KitchenAid |
| Model # | KFGC506JPA |
| Width | 35.88 in. |
| Height | 36 in. |
| Depth | 28-1/2 in |
$7,149.00
Ships When Available— Backorder OK
This item is on backorder and will ship when available.
Stack & Save
Save up to $1,000 on qualifying orders
Dimensions
Width35.88 in.
Height36 in.
Length24 in.
Weight444 lbs.
Cutout Depth (in)24
Cutout Height (in)36
Cutout Width (in)36
Depth Closed Excluding Handles27 3/4
Depth Closed Including Handles30 1/4
Depth With Door Open 90 Degree46 1/2
Gross Weight444
Net Weight389.0
Cutout Depth(in,inches)24.0000
Cutout Height(in,inches)36.0000
Cutout Width(in,inches)36.0000
Depth Closed Excluding Handles(in,inches)27.7500
Depth Closed Including Handles(in,inches)30.2500
Depth With Door Open 90 Degree(in,inches)46.5000
Maximum Height(in,inches)37.5000
Minimum Height(in,inches)36.0000
Net Weight(lb,pounds)389
Cutout Height Min(in,inches)36.0000
Gross Weight(lb,pounds)444
Cutout Depth24 in
Cutout Height36 in
Cutout Width36 in
Depth28-1/2 in
Oven Interior Depth16-3/10 in
Oven Interior Height14-3/10 in
Oven Interior Width29-9/10 in
Details
Oven Automatic Shut-offYes
Cooktop ConfigurationAll Burners
Fuel TypeGas
LP ConvertibleYes - Kit Included
Oven ConfigurationSingle Oven
Power On Indicator LightYes
Power Outage CompatibleYes
Range ConfigurationFreestanding
Range TypeFreestanding
Natural Gas ConvertibleYes
Oven SelectionsAudible Signal, Bake, Broil, Cancel/Off, Convect Modes, Easy Convect Baked Goods, Easy Convect Meats, Easy Convect Pizza, Keep Warm Setting, Proofing, Sabbath Mode, Temperature Probe
Cooktop Details
Auto Re-ignitionYes
Cooktop Control Knob ColorStainless Steel
Cooktop Control Knob TypeMetal
Cooktop Control LocationFront
Cooktop Control TypeKnobs
Cooktop Surface ColorBlack
Cooktop Surface MaterialPorcelain Coated Steel
Heating Element On Indicator LightNo
Hot Surface Indicator LightNo
Certifications
ADA CompliantNo
Electrical
Power Cord IncludedYes

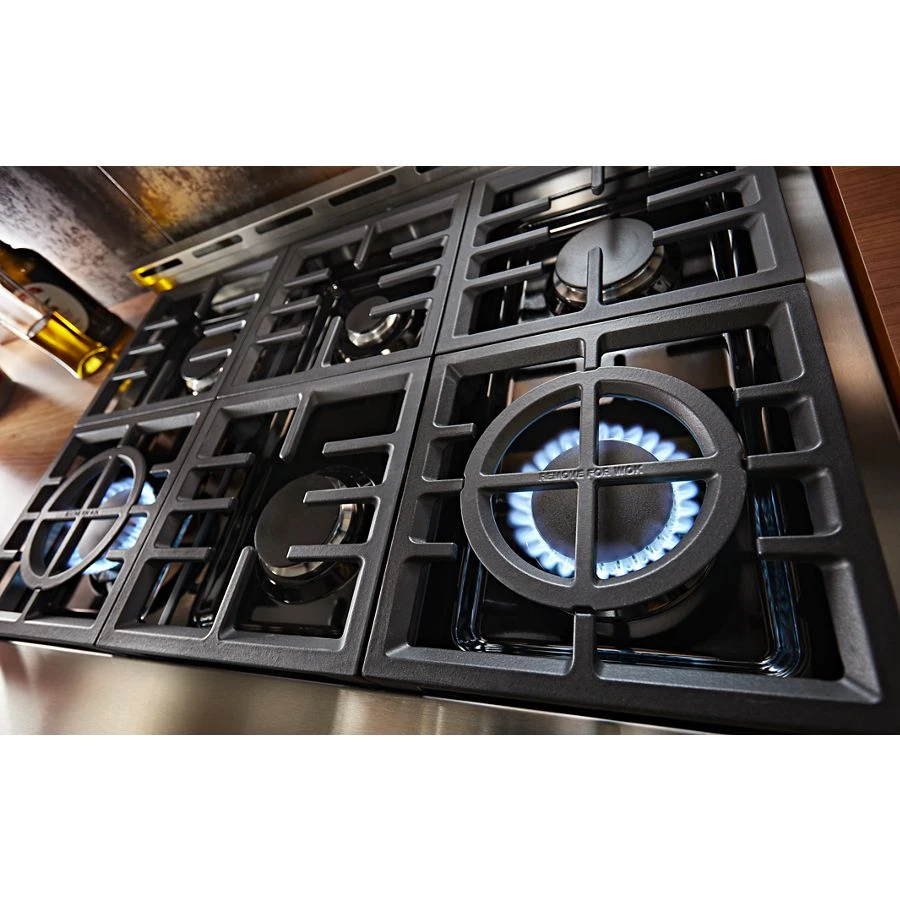

Element/burner Details
Center Front Element-burner TypeSealed Burner
Center Rear Element-burner TypeSealed Burner
Cooktop Element StyleSealed Burners
Left Front Element-burner TypeDual-Stacked Burner
Left Rear Element-burner Power15000 BTU/11000 LP
Left Rear Element-burner TypeSealed Burner
Number Of Cooking Element-burners6
Right Front Element-burner TypeDual-Stacked Burner
Right Rear Element-burner TypeSealed Burner
Center Front Element-burner Power15,000 BTU
Center Rear Element-burner Power5,000 BTU
Left Front Element-burner Power20,000 BTU/14,000 LP
Number Of Grates6
Right Front Element-burner Power20,000 BTU/14,000 LP
Right Rear Element-burner Power15,000 BTU/11,000 LP

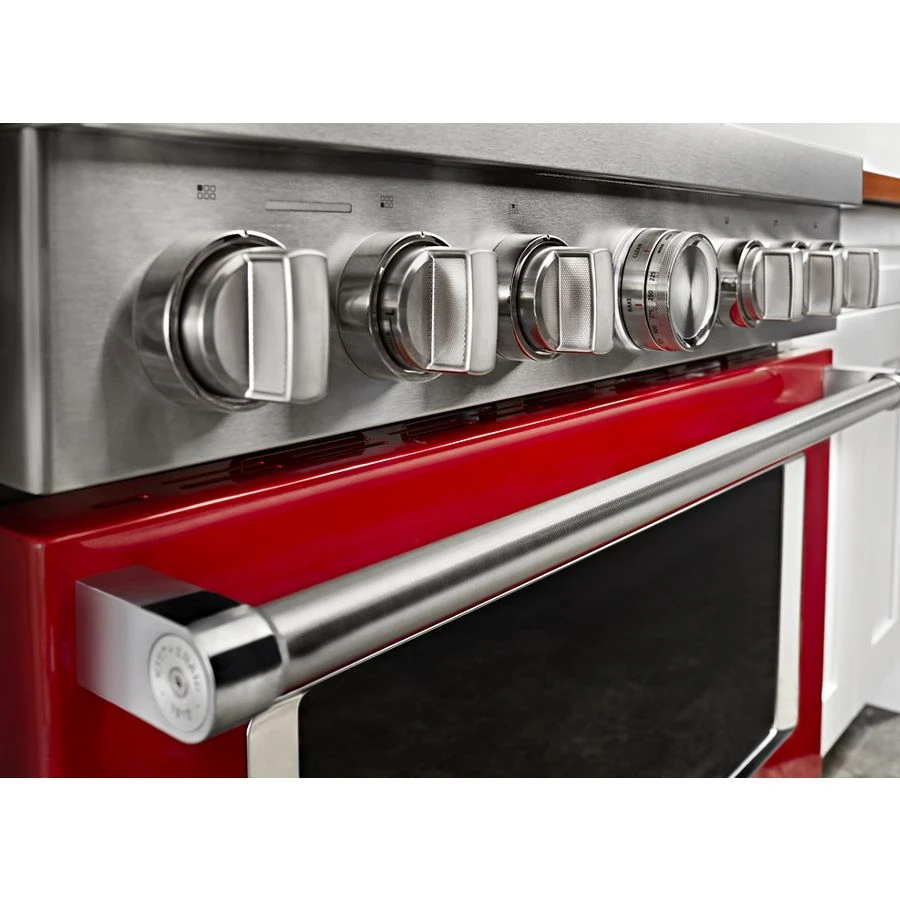

Exterior Details
Door TypeMetal & Glass
Oven Control Knob TypeMetal
Oven Control LocationFront
Oven Control TypeKnobs
Oven Window SizeLarge

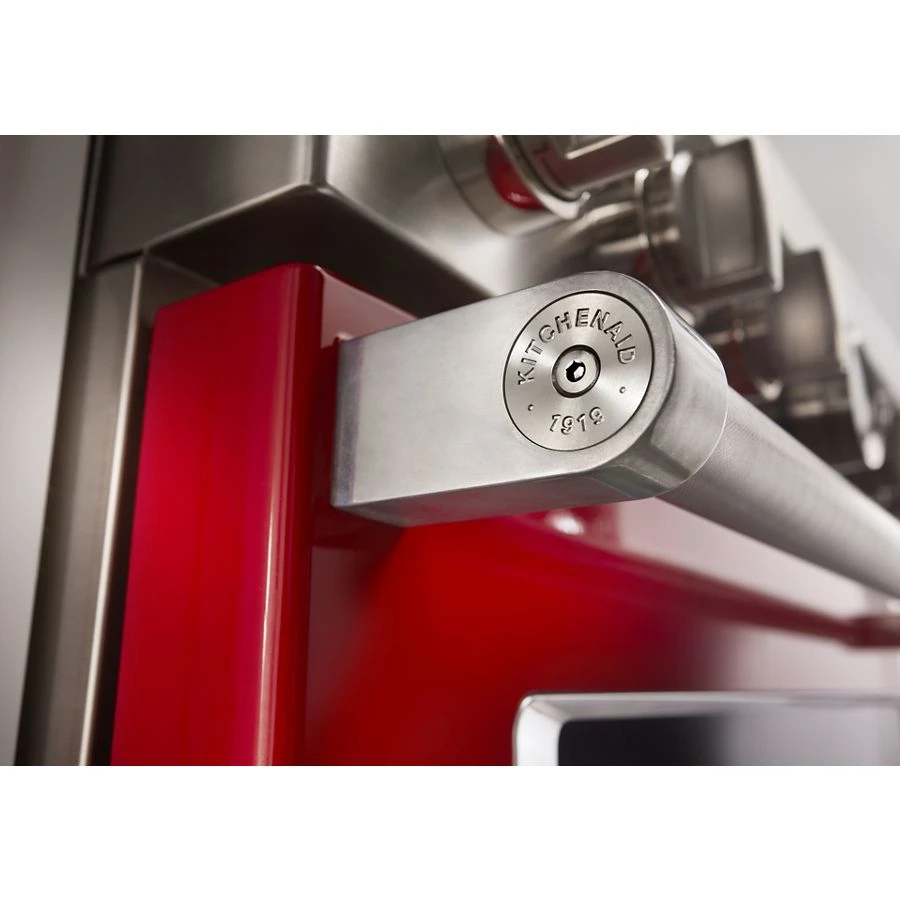

Handle ColorStainless Steel
Handle MaterialMetal
Handle TypeTowel Bar
Oven Control Knob ColorStainless Steel
Grate Details
Number Of Grates6
Grate DetailsDishwasher Safe, Individual, Matte Finish, Porcelain Coated Cast Grates
Smart Compatibility
Smart ApplianceYes
ConnectivityAmazon Alexa, Android, Google Assistant, iOS
Works WithApp, Remote Access, Voice Controlled, WiFi

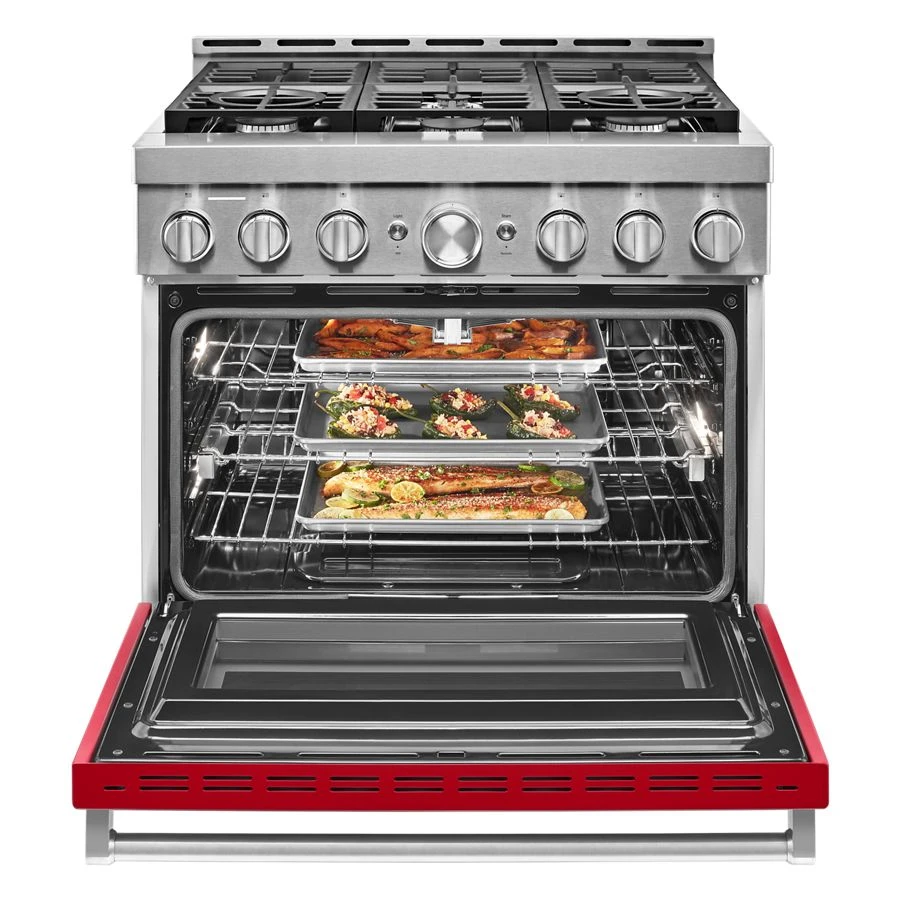

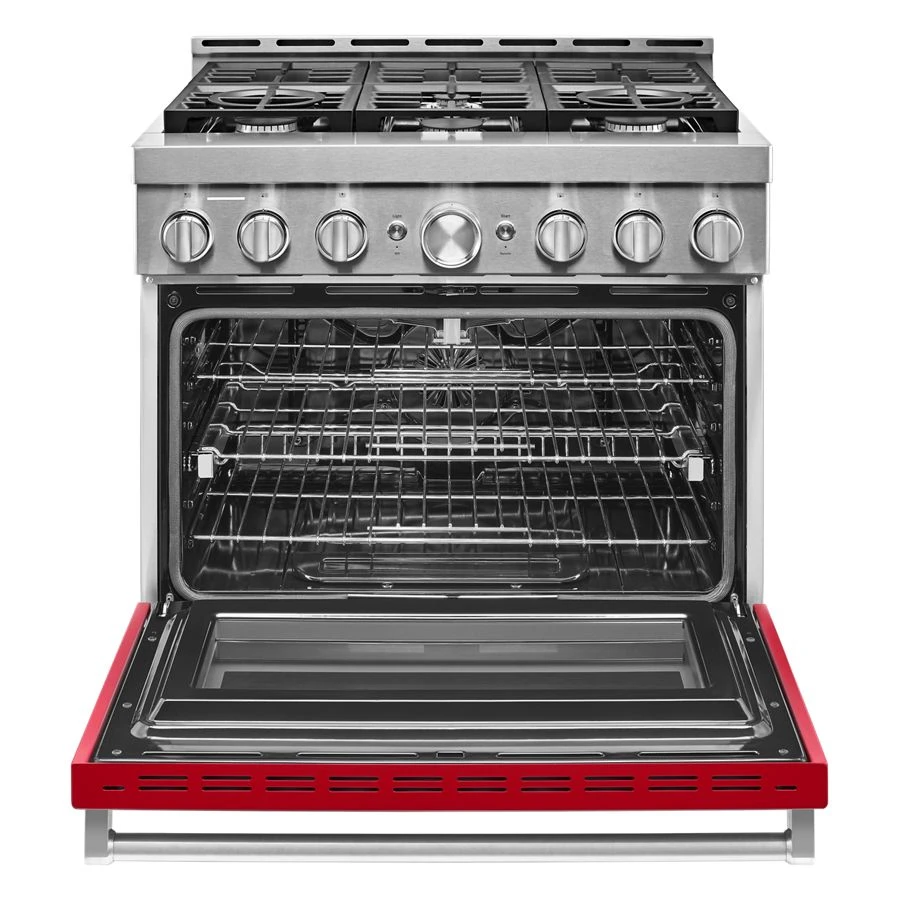

Oven Cavity Details
Automatic Convection Conversion Temperature AdjustYes
Bake Element Power17,000 BTU
Broiler Element Power11,000 BTU
Broiler LocationTop Center
Convection Element TypeTrue Bow Tie
Convection FunctionsBake, Roast
Door RemovableYes
Hidden Bake ElementYes
Interior ColorBlack
Natural Gas ConvertibleYes
Number Of Oven Lights3
Number Of Oven Racks3
Oven Cleaning TypeSelf-Cleaning
Oven Cooking SystemTrue Convection
Oven Light Switch LocationOven Control
Oven Light TypeHalogen
Oven Rack Guide TypeMolded
Oven Rack TypeGliding Roll-Out, Standard (Both)
Convection Element Power1,600 w
Features
Range FeaturesSmart Appliance
