Hover to zoom
| Brand | Monogram |
| Model # | ZDP486NDNSS |
| Width | 47.88 in. |
| Height | 35.25 in. |
| Depth | 30.88 in. |
$11,500.00
Ships When Available— Backorder OK
This item is on backorder and will ship when available.
Stack & Save
Save up to $1,000 on qualifying orders
Dimensions
Net Weight576 lb
Overall Width47.875 in
Overall Depth30.875 in
Overall Height35.25 in
Height W/legs Extended - Maximum Height36.75 in
Cabinet Width48 in
Height To Cooking Surface (in.)35.25 - 36.75
Height W/ Legs Retracted - Minimum Height35.25 in
Width47.88 in.
Height35.25 in.
Length30.88 in.
Weight576 lbs.
Warranty
Parts2 Year
Labor2 Year
Labor WarrantyLimited 2-year entire appliance
Warranty NotesSee written warranty for full details
Parts WarrantyLimited 5-year gas surface burners
Features
Configuration6 Burners; Griddle
140 Deg. Simmer BurnerAll Burners - Adjustable
Cooking SystemTrue European Convection
Cleaning Time5 Hours (Both Ovens)
Ignition SystemElectronic w/Auto Reignition
Broiler Pan And Grid2
Interior Oven Light6 Halogen Lamps (Caterer Oven)

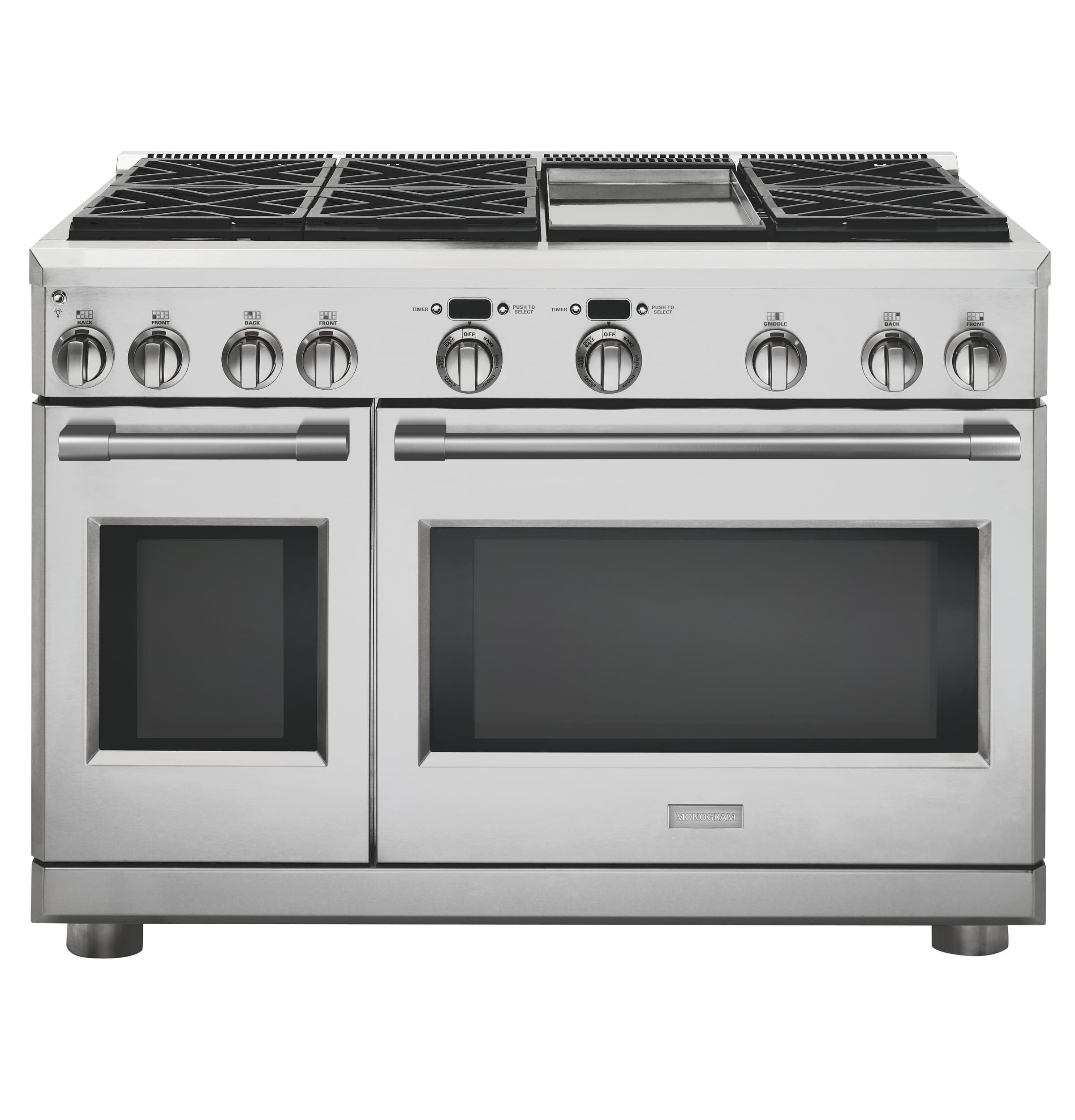

Short Description48" Pro Range - Dual Fuel with Griddle
Fuel TypeDual Fuel (with natural gas)
Oven Control FeaturesDelay Clean Option (Both Ovens)
Cooktop Burner Type6 Sealed, Dual Flame Stacked
Convection Roasting RackYes
Oven Cleaning TypeSelf-Clean (Both Ovens)
Product TypeProfessional Range
Indicator LightsBurner "On"
Removable Grease Trough(1) Front of Griddle
Cooktop TypeContinuous Grates
Cooktop Burner Grate FeaturesPorcelainized Cast Iron 3-Piece Reversible (Flat/Wok) Grates
LightingLED Bullnose Task Lighting
Cooktop SurfacePorcelain-Enamel
Extra Low SimmerAll Burners - Adjustable
Stainless Steel Grill / Griddle Covers1
Oven Rack Positions (single Or Upper/lower)5 / 4
Control Typewith Timer Display (Both Ovens)
Self-clean Oven Door LockAutomatic
Cooking TechnologyConvection
Oven Rack Features4 Rack Positions (Everyday Oven)
GriddleStainless Steel and Aluminum Clad
Oven Cooking ModesConvection Broil (Both Ovens)
Accessories
LP Conversion KitIncluded
Bamboo CuttingboardIncluded (1)
Optional Grill Accessory (cast Iron)UXGRILL
Optional Backguard30"-36" adjustable stainless steel backsplash with warming shelf (UXADJB48PSS)
Power & Ratings
Griddle BTU Rating (000's/btu) - Natural Gas18.0
Top Burner BTU Rating - Nat. Gas (000's BTU's)(6) 18.0, 140 Degree simmer
Grill BTU Rating (000's/btu) - Natural Gas18.0
Electrical Requirements240VAC; 50A
Top Burner BTU Rating - LP (000's BTU's)(6) 15.0, 140 Degree simmer
Grill BTU Rating (000's/btu) - LP Gas15.0
Griddle BTU Rating (000's/btu) - LP Gas16.0
Appearance
Toe KickIncluded
InstallationFlush Installation Capable
Control KnobsDiecast Metallic (Included)
Design StyleStatement Collection
Color AppearanceStainless Steel
Capacity
Capacity (cu. Ft.)5.75 Caterer Oven / 2.5 Everyday Oven
