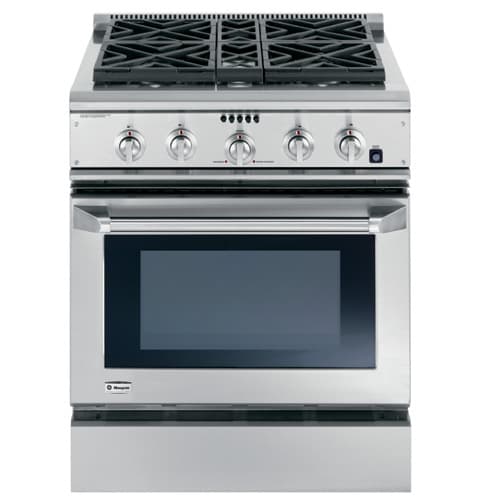

| Brand | Monogram |
| Model # | ZDP30N4HSS |
| Width | 29.88 in. |
| Height | 35.25 in. |
| Depth | 26.75 in. |
$5,049.00
Ships When Available— Backorder OK
This item is on backorder and will ship when available.
Stack & Save
Save up to $1,000 on qualifying orders
Dimensions
Net Weight340 lb
Overall Width29.875 in
Overall Depth26.75 in
Overall Height35.25 in
Interior Dimensions - Main Oven (wxhxd) (in.)24 x 14 x 20-3/8
Height W/legs Extended - Maximum Height36.75 in
Cabinet Width30 in
Height To Cooking Surface (in.)35.25 - 36.75
Height W/ Legs Retracted - Minimum Height35.25 in
Width29.88 in.
Height35.25 in.
Length26.75 in.
Weight340 lbs.
Features
Configuration4 Burners
Oven Features8-Pass Broil Element (Main Oven)
Cleaning Time5 Hours
Ignition SystemElectronic w/Auto Reignition
Broiler Pan And GridYes
Interior Oven Light1 Halogen Main Oven
Fuel TypeDual Fuel (with natural gas)
Cooktop Burner Type4 Sealed, Dual Flame Stacked
Oven Control FeaturesOven Lock Light - Main Oven
Oven Rack Features3 Self-Clean Oven Racks
Convection Roasting RackYes
Oven Cleaning TypeSelf-Clean
Cooktop Burner Grate FeaturesPorcelainized Cast Iron 3-Piece Reversible (Flat/Wok) Grates
Oven Rack Positions (single Or Upper/lower)4
Self-clean Oven Door LockAutomatic
Cooking TechnologyConvection
Accessories
LP Conversion KitWB49X10132
Optional BackguardZX9B30HSS; ZX22B30HSS
Power & Ratings
Top Burner BTU Rating - Nat. Gas (000's BTU's)(4) 17.0, 140 Degree simmer
Electrical Requirements208V/240V
Top Burner BTU Rating - LP (000's BTU's)(4) 15.0
Amp Rating At 208v16.2
Bake/broil Wattage - Main Oven3700/4000W
Amp Rating At 240v18
Warranty
Labor WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details
Parts WarrantyLimited 5-year gas surface burners
Appearance
Design StyleProfessional Stainless Steel
Color AppearanceStainless Steel
