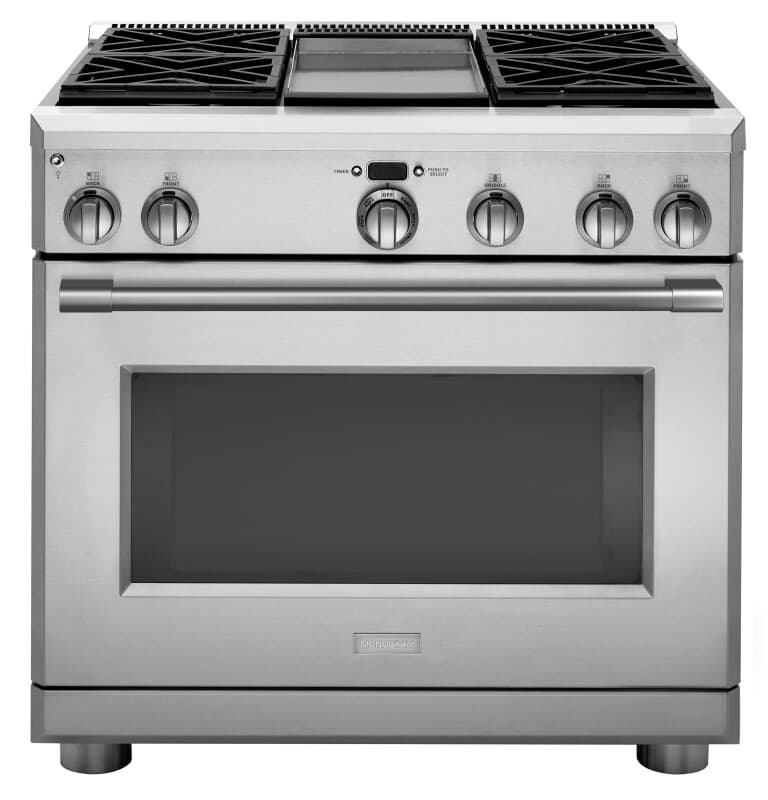

Monogram 36" Dual-Fuel Professional Range with 4 Burners and Griddle (Natural Gas)
Model: ZDP364NDNSS
| Brand | Monogram |
| Model # | ZDP364NDNSS |
| Width | 35.88 in. |
| Height | 35.25 in. |
| Depth | 30.88 in. |
$8,700.00
Ships When Available— Backorder OK
This item is on backorder and will ship when available.
Stack & Save
Save up to $1,000 on qualifying orders
Dimensions
Net Weight417 lb
Overall Width35.875 in
Overall Depth30.875 in
Overall Height35.25 in
Height W/legs Extended - Maximum Height36.75 in
Cabinet Width36 in
Height To Cooking Surface (in.)35.25 - 36.75
Height W/ Legs Retracted - Minimum Height35.25 in
Width35.88 in.
Height35.25 in.
Length30.88 in.
Weight417 lbs.
Warranty
Parts2 Year
Labor2 Year
Labor WarrantyLimited 2-year entire appliance
Warranty NotesSee written warranty for full details
Parts WarrantyLimited 5-year gas surface burners
Features
Configuration4 Burners; Griddle
140 Deg. Simmer BurnerAll Burners - Adjustable
Cooking SystemTrue European Convection
Cleaning Time5 Hours
Ignition SystemElectronic w/Auto Reignition
Broiler Pan And GridYes
Interior Oven Light6 Halogen Lamps (Caterer Oven)
Fuel TypeDual Fuel (with natural gas)
Short Description36" Pro Range - Dual Fuel with Griddle
Oven Control FeaturesDelay Clean Option
Cooktop Burner Type4 Sealed, Dual Flame Stacked
Oven Rack FeaturesFull-Extension
Oven Cleaning TypeSelf-Clean
Convection Roasting RackYes
Indicator LightsBurner "On"
Removable Grease Trough(1) Front of Griddle
Cooktop TypeContinuous Grates
Cooktop Burner Grate FeaturesPorcelainized Cast Iron 3-Piece Reversible (Flat/Wok) Grates
LightingLED Bullnose Task Lighting
Cooktop SurfacePorcelain-Enamel
Extra Low SimmerAll Burners - Adjustable
Stainless Steel Grill / Griddle Covers1
Oven Rack Positions (single Or Upper/lower)5
Control Typewith Timer Display
Self-clean Oven Door LockAutomatic
Cooking TechnologyConvection
Oven Cooking ModesBroil
GriddleStainless Steel and Aluminum Clad
Accessories
LP Conversion KitIncluded
Bamboo CuttingboardIncluded (1)
High Altitude KitWB28K10553
Optional Grill Accessory (cast Iron)UXGRILL
Optional Backguard30"-36" adjustable stainless steel backsplash with warming shelf (UXADJB36PSS)
Power & Ratings
Griddle BTU Rating (000's/btu) - Natural Gas18.0
Top Burner BTU Rating - Nat. Gas (000's BTU's)(4) 18.0, 140 Degree simmer
Electrical Requirements240VAC; 30A
Top Burner BTU Rating - LP (000's BTU's)(4) 15.0, 140 Degree simmer
Griddle BTU Rating (000's/btu) - LP Gas16.0
Appearance
Toe KickIncluded
InstallationFlush Installation Capable
Control KnobsDiecast Metallic (Included)
Design StyleStatement Collection
Color AppearanceStainless Steel
