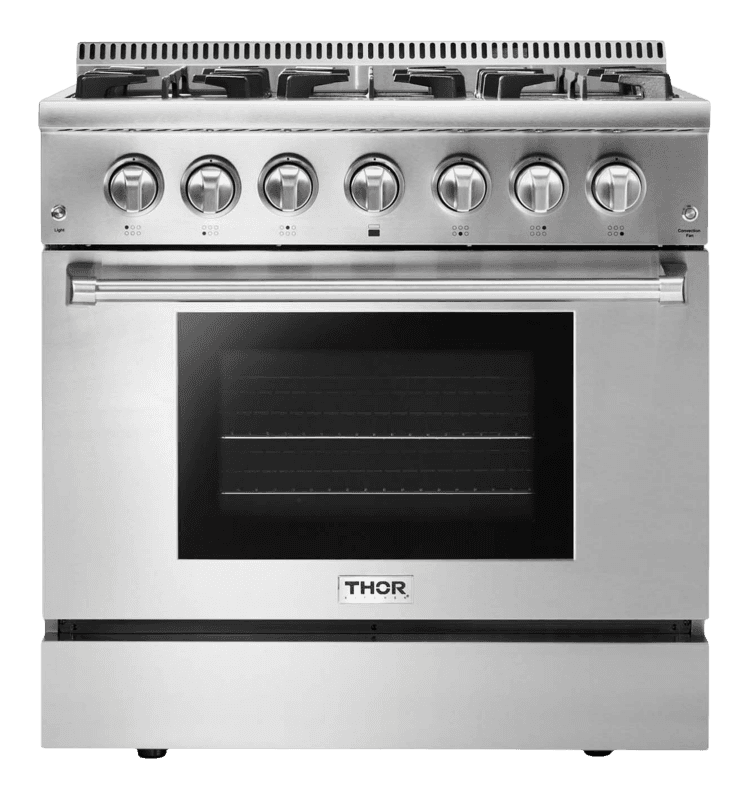

| Brand | Thor Kitchen |
| Model # | HRD3606U |
| Width | 36 in. |
| Height | 57.5 in. |
| Depth | 27.88 in. |
$4,999.00
$6,499.00Save $1,500.00 (23%)
Ships When Available— Backorder OK
This item is on backorder and will ship when available.
Stack & Save
Save up to $1,000 on qualifying orders
Dimensions
Width36 in.
Height57.5 in.
Length27.88 in.
Net Weight277 lbs.
Gross Weight327 lbs.
Product Height (from Bottom To Top Of Side Panel)35 15/16" – 36 15/16"
Product Depth (from Back Panel To Control Board)26 1/2"
Product Depth (from Back Panel To Side Panel Front)24 3/16"
Depth Of Control Panel (minimum2 1/4"
Depth Of Control Panel (bullnose)3 11/16"
Product Width36”
Product Height (from Bottom To Top Of Back Splash)38 1/2”-39 1/2”
Product Depth (from Back Panel To Bullnose)27 7/8”
Cast Iron Cooking Grate (w X L)10 3/4” x 23”
Technical Details
Fuel TypeNatural Gas / LP Convertible
Installation TypeFreestanding
ColorStainless Steel
Electrical Requirements240V, 4-Prong 14-50R Power Outlet
Frequency (hz)60 Hz
Controls TypeKnob
Circuit Breaker (a)15 A
Volts240 V
Burner Performance
[1] Front Left (single)18,000 BTU
[2] Front Middle (single)18,000 BTU
[3] Front Right (single)18,000 BTU
[4] Rear Left (dual Burner With Simmer Function)15,000 BTU (650 BTU for Simmer)
[5] Rear Middle (single)12,000 BTU
Total Burners6
[6] Rear Right (dual Burnerwith Simmer Function)15,000 BTU (650 BTU for Simmer)
Oven Performance
Broil Power3,500 W
Oven Capacity5.2 cu. ft.
Bake Power850 W (Top) / 3,000W (Bottom)
Oven Dimensions
Distance Between Oven Rack2 1/8″
Oven Cavity Dimension30”W x 15 1/4”H x 18”D
Oven Rack Dimension28 3/4” x 15 1/2”
Other
Adjustable Leg Sizes1 in. Max.
