| Brand | Whirlpool |
| Model # | WCG97US0HS |

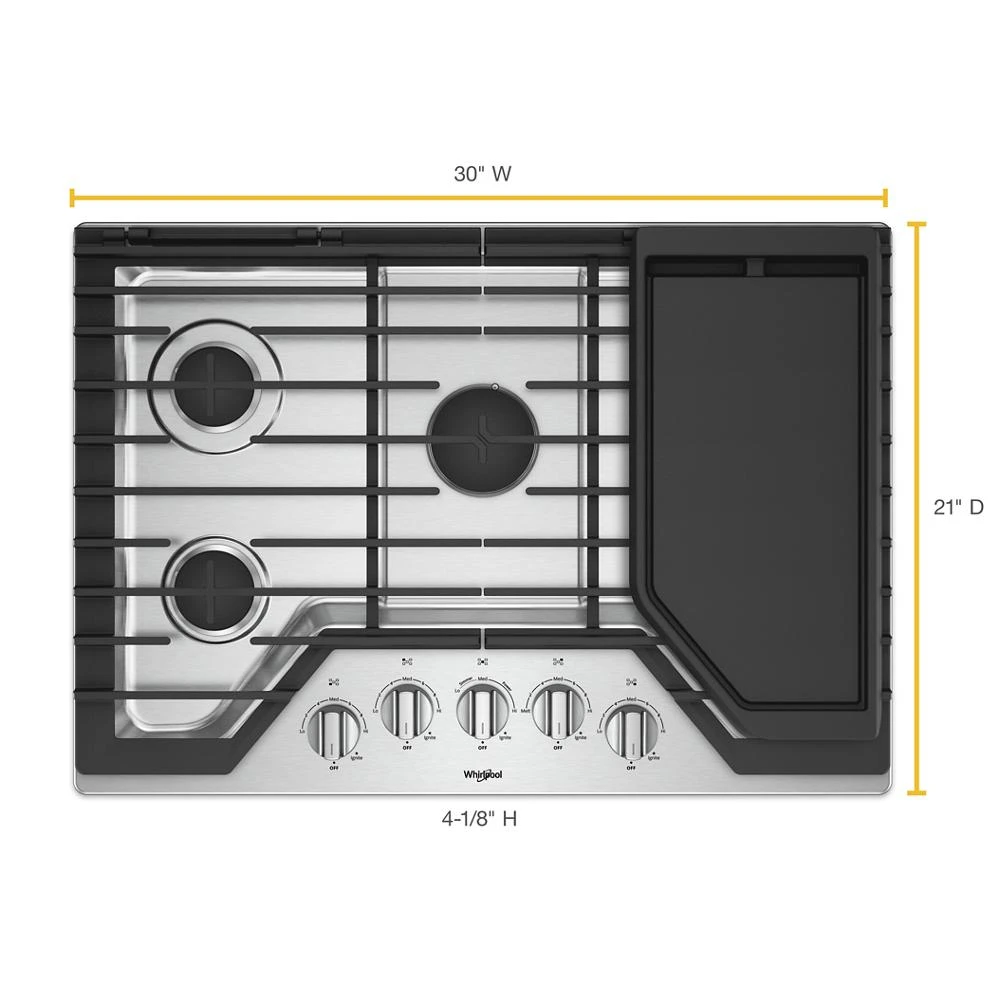

| Width | 30 in. |
| Height | 4.13 in. |
| Depth | 21 in. |
$1,359.00
Ships When Available— Backorder OK
This item is on backorder and will ship when available.
Stack & Save
Save up to $1,000 on qualifying orders
Dimensions
Cutout Depth19.5
Cutout Depth Max20
Cutout Depth Min19
Cutout Width28.875
Cutout Width Max29.313
Cutout Width Min28.5
Gross Weight59
Net Weight54
Width30 in.
Height4.13 in.
Length21 in.
Weight59 lbs.
Cutout Depth (in)19 1/2
Cutout Width (in)28 7/8
Maximum Height4 1/8
Minimum Height3 3/8
Cutout Depth Max(in,inches)20.0000
Cutout Depth Min(in,inches)19.0000
Cutout Depth(in,inches)19.5000
Cutout Width Max(in,inches)29.3125
Cutout Width Min(in,inches)28.5000
Cutout Width(in,inches)28.8750
Maximum Height(in,inches)4.1250
Minimum Height(in,inches)3.3750
Net Weight(lb,pounds)54
Gross Weight(lb,pounds)59
Controls

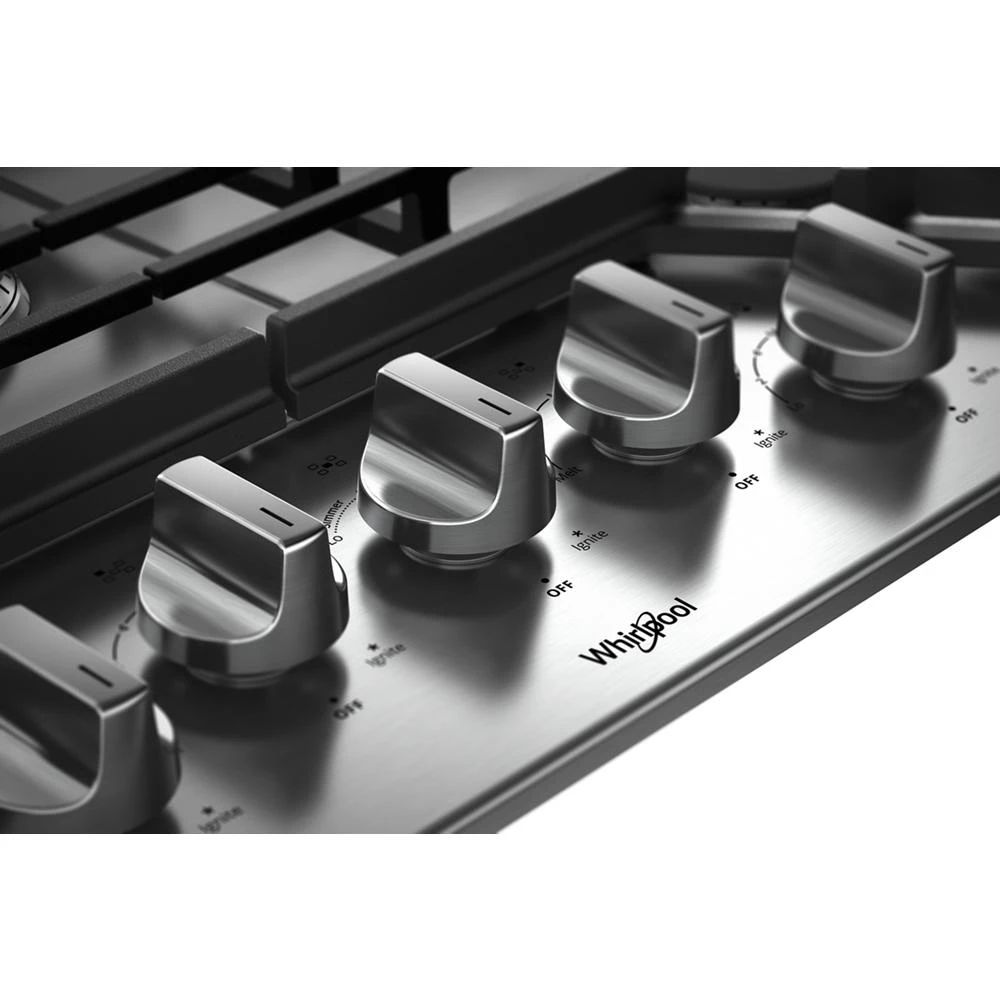

Control LocationFront
Control TypeKnobs
Infinite Heat ControlsYes
Cooktop Details
Ignition TypeDirect Spark Ignition
Cooktop Surface MaterialStainless Steel
Digital DisplayNo
Griddle IncludedYes, Kit Included
Heating Element On Indicator LightNo
Hot Surface Indicator LightNo
Certifications
ADA CompliantADA Height and Side Reach Compliant
UlYes
Prop65Standard
Electrical
Power Cord IncludedYes
Details
Automatic Pan DetectionNo
Cooktop SelectionsAccuSimmer Plus
Fuel TypeGas
Installs Over Built-in OvenYes
LP ConvertibleYes - Kit Included
Power Outage CompatibleYes
Element/burner Details
Center Front Element-burner Power17, 000 BTU
Center Front Element-burner TypeFlexHeat

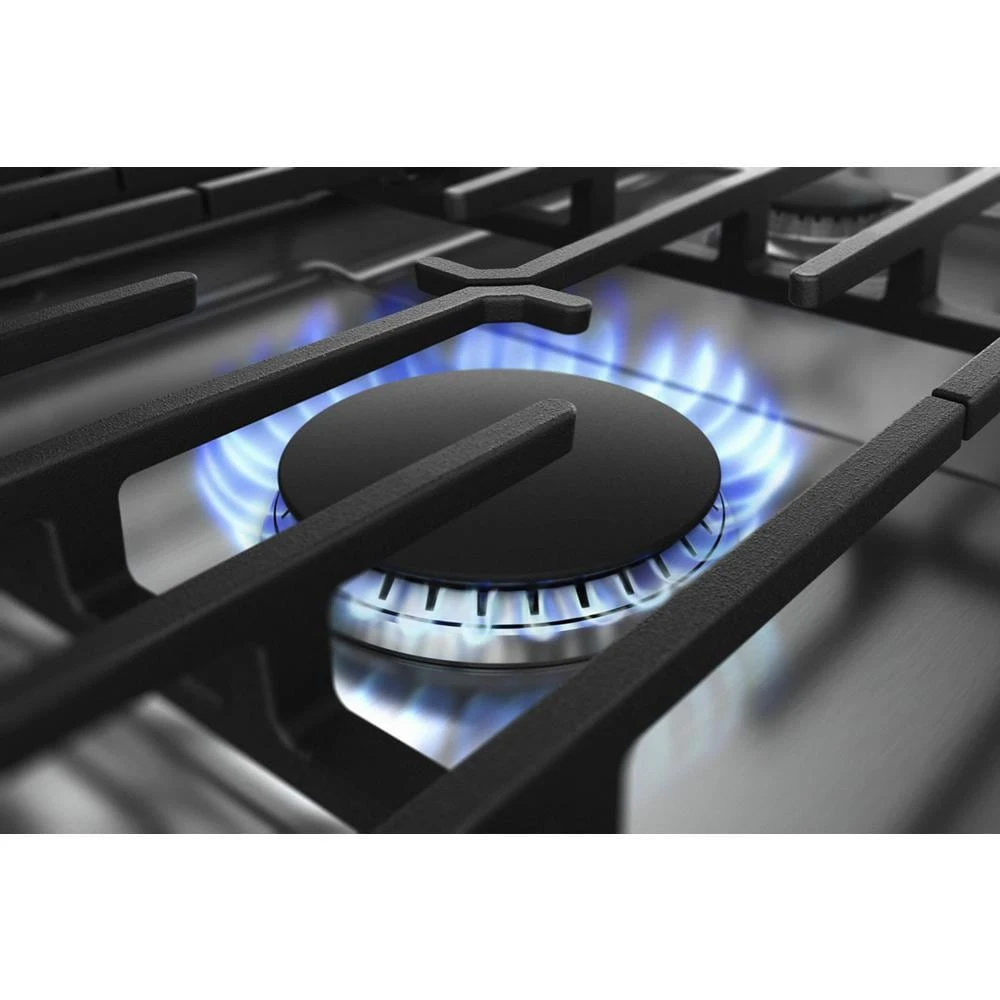

Cooktop Element StyleSealed Burner
Cooktop TypeStandard
Left Front Element-burner Power10000 BTU
Left Front Element-burner TypeSpeedHeat™
Left Rear Element-burner Power10, 000 BTU
Left Rear Element-burner TypeSpeedHeat™
Number Of Cooking Element-burners5
Power BoostNo
Right Front Element-burner Power10, 000 BTU
Right Front Element-burner TypeSpeedHeat™
Right Rear Element-burner Power5, 000 BTU
Right Rear Element-burner TypeSimmer
Grate Details

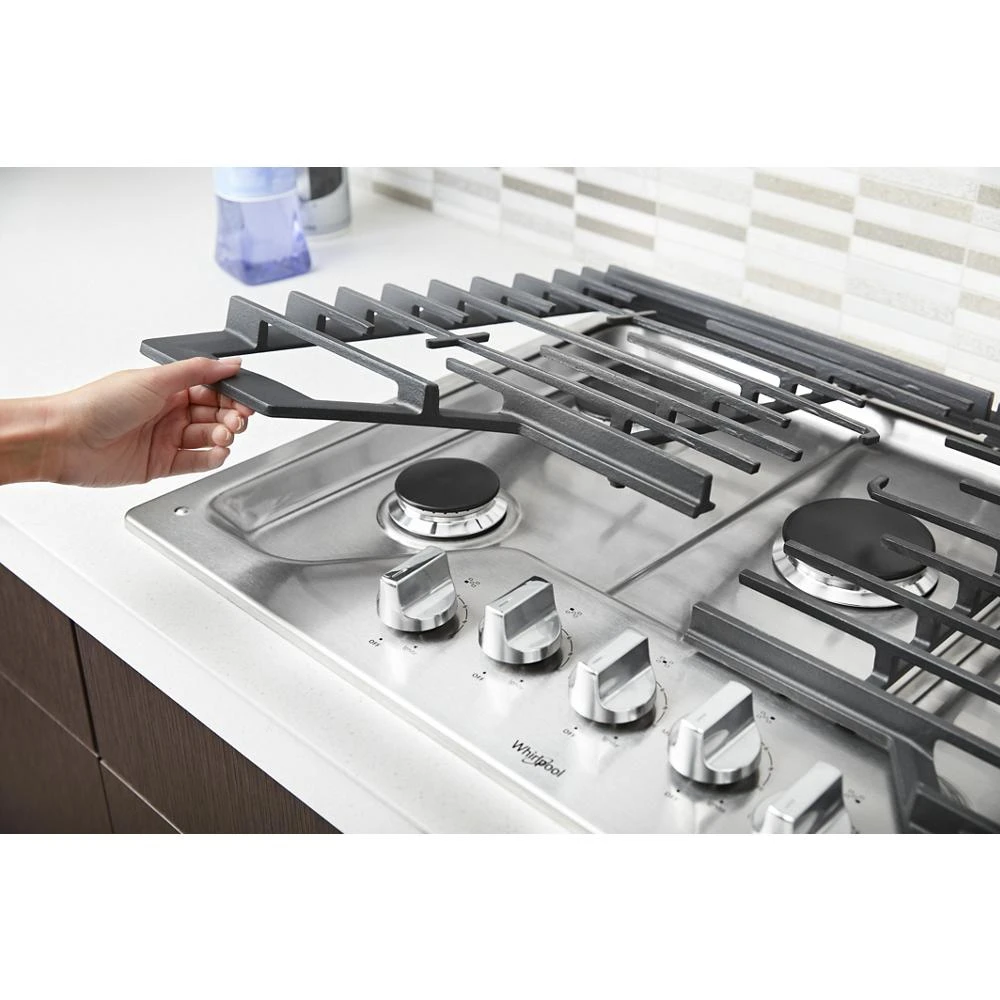

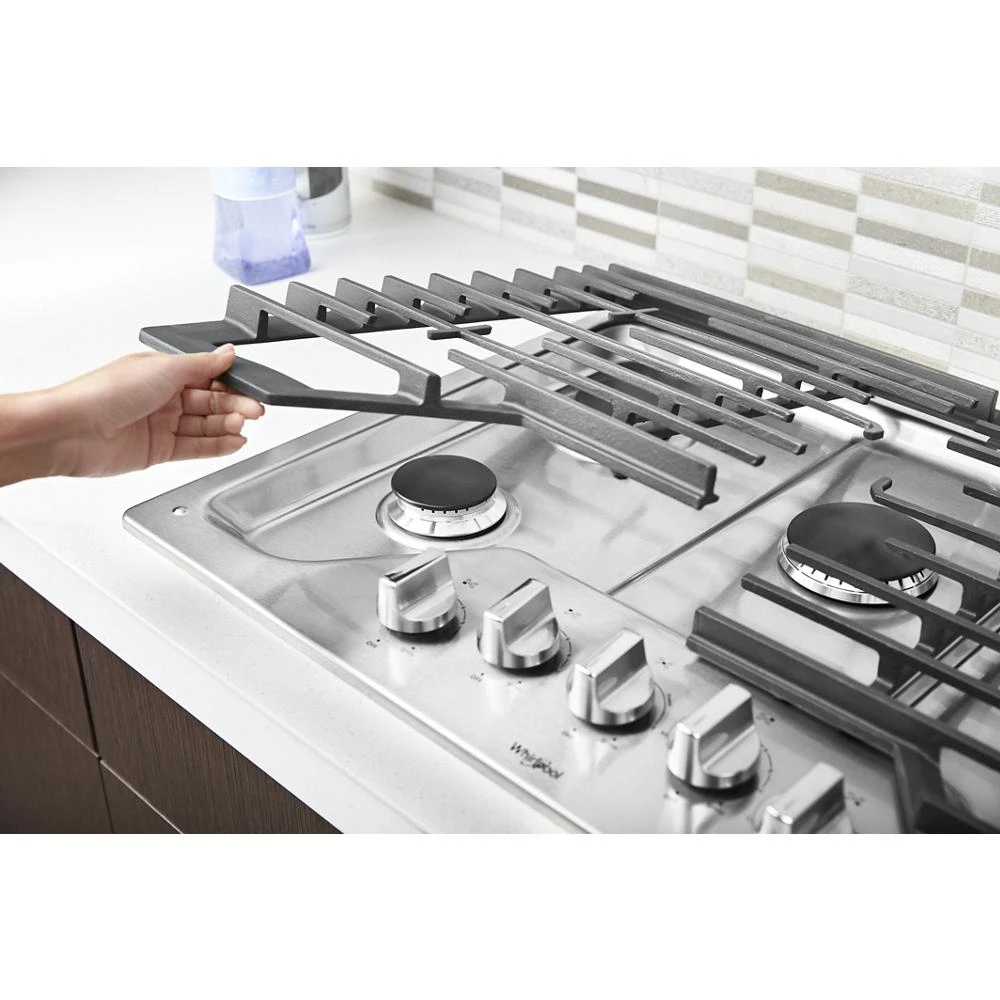

Grate DetailsCast Iron Grates; Continuous with Hinge; Dishwasher Safe; Matte Finish
Number Of Grates2
Ventilation Details
Downdraft VentNo
Product Details
Combination Match With OvenWOS11EM4; WOS31ES0; WOS31ES7; WOS51EC0; WOS51EC7; WOS51ES4; WOS52EM4; WOS72EC0; WOS72EC7; WOS92EC0; WOS92EC7; WOS97EC0; WOS97ES0; WOSA2EC0
