| Brand | Amana |
| Model # | ACR4203MNW |
| Width | 29.88 in. |
| Height | 46.88 in. |
| Depth | 27-3/4 in |
$518.00
$577.00Save $59.00 (10%)
Ships When Available— Backorder OK
This item is on backorder and will ship when available.
Stack & Save
Save up to $1,000 on qualifying orders
Dimensions
Width29.88 in.
Height46.88 in.
Length27.75 in.
Weight127 lbs.
Cutout Depth (in)4.8
Cutout Height (in)24
Cutout Width (in)30
Depth Closed Excluding Handles25 5/16
Depth Closed Including Handles27 3/4
Depth With Door Open 90 Degree46 11/16
Gross Weight142
Maximum Height47 7/8
Minimum Height46 7/8
Net Weight127.0
Cutout Depth(in,inches)24.0000
Cutout Height(in,inches)36.0000
Cutout Width(in,inches)30.0000
Depth Closed Excluding Handles(in,inches)25.3125
Depth Closed Including Handles(in,inches)27.7500
Depth With Door Open 90 Degree(in,inches)46.6875
Maximum Height(in,inches)47.8750
Minimum Height(in,inches)46.8750
Capacity4.8 cu. ft.
Common Size30 in
Cutout Depth24 in
Cutout Height36 in
Cutout Width30 in
Depth27-3/4 in
Oven Interior Depth18-1/2 in
Oven Interior Width24-1/2 in
Details
Oven Automatic Shut-offNo
Cooktop ConfigurationAll Burners
Fuel TypeElectric
LP ConvertibleNo
Power On Indicator LightYes
Power Outage CompatibleNo
Range TypeFreestanding
Natural Gas ConvertibleNo
Oven SelectionsBake, Broil, Keep Warm/Warm Hold

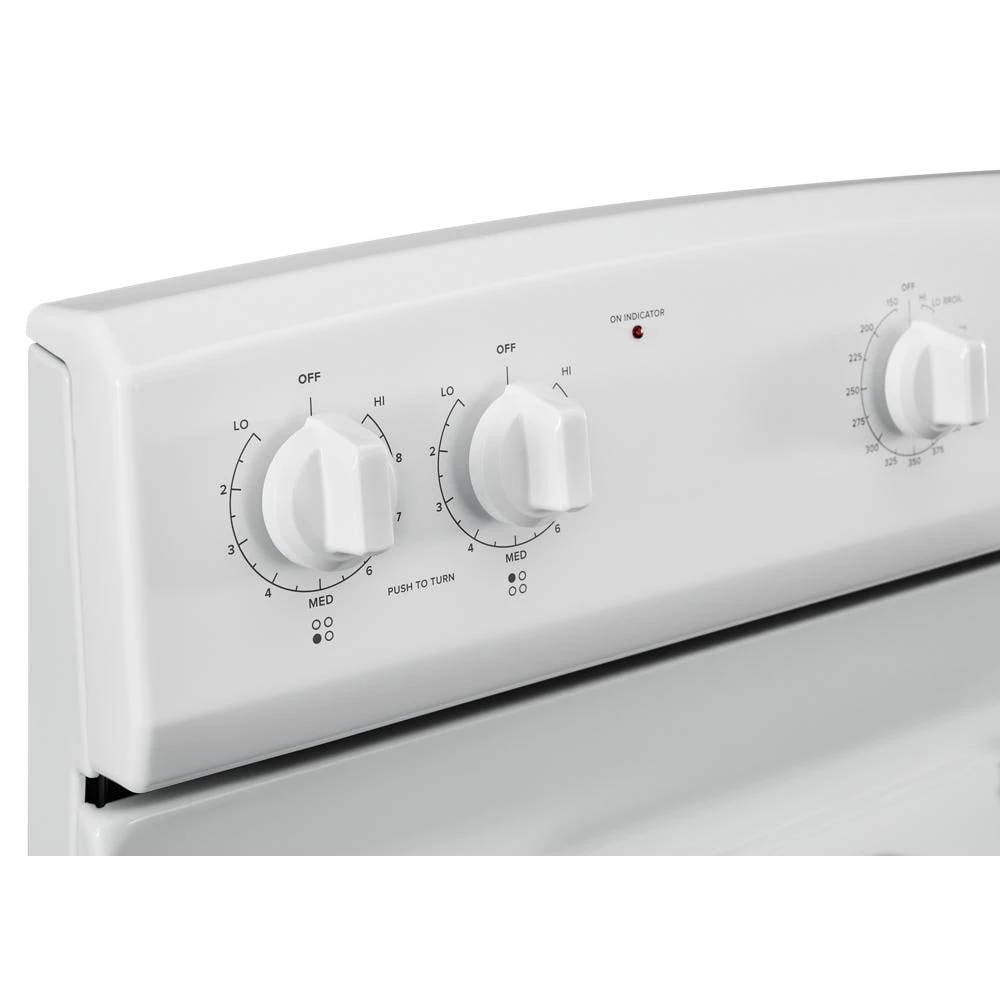

Cooktop Details
Cooktop Control Knob ColorWhite
Cooktop Control Knob TypeDishwasher Safe Plastic

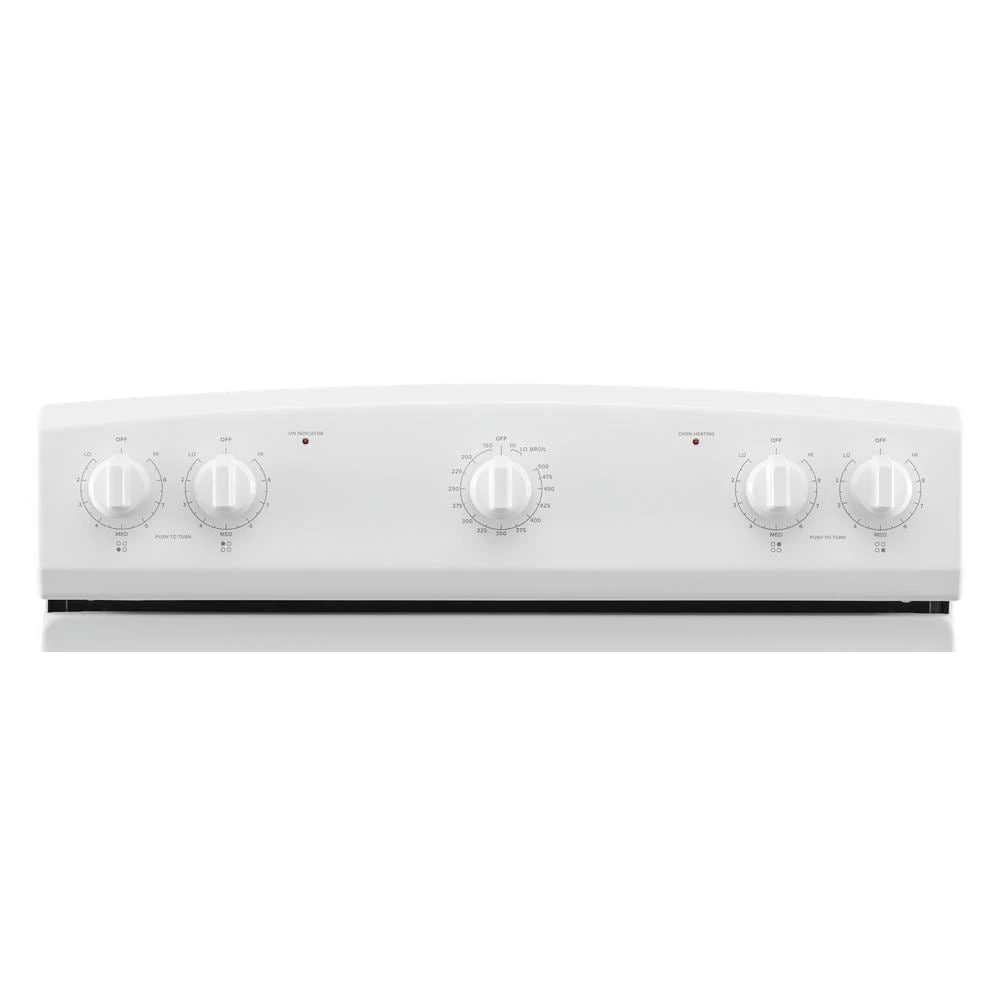

Cooktop Control LocationBackguard
Cooktop Control TypeKnobs
Cooktop Surface ColorWhite
Cooktop Surface MaterialPorcelain Coated Steel
Griddle IncludedNo
Heating Element On Indicator LightYes
Hot Surface Indicator LightNo
Certifications
UlYes
Prop 65Yes
Electrical
Amps40
Hz60
Power Cord IncludedNo
Volts208
Other
Capacity (cu Ft)4.80

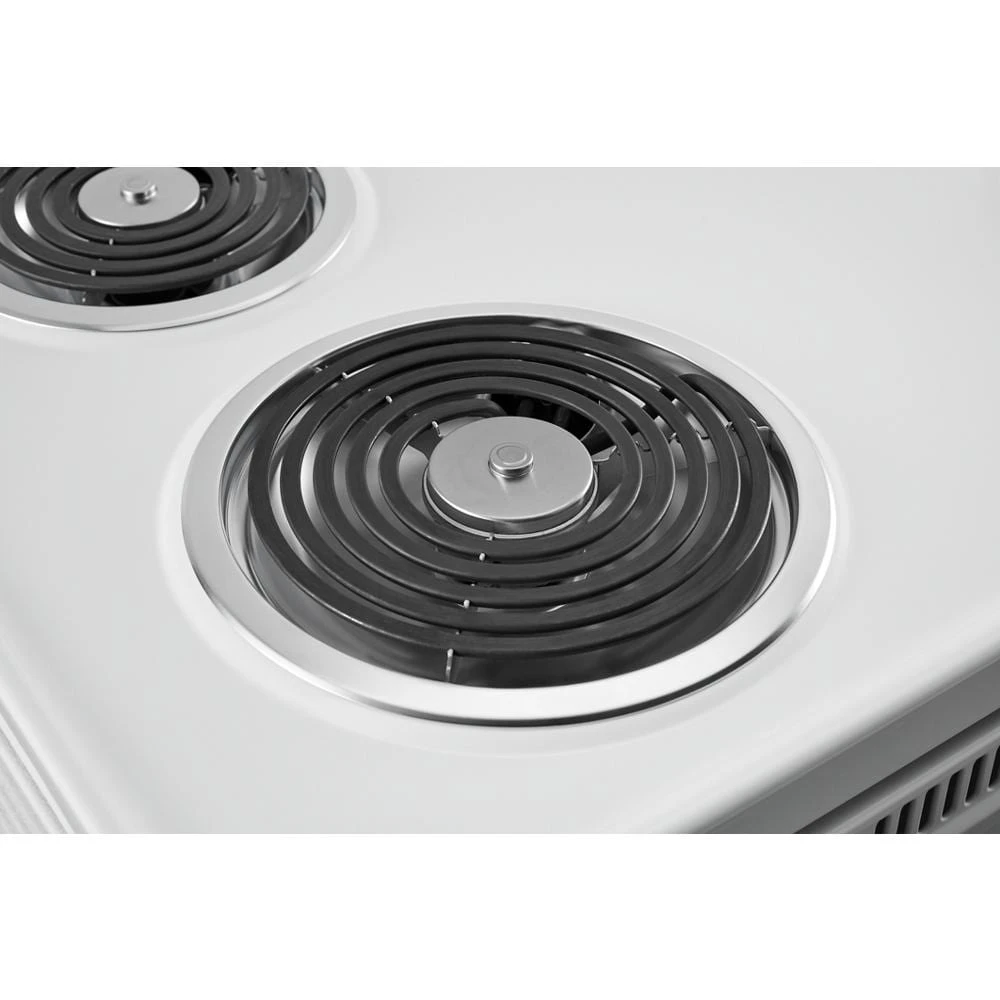

Element/burner Details
Cooktop Element StyleCoil
Left Front Element-burner Size8in.
Left Front Element-burner TypeStandard
Left Rear Element-burner Size6in.
Left Rear Element-burner TypeStandard
Number Of Cooking Element-burners4
Right Front Element-burner Power1250W
Right Front Element-burner Size6in.
Right Front Element-burner TypeStandard
Right Rear Element-burner Size8in.
Right Rear Element-burner TypeStandard
Left Front Element-burner Power2,100W
Left Rear Element-burner Power1,250W
Right Rear Element-burner Power2,100W
Exterior Details
Door TypeMetal & Glass
Oven Control Knob TypeDishwasher-Safe Plastic
Oven Control LocationBackguard
Oven Control TypeKnobs
Handle ColorWhite
Handle MaterialPlastic
Handle TypeReach Through Handle
Knob ColorWhite
Knob TypeDishwasher-Safe Plastic
Oven Control Knob ColorWhite

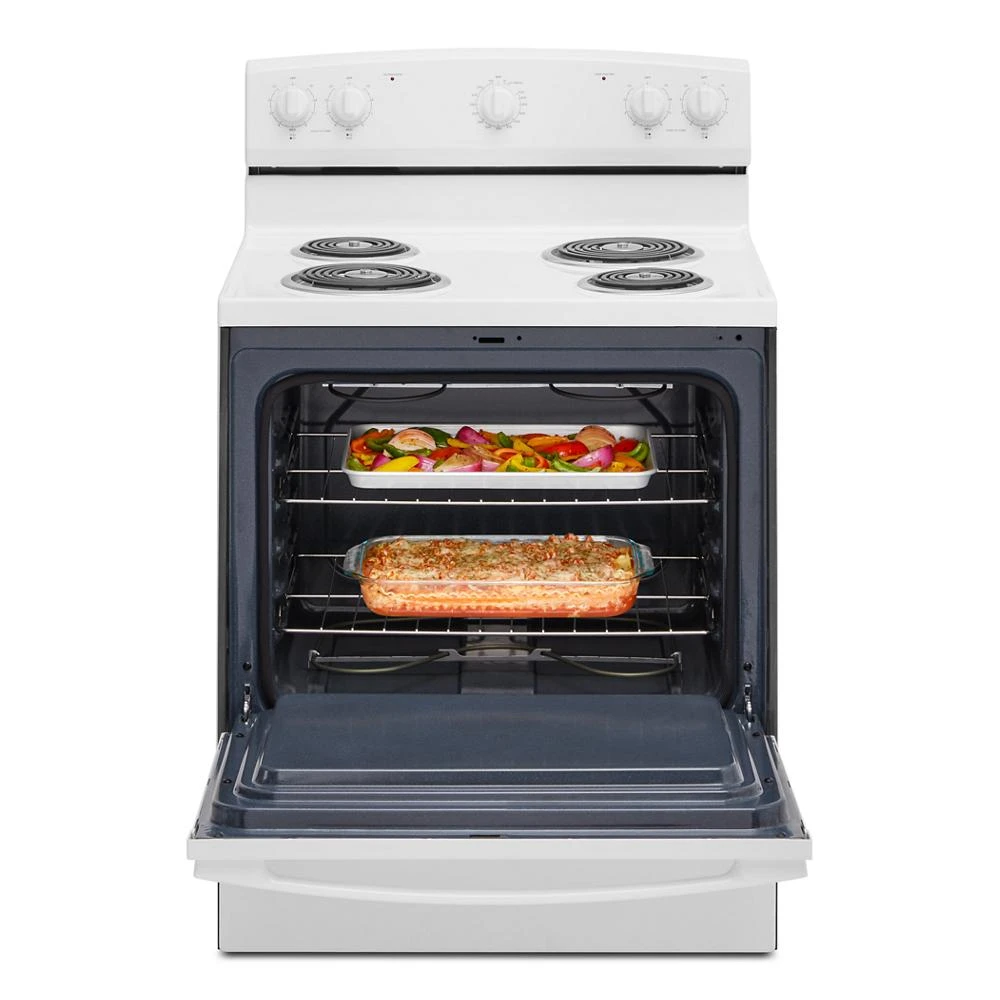

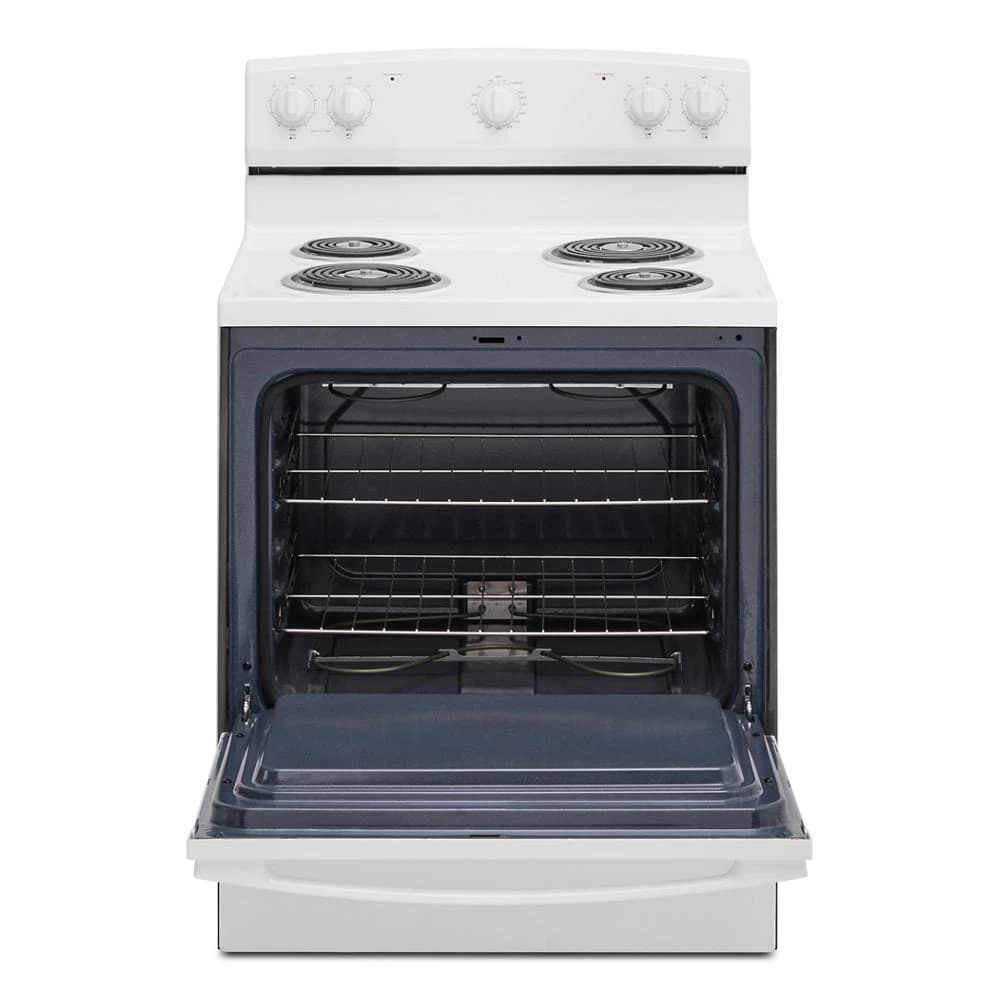

Oven Cavity Details
Automatic Convection Conversion Temperature AdjustNo
Bake Element Power2,400 W
Broiler Element Power3,400 W
Broiler LocationTop of Oven
Door RemovableYes
Hidden Bake ElementNo
Interior ColorGrey
Natural Gas ConvertibleNo
Number Of Oven Racks2
Number Of Rack Guides5
Oven Cleaning TypeManual Clean
Oven Cooking SystemThermal
Oven Rack Type2 Standard
