Is the Broan EW5630SS good over a high-BTU range?

Yes — 650 CFM — about 65,000 BTU of burner output at the common 1-CFM-per-100-BTU sizing rule.

What warranty comes with the Broan EW5630SS?

The Broan Elite 30-Inch Wall-Mount Range Hood, 650 Max Blower CFM is listed with 1 year of coverage from the manufacturer, per this model's published specifications.

Hover to zoom

1 / 5

Broan

Elite 30-Inch Wall-Mount Range Hood, 650 Max Blower CFM

Model: EW5630SS

Brand	Broan
Model #	EW5630SS
Width	30 in.
Height	22.5 in.
Depth	19.75 in.

Who it’s for

Good over a high-BTU range — 650 CFM — about 65,000 BTU of burner output at the common 1-CFM-per-100-BTU sizing rule.

This model is discontinued

The Elite 30-Inch Wall-Mount Range Hood, 650 Max Blower CFM is discontinued and cannot be ordered.

The closest current model we carry is the 460 Max Blower CFM, 30-inch Curved Glass Chimney Range Hood.

Now available

460 Max Blower CFM, 30-inch Curved Glass Chimney Range Hood

$684.00

$62 less than the model it replaces

Same 30" width
Same color: Stainless Steel
Same 19.75" depth

See the newer model →

Need help finding a replacement? Call (732) 426-0990

Was $746 when available

At a glance

Broan EW5630SS is a range hood in Stainless Steel, 30 inches wide. It has 650 CFM of airflow. It suits a high-BTU range.

Specifications

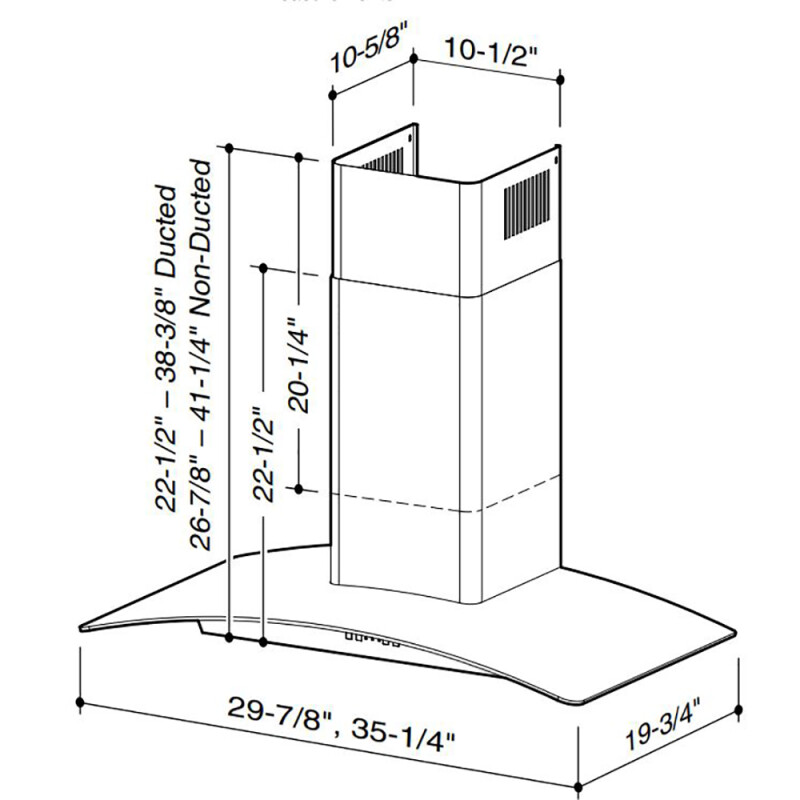

Dimensions

Width30 in.

Height22.5 in.

Length19.75 in.

Product Details

Filter TypeAluminum

Heat Sentry™No

Hvi CertifiedYes

Lighting TypeHalogen

Sound Level (sones)10.5

Ul ListedYes

ADA ComplianceNo

Damper IncludedYes

Energy Star® CertifiedNo

Light Bulb Wattage35

Light Bulbs IncludedYes

Light Levels3

Nightlight Or Nighlight SettingNo

Ductless Recirculation CapableYes

Ductless Filter Or Kit IncludedNo

Remote Operation CapableNo

Speed Levels3

Switch Control TypePush Button

Rated Voltage120

Boost ModeNo

Rated Amps2.88

Product Depth19.75

Product Height22.5

Product Width30"

Built-in TimerNo

CFM650 Max

Diameter6" Round

Vent TypeConvertible with Kit

Duct DirectionVertical

Bulb (recommended Type)MR16 GU10

Manufacturer Warranty1 Year

Wattage346

Product Features

Powerful 650 MAX blower CFM operates at a quiet 2.5 sones at normal speed.

Bright dual halogen lighting (bulbs included); 3 intensities

Control features Delay-off and Filter clean reminder

Optional remote control operation – BCR1 (sold separately)

Quick-release aluminum filters are dishwasher-safe for easy cleaning

Designed to work with Broan Automatic Make-up Air Dampers

Heat Sentry® detects excessive heat and adjusts blower to High speed automatically

Telescopic flue accommodates ceiling heights 8' to 9'; optional flue extension for either ducted or non-ducted 9' to 10' ceilings can be purchased separately
