Is the Broan EW5430BLS good over a high-BTU range?

Yes — 600 CFM — about 60,000 BTU of burner output at the common 1-CFM-per-100-BTU sizing rule.

What warranty comes with the Broan EW5430BLS?

The Broan Elite EW54 Series 30-Inch Wall-Mount Range Hood, 600 Max Blower CFM is listed with 1 year of coverage from the manufacturer, per this model's published specifications.

Hover to zoom

1 / 6

Broan

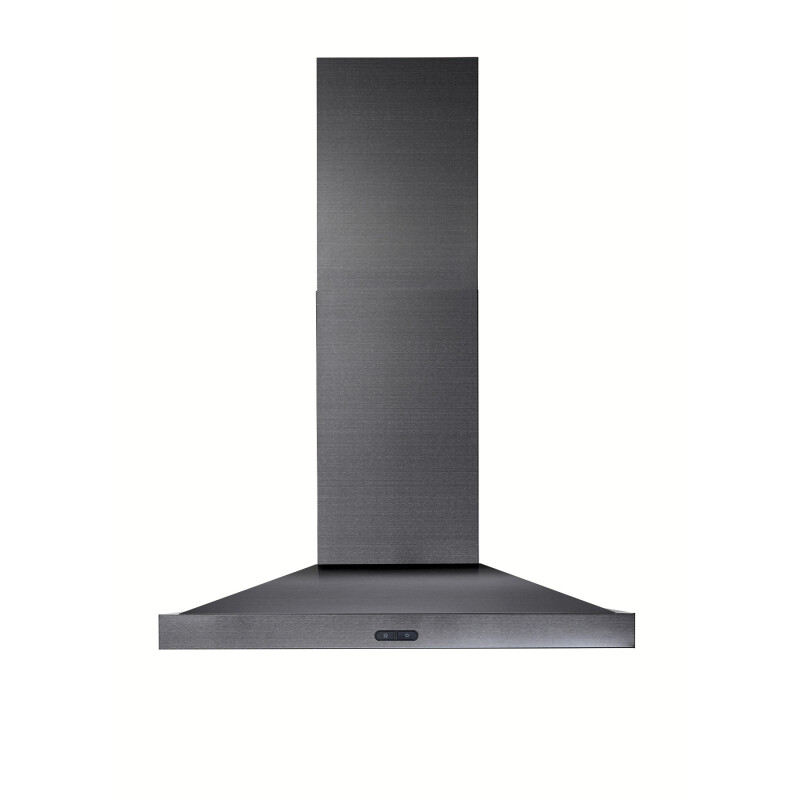

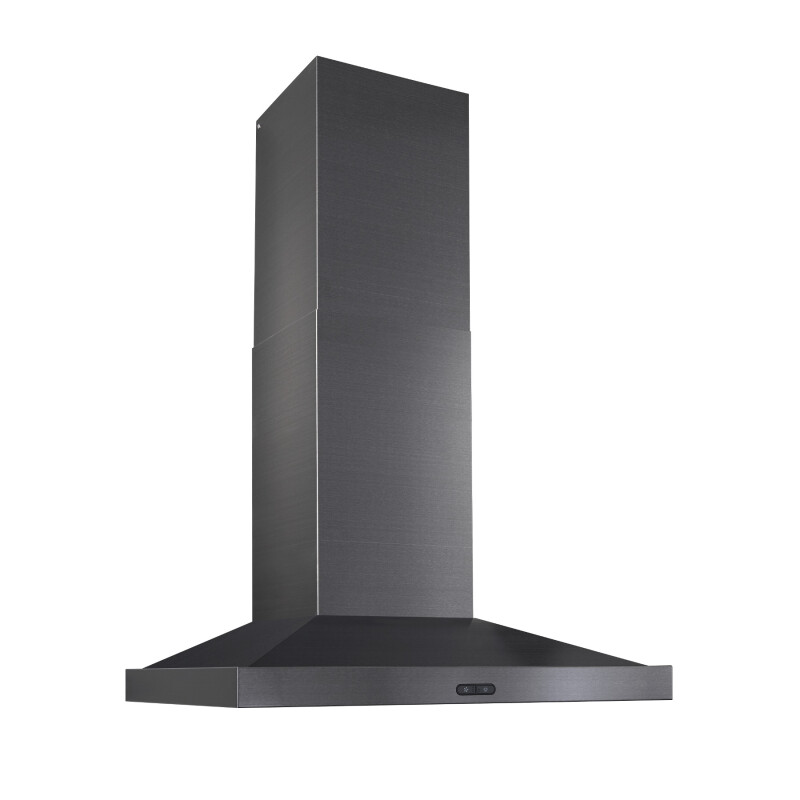

Elite EW54 Series 30-Inch Wall-Mount Range Hood, 600 Max Blower CFM

Model: EW5430BLS

Brand	Broan
Model #	EW5430BLS
Width	30 in.
Height	26.5 in.

Who it’s for

Good over a high-BTU range — 600 CFM — about 60,000 BTU of burner output at the common 1-CFM-per-100-BTU sizing rule.

This model is discontinued

The Elite EW54 Series 30-Inch Wall-Mount Range Hood, 600 Max Blower CFM is discontinued and cannot be ordered.

The closest current model we carry is the Alta 30-Inch 350 MAX Blower CFM 1.5 Sones Black Stainless Range Hood.

Now available

Alta 30-Inch 350 MAX Blower CFM 1.5 Sones Black Stainless Range Hood

$444.00

$353 less than the model it replaces

Same 30" width
Same color: Black Stainless Steel
Now ENERGY STAR
Now ADA Compliant

See the newer model →

Need help finding a replacement? Call (732) 426-0990

Was $797 when available

At a glance

Broan EW5430BLS is a range hood in Black Stainless Steel, 30 inches wide. It has 600 CFM of airflow. It suits a high-BTU range.

Specifications

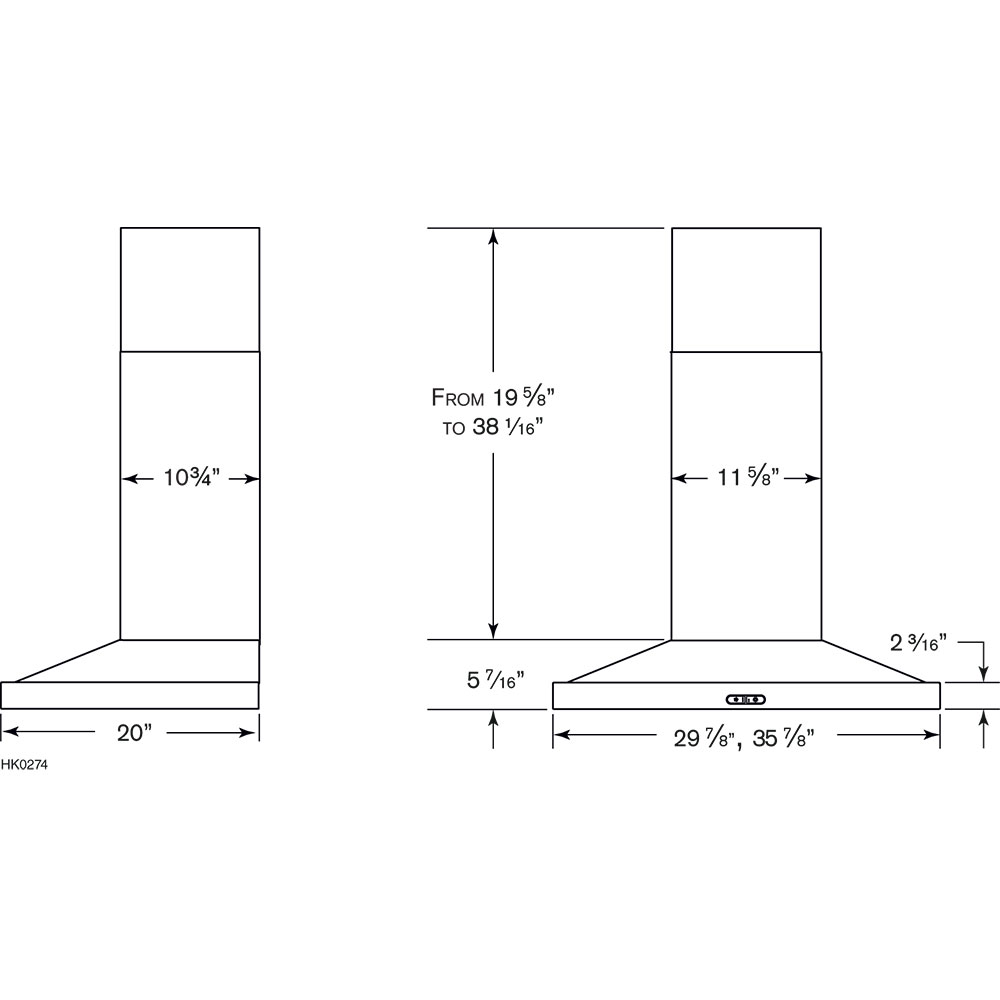

Dimensions

Width30 in.

Height26.5 in.

Product Details

Filter TypeMicro Mesh

Heat Sentry™No

Hvi CertifiedYes

Lighting TypeHalogen

Sound Level (sones)12

Ul ListedYes

ADA ComplianceNo

Damper IncludedYes

Energy Star® CertifiedNo

Light Bulbs IncludedYes

Light Levels2

Nightlight Or Nighlight SettingNo

Ductless Recirculation CapableYes

Ductless Filter Or Kit IncludedNo

Remote Operation CapableNo

Speed Levels3

Switch Control TypeCapacitive Touch

Rated Voltage120

Boost ModeNo

Rated Amps4.8

Product Height26.5

Product Width30"

Built-in TimerNo

CFM600

Diameter6" Round

Vent TypeConvertible with Kit

Duct DirectionHorizontal/Vertical

Bulb (recommended Type)MR16 GU10

Manufacturer Warranty1 Year

Wattage576

Product Features

Powerful 600 Max Blower CFM operates at a quiet 1.5 sones at normal speed

Tap-touch capacitive control features a smooth, easy-to-clean surface

Convertible chimney hood can be installed as ducted or non-ducted to fit a variety of installation needs

Vertical or rear exhaust option lets you connect the ductwork to the top or rear of the range hood

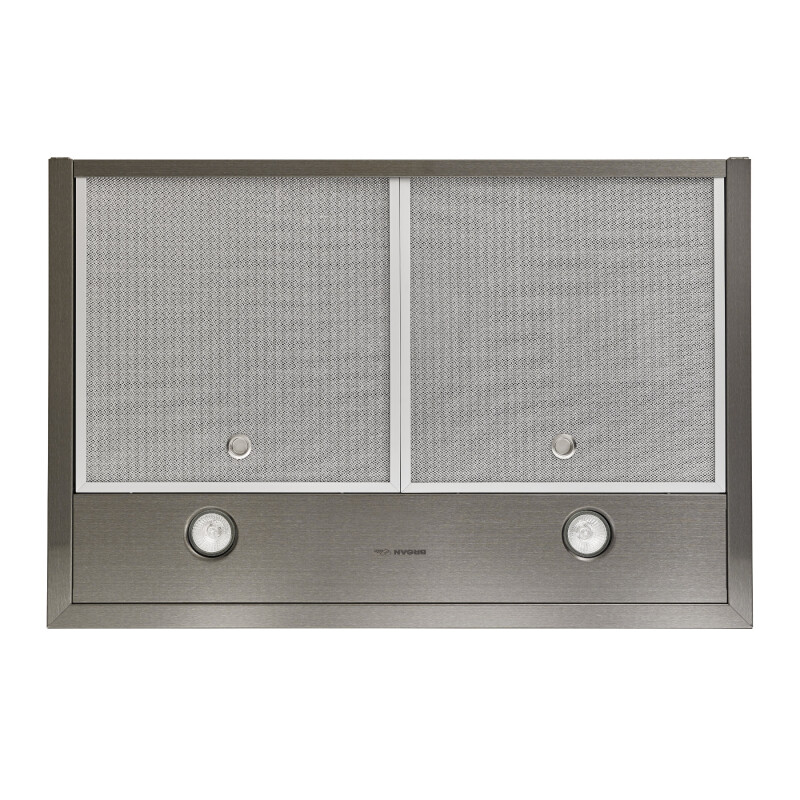

Dishwasher-safe micro-mesh filters provide highly efficient grease removal

Bright dual halogen lighting with 2-intensity settings (bulbs included)

Flue extension for higher ceilings is also available (model FXE54BLS)

Limited 1 year warranty

Non-duct capable with use of HRKMBLS Non-Duct Kit (sold separately)

Product Documents

Specification Sheet

Spec Sheet384.82 KB

Installation Guide

Installation Guide8.31 MB

Customer Reviews

No reviews yet

Be the first to review this product.

Common questions

Is the Broan EW5430BLS good over a high-BTU range?: Yes — 600 CFM — about 60,000 BTU of burner output at the common 1-CFM-per-100-BTU sizing rule.
What warranty comes with the Broan EW5430BLS?: The Broan Elite EW54 Series 30-Inch Wall-Mount Range Hood, 600 Max Blower CFM is listed with 1 year of coverage from the manufacturer, per this model's published specifications.
