Is the Fisher Paykel RS3684WRUVE1 in stock?

Yes — the Fisher Paykel 36" Series 11 Integrated Refrigerator Freezer, Ice & Water is in stock at All Make Appliance and available to order now.

Is the Fisher Paykel RS3684WRUVE1 good for accessible kitchens?

Yes — Listed ADA compliant, so this refrigerator suits kitchens built to the 2010 ADA Standards.

Is the Fisher Paykel RS3684WRUVE1 good for Sabbath-observant homes?

Yes — A Sabbath mode is listed on this refrigerator's specification.

Does the Fisher Paykel RS3684WRUVE1 qualify for free shipping?

Yes — at this price, this product qualifies for free delivery in every shipping zone (NJ/NY metro, regional, and nationwide).

What warranty comes with the Fisher Paykel RS3684WRUVE1?

The Fisher Paykel 36" Series 11 Integrated Refrigerator Freezer, Ice & Water is listed with 1 year of parts and labor coverage from the manufacturer, per this model's published specifications.

$11,499.00

In Stock

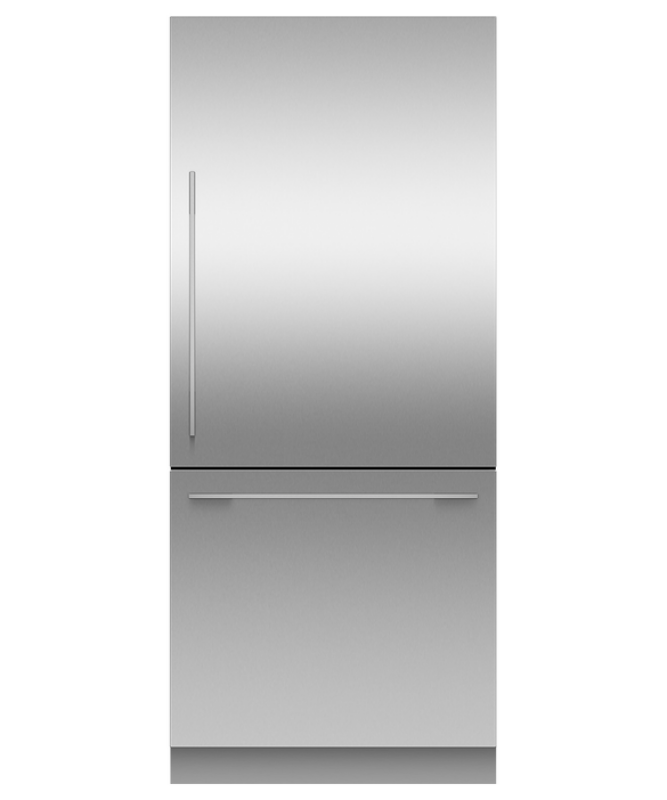

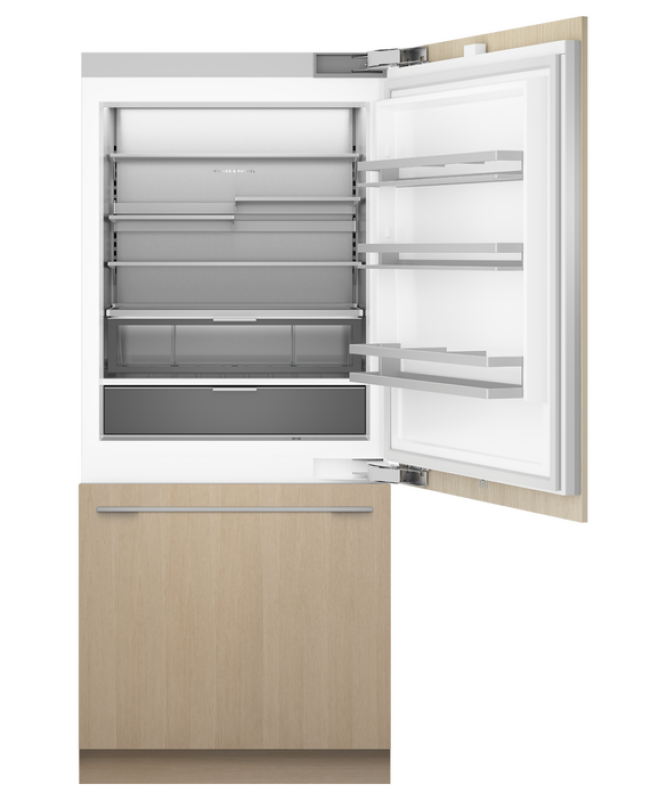

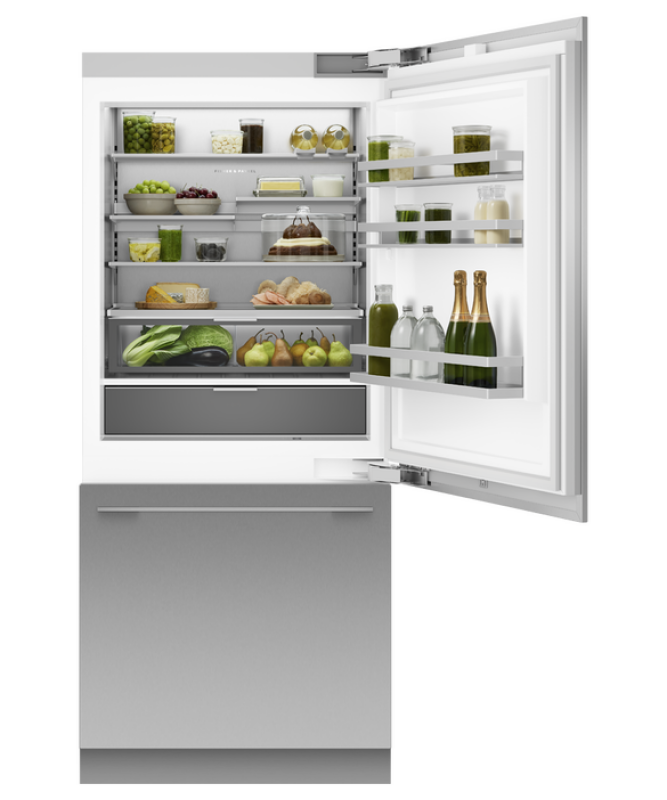

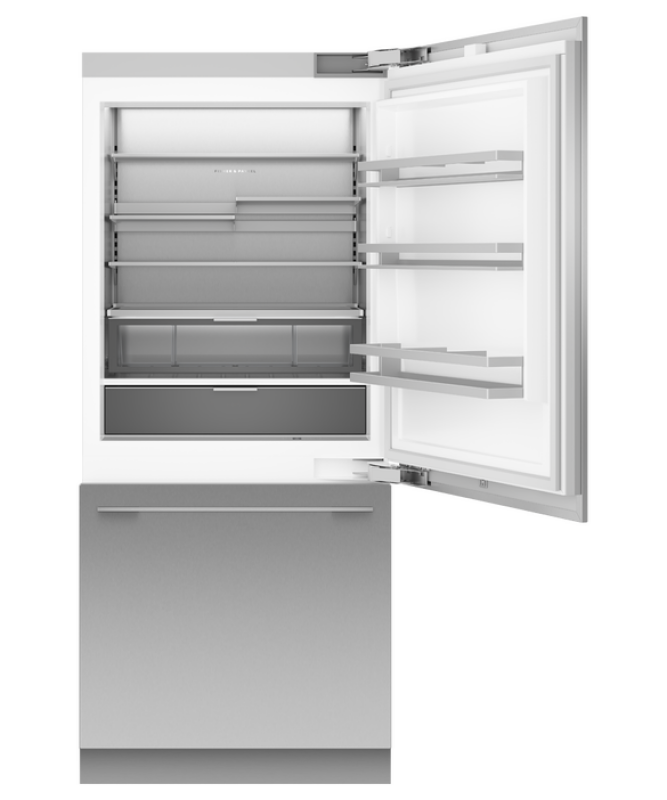

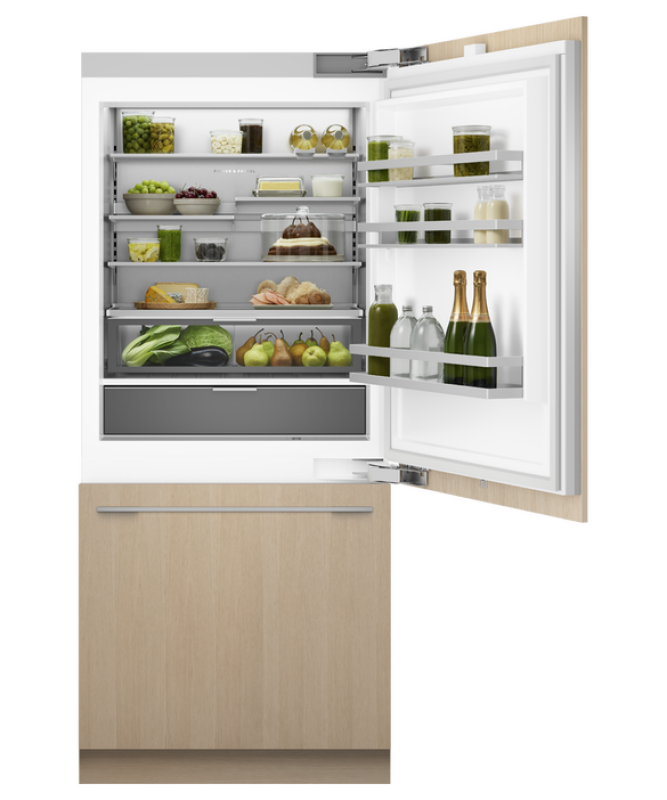

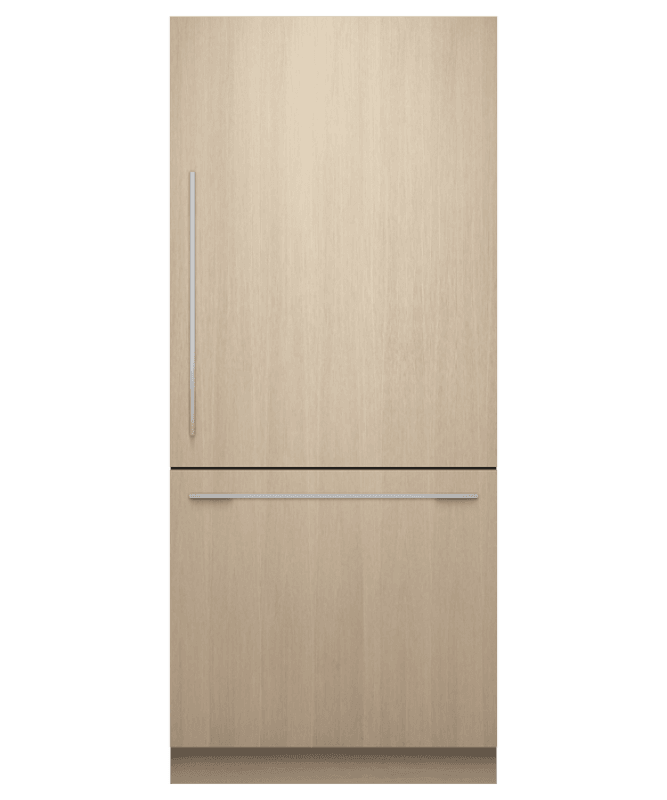

36" Series 11 Integrated Refrigerator Freezer, Ice & Water

Hover to zoom

1 / 6

Fisher Paykel

36" Series 11 Integrated Refrigerator Freezer, Ice & Water

Model: RS3684WRUVE1

Brand	Fisher Paykel
Model #	RS3684WRUVE1
Width	35 in.
Height	84 in.
Depth	24 in.

Who it’s for

Good for accessible kitchens — Listed ADA compliant, so this refrigerator suits kitchens built to the 2010 ADA Standards.
Good for Sabbath-observant homes — A Sabbath mode is listed on this refrigerator's specification.

$11,499.00

In Stock— 1 unit ready to ship

🔥 Low inventory — hurry before it's sold out!

Qty:

Call to Order: (732) 426-0990

Questions or ready to buy? Talk to a real appliance expert.

§ On purchases of $199+ with your Synchrony HOME™ Credit Card. See offer details

Rebate Available

Mail-in rebate savings

Fisher And Paykel 15% And Warranty Extension Rebate

Tiered

Rebates applied via mail-in forms. Call (732) 426-0990 with questions.

Dimensions: 35" W × 84" H × 24" DMeasure your space before ordering

Free Shipping

Lowest Price Guarantee

Need help? (732) 426-0990

Pay over time with Affirm — available at checkout. Learn more

All Make Advantage

Bundle qualifying appliances to unlock All Make Advantage (save $90–$1,000)

At a glance

Fisher Paykel RS3684WRUVE1 is a refrigerator drawers, 35 inches wide. It has an ice maker and a Sabbath mode. It suits accessible kitchens and Sabbath-observant homes.

Specifications

Dimensions

Width35 in.

Height84 in.

Length24 in.

Weight530 lbs.

Packaged Weight530lbs

Warranty

Parts1 Year

Labor1 Year

GeneralYes

Parts And Labor2 years

Sealed System Parts And Labor5 years

Capacity

GeneralYes

Volume19.6cu ft

Volume Freezer6.7cu ft

Volume Refrigerator11.6cu ft

Volume Variable Temperature Compartment1.3cu ft

Consumption

GeneralYes

Energy RatingEnergy star Most efficient

Energy Usage381kWh/year

In-use Energy Carbon Emissions Estimate Carbon Emissions Info134.4kgCO2e/year

Features

GeneralYes

Adjustable Glass Cantilevered ShelvesYes

Aluminium TrimsYes

Door AlarmYes

Fruit And Vegetable Bins1

Full Extension Drawers2

Full Extension RunnersYes

Full Width Door Shelves3

Internal Water DispenserYes

KeylockYes

LED Ceiling LightingYes

Rapid Cool FunctionYes

Smart ApplianceYes

Smarttouch Control PanelYes

Soft Close DoorsYes

Soft-close Fruit And Vegetable BinsYes

Split Level Cantilevered ShelvesYes

Variable Temperature DrawerYes

Freezer Features

GeneralYes

Automatic Ice MakerYes

Bottle ChillYes

Door AlarmYes

Fast FreezeYes

Freezer Bins1

Freezer Trays1

Full Extension Clear Bins1

Ice BoostYes

Ice Bin And ScoopYes

LED LightingYes

Max ColdYes

Slide Out Pastry TrayYes

Smarttouch Interface At Counter HeightYes

Installation Dimensions

GeneralYes

Minimum Inside Width Of Cabinetry Frame36"

Minimum Internal Depth Of Cabinetry25"

Minimum Internal Height Of Cabinetry84"

Performance

GeneralYes

Activesmart™ FoodcareYes

Adaptive DefrostYes

Eco Friendly R600a RefrigerantYes

Holiday ModeYes

Humidity Control SystemYes

Humidity Controlled Crisper Bins2

Internal Replaceable Water FilterYes

Sabbath ModeYes

Triple EvaporatorYes

Variable Food ModesPantry; Fridge; Chill

Power Requirements

GeneralYes

Rated Current10A

Supply Frequency60Hz

Supply Voltage115V

Product Features

Variable temperature drawer

Clever energy

Elegant interior

Internal water and ice dispenser

Seamless integration

Design quality

ActiveSmart™ Foodcare

Available Rebates

Fisher And Paykel 15% And Warranty Extension Rebate

Valid from 1/1/2026 through 12/31/2026

Tiered Rebate

Open form for all rebate tiers & details

Product Documents

Planning Guide Professional Style Dial/Handle Accessories

Guide2.81 MB

Planning Guide Integrated Refrigerator Freezer 36" Ice & Water

Guide8.28 MB

Quick Reference Guide

Quick Start Guide718.61 KB

Service & Warranty

Warranty969.24 KB

Customer Reviews

No reviews yet

Be the first to review this product.

Common questions

Is the Fisher Paykel RS3684WRUVE1 in stock?: Yes — the Fisher Paykel 36" Series 11 Integrated Refrigerator Freezer, Ice & Water is in stock at All Make Appliance and available to order now.
Is the Fisher Paykel RS3684WRUVE1 good for accessible kitchens?: Yes — Listed ADA compliant, so this refrigerator suits kitchens built to the 2010 ADA Standards.
Is the Fisher Paykel RS3684WRUVE1 good for Sabbath-observant homes?: Yes — A Sabbath mode is listed on this refrigerator's specification.
Does the Fisher Paykel RS3684WRUVE1 qualify for free shipping?: Yes — at this price, this product qualifies for free delivery in every shipping zone (NJ/NY metro, regional, and nationwide).
What warranty comes with the Fisher Paykel RS3684WRUVE1?: The Fisher Paykel 36" Series 11 Integrated Refrigerator Freezer, Ice & Water is listed with 1 year of parts and labor coverage from the manufacturer, per this model's published specifications.
