12,000 BTU Built-In Room Air Conditioner 230/208V
1 / 5
Frigidaire

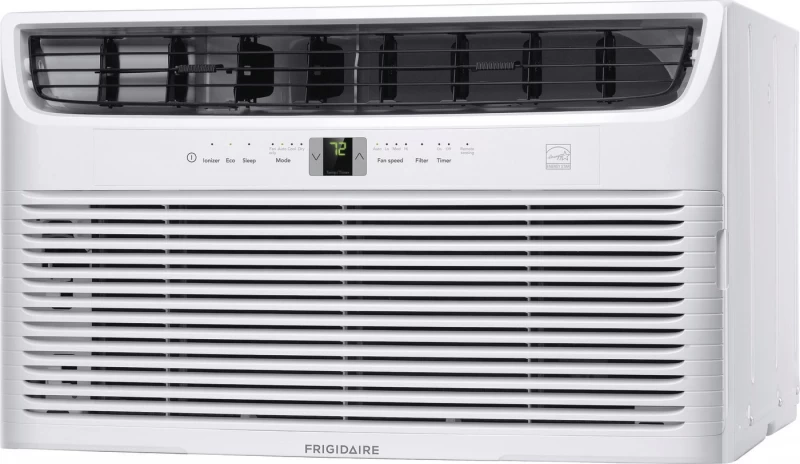

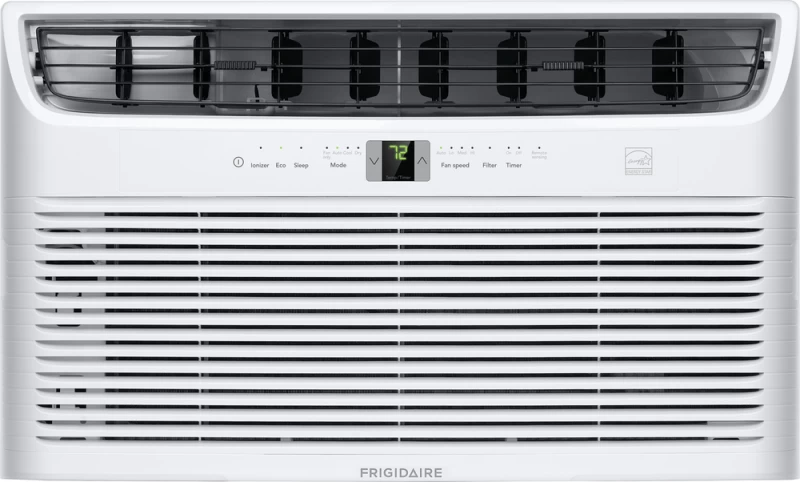

12,000 BTU Built-In Room Air Conditioner 230/208V

Model: FHTC123WA2

BrandFrigidaire
Model #FHTC123WA2
Width24 in.
Height14.5 in.
Depth21.5 in.

Who it’s for

  • Sized for a specific room12,000 BTU — ENERGY STAR's sizing table puts that at rooms up to about 550 sq ft.

  • Good for accessible homesListed ADA compliant, so this air conditioner suits homes built to the 2010 ADA Standards.

This model is discontinued

The 12,000 BTU Built-In Room Air Conditioner 230/208V is discontinued and cannot be ordered.

The closest current model we carry is the 12,000 BTU Through the Wall Air Conditioner 208/230 V.

12,000 BTU Through the Wall Air Conditioner 208/230 V

Now available

12,000 BTU Through the Wall Air Conditioner 208/230 V

$869.97

  • Same 24" width
  • Same color: White
  • Same 21.5" depth
In Stock109 units ready to ship
See the newer model →

Closest current model — ships as the current model

Need help finding a replacement? Call (732) 426-0990

Was $854 when available

At a glance

Frigidaire FHTC123WA2 is a wall ac unit in White, 24 inches wide. It suits a specific room and accessible homes.

Specifications

Dimensions

Width24 in.
Height14.5 in.
Length21.5 in.
Weight75 lbs.

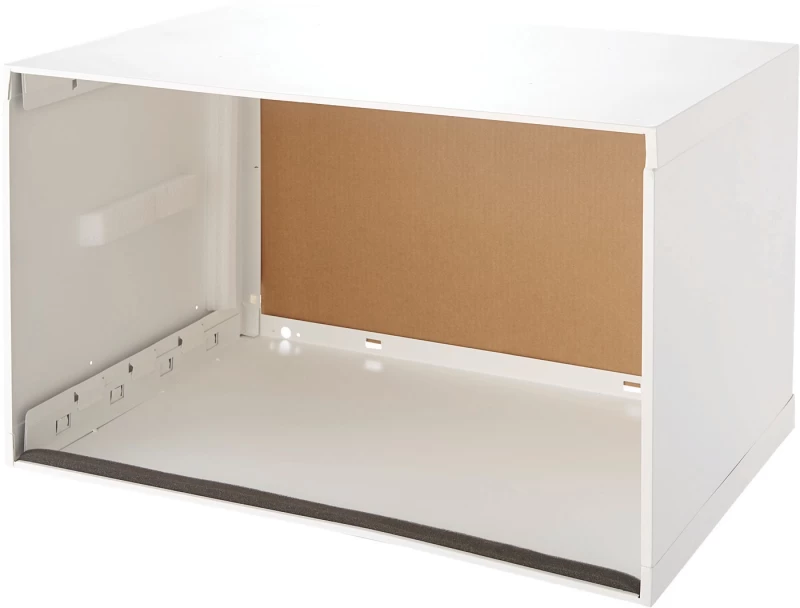

Sleeve Height15 3/4"
Sleeve Width26"
Sleeve Depth21 1/2"

Other

Prop 65 LabelYes
Refrigerant TypeR-32
Warranty - Labor1 Year
Max Wall Thickness18"

Ac

Air CFM (low)237 CFM
Air CFM (med)260 CFM
Air CFM (high)275 CFM
Air Direction ControlManual
Air DischargeFront of Unit
Fan Speeds - Cool3
Fan Speeds - Fan3
Motor Rpm (low)1340 RPM
Motor Rpm (med)1440 RPM
Motor Rpm (high)1500 RPM
Noise Level Dba (low)58 dBA
Noise Level Dba (med)59 dBA
Noise Level Dba (high)61 dBA
Dust Air FilterYes
Filter Access LocationFront
Filter Check IndicatorYes
Option For Advanced FiltrationYes
Rear GrillYes
Slide-out ChassisNo
Supplemental HeatNo

Controls

Control TypeElectronic
Remote ControlYes

Certifications And Approvals

Csa ListedYes
Energy Efficiency Verification (canada)Yes

Electrical Specifications

Amps (cool)5.6 Amps
Plug TypeLCDI 6-15P
Voltage Rating208/230v
Watts (cool)1140 Watts

Installation

Power Cord Length72"

Functions

24-hour On/off TimerYes
Auto FanYes
Auto RestartYes
Clean Air IonizerYes
Dry ModeYes
Energy SaverYes
Low Voltage Start-upYes
Sleep ModeYes

Connectivity

Wi-Fi EnabledNo

Performance

Cool Area550 sq.
BTU (cool)12000 BTU
Combined Energy Efficiency Ratio10.5
Dehumidification - Pints Per Hour3.5

Garage Ready

Trim KitYes

Accessories

Sleeve Part Number912001373

Product Features

Multi-Speed Fan

Enjoy more cooling flexibility with three different fan speeds.

Clean Air Ionizer

Reduce airborne particles to improve your comfort with a built-in air ionizer.

Easy-to-Clean Washable Dust Filter

Capture dust from the air and keep your air conditioner working efficiently with our easy-to-clean washable dust filter.

Remote Control

Easily manage your room's temperature from across the room with the included remote control.

Programmable 24-Hour On/Off Timer

Customize times to fit your schedule for immediate comfort when you get home by presetting the unit to turn on and off in half hour increments.

Sleep Mode

The temperature gradually increases a few degrees over the course of the night to make the room more comfortable for sleeping and to save energy.

Automatic Restart

Automatically resumes operating at its previous settings when power is restored to your unit.

Product Documents

Customer Reviews

No reviews yet

Be the first to review this product.

Common questions

Is the Frigidaire FHTC123WA2 sized for a specific room?
Yes — 12,000 BTU — ENERGY STAR's sizing table puts that at rooms up to about 550 sq ft.
Is the Frigidaire FHTC123WA2 good for accessible homes?
Yes — Listed ADA compliant, so this air conditioner suits homes built to the 2010 ADA Standards.
What warranty comes with the Frigidaire FHTC123WA2?
The Frigidaire 12,000 BTU Built-In Room Air Conditioner 230/208V is listed with 1 year of labor coverage from the manufacturer, per this model's published specifications.
