Is the Frigidaire FCWM3027AD good for even baking and roasting?

Yes — Convection is listed on this wall oven — a fan moves hot air around the cavity.

Is the Frigidaire FCWM3027AD good for Sabbath-observant homes?

Yes — A Sabbath mode is listed on this wall oven's specification.

What warranty comes with the Frigidaire FCWM3027AD?

The Frigidaire 30" Electric Wall Oven and Microwave Combination is listed with 1 year of parts and labor coverage from the manufacturer, per this model's published specifications.

Hover to zoom

1 / 15

Available in 2 finishes:

Frigidaire

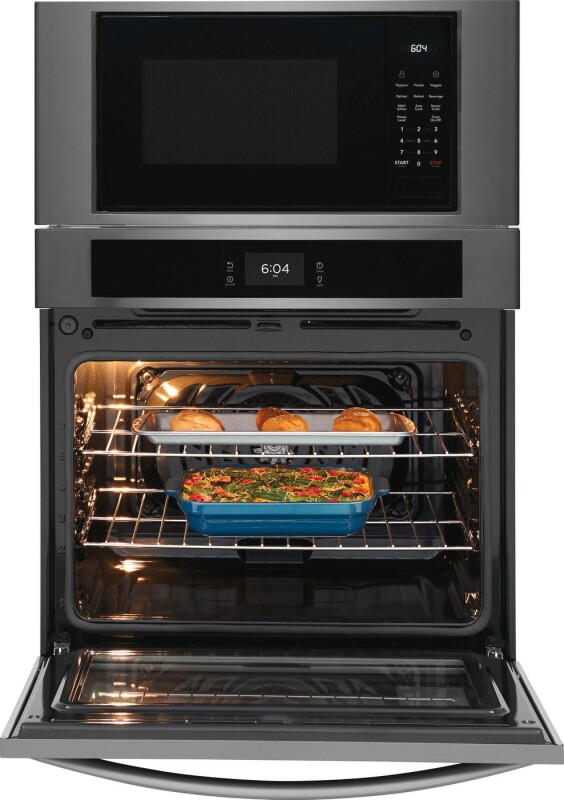

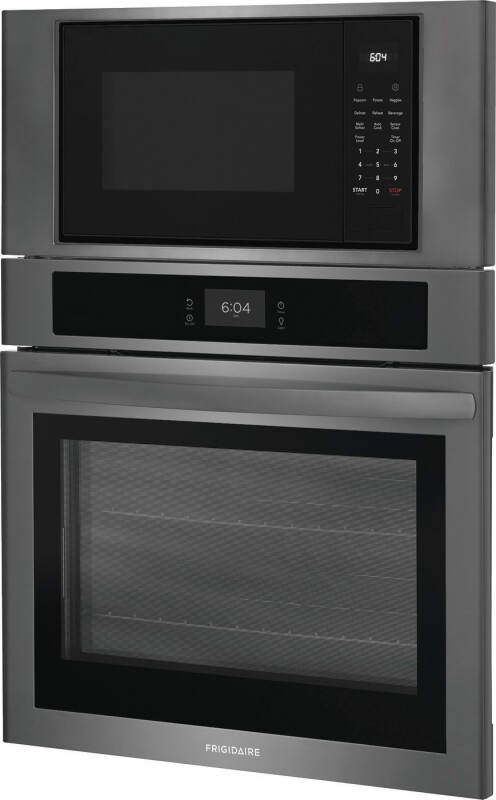

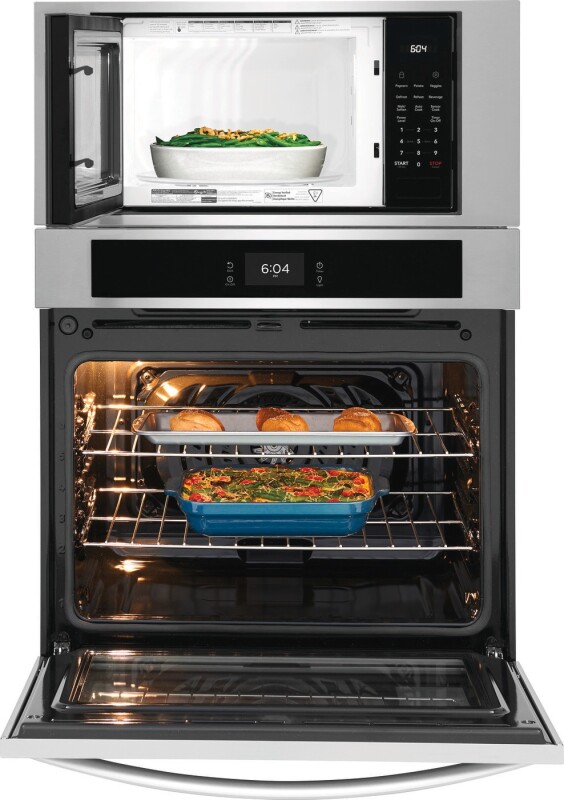

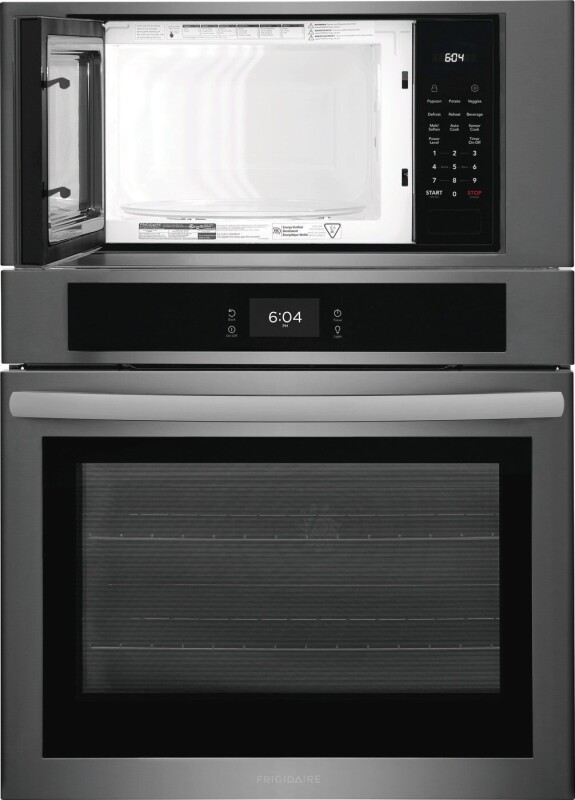

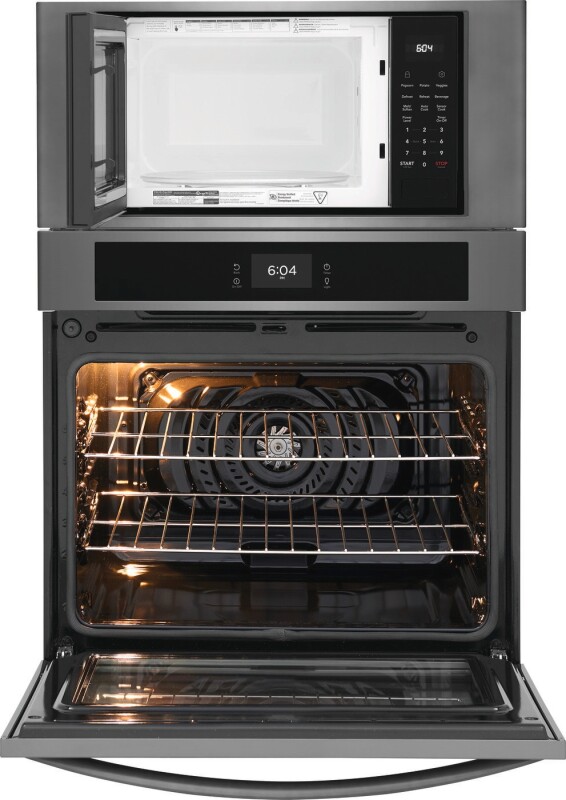

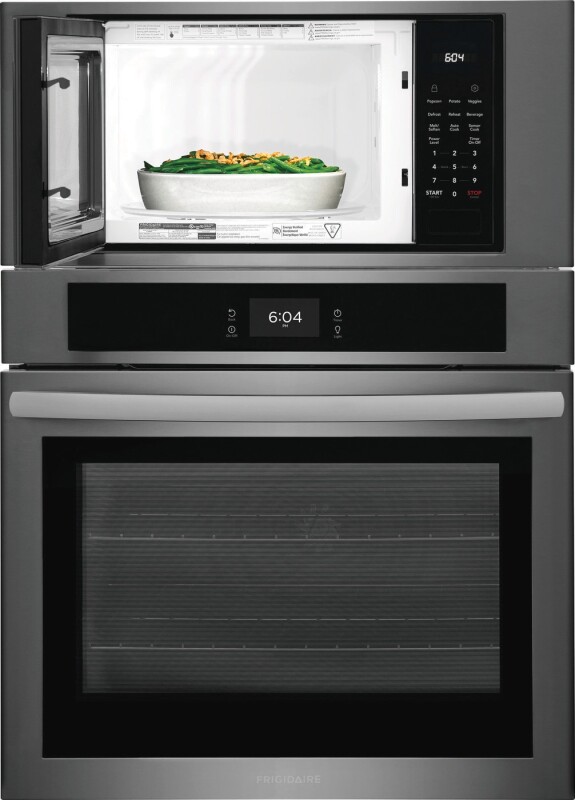

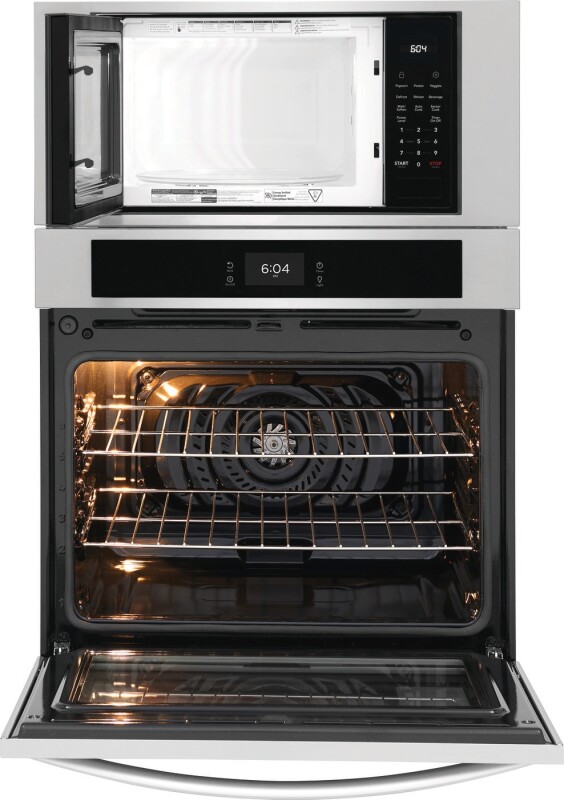

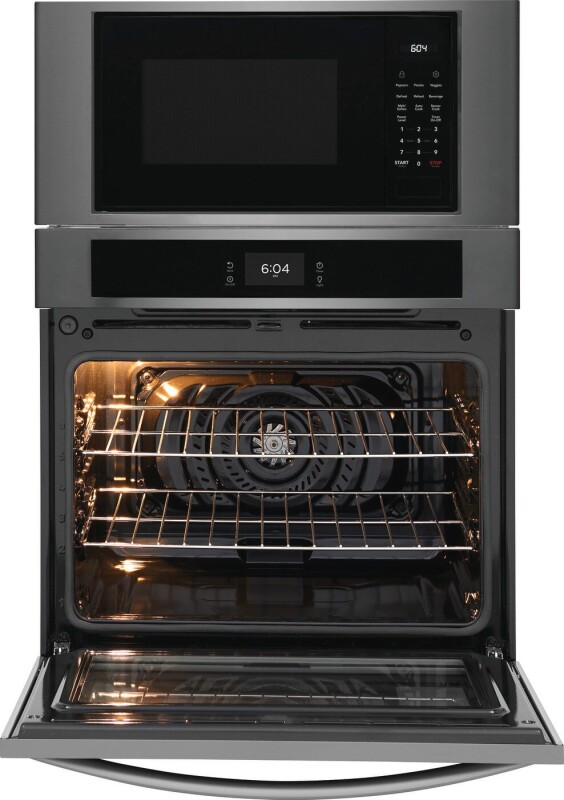

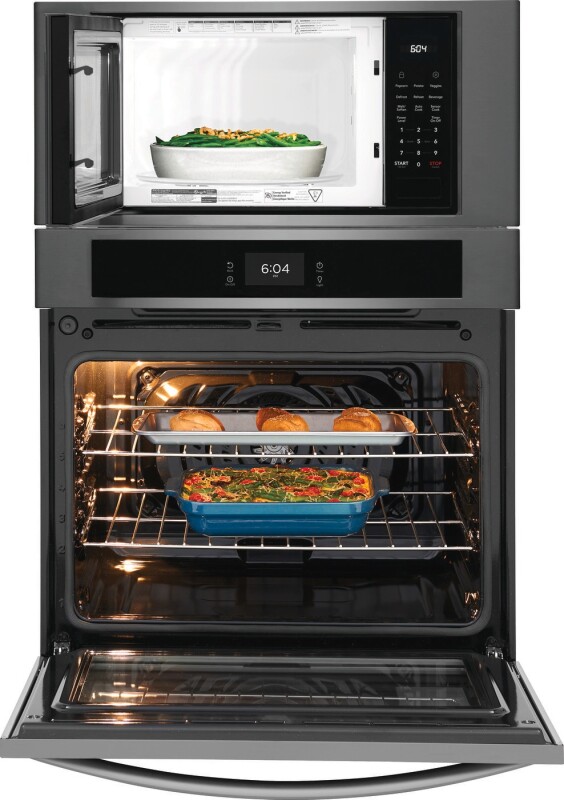

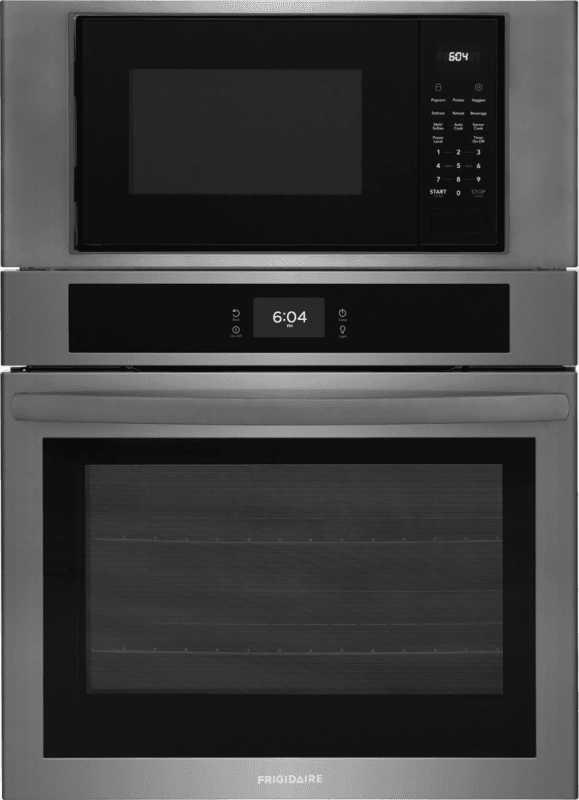

30" Electric Wall Oven and Microwave Combination

Model: FCWM3027AD

Brand	Frigidaire
Model #	FCWM3027AD
Width	29.88 in.
Height	42 in.
Depth	25.19 in.

Who it’s for

Good for even baking and roasting — Convection is listed on this wall oven — a fan moves hot air around the cavity.
Good for Sabbath-observant homes — A Sabbath mode is listed on this wall oven's specification.

This model is discontinued

The 30" Electric Wall Oven and Microwave Combination is discontinued and cannot be ordered.

The closest current model we carry is the 30" Microwave Combination Oven.

Now available

30" Microwave Combination Oven

$2,698.00

$601 less than the model it replaces

Same 29.88" width
Same color: Black Stainless Steel
Same 42" height

See the newer model →

Need help finding a replacement? Call (732) 426-0990

Was $3,299 when available

At a glance

Frigidaire FCWM3027AD is a wall oven in Black Stainless Steel, 29.88 inches wide with 5.3 cu ft of capacity. It has convection and a Sabbath mode. It suits even baking and roasting and Sabbath-observant homes.

Specifications

Dimensions

Width29.88 in.

Height42 in.

Length25.19 in.

Weight275 lbs.

Depth With Door 90° Open48 3/16"

Depth With Handle27 3/5"

Oven Interior Height18 1/8"

Oven Interior Width25 1/5"

Oven Interior Depth19 7/8"

Microwave Interior Height10 1/2"

Microwave Interior Width17 3/8"

Minimum Cutout Height41 1/4"

Microwave Interior Depth18 5/8"

Minimum Cutout Width28 1/2"

Maximum Cutout Height42 1/8"

Maximum Cutout Width28 3/4"

Product Details

Sabbath ModeYes

Height42"

Depth25 3/16"

Depth With Door 90° Open48 3/16"

Minimum Cutout Height41 1/4"

Minimum Cutout Width28 1/2"

Maximum Cutout Height42 1/8"

Maximum Cutout Width28 3/4"

Control LockYes

BakeYes

Bake TimeYes

BroilYes

CancelYes

ClockYes

Convection BakeYes

Cook TimeYes

Delay StartYes

Kitchen TimerYes

LightYes

OffYes

Oven LightYes

PreheatYes

Self CleanYes

StartYes

Temperature DisplayYes

Timer On / OffYes

Change Between Continuous Bake Setting Or 12-hour Energy Saving FeatureYes

Program Fahrenheit Or CelsiusYes

Silent Control PanelYes

Csa ListedYes

RohsYes

Star-k CertificationYes

Ul ListedYes

Depth With Handle27 3/5"

Oven Interior Height18 1/8"

Oven Interior Width25 1/5"

Oven Interior Depth19 7/8"

Microwave Interior Height10 1/2"

Microwave Interior Width17 3/8"

Microwave Interior Depth18 5/8"

Microwave Capacity1.6 Cu. Ft.

Oven Capacity5.3 Cu. Ft.

Amps @ 240 Volts40 Amps

Connected Load @ 240v7.9 kW

Minimum Circuit Required40 Amps

Voltage Rating240 V

Frigidaire Fit PromiseYes

Product Weight275 lbs

Prop 65 LabelYes

Warranty - Labor1 Year

Warranty - Parts1 Year

Ab-1200Information available at frigidaire.com/en/ab1200

Power Supply Connection LocationTop Left

Interior ColorWhite

Interior Light Quantity1

Interior Light TypeHalogen

Interior Light Wattage25 Watts

RackYes

Turntable Diameter13 1/2"

Turntable MaterialGlass

Microwave Cooking Power1100 Watts

Auto CookYes

BeverageYes

DefrostYes

Melt / SoftenYes

PopcornYes

PotatoYes

ReheatYes

Sensor CookingYes

VeggiesYes

Bake Element2600 Watts

Bake Element Pass4

Bake Element TypeHidden

Broil Element4000 Watts

Broil Element Pass6

Cleaning SystemYes

ConvectionYes

Convection TypeFan

Number Of Convection Fans1

Number Of Rack Positions6

Oven Interior ColorMidnight Black

Oven Light Quantity1

Oven Light TypeHalogen

Oven Light Watts40 Watts

Rack Position TypeEmbossed

Rack Type 1Flat

Rack Type 1 Quantity2

+ 30 SecondsYes

Display Interface ColorWhite

Display Light ColorWhite

Display TypeMembrane

Optional Trim Kit Part NumberWOMC3TRIMSS, WOMC3TRIMDSS, WOMC3TRIMBLK

Width30"

Cutout Depth23 5/8"

Product Features

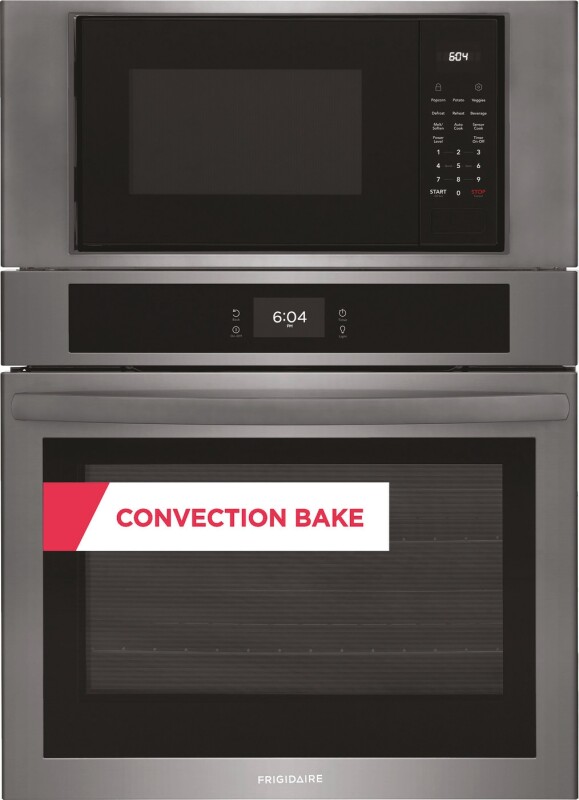

Fan Convection

Get faster, more even multi-rack baking results with Fan Convection.

Self Clean Oven

Self clean options available in convenient 2, 3 and 4-hour cycles.

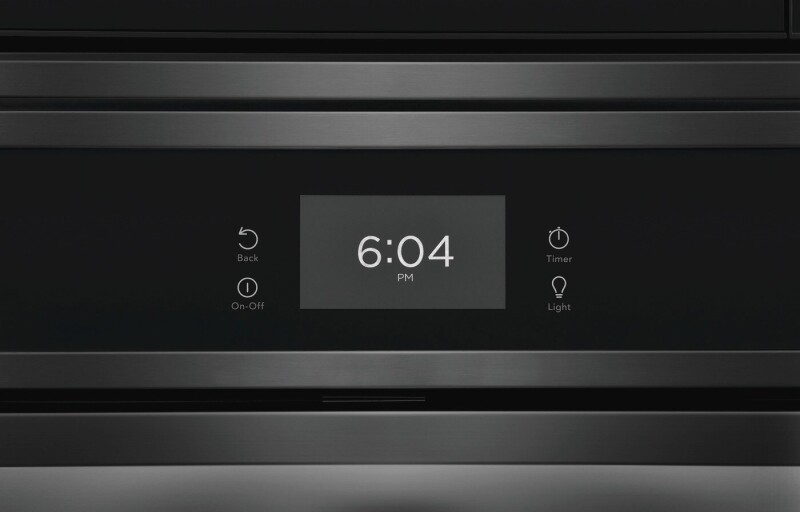

Premium Touch Screen Control Panel

Features a responsive 4.3 inch, full color, capacitive touch digital oven control panel.

Extra Large Oven Capacity

Cook more at once with our extra large, 5.3 cu.ft. capacity oven.

Custom Broil Temp Setting

Allows you to choose the specific broil temperature you want, ranging anywhere between 400 - 550 degrees.

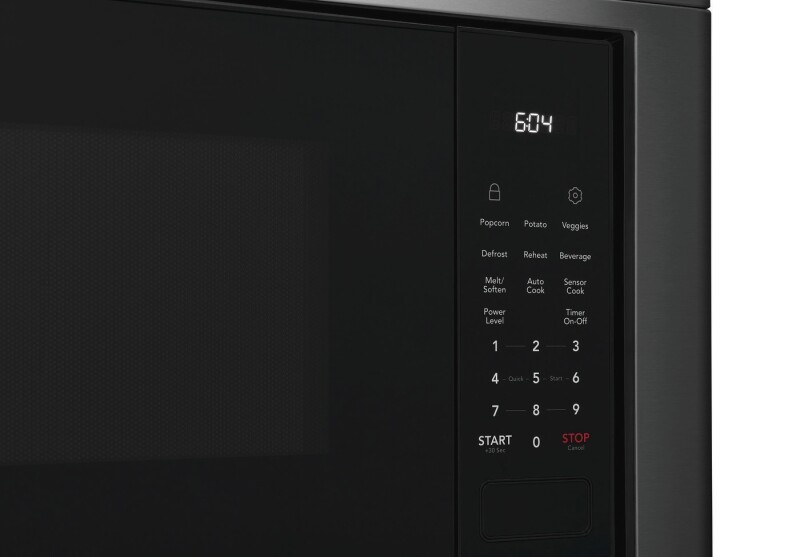

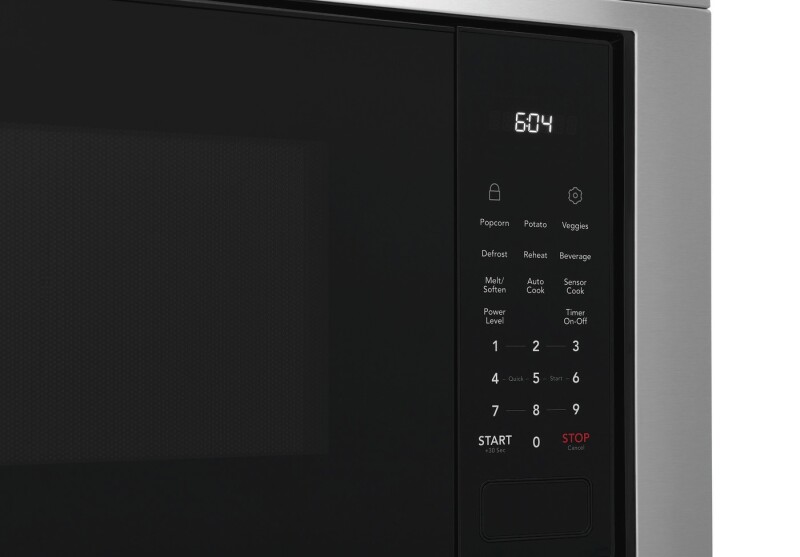

Sensor Cook Technology

Microwave sensors detect and automatically adjust power levels and cooking times for a variety of items, providing great-tasting results every time.

Convenient Cook Time Setting

Allows you to program the amount of time you want your oven to cook and then turn off.

Keep Warm Setting

Meals stay warm and are ready to serve when you are, using the Keep Warm setting.

Product Documents

Feuille De Spécifications Du Produit

Document223.20 KB

Guide D'utilisation Complet

Guide2.85 MB

Guide De Démarrage Rapide

Guide328.56 KB

Product Specifications Sheet

Spec Sheet762.28 KB

Installation Instructions

Installation Guide1.31 MB

Complete Owner's Guide

User Manual2.94 MB

Quick Start Guide

Quick Start Guide315.84 KB
