| Brand | GE |
| Model # | JP3030DWBB |
| Width | 29.75 in. |
| Height | 4 in. |
| Depth | 20.88 in. |
$598.00
$1,149.00Save $551.00 (48%)
Ships When Available— Backorder OK
This item is on backorder and will ship when available.
Stack & Save
Save up to $1,000 on qualifying orders
Dimensions
Overall Height4 in
Overall Width29.75 in
Overall Depth20.875 in
Cooktop Size30 in
Cabinet Width30 in
Net Weight37 lb

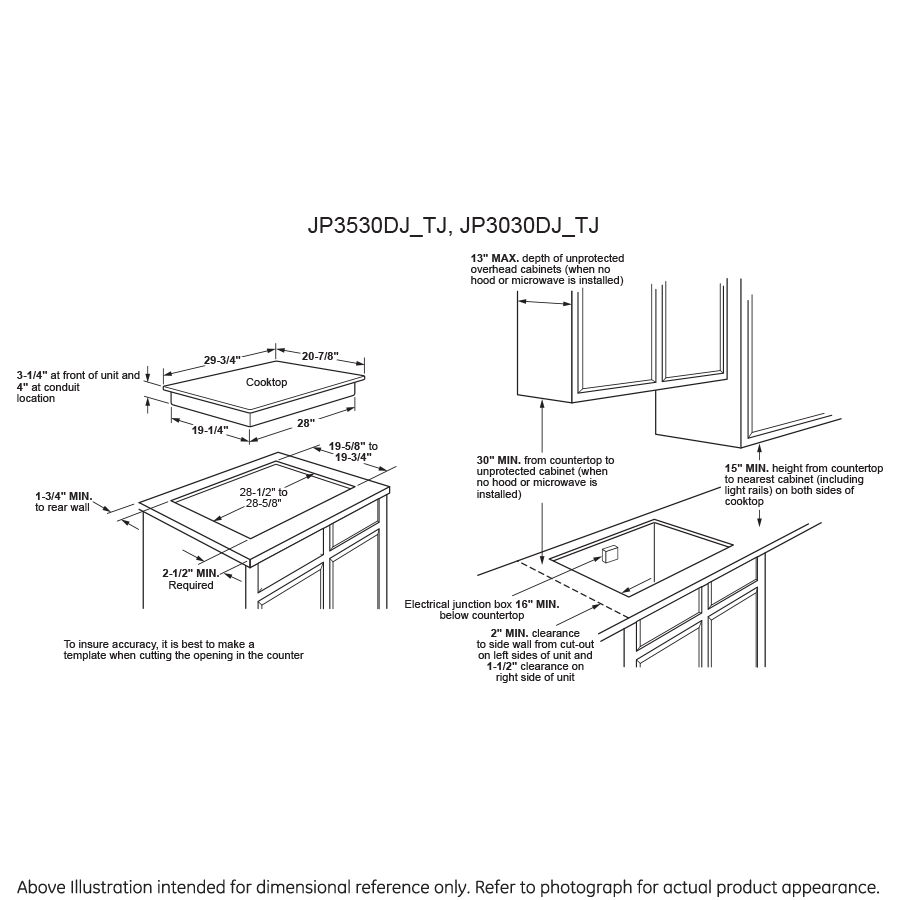

Cutout Width (in)28.5
Cutout Height (in)4
Cutout Depth (in)19.625
Width29.75 in.
Height4 in.
Length20.88 in.
Weight37 lbs.
Features
Dishwasher Safe KnobsYes
Filler Trim KitJXTR32B
Cooktop Burner Type4 Ribbon
Melt SettingYes
Fuel TypeElectric
Power Boil BurnerYes
Element - Left Front6" 1200W
Indicator LightsRed
Element - Right Front8" 2500W Power Boil
Control LocationRight Side
Cooktop TypeRadiant Smoothtop
Cooktop SurfaceBlack Ceramic Glass
Cooktop Control FeaturesKeep-Warm Setting
Element - Left Rear8" 2500W Power Boil
Control TypeKnob (Infinite switch)
Element - Right Rear6" 1200W
Product TypeCooktop
Power & Ratings
Recommended Circuit Breaker (amps) At 240v40
Max. Connected Load (kw) At 240v7.4
Max. Current Draw (amps) At 240v30.8
Max. Connected Load (kw) At 208v5.6
Electrical Requirements208/240V ; 60Hz ; 40A
Recommended Circuit Breaker (amps) At 208v30
Max. Current Draw (amps) At 208v26.7
Hertz60
Warranty
Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details
Labor WarrantyLimited 1-year entire appliance
Appearance
Color AppearanceBlack
FramelessYes
Control KnobsGloss Black
