| Brand | GE |
| Model # | JGBS10DEMWW |
| Width | 30 in. |
| Height | 46.25 in. |
| Depth | 28.75 in. |
$598.00
$699.00Save $101.00 (14%)
Ships When Available— Backorder OK
This item is on backorder and will ship when available.
Stack & Save
Save up to $1,000 on qualifying orders

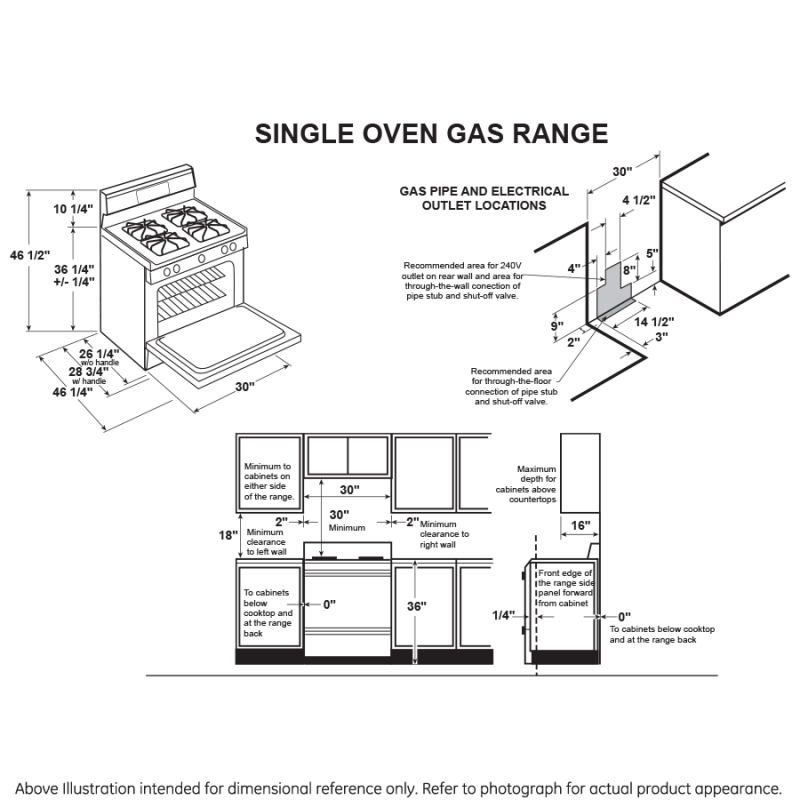

Dimensions
Overall Width30 in
Overall Height46.25 in
Overall Depth28.75 in
Net Weight145 lb
Depth Without Handle26.25 in
Cabinet Width30 in
Depth With Door Open46.25 in
Oven Interior Dimensions (w X H X D) (in.)24 x 18-1/2 x 19
Height To Cooking Surface (in.)36 - 36.5
Width30 in.
Height46.25 in.
Length28.75 in.
Weight145 lbs.
Warranty
Parts1 Year
Labor1 Year
Parts WarrantyLimited 1-year entire appliance
Labor WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details
Appearance
Cooktop Burner Grate ColorBlack Gloss
HandleDesigner Style
Oven Door FeaturesOven Window
Control KnobsGloss White
Color AppearanceWhite
Features
Ignition SystemElectronic
Burner - Right Rear5,000 BTU Precise Simmer
Oven Interior1 Incandescent Light

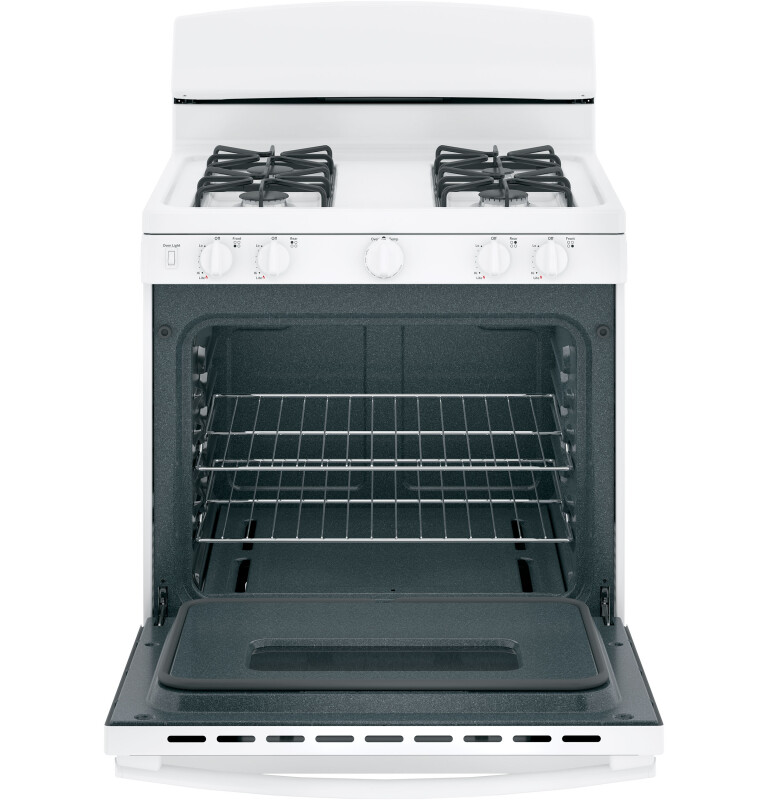

Oven Rack Features2 Flat Nickel Racks
Burner - Left Rear9,500 BTU
Oven Cleaning TypeStandard Clean
Slide - Out Broiler DrawerDrop Down Door

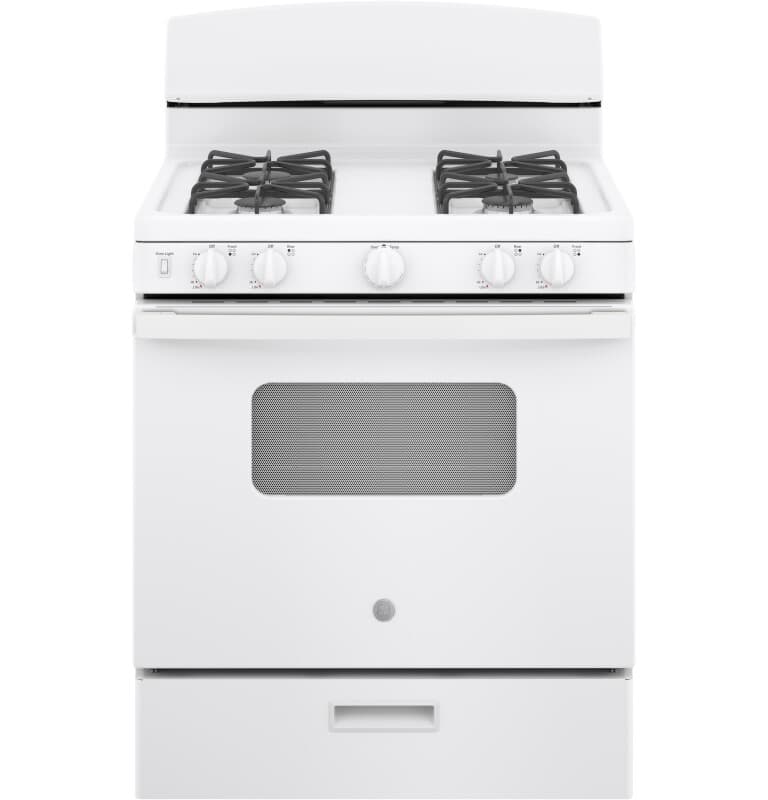

Product TypeFree-Standing Single Oven

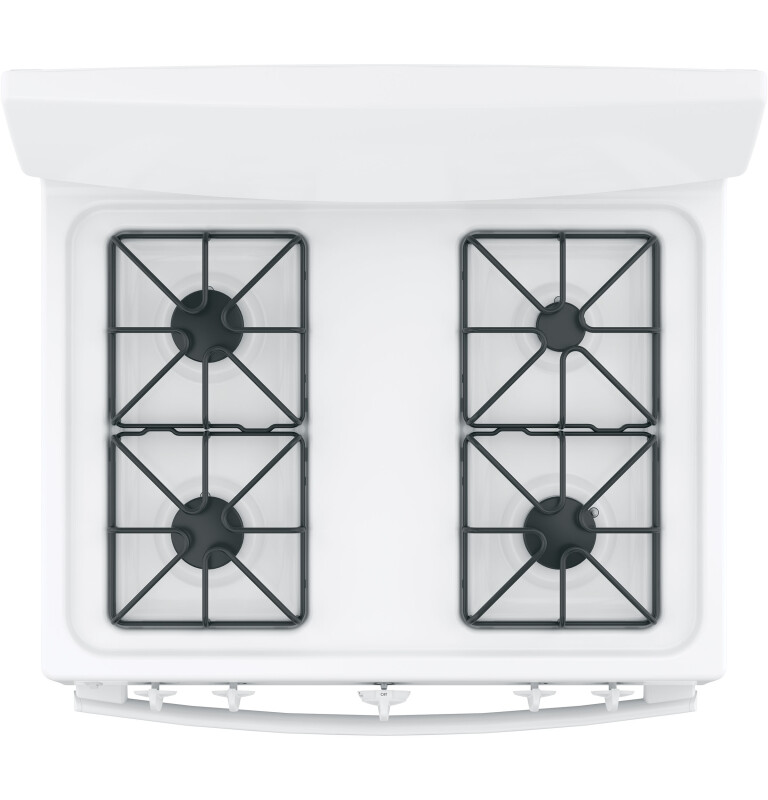

Cooktop TypeStandard Grates
Cooktop Burner Grate MaterialHeavy Steel
Fuel TypeNatural Gas

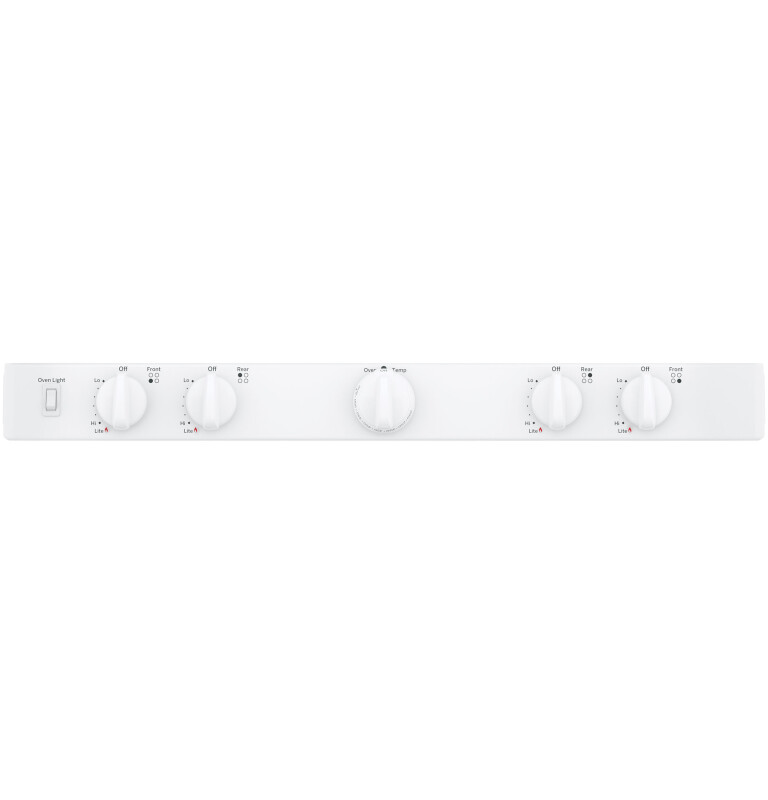

Control LocationFront
Control TypeRotary knobs
Burner - Left Front9,500 BTU
Drawer TypeBroiler
Sabbath ModeYes
Cooking TechnologyTraditional
ConfigurationRange with Broiler Drawer
Ou CertifiedNo

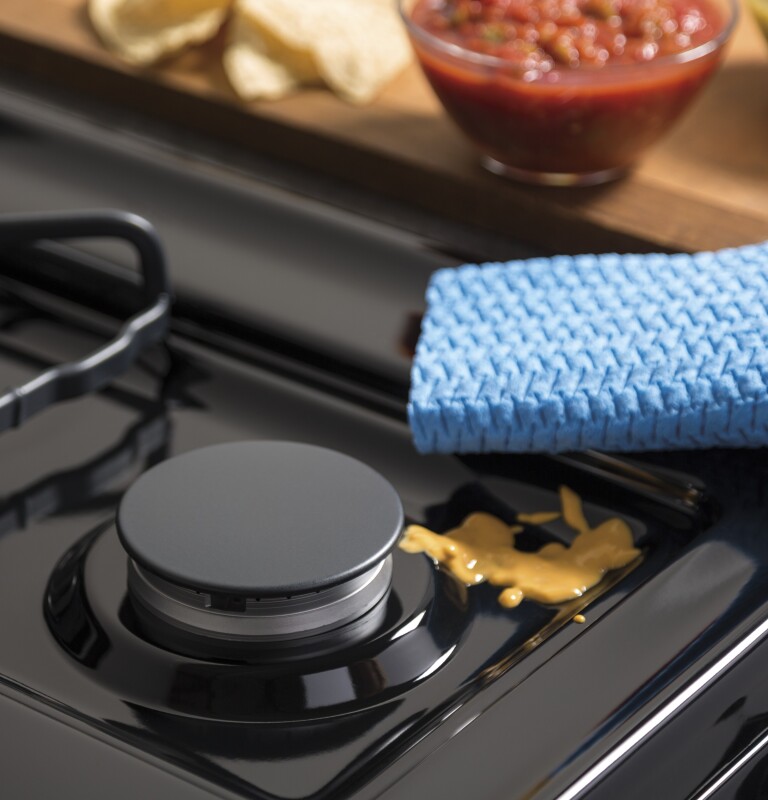

Cooktop Burner TypeSealed
Valves (degree Of Turn)140
Burner - Right Front13,000 BTU
Cooktop SurfacePorcelain-Enamel
Oven Rack Positions (single Or Upper/lower)6
Power & Ratings
Top Burner BTU Rating - Nat. Gas (000's BTU's)(1) 13.0; (2) 9.5, (1) 5.0
Volts/hertz/amps120v; 60Hz; 15A
Top Burner BTU Rating - LP (000's BTU's)(2) 9.5; (1) 13.0; (1) 5.0
Bake/broiler BTU Rating - Nat. Gas (000's BTU's)18.0 Bake / 18.0 Broiler
Bake/broiler BTU Rating - LP (000's BTU's)16.0 Bake / 16.0 Broiler
Accessories
LP Conversion KitIncluded
