| Brand | GE |
| Model # | JB256DMBB |
| Width | 30 in. |
| Height | 47 in. |
| Depth | 28.75 in. |
$578.00
$829.00Save $251.00 (30%)
Ships When Available— Backorder OK
This item is on backorder and will ship when available.
Stack & Save
Save up to $1,000 on qualifying orders

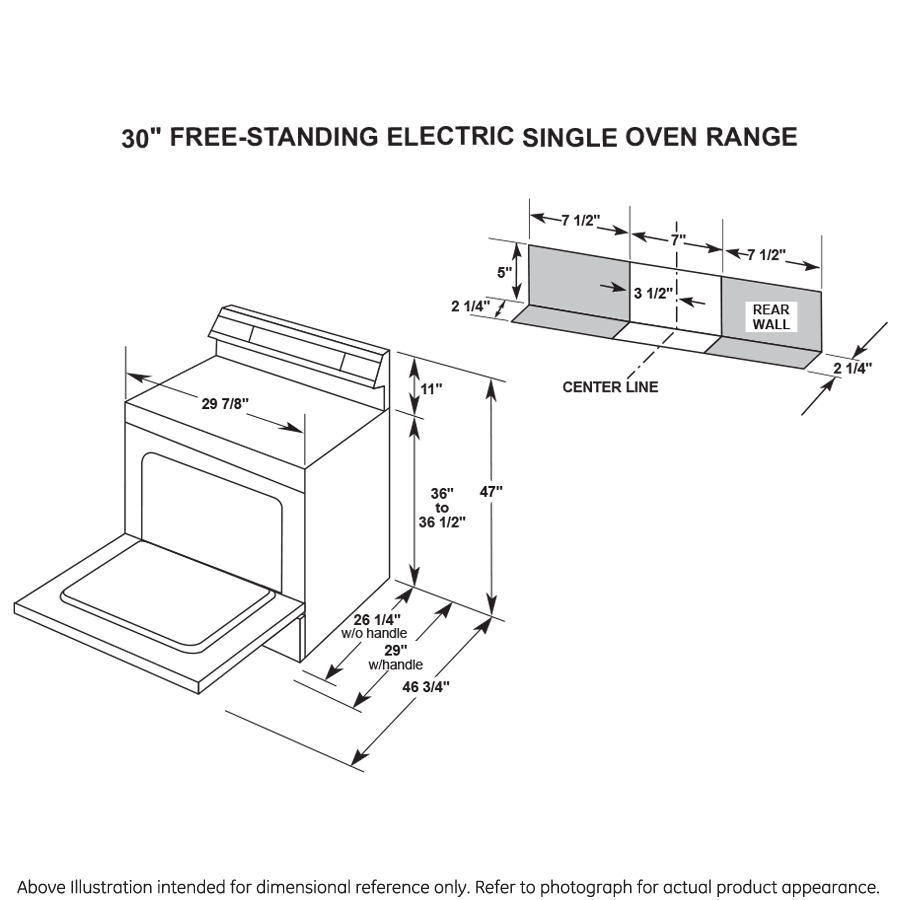

Dimensions
Overall Width30 in
Overall Height47 in
Overall Depth28.75 in
Net Weight150 lb
Depth Without Handle26.25 in
Cabinet Width30 in
Depth With Door Open46.25 in
Oven Interior Dimensions (w X H X D) (in.)23-3/4 x 19 x 18-1/2
Height To Cooking Surface (in.)36 - 36.5
Width30 in.
Height47 in.
Length28.75 in.
Weight150 lbs.
Warranty
Parts1 Year
Labor1 Year
Parts WarrantyLimited 1-year entire appliance
Labor WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details
Features
Storage Drawer FeaturesRemovable Full-Width
Oven Interior1 Incandescent Light
Oven Control FeaturesSelf-Clean Cool Down Time Display
Lift-up Cooktop With Support RodsYes
Oven Rack Features2 Oven Racks
Element - Left Front6" 1250W Temp Limiting Coil
Oven Cleaning TypeSelf-Clean
Product TypeFree-Standing Single Oven
Heating Element "on" Indicator LightYes

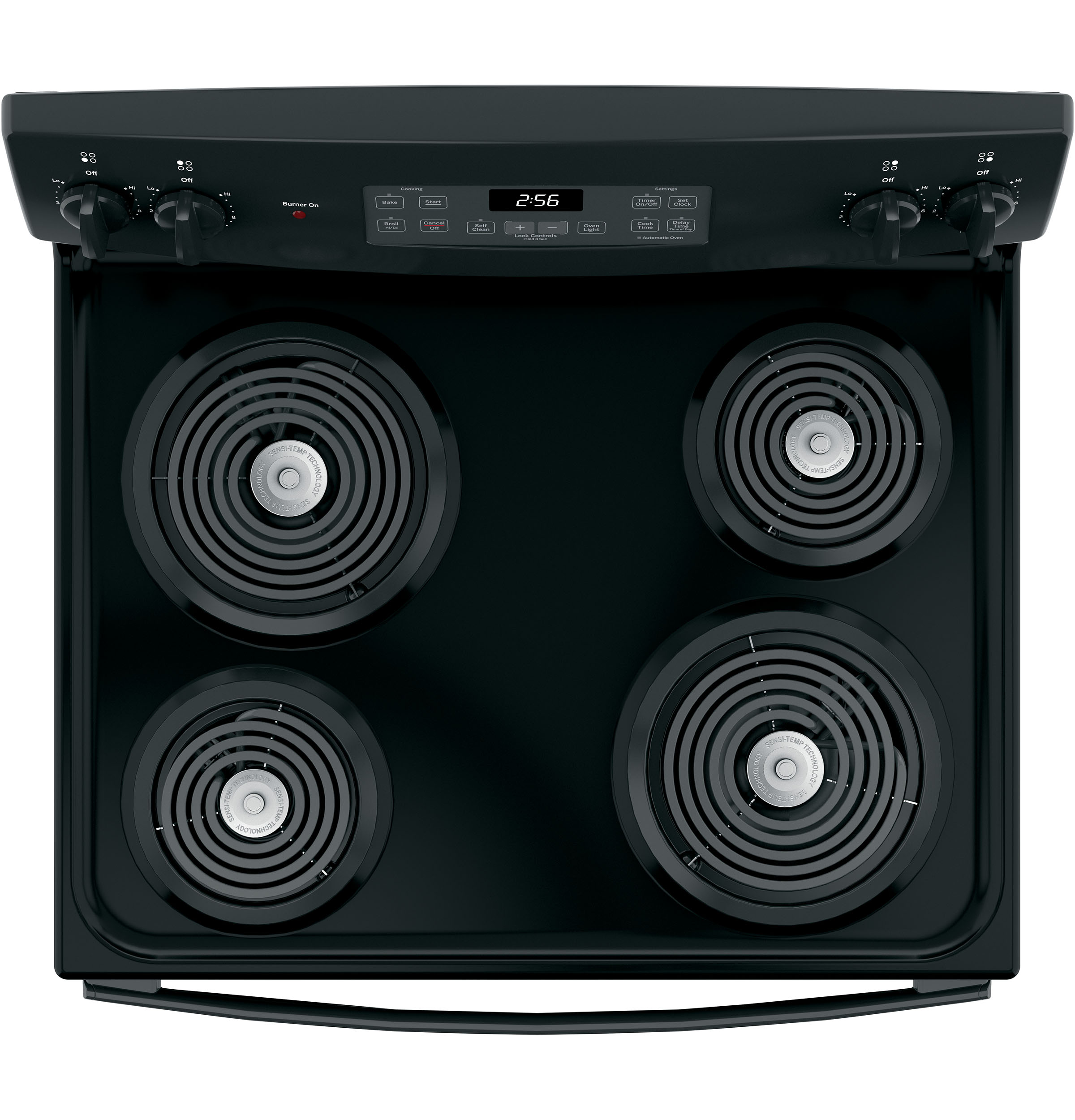

Cooktop TypeCoil
Fuel TypeElectric
Element - Right Front8" 2400W Temp Limiting Coil

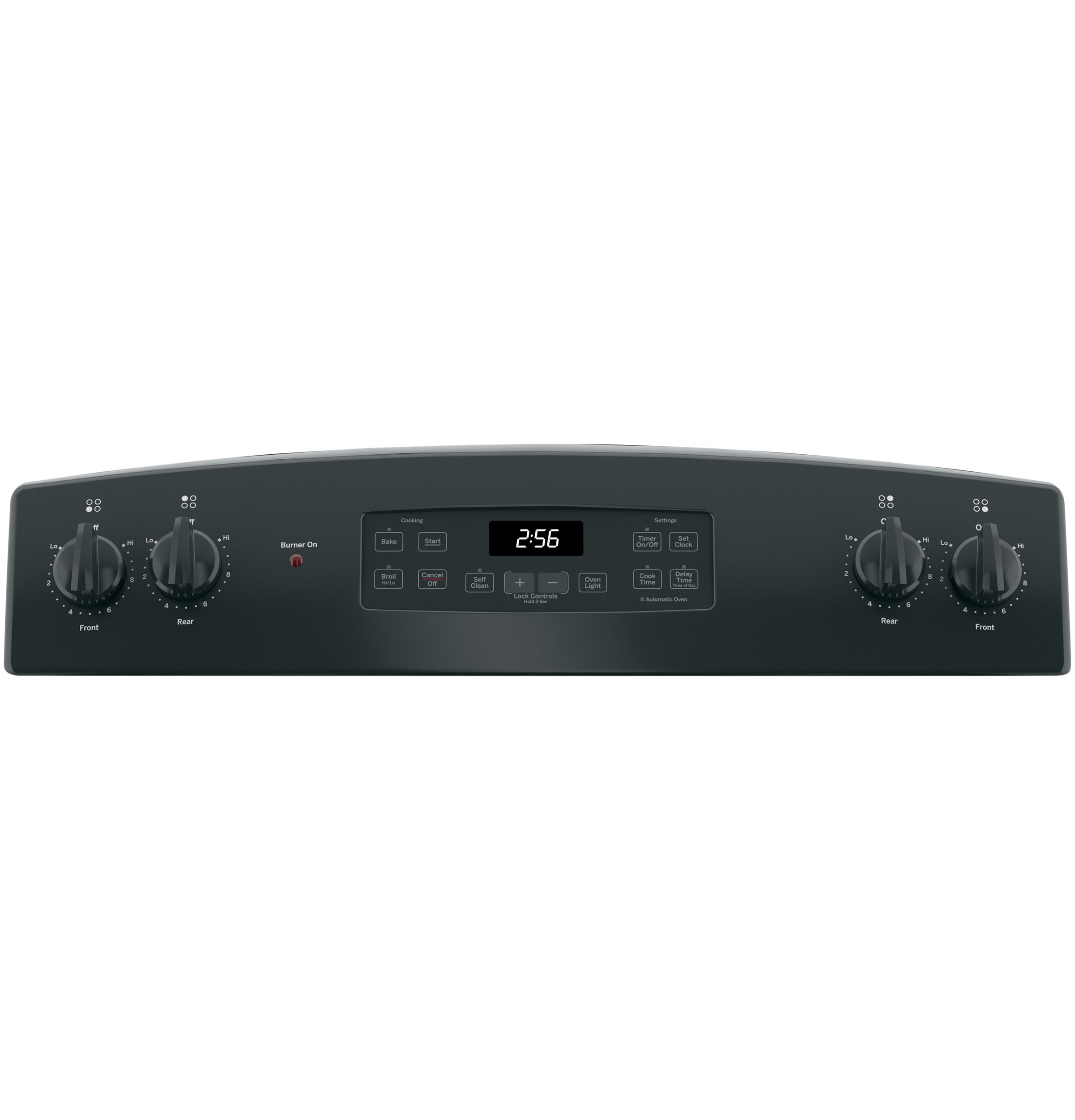

Control LocationBacksplash
Control TypeElectronic
Drawer TypeStorage
Sabbath ModeYes
Element - Left Rear8" 2400W Temp Limiting Coil
Cooking TechnologyTraditional
ConfigurationRange with Storage Drawer
Oven Features4-Pass Bake Element
Removable One-piece Drip BowlsBlack Porcelain Enameled
Ou CertifiedNo
Cooktop Burner TypeCoil
Element - Right Rear6" 1250W Temp Limiting Coil
Cooktop SurfaceOne-Piece Upswept
Oven Rack Positions (single Or Upper/lower)6
Appearance
HandleDesigner Style
Textured Steel Side PanelsYes
Oven Door FeaturesBig View Oven Window
Handle ColorBlack
Control KnobsStainless Steel Appearance
Color AppearanceBlack
Power & Ratings
Electrical Requirements208/240V ; 60Hz ; 40A
Amp Rating At 208v40
Broiler Wattage3410W
Amp Rating At 240v40
Kw Rating At 240v11.7
Bake Wattage2585W
Kw Rating At 208v8.8
Hertz60
