12" wide Built-In Wine Cellar
1 / 7
Summit

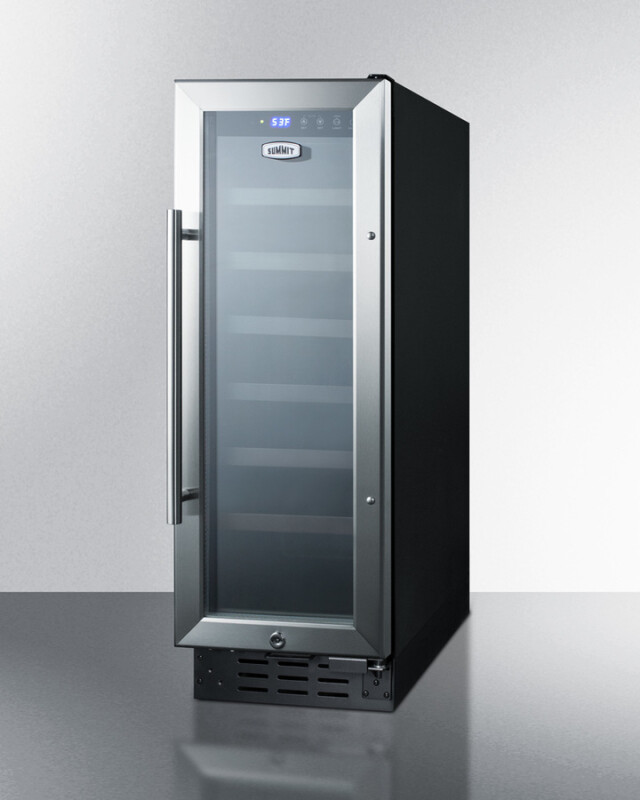

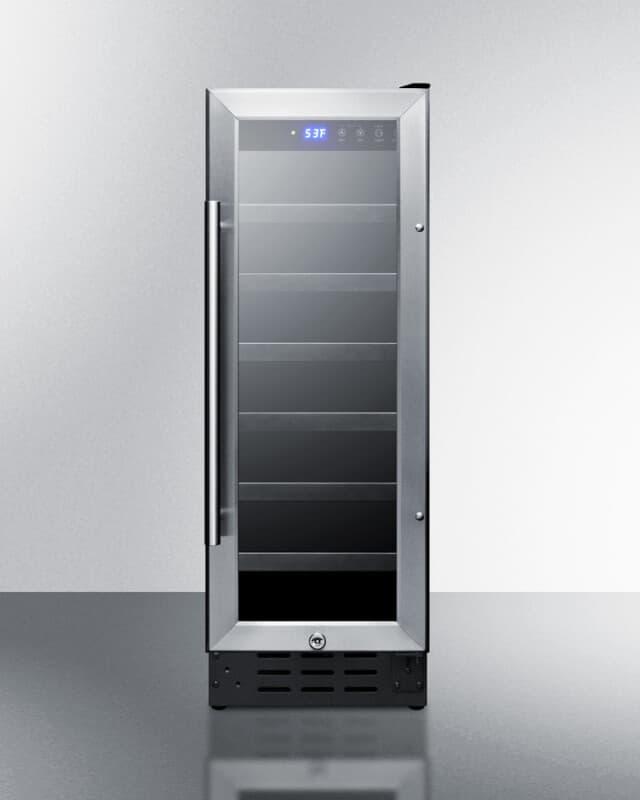

12" wide Built-In Wine Cellar

Model: SWC1224B

BrandSummit
Model #SWC1224B
Width11.88 in.
Height34.38 in.
Depth22.38 in.

This model is discontinued

The 12" wide Built-In Wine Cellar is discontinued and cannot be ordered.

This model is discontinued and cannot be ordered. We carry current models that do the same job — start with the similar items below.

See similar models →

Shop Outdoor

Need help finding a replacement? Call (732) 426-0990

Was $1,140 when available

At a glance

Summit SWC1224B is an outdoor refrigerator in Black, 11.88 inches wide.

Specifications

Dimensions

Width11.88 in.
Height34.38 in.
Length22.38 in.
Weight66 lbs.

Warranty

Parts1 Year
Labor1 Year

Overview Wine Cellar

Nominal Height35.0" (89 cm)
Height Of Cabinet34.38" (87 cm)
Nominal Width12.0" (30 cm)
Width11.88" (30 cm)
Nominal Depth23.0" (58 cm)
Depth22.38" (57 cm)
Depth With Handle24.13" (61 cm)
Depth With Door At 90°33.0" (84 cm)
Bottles21 bottles
Defrost TypeAutomatic
DoorGlass
CabinetBlack
Us Electrical SafetyETL
Canadian Electrical SafetyETL-C
SanitationETL-S
Amps1.25
Voltage/frequency115 V AC/60 Hz
Weight66.0 lbs. (30 kg)
Parts & Labor Warranty1 Year
Compressor Warranty5 Years
Upc761101059501
Number Of Zones1
Door SwingRHD
ReversibleYes
Adjustable ShelvesYes
Shelf TypeWood
Shelf Qty6
Thermostat TypeDigital
Interior LightYes
Fan TypeInterior and Exterior
Refrigerant TypeR600a
Refrigerant Amount0.88 oz.
High Side Psi150.0
Low Side Psi50.0
Interior Height 125.0" (64 cm)
Interior Width 19.13" (23 cm)
Interior Depth 117.0" (43 cm)
Compressor Step Height3.75" (10 cm)
Compressor Step Width9.13" (23 cm)
Compressor Step Depth4.5" (11 cm)
Level Legs4
Temperature Range41 to 68ºF

Product Features

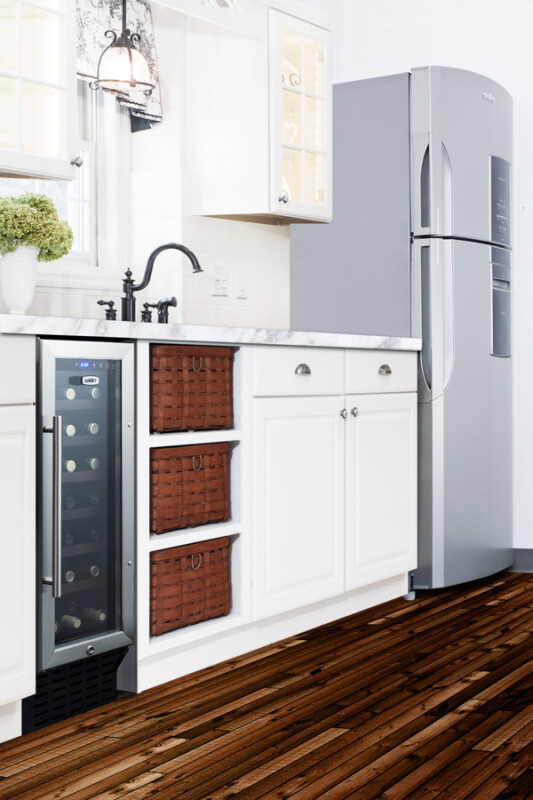

Built-in capable

Make the best use of space by installing your appliance under the counter

Commercially approved

Meets UL Commercial Standard 471 and is ETL-S listed to NSF-7 commercial standards

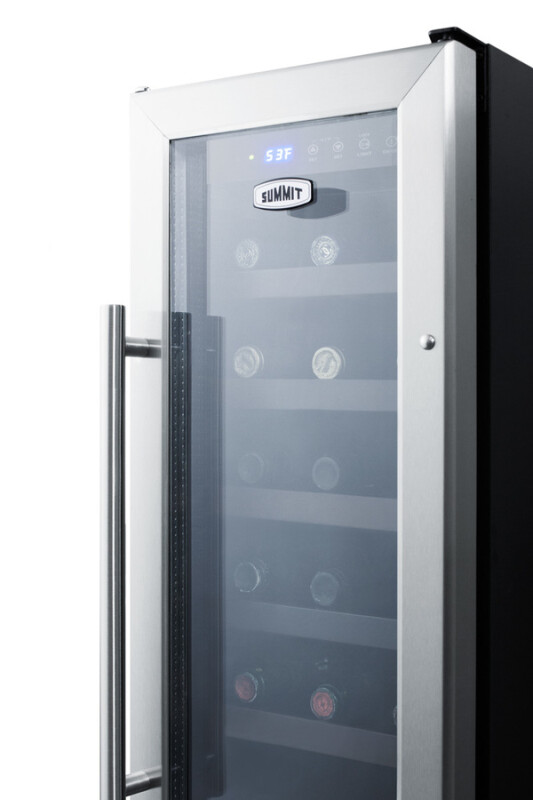

Glass door with stainless steel trim

Provides a full display of your stored collection with a heat-safe double tempered design

Factory installed lock

Keyed security on the wine cellar door

Digital thermostat

Electronic controls for precise temperature management, with indicator lights for red, white, and sparkling wines

Digital display

Temperature readout can be shown in Celsius or Fahrenheit

Wooden shelves

Slide-out shelves offer the perfect storage for bottles

LED lighting

On/off button to illuminate your collection

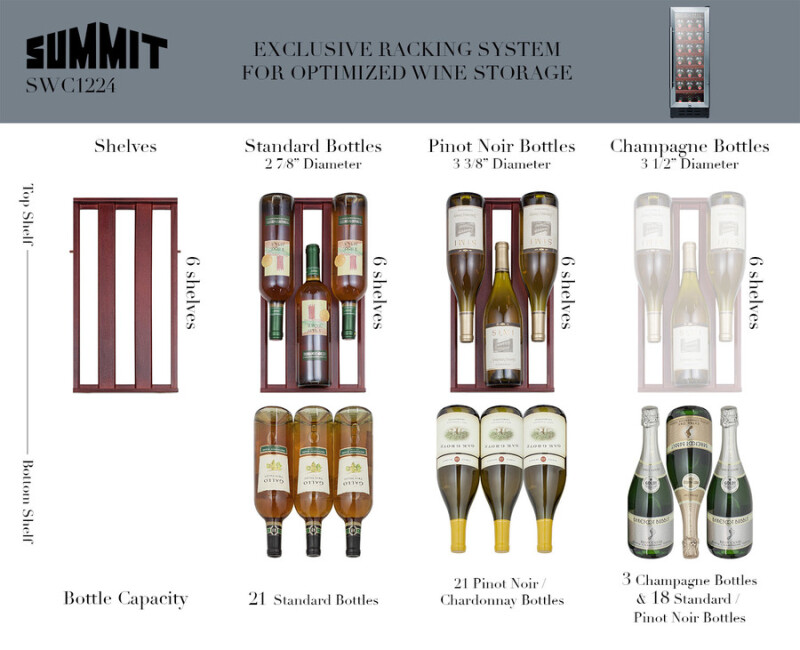

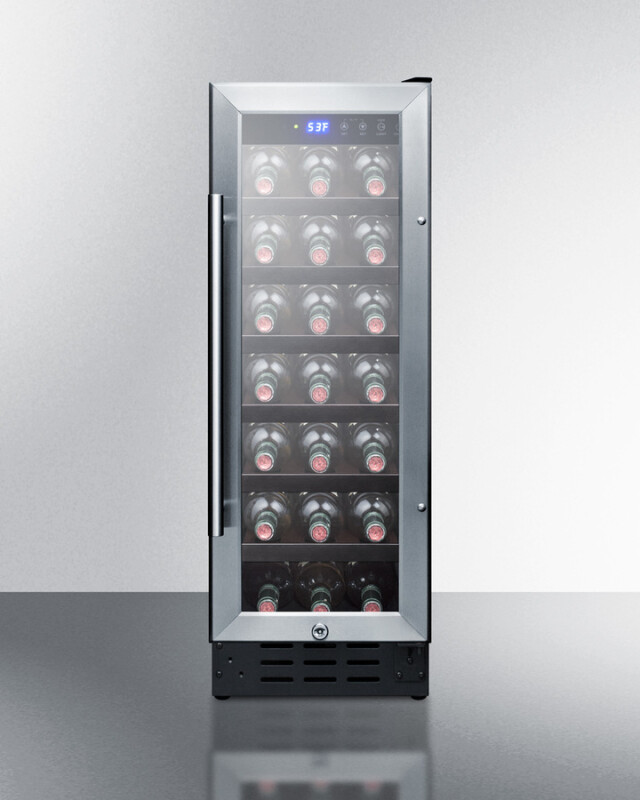

21 bottle capacity

Interior can hold 21 bottles in standard Bordeaux style or wider Burgundy style

Automatic defrost

Reduced maintenance and steady temperature performance

Professional handle

Stainless steel look for added elegance

Flush back

Space saving design with easier cleanability

Reversible door

Keep your options flexible with a reversible door that is easy to switch when your arrangement changes

Fully finished black cabinet

Allows the unit to be used freestanding

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

HTS CODE: 8418.50.0080

Upright coolers incorporating refrigerating equipment, each measuring not more than 77 cm/30.315" in width, not more than 78 cm/30.7" in depth and not more than 200 cm/78.75" in height, weighing not more than 127 kg/280 lb, with one swing-type transparent glass door

Product Documents

Customer Reviews

No reviews yet

Be the first to review this product.

Common questions

What warranty comes with the Summit SWC1224B?
The Summit 12" wide Built-In Wine Cellar is listed with 1 year of parts and labor coverage from the manufacturer, per this model's published specifications.
