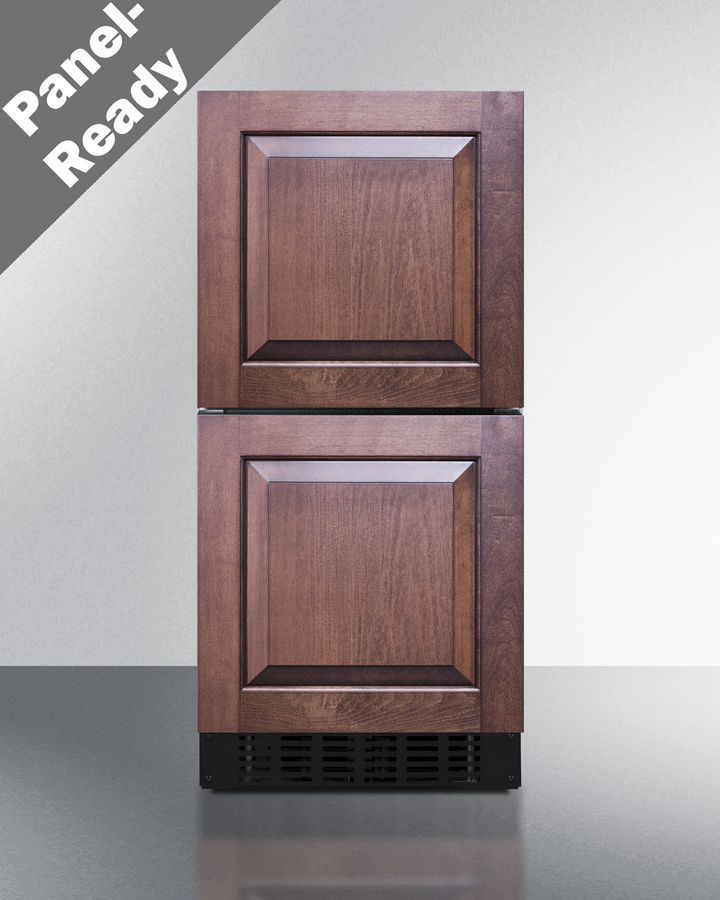

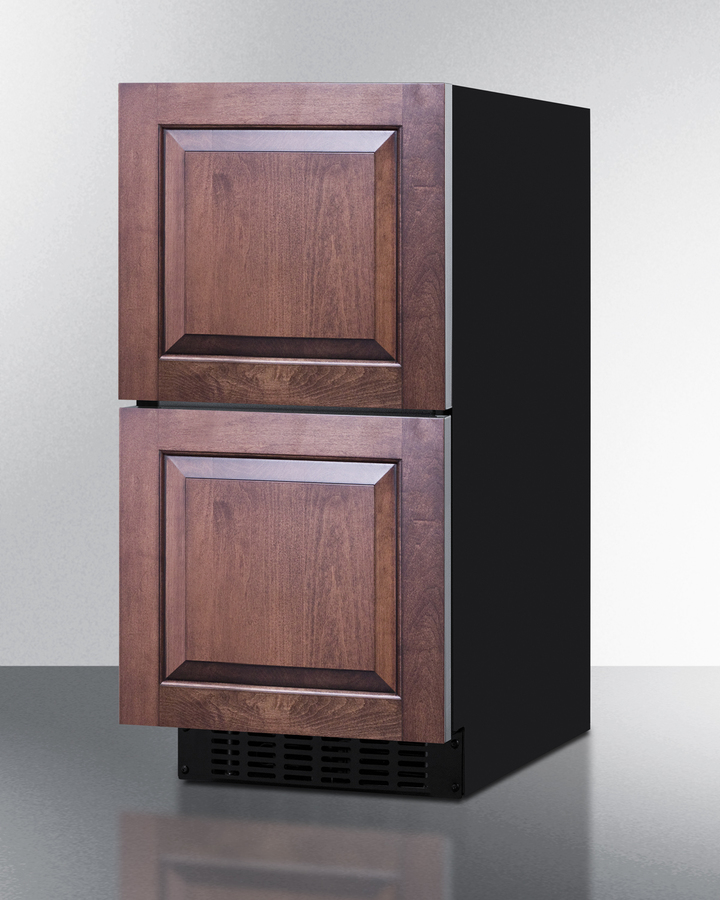

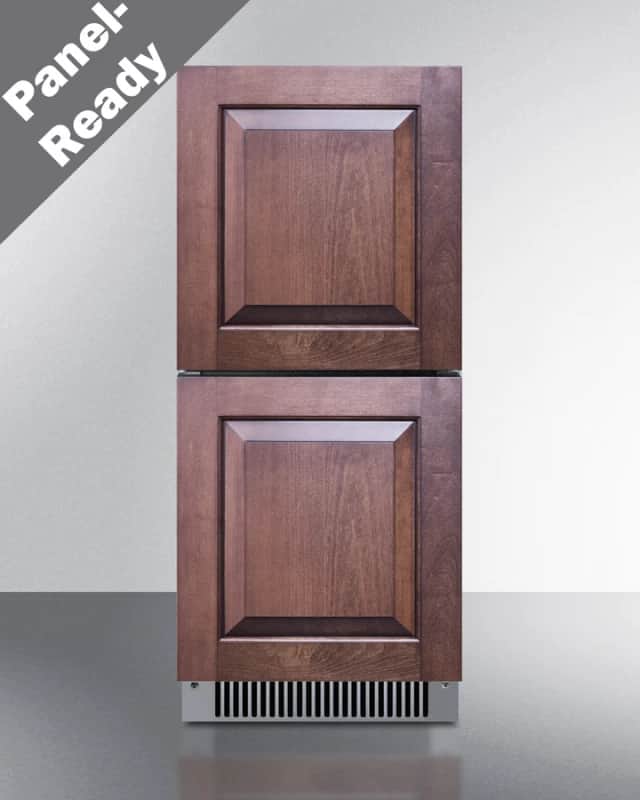

15" Wide 2-Drawer All-Refrigerator, ADA Compliant (Panels Not Included)
1 / 10
BrandSummit
Model #ASDR1524PNR

Who it’s for

  • Good for Sabbath-observant homes — A Sabbath mode is listed on this refrigerator's specification.

  • Good for a fully integrated kitchen — Panel-ready: takes a custom cabinet front so the refrigerator disappears into the run of cabinets.

SummitAuthorized Dealer

15" Wide 2-Drawer All-Refrigerator, ADA Compliant (Panels Not Included)

Model: ASDR1524PNR

This model is discontinued

The 15" Wide 2-Drawer All-Refrigerator, ADA Compliant (Panels Not Included) is discontinued and cannot be ordered.

The closest current model we carry is the 15" Wide Built-In Beverage Center.

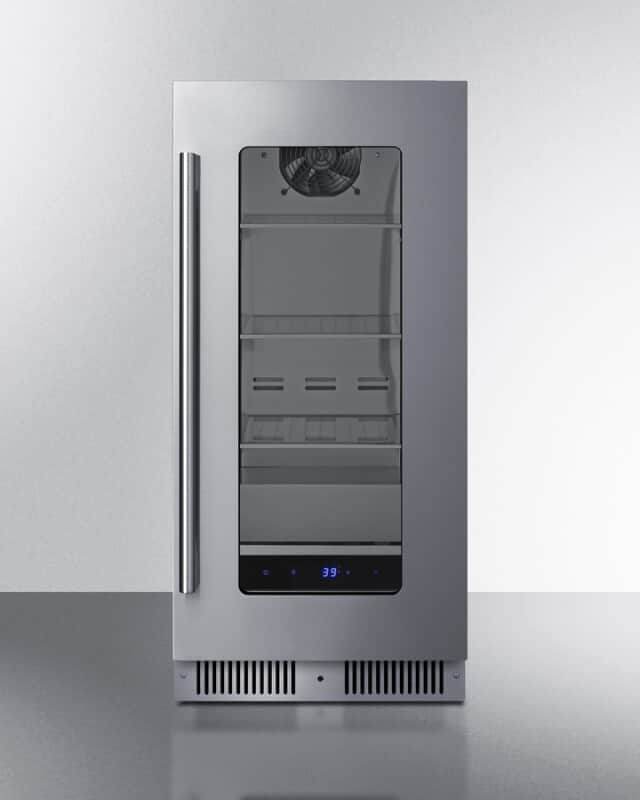

15" Wide Built-In Beverage Center

Now available

15" Wide Built-In Beverage Center

$1,500.00

$489 less than the model it replaces

  • Same 14.75" width
  • Same 18" depth
See the newer model →

Need help finding a replacement? Call (732) 426-0990

Was $1,989 when available

At a glance

Summit ASDR1524PNR is a refrigerator in Panel-Ready, 14.75 inches wide with 1.7 cu ft of capacity. It has a Sabbath mode. It suits Sabbath-observant homes and a fully integrated kitchen.

Specifications

Overview Refrigerator Features Drawer Dimensions Dimensions

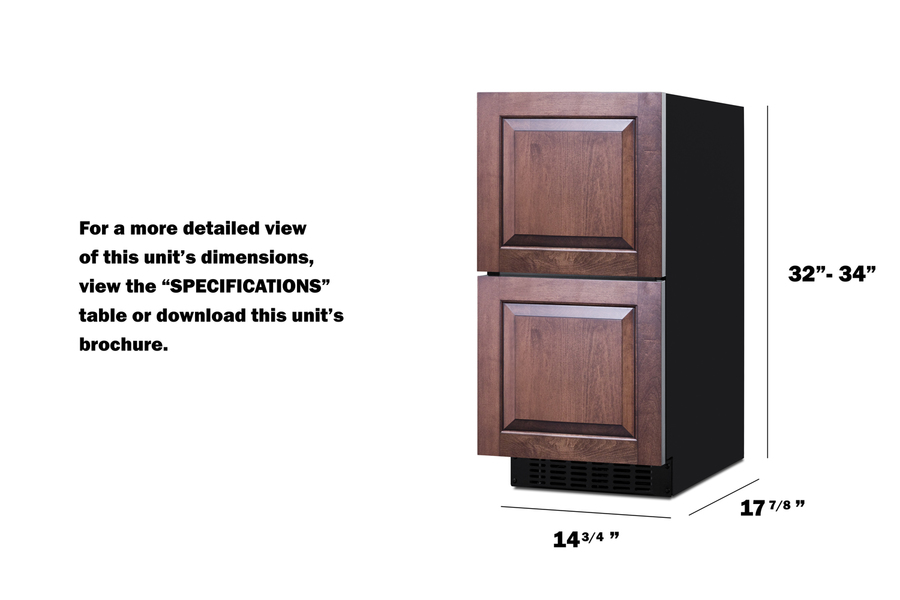

Nominal Height32.0" (81 cm)
Height Of Cabinet32.0" (81 cm)
Nominal Width15.0" (38 cm)
Width14.75" (37 cm)
Nominal Depth18.0" (46 cm)
Depth17.88" (45 cm)
Depth With Door At 90°29.63" (75 cm)
Capacity1.7 cu.ft. (48 L)
Defrost TypeFrost-Free
DoorStainless Steel/Panel-Ready
CabinetStainless Steel
Us Electrical SafetyETL
Canadian Electrical SafetyETL-C
SanitationETL-S
Energy Usage/year235.0kWh/year
Amps1.0
Voltage/frequency115 V AC/60 Hz
Weight65.0 lbs. (29 kg)
Parts & Labor Warranty1 Year
Compressor Warranty5 Years
Upc761101088921
Sabbath ModeYes
Door SwingDrawer
Height AdjustableYes
Thermostat TypeDigital
Fan TypeInterior and Exterior
Refrigerant TypeR600a
Refrigerant Amount0.64oz.
High Side Psi270.0
Low Side Psi105.0
Level Legs Qty4
Interior LightYes
Interior DrawersYes
Interior Drawers Qty2
Temperature Range36 to 43ºF
Sound Level32.9 dB
Interior Height 18.0" (20 cm)
Interior Width 19.0" (23 cm)
Interior Depth 111.25" (29 cm)
Interior Height 28.0" (20 cm)
Interior Width 29.0" (23 cm)
Interior Depth 211.25" (29 cm)
Compressor Step Height3.75" (10 cm)
Compressor Step Width9.0" (23 cm)
Compressor Step Depth4.75" (12 cm)

Product Features

2-Drawer All-Refrigerator

15" wide 1.7 cu.ft. all-refrigerator with two gliding drawers

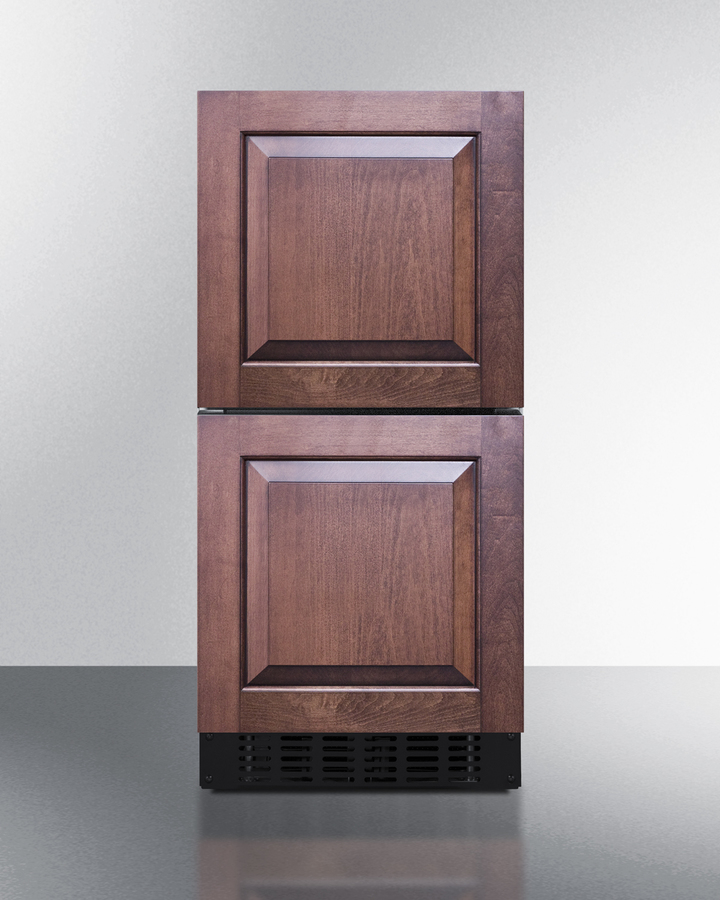

Panel-ready drawer fronts

Drawers can be customized with overlay panels sized (at 14.75" W x 14.1" H at 3/4" thick) to match or accent existing cabinetry

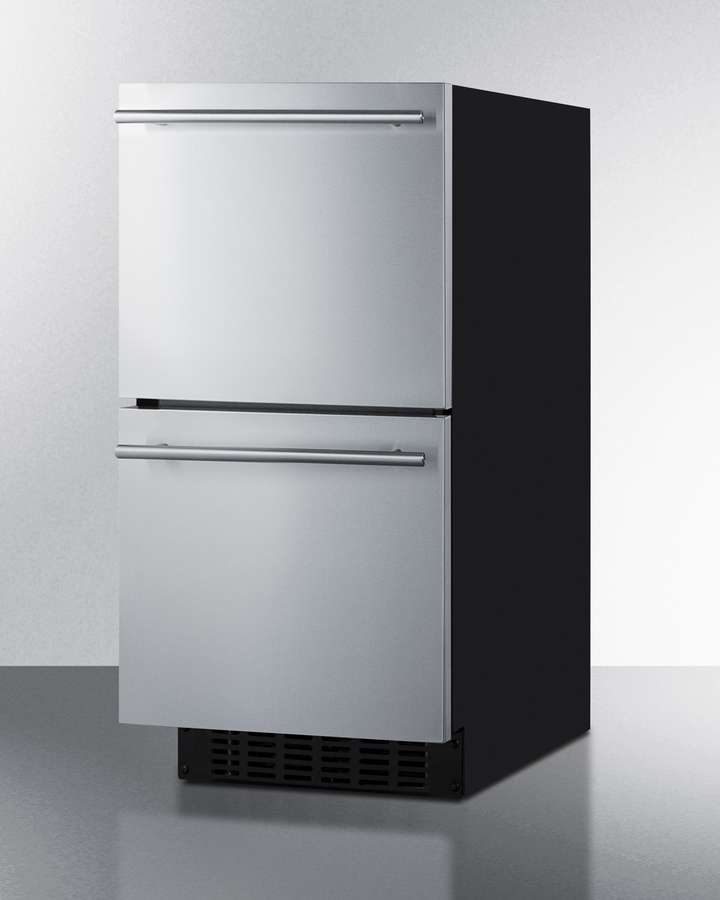

Stainless steel front finish

Fully finished drawer fronts also allows you to choose a traditional stainless steel front if not installing overlay panels

Less than 18" deep

Unique 17.88" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space

ADA compliant design

Sized just under 32" high to allow installation under lower ADA compliant counters

Adjustable height

Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets

Built-in capable

Front-breathing design allows you to make the best use of space by installing your appliance under the counter and flush with other cabinets in 15" wide openings

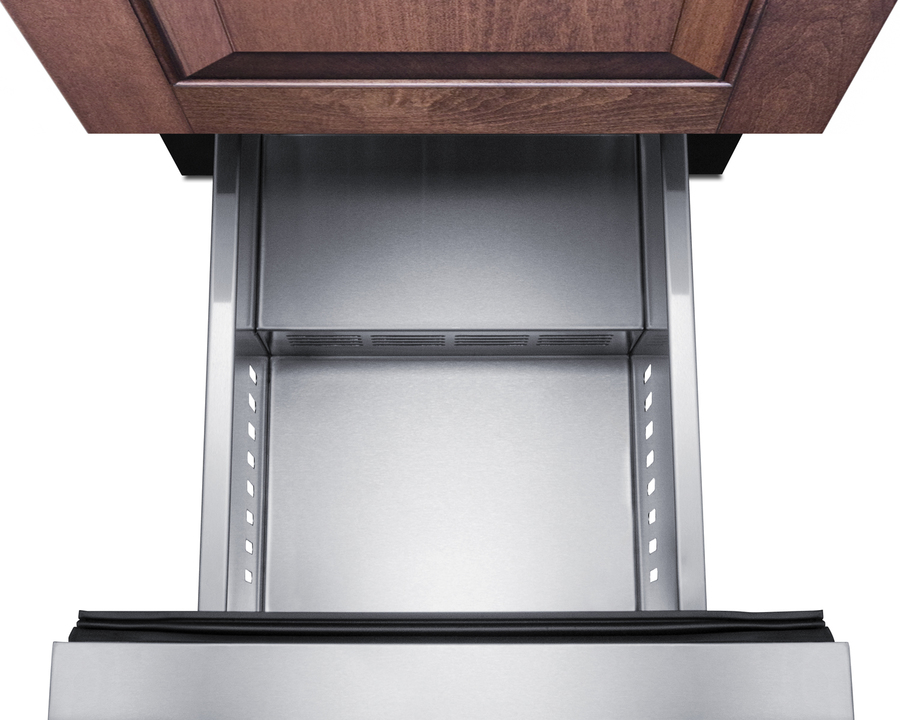

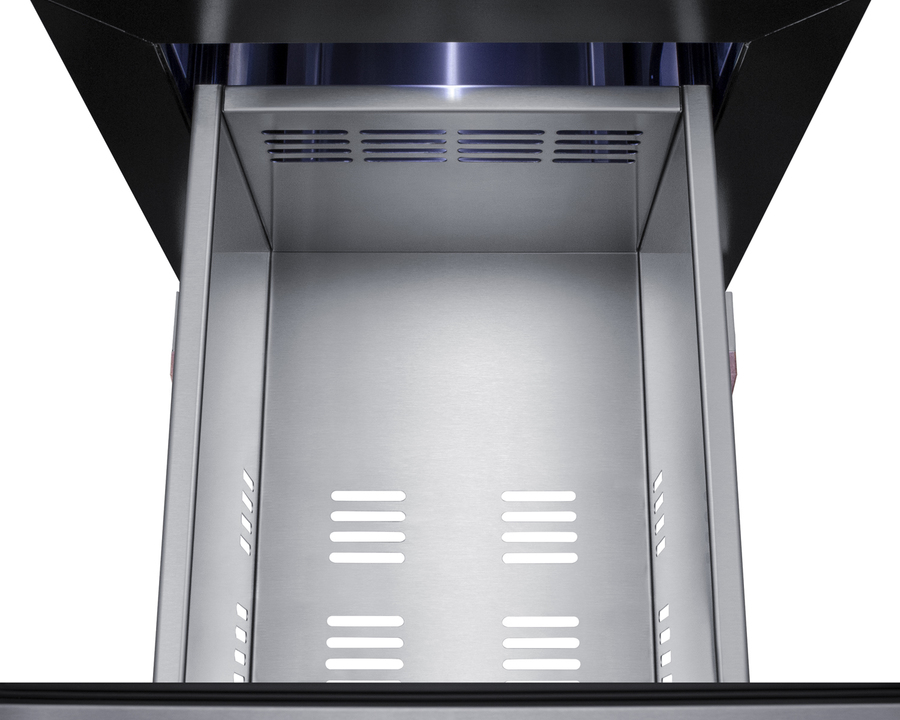

Stainless steel drawers

Drawer interiors and exteriors are fully constructed from 304 grade stainless steel for lasting durability with a finished front for an elegant look

Professional handles

Stainless steel handles add style to any setting

Frost-free

No-frost operation for minimal user maintenance

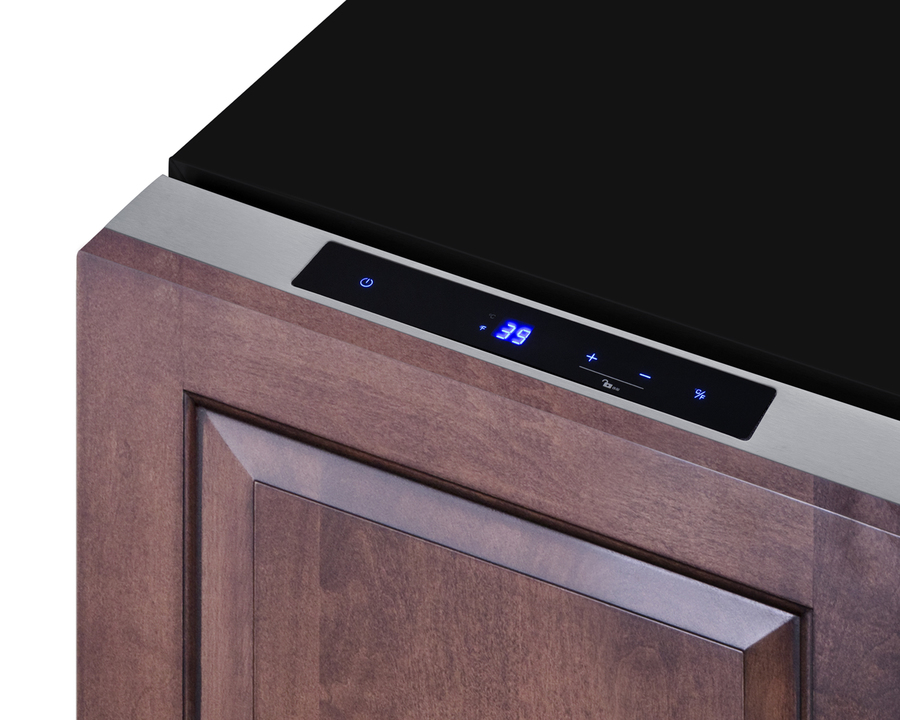

Digital thermostat

Electronic controls located on the top drawer ensure intuitive temperature management, with an external readout that can switch from Celsius to Fahrenheit at the touch of a button

Interior lighting

Elegant LED lighting in a gentle white hue illuminates the top drawer for an easy view of the interior

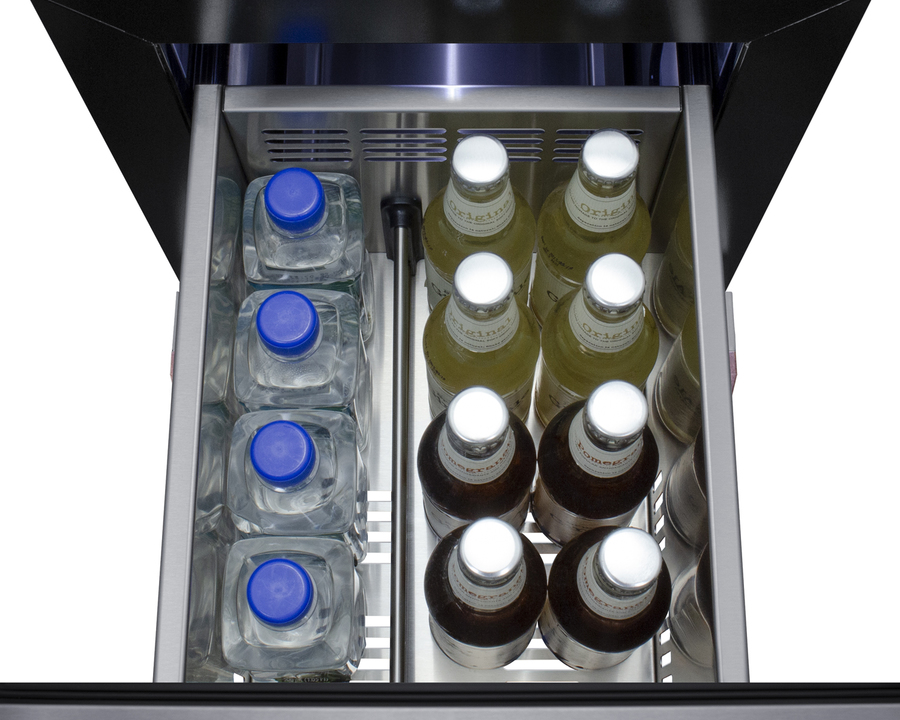

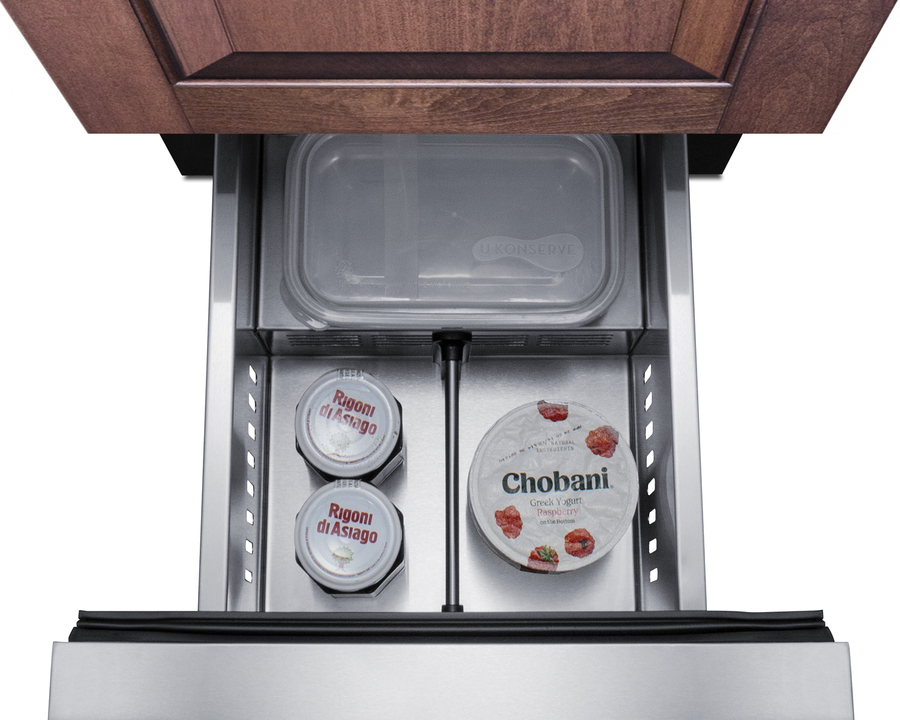

Drawer dividers

Two adjustable dividers provide flexibility when organizing the interiors

Temperature alarm

Alarm alerts you if the unit’s temperature goes beyond recommended high and low temperature ranges

Open drawer alarm

Audible alarm will sound if either drawer is left open longer than one minute

Sabbath mode

Optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance

Child lock

Disables digital controls after two minutes of activity for added safety

Temperature memory function

Unit will restore the most recent temperature settings after losing power

Right-angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Sealed back

Space-saving design with no exposed coils for easier cleanability

Fully finished black cabinet

Allows the unit to be used freestanding

Fan-forced cooling

Provides for efficient, even cooling of the entire unit

Temperature memory

Unit will retain temperature settings after losing power

Anti-tip bracket

Included and recommended for user-installation to reduce the risk of tipping

Commercially approved

ETL-S listed to NSF-7 standards to allow use in commercial establishments

100% CFC free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Product Documents

Customer Reviews

No reviews yet

Be the first to review this product.

Common questions

Is the Summit ASDR1524PNR good for Sabbath-observant homes?
Yes — A Sabbath mode is listed on this refrigerator's specification.
Is the Summit ASDR1524PNR good for a fully integrated kitchen?
Yes — Panel-ready: takes a custom cabinet front so the refrigerator disappears into the run of cabinets.
What warranty comes with the Summit ASDR1524PNR?
The Summit 15" Wide 2-Drawer All-Refrigerator, ADA Compliant (Panels Not Included) is listed with 1 year of parts and labor coverage from the manufacturer, per this model's published specifications.
