$1,365.00

In Stock

20" Wide Built-In Healthcare All-Refrigerator, ADA Compliant
1 / 8
BrandSummit
Model #ADA404REF
Summit

20" Wide Built-In Healthcare All-Refrigerator, ADA Compliant

Model: ADA404REF

Discontinued — limited stock remaining
In Stock2 units ready to ship· Low inventory — hurry!
Free Delivery in NJ/NY MetroDelivery details

Add installation & services

Installed by our Jackson, NJ team · connection to existing lines only, no modifications · NJ & NY Metro area

Call to Order: (732) 426-0990

Questions or ready to buy? Talk to a real appliance expert.

Pay over time with Affirm — available at checkout. Learn more
Dimensions: 19.75" WMeasure your space before ordering

At a glance

Summit ADA404REF is a refrigerator, 19.75 inches wide with 3.32 cu ft of capacity.

Specifications

Overview Refrigerator Features Dimensions

Nominal Height32.0" (81 cm)
Height Of Cabinet31.75" (81 cm)
Height To Hinge Cap32.0" (81 cm)
Nominal Width20.0" (51 cm)
Width19.75" (50 cm)
Width With Door Open20.25" (51 cm)
Nominal Depth23.0" (58 cm)
Depth22.5" (57 cm)
Depth With Handle24.38" (62 cm)
Depth With Door At 90°40.25" (102 cm)
Capacity3.32 cu.ft. (94 L)
Defrost TypeAutomatic
DoorWhite
CabinetWhite
Us Electrical SafetyETL
Canadian Electrical SafetyETL-C
Amps1.1
Voltage/frequency115 V AC/60 Hz
Weight59.0 lbs. (27 kg)
Parts & Labor Warranty1 Year
Compressor Warranty5 Years
Upc761101063058
Door SwingRHD
ReversibleYes
Shelf TypeWire
Shelf Qty4
Thermostat TypeDigital
Fan TypeInterior
Refrigerant TypeR600a
Refrigerant Amount0.99oz.
High Side Psi180.0
Low Side Psi80.0
Level Legs Qty2
Interior LightYes
Temperature Range2 to 8°C
Interior Height23.5" (60 cm)
Interior Width16.25" (41 cm)
Interior Depth17.0" (43 cm)
Compressor Step Height6.25" (16 cm)
Compressor Step Width16.25" (41 cm)
Compressor Step Depth6.0" (15 cm)

Product Features

ADA compliant design

32" height allows easy installation under lower ADA compliant counters

2 to 8º operation

Designed to safely store select pharmaceuticals and other materials with strict temperature requirements

Built-in capable

Front-breathing design lets you make the best use of space by installing your appliance under the counter

Factory-installed lock

Located towards the top of the door for easy access and to provide added security of unit (2 keys included)

Access port

Unit comes with a factory installed probe hole for users to connect their own monitoring equipment

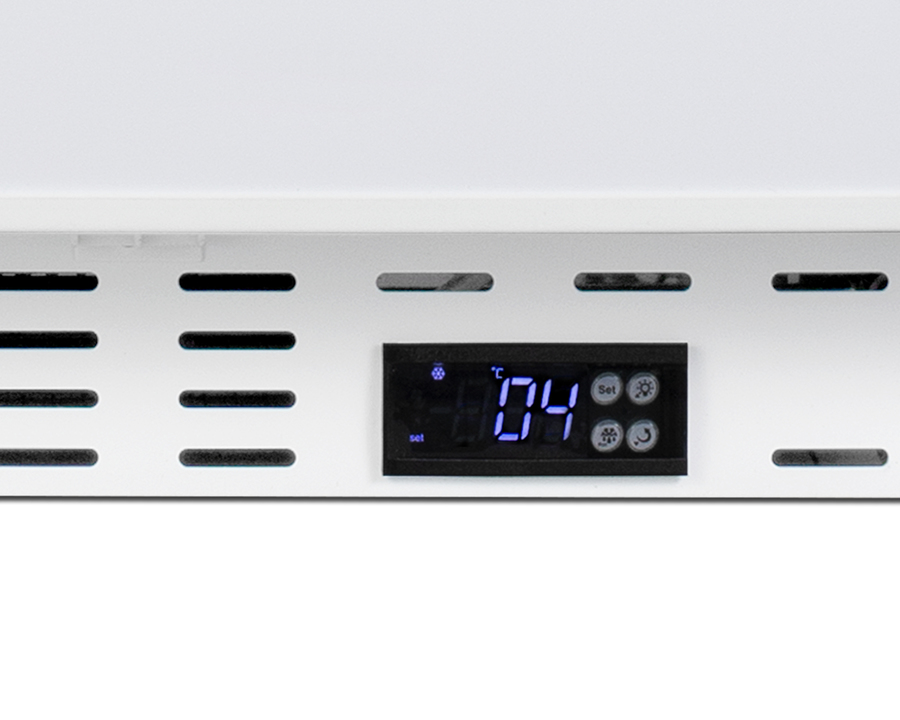

Adjustable digital thermostat

Electronic controls located in the front kickplate for easy & institutive temperature management, with a readout in Fahrenheit or Celsius

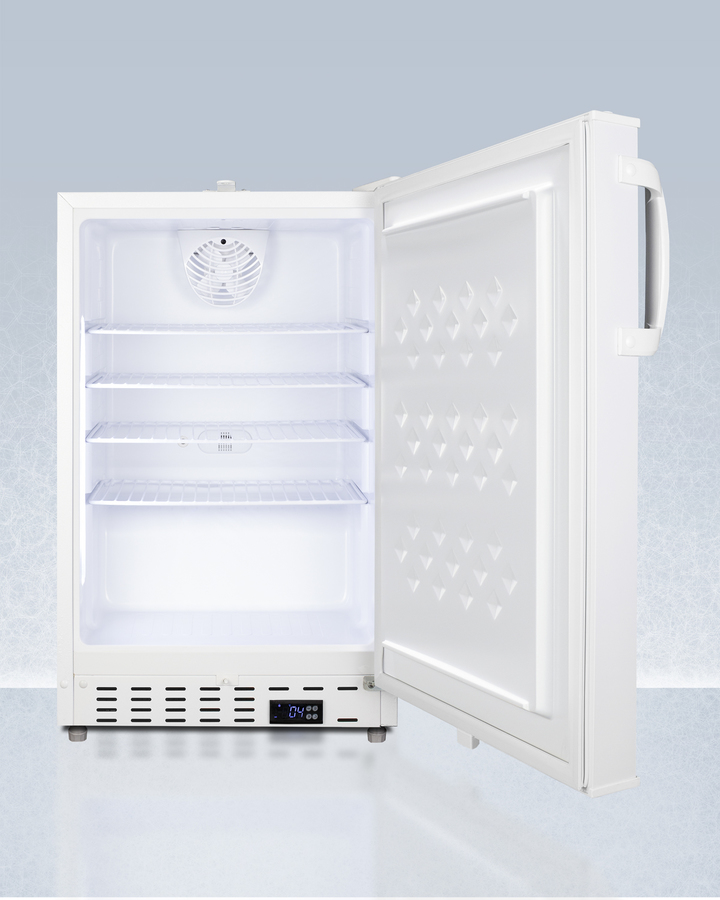

Adjustable wire shelves

Four wire shelves provide optimal storage and improved air circulation in the 3.32 cu. ft. interior

Reversible door

User-reversible door swing for added flexibility to best accommodate your setting

Temperature alarms

User-set high/low temperature alarms provide added security if temperature goes beyond setpoint

Open door alarm

Audible alarm will sound if the door is left ajar for over a minute

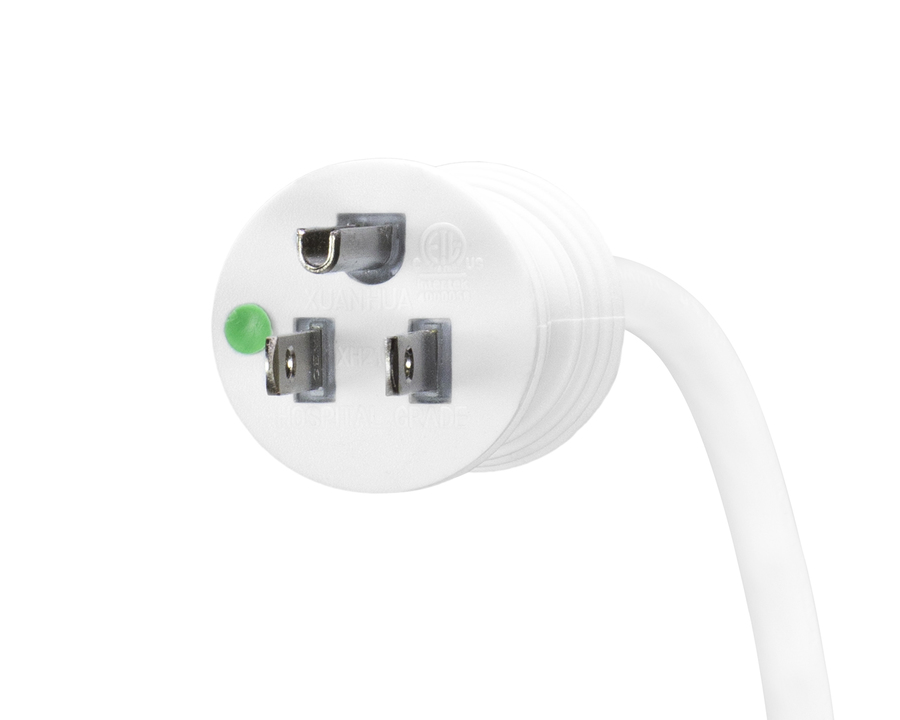

Hospital grade cord with 'green dot' plug

Secure three-pronged cord for added unit safety

3" thick door

Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does not open in its own radius. If installing this freezer against a wall, please see our drawings to ensure adequate space

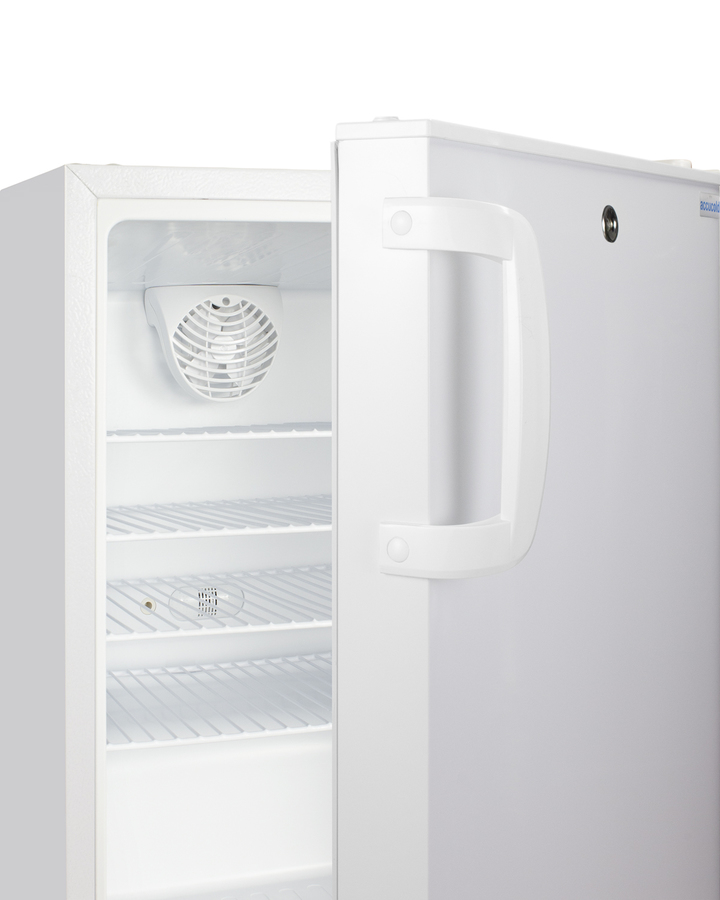

Internal fan

Fan-forced cooling ensures the unit is evenly cooled from top to bottom

Sealed back

Space-saving design that offers easier cleanability

Flat door liner

Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials

Automatic defrost

Reduced user maintenance with an auto defrost system

Fully finished white cabinet

Allows the unit to be freestanding

Matching all-freezer

This unit can be paired with the ADA305AF all-freezer for a complete set

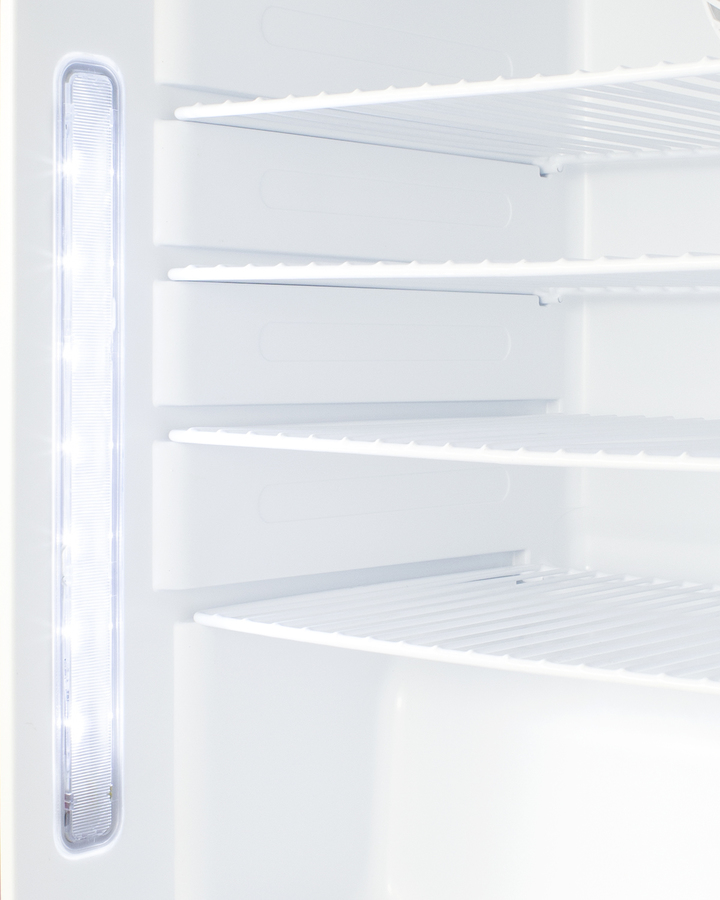

Interior light

Front-located LED light ensures entire interior is lit when door opens

Magnetic door gasket

Quality door gaskets ensure a tight seal for energy savings and improved performance

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Product Documents

Customer Reviews

No reviews yet

Be the first to review this product.

Common questions

Is the Summit ADA404REF in stock?
Yes — the Summit 20" Wide Built-In Healthcare All-Refrigerator, ADA Compliant is in stock at All Make Appliance and available to order now.
Does the Summit ADA404REF qualify for free shipping?
Yes in the NJ/NY metro area (free over $499) and our regional zone (CT, PA, DE, MD, the NY capital region — free over $899). Nationwide delivery is free on orders over $1,999.
What warranty comes with the Summit ADA404REF?
The Summit 20" Wide Built-In Healthcare All-Refrigerator, ADA Compliant is listed with 1 year of parts and labor coverage from the manufacturer, per this model's published specifications.
