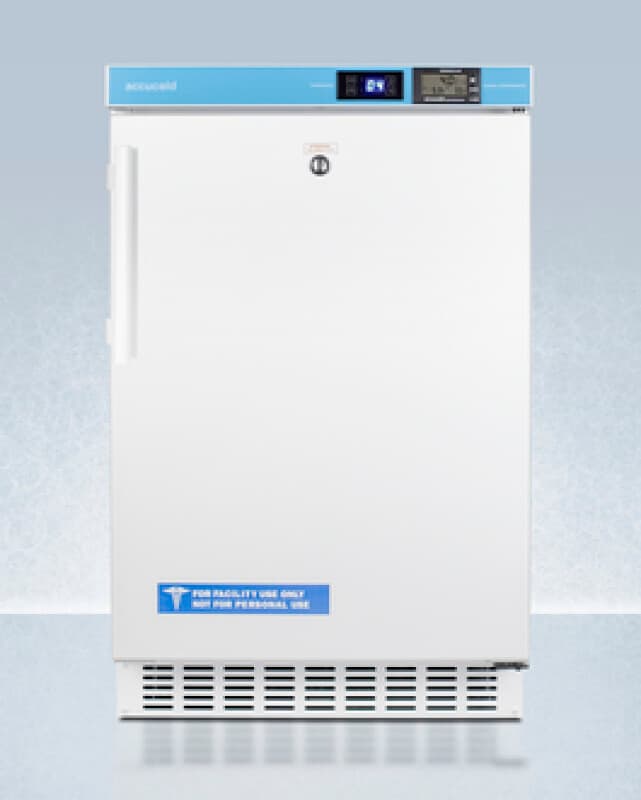

20" Wide Built-In Pharmacy All-Refrigerator, ADA Compliant
1 / 16

Available in 3 finishes:

BrandSummit
Model #ACR45L
Width19.5 in.
Height31.5 in.
Depth22.75 in.
Summit

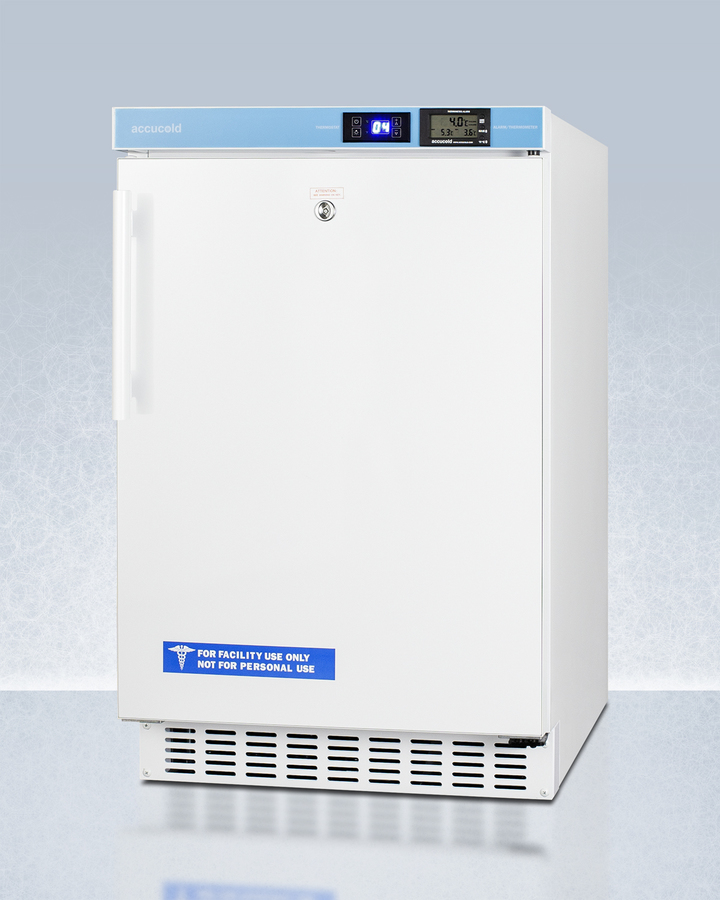

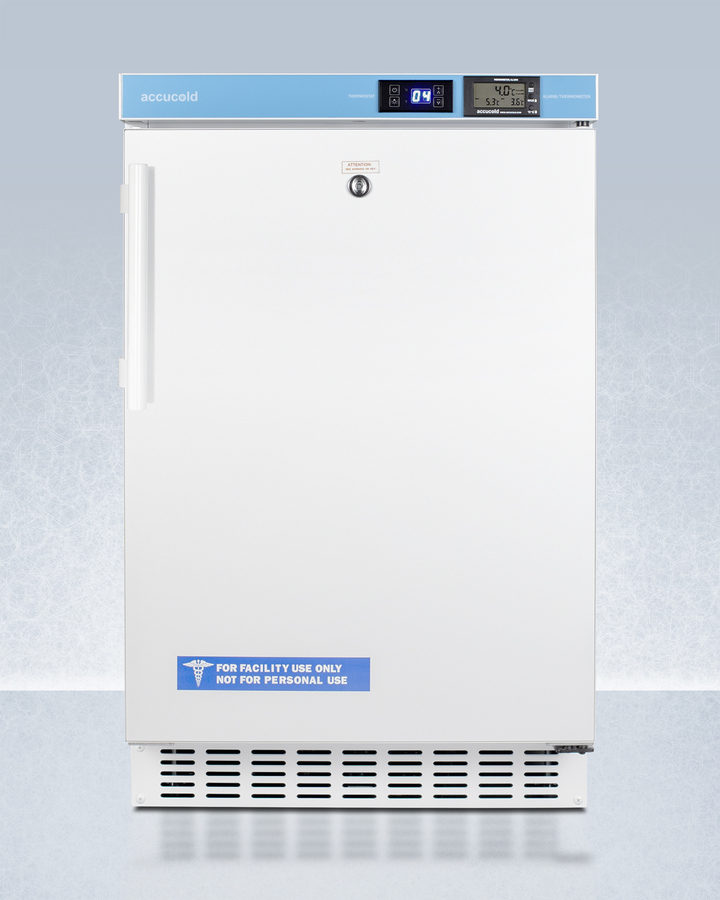

20" Wide Built-In Pharmacy All-Refrigerator, ADA Compliant

Model: ACR45L

This model is discontinued

The 20" Wide Built-In Pharmacy All-Refrigerator, ADA Compliant is discontinued and cannot be ordered.

The closest current model we carry is the 20" Wide Built-in Refrigerator-Freezer, ADA Compliant.

20" Wide Built-in Refrigerator-Freezer, ADA Compliant

Now available

20" Wide Built-in Refrigerator-Freezer, ADA Compliant

$804.35

$446 less than the model it replaces

  • Same color: White
See the newer model →

Need help finding a replacement? Call (732) 426-0990

Was $1,250 when available

At a glance

Summit ACR45L is a mini fridge in White, 19.5 inches wide with 2.65 cu ft of capacity. It is listed as an under counter fridge.

Specifications

Dimensions

Width19.5 in.
Height31.5 in.
Length22.75 in.
Weight79 lbs.

Overview Refrigerator Features Dimensions

Nominal Height32.0" (81 cm)
Height Of Cabinet31.5" (80 cm)
Nominal Width20.0" (51 cm)
Width19.5" (50 cm)
Nominal Depth23.0" (58 cm)
Depth22.75" (58 cm)
Depth With Handle23.63" (60 cm)
Depth With Door At 90°41.0" (104 cm)
Capacity2.65 cu.ft. (75 L)
Defrost TypeFrost-Free
DoorWhite
CabinetWhite
Us Electrical SafetyETL
Canadian Electrical SafetyETL-C
Amps1.0
Voltage/frequency115 V AC/60 Hz
Weight79.0 lbs. (36 kg)
Parts & Labor Warranty1 Year
Compressor Warranty5 Years
Upc761101056357
Door SwingRHD
ReversibleYes
Shelf TypeWire
Shelf Qty3
Adjustable ShelvesYes
Thermostat TypeDigital
Fan TypeInterior and Exterior
Refrigerant TypeR600a
Refrigerant Amount0.99oz.
High Side Psi270.0
Low Side Psi105.0
Level Legs Qty4
Interior LightYes
Temperature Range2º to 8ºC
Interior Height21.25" (54 cm)
Interior Width15.0" (38 cm)
Interior Depth16.13" (41 cm)
Compressor Step Height3.5" (9 cm)
Compressor Step Width15.0" (38 cm)
Compressor Step Depth4.75" (12 cm)

Product Features

Slim 20" width

Full 2.65 cu.ft. capacity inside conveniently slim footprint

Vaccine refrigerator

Purpose-built to meet the recommendations of the CDC, VFC and VFA for reliable vaccine storage

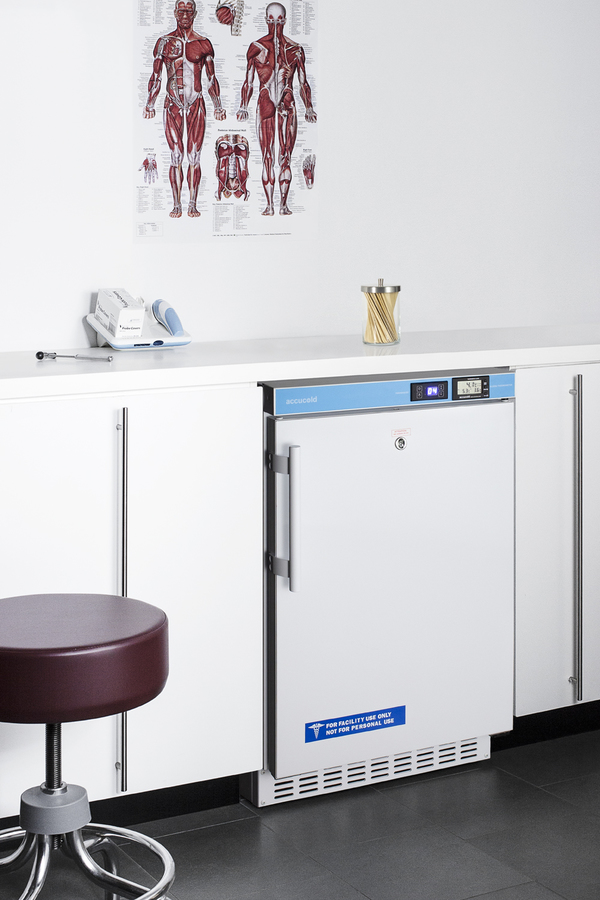

ADA compliant

Sized just under 32" high to allow installation under lower ADA compliant counters

Built-in capable

Front-breathing system allows the unit to be installed under cabinets with minimum clearance

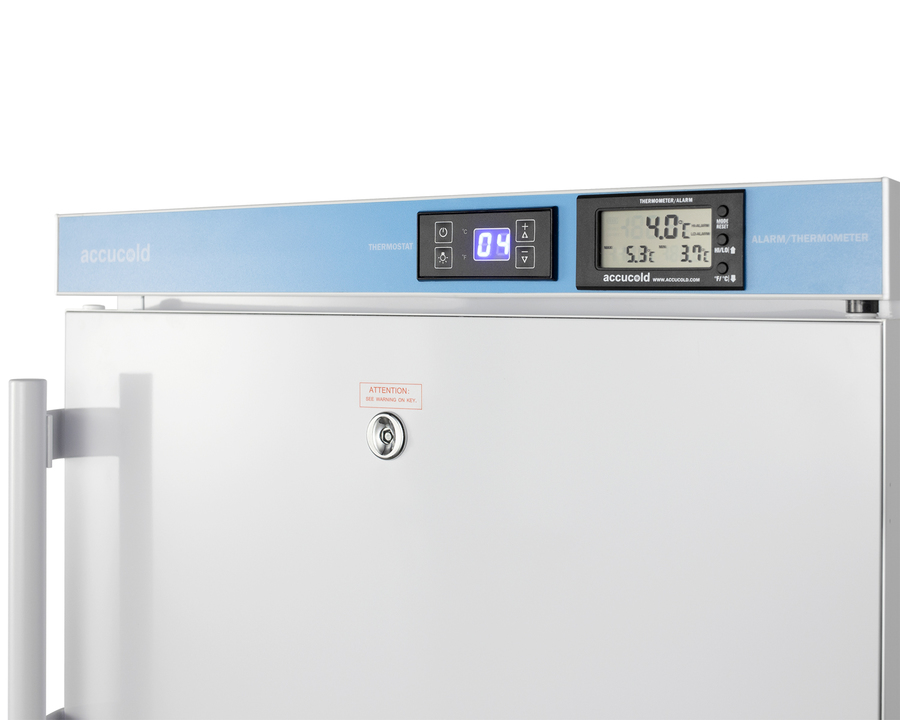

External temperature readout

Includes continuous display of the current interior and high/low temperature, and can be switched from Celsius to Fahrenheit at the touch of a button

Digital thermostat

Digital microprocessor for easy and precise temperature management, with all controls externally located for added convenience

High/low temperature alarm

Audible alarm sounds if the interior temperature rises or falls out of set range

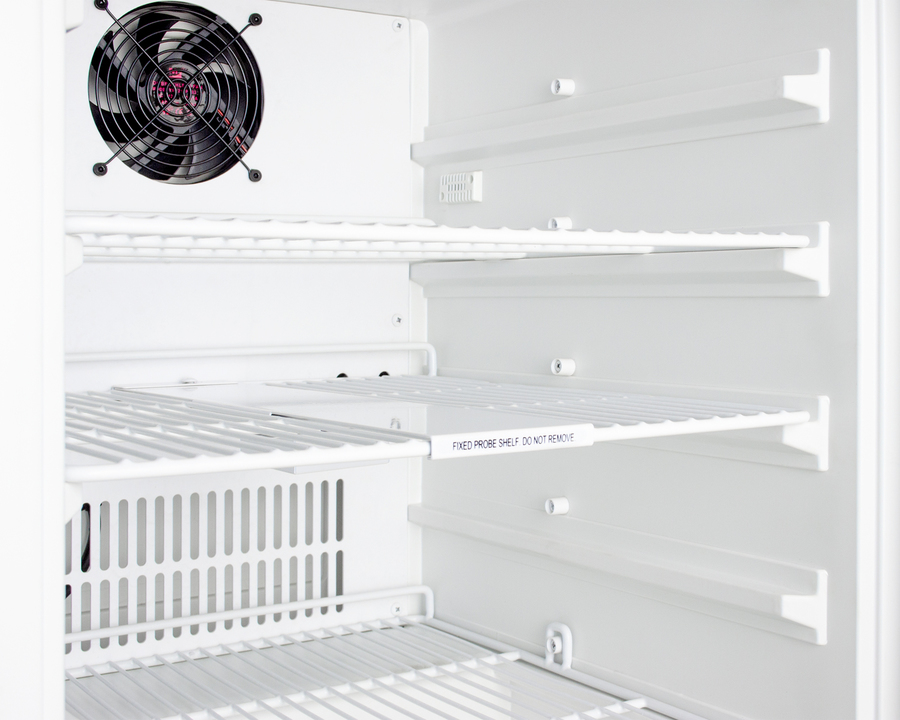

Buffered temperature probe

Thermometer probe is encased in a glass bead-filled bottle and stored in a fixed box on the center shelf. This is the ideal way to produce temperature readings closest to stored contents, as recommended by the CDC, VFC and VFA's guidelines

Factory installed lock

Keyed lock conveniently located towards the top of the door for added security (2 keys included)

Frost-free

No-frost operation for minimum user maintenance

Internal fan

Fan-forced cooling ensures the unit is evenly cooled from top to bottom

Hospital grade cord with 'green dot' plug

Secure three-pronged cord for added unit safety in high traffic areas

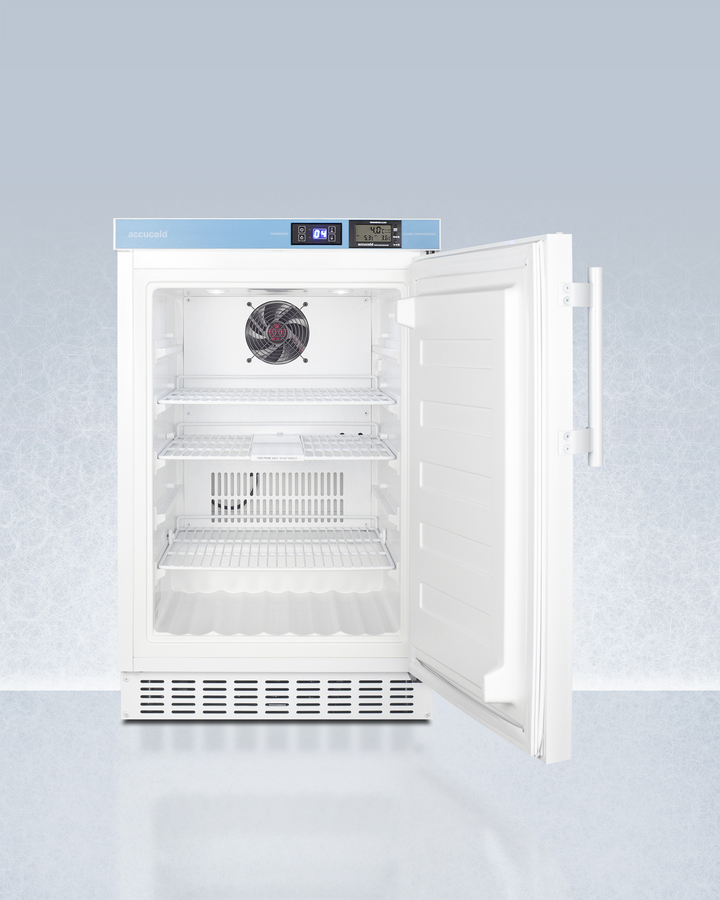

Adjustable wire shelves

Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup

LED lighting

Attractively illuminates the interior in a gentle white hue for easy viewing

Flat door liner

Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials

Reversible door

User-reversible door swing makes it easy to adjust to your setting as needed

3/8" access port

Unit comes with a factory installed probe hole for users to connect their own monitoring equipment

Foamed-in-place cabinet

Quality design ensures efficiently insulated interior

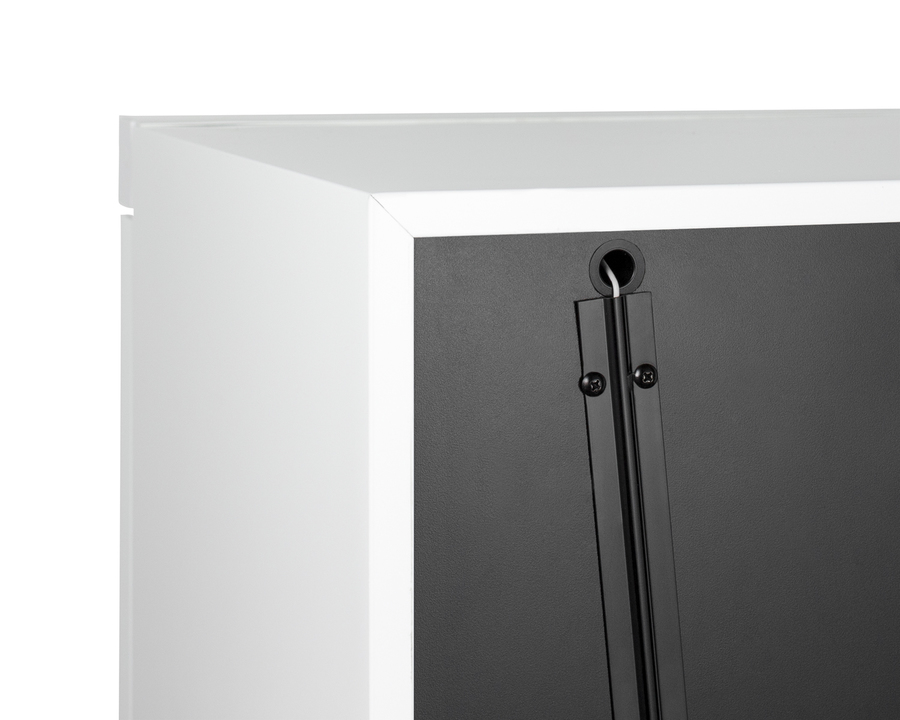

Sealed back

Space-saving convenience with easier cleanability

Temperature memory function

Unit will retain its last settings when power is restored in the event of power loss

Self-closing door

Door will automatically close when left ajar, preventing items from accidentally being left exposed to ambient temperatures

Magnetic door gasket

Quality door gaskets ensure a tight seal for energy savings and improved performance

Handle included

Side-mounted handle for user convenience (not required to operate the unit)

Fully finished white cabinet

Allows the unit to be used freestanding

Matching freezer

Pair with Accucold ACF33L frost-free freezer to create a complete set

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Product Documents

Customer Reviews

No reviews yet

Be the first to review this product.

Common questions

What warranty comes with the Summit ACR45L?
The Summit 20" Wide Built-In Pharmacy All-Refrigerator, ADA Compliant is listed with 1 year of parts and labor coverage from the manufacturer, per this model's published specifications.
