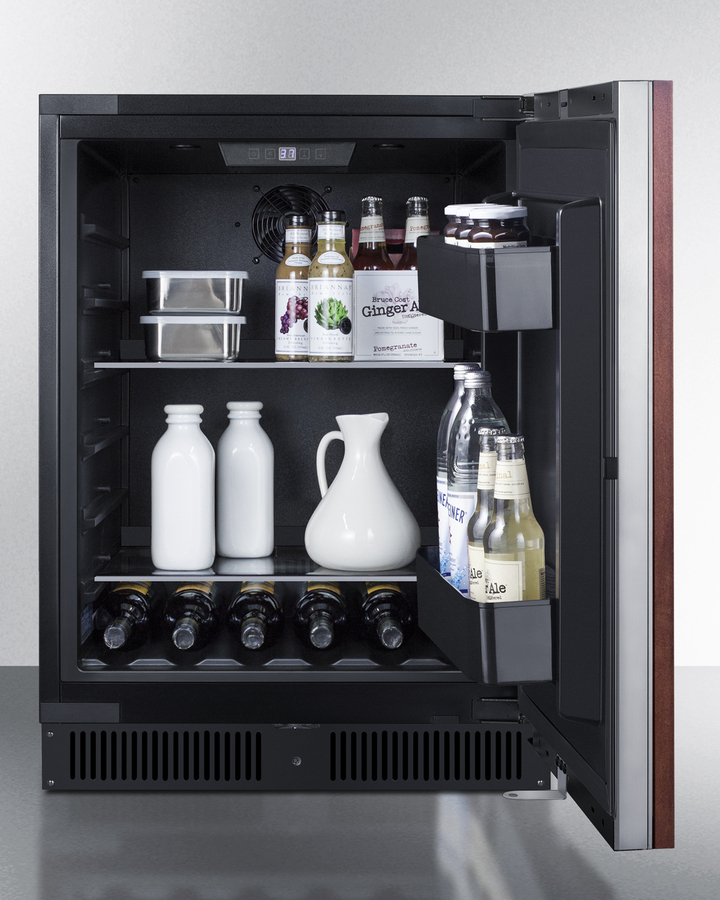

24" Wide Built-In All-Refrigerator, ADA Compliant (Panel Not Included)
1 / 9

Available in 2 finishes:

Summit

24" Wide Built-In All-Refrigerator, ADA Compliant (Panel Not Included)

Model: AL54IF

BrandSummit
Model #AL54IF
Width23.38 in.
Height32 in.
Depth22.63 in.

Who it’s for

  • Good for Sabbath-observant homesA Sabbath mode is listed on this refrigerator's specification.

This model is discontinued

The 24" Wide Built-In All-Refrigerator, ADA Compliant (Panel Not Included) is discontinued and cannot be ordered.

This model is discontinued and cannot be ordered. We carry current models that do the same job — start with the similar items below.

See similar models →

Shop Refrigeration

Need help finding a replacement? Call (732) 426-0990

Was $1,955 when available

At a glance

Summit AL54IF is a mini fridge, 23.38 inches wide with 4.4 cu ft of capacity. It has a Sabbath mode. It suits Sabbath-observant homes. It is listed as an under counter fridge.

Specifications

Dimensions

Width23.38 in.
Height32 in.
Length22.63 in.
Weight100 lbs.

Warranty

Parts1 Year
Labor1 Year

Overview Refrigerator Features Dimensions

Nominal Height32.0" (81 cm)
Height Of Cabinet32.0" (81 cm)
Nominal Width24.0" (61 cm)
Width23.38" (59 cm)
Nominal Depth23.0" (58 cm)
Depth22.63" (57 cm)
Depth With Door At 90°46.0" (117 cm)
Capacity4.4 cu.ft. (125 L)
Defrost TypeFrost-Free
DoorPanel-Ready
CabinetBlack
Us Electrical SafetyETL
Canadian Electrical SafetyETL-C
Energy Usage/year270.0kWh/year
Amps1.0
Voltage/frequency115 V AC/60 Hz
Weight100.0 lbs. (45 kg)
Parts & Labor Warranty1 Year
Compressor Warranty5 Years
Upc761101053998
Sabbath ModeYes
Door SwingRHD
ReversibleYes
Shelf TypeGlass
Shelf Qty3
Full Door Shelf Qty2
Adjustable ShelvesYes
Thermostat TypeDigital
Fan TypeInterior and Exterior
Refrigerant TypeR600a
Refrigerant Amount0.99oz.
High Side Psi270.0
Low Side Psi105.0
Level Legs Qty4
Interior LightYes
Temperature Range36 to 43ºF
Sound Level33.3dB
Interior Height24.38" (62 cm)
Interior Width20.0" (51 cm)
Interior Depth16.63" (42 cm)
Compressor Step Height3.25" (8 cm)
Compressor Step Width20.0" (51 cm)
Compressor Step Depth5.25" (13 cm)

Product Features

ADA compliant design

32" height allows easy installation under lower ADA compliant counters

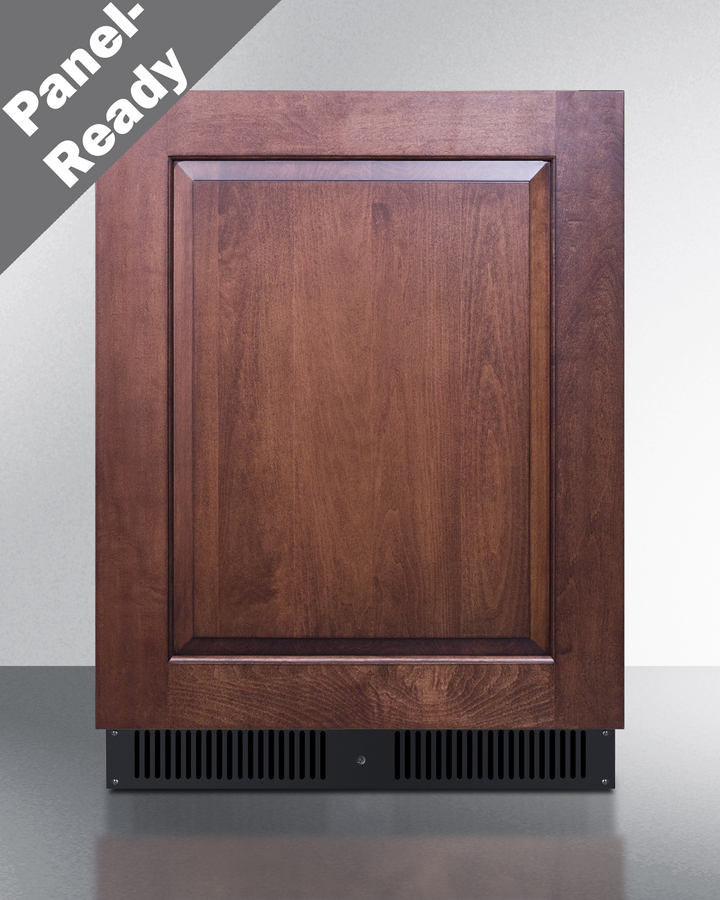

Panel-ready door

Customize this unit using the included 2-piece bracket system (panel size: 23.4" W x 28.38" H at 3/4" thick and 10 lbs. maximum)

Built-in capable

Front-breathing design lets you make the best use of space by installing your appliance under the counter

Recessed LED light

Efficient and attractive presentation with LED lighting

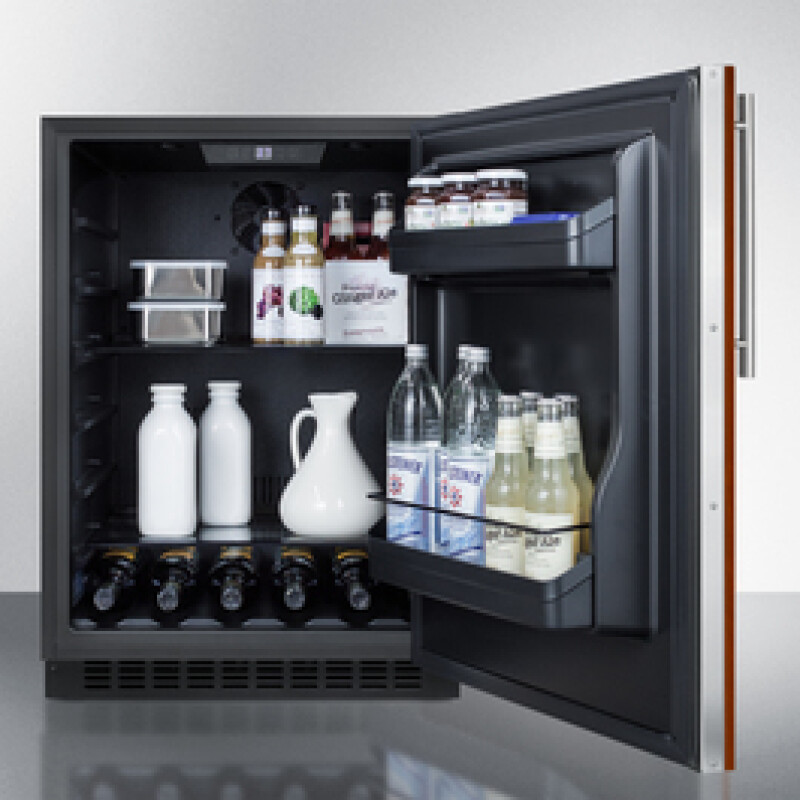

Door storage

Two removable door racks offer convenient storage for condiments and bottles

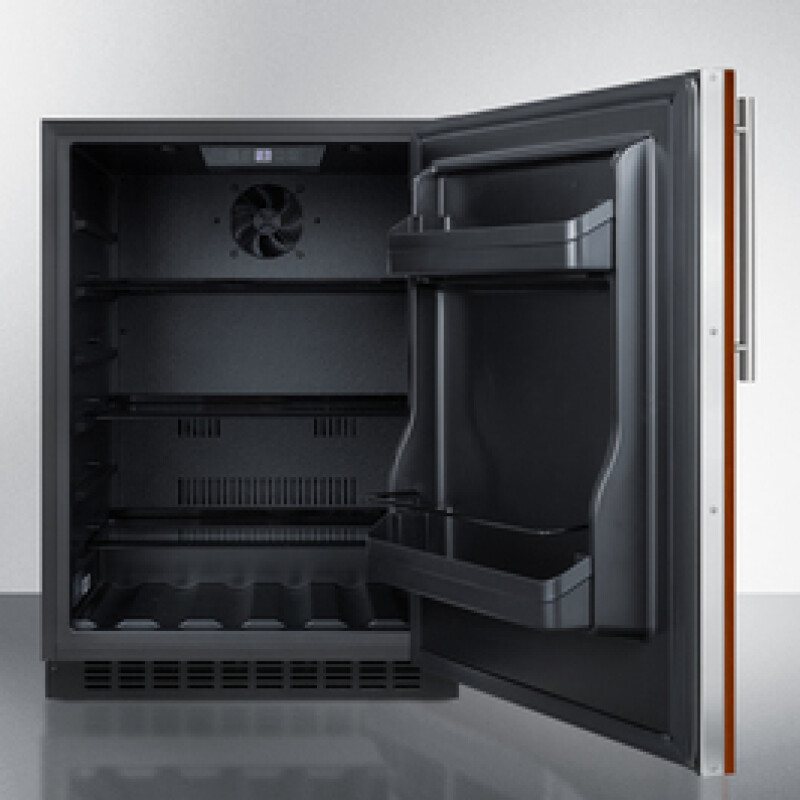

Adjustable glass shelves

Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup

Frost-free operation

No-frost operation for minimum user maintenance

Bottle slots

Floor is specially slotted to store wine and other bottles safely in place

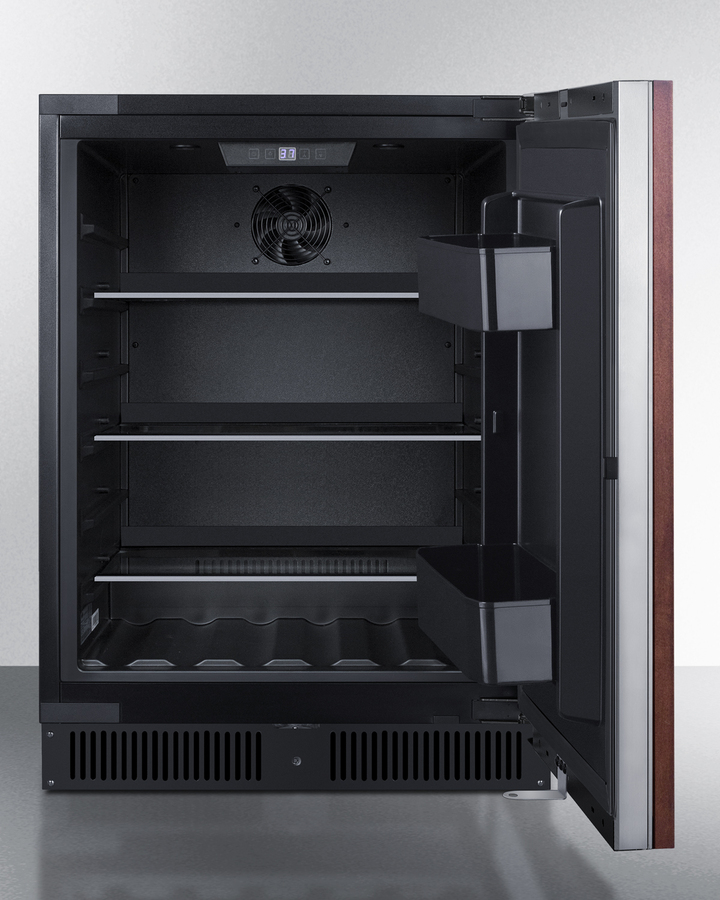

Digital thermostat

Electronic controls located inside the unit for precise temperature management

Internal fan

Fan-forced cooling ensures the unit is evenly cooled from top to bottom

Open door alarm

Audible alarm will sound if the door is left open longer than one minute

Sabbath mode setting

Optional setting lets you disable the lighting and alarm for up to 96 hours

High temperature alarm

High temperature alarm sounds if the unit's interior goes out of the recommended range

Temperature Memory Function

Unit will retain its last settings when power is restored in the event of power loss

Sealed back

Space-saving design that offers easier cleanability

Right angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Matching freezer

Pair with the ALFZ53IF frost-free freezer to create a complete refrigerator/freezer set under the counter

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Fully finished black cabinet

Allows the unit to be used freestanding

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

24" Wide ADA Height All-Refrigerator

Panel-ready refrigerator sized at 32" high for built-in installation under ADA compliant counters

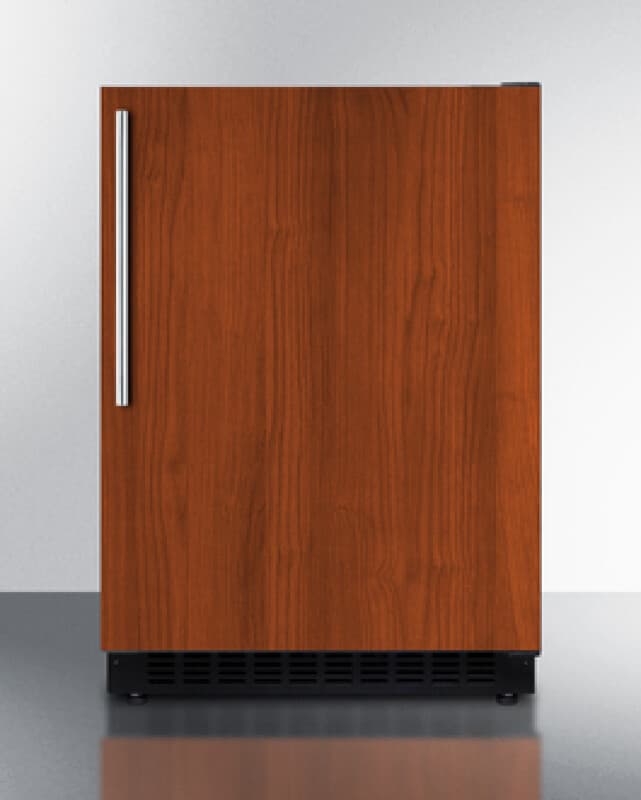

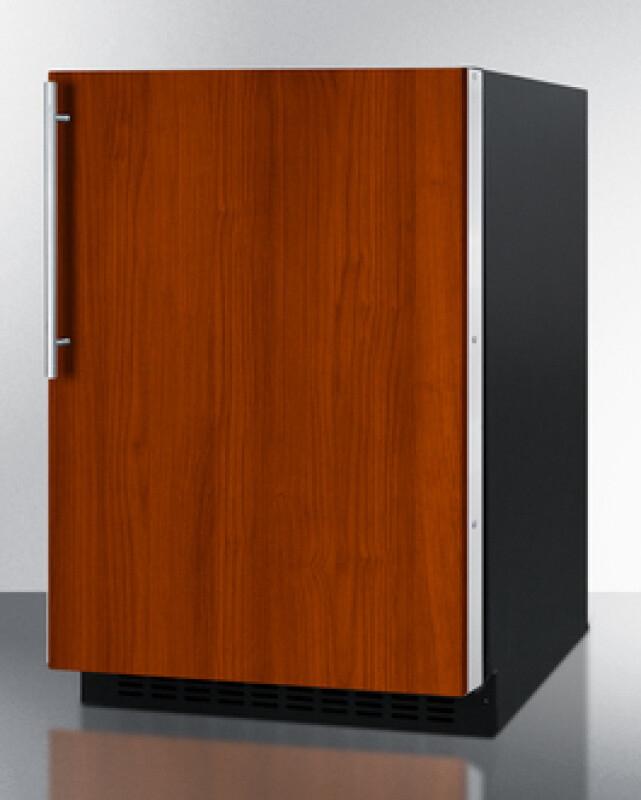

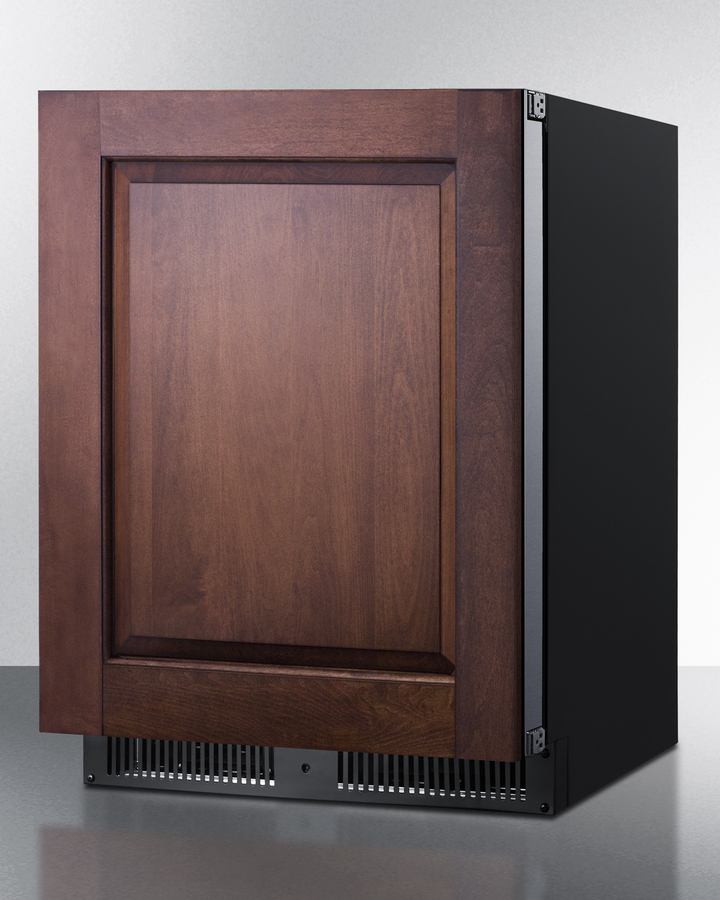

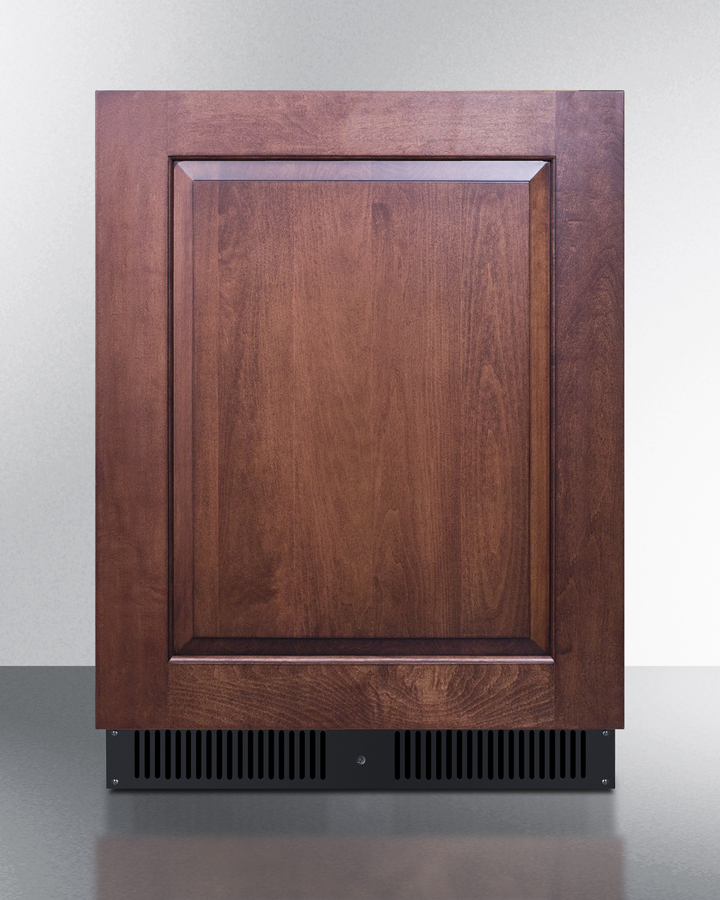

Custom style

Door accepts overlay panel, allowing you to seamlessly blend the refrigerator into your space

Easy panel installation with included 2-piece bracket kit

Enhanced panel execution allows the unit to be flush with cabinets

Stainless steel door

Fully finished door also allows you to choose a traditional stainless steel front if not installing an overlay panel

Fully articulating hinge

European style hinge design ensures a flush fit and allows for a smoother opening

Factory-installed lock

Keyed lock located in the kickplate for optional security
