What warranty comes with the Summit BIM68OSGDR?

Name: Summit 47 lb. Clear Outdoor/Indoor Icemaker
Brand: Summit
SKU: BIM68OSGDR
Price: 2639 USD
Availability: Discontinued

The Summit 47 lb. Clear Outdoor/Indoor Icemaker is listed with 1 year of parts and labor coverage from the manufacturer, per this model's published specifications.

Hover to zoom

1 / 6

Brand	Summit
Model #	BIM68OSGDR
Width	14.88 in.
Height	33.5 in.
Depth	22.63 in.

SummitAuthorized Dealer

47 lb. Clear Outdoor/Indoor Icemaker

Model: BIM68OSGDR

This model is discontinued

The 47 lb. Clear Outdoor/Indoor Icemaker is discontinued and cannot be ordered.

The closest current model we carry is the 15" Wide Outdoor All-Refrigerator.

Now available

15" Wide Outdoor All-Refrigerator

$2,230.00

$409 less than the model it replaces

Same 14.88" width
Same color: Stainless Steel
Adds Sabbath Mode

See the newer model →

Need help finding a replacement? Call (732) 426-0990

Was $2,639 when available

At a glance

Summit BIM68OSGDR is an outdoor refrigerator in Stainless Steel, 14.88 inches wide with 0.98 cu ft of capacity.

Specifications

Dimensions

Width14.88 in.

Height33.5 in.

Length22.63 in.

Weight105 lbs.

Warranty

Parts1 Year

Labor1 Year

Overview Icemaker

Nominal Height34.0" (86 cm)

Height Of Cabinet33.5" (85 cm)

Height To Hinge Cap33.63" (85 cm)

Nominal Width15.0" (38 cm)

Width14.88" (38 cm)

Nominal Depth23.0" (58 cm)

Depth22.63" (57 cm)

Depth With Handle24.5" (62 cm)

Depth With Door At 90°37.25" (95 cm)

Capacity0.98 cu.ft. (28 L)

Defrost TypeFrost-Free

DoorStainless Steel

CabinetStainless Steel

Us Electrical SafetyUL

Canadian Electrical SafetyULC

SanitationUL-S

Amps1.7

Voltage/frequency115 V AC/60 Hz

Weight105.0 lbs. (48 kg)

Parts & Labor Warranty1 Year

Compressor Warranty5 Years

Upc761101057088

Door SwingRHD

ReversibleYes

Daily Ice Production47.0 lbs. (21 kg)

Ice Storage Capacity26.0 lbs. (12 kg)

Ice ShapeTop hat

Size Of Cube1 1/4" H x 1 1/8" W x 1 1/8" D

Number Of Ice Cube Sizes1

Fan TypeExterior

Refrigerant TypeR600a

Refrigerant Amount3.5 oz.

High Side Psi127.0

Low Side Psi40.0

Interior Height12.75" (32 cm)

Interior Width12.75" (32 cm)

Interior Depth9.25" (23 cm)

Level Legs4

Product Features

Commercially approved

UL-S listed to NSF-12 commercial standards for use in foodservice settings

Outdoor Clear Icemaker

15" wide built-in undercounter icemaker produces 47 lbs. of clear gourmet ice cubes

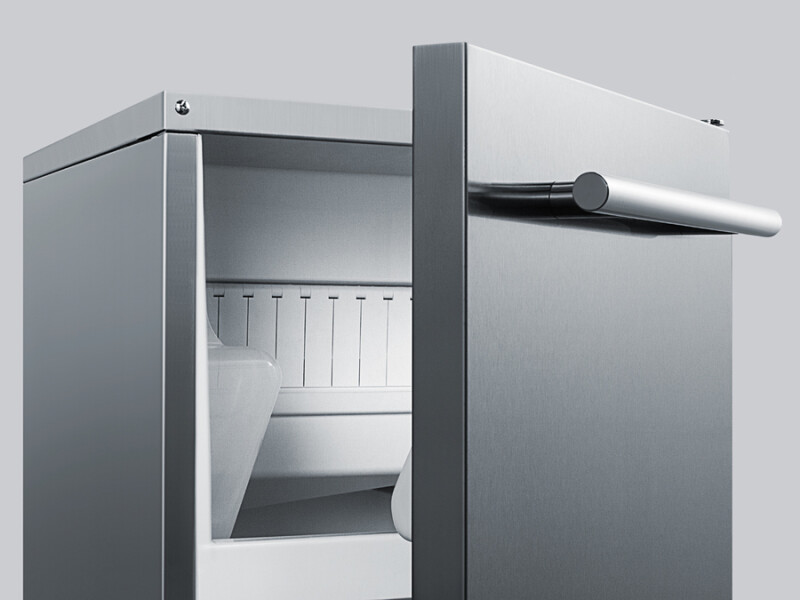

Professional handle

Horizontally mounted towel bar style handle in stainless steel

Weatherproof design

Durable construction for safe installation in outdoor kitchens

Stainless steel wrapped exterior

Door and cabinet are fully wrapped in 304 grade stainless steel for lasting elegance

Built-in capable

Make the best use of space by installing your icemaker under the counter and flush with other cabinets

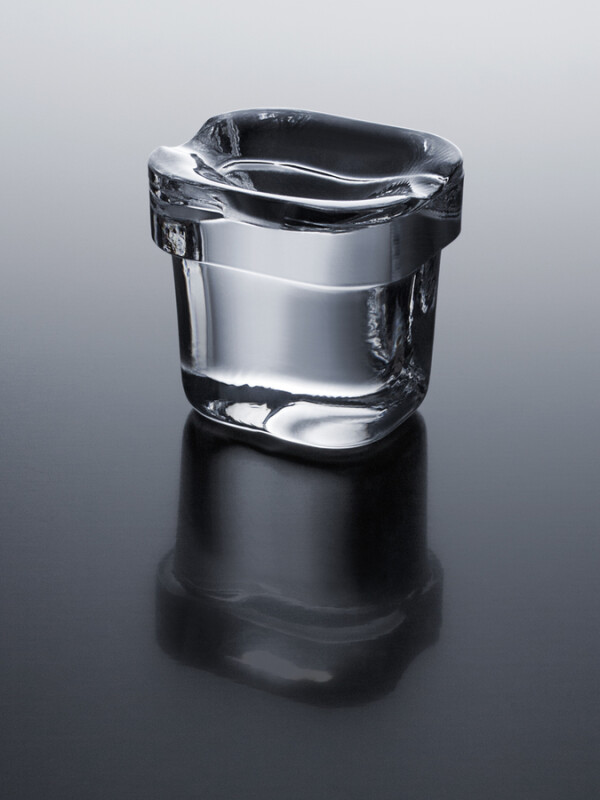

Clear ice cube production

Gourmet style rounded dice-style ice cubes

Frost-free operation

No-frost operation for minimum user maintenance

Gravity drain setup

Requires connection to gravity drain

Reversible door

User-reversible door swing for flexible placement

Sealed back

Space-saving design with easier cleanability

Standard water hookup

Operates with a standard 1/4” OD water supply line

Fully finished cabinet

Allows the unit to be used freestanding

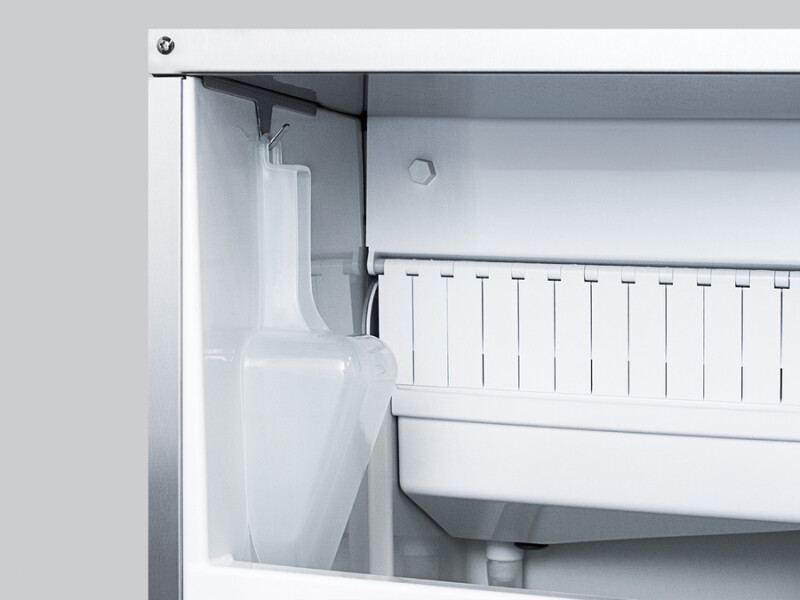

Ice scoop included

Interior wall includes hook to hang for easy storage

Lead-free certified

Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

47 lb. production capacity

Can make up to 47 lbs. in a day cycle, producing 24 cubes in a 30 minute span

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Product Documents

USE & CARE

Document1.04 MB

BROCHURE W/ DRAWINGS

Brochure156.68 KB

Customer Reviews

No reviews yet

Be the first to review this product.

Common questions

What warranty comes with the Summit BIM68OSGDR?: The Summit 47 lb. Clear Outdoor/Indoor Icemaker is listed with 1 year of parts and labor coverage from the manufacturer, per this model's published specifications.
