| Brand | Amana |
| Model # | AER6603SFB |
| Width | 29.88 in. |
| Height | 46.88 in. |
| Depth | 27-3/4 in |
$648.00
$721.00Save $73.00 (10%)
Ships When Available— Backorder OK
This item is on backorder and will ship when available.
Stack & Save
Save up to $1,000 on qualifying orders
Dimensions
Width29.88 in.
Height46.88 in.
Length27.75 in.
Cutout Depth (in)24
Cutout Height (in)36
Cutout Width (in)30
Depth Closed Excluding Handles25 5/16
Depth With Door Open 90 Degree46 11/16
Gross Weight187
Maximum Height47 7/8
Minimum Height46 7/8
Cutout Depth(in,inches)24.0000
Cutout Height(in,inches)36.0000
Cutout Width(in,inches)30.0000
Depth Closed Excluding Handles(in,inches)25.3125
Depth With Door Open 90 Degree(in,inches)46.6875
Maximum Height(in,inches)47.8750
Minimum Height(in,inches)46.8750
Cutout Height Min(in,inches)36.0000
Gross Weight(lb,pounds)187
Capacity4.8 cu. ft.
Common Size30 in
Cutout Depth24 in
Cutout Height36 in
Cutout Width30 in
Depth27-3/4 in
Oven Interior Depth18-1/2 in
Oven Interior Height18-1/8 in
Oven Interior Width24-1/2 in

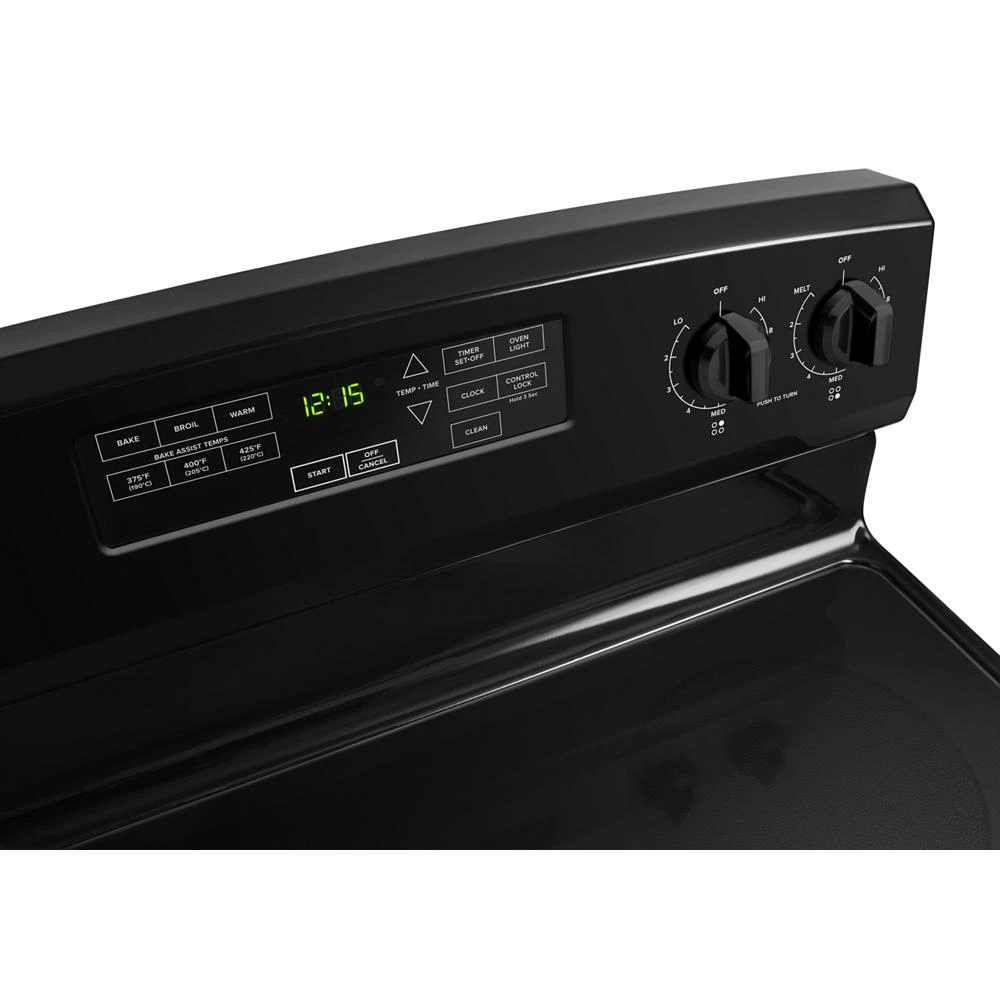

Controls
Display ColorGreen
Electronic Display TypeLED
Cooktop Details
Cooktop Control Knob ColorBlack
Cooktop Control Knob TypeDishwasher Safe Plastic
Cooktop Control LocationBackguard
Cooktop Control TypeKnobs
Cooktop Surface ColorBlack
Cooktop Surface MaterialPorcelain Coated Steel
Heating Element On Indicator LightYes
Hot Surface Indicator LightYes
Certifications
ADA CompliantNo
UlYes
Prop 65Yes
Electrical
Amps40
Power Cord IncludedNo
Volts120
Other
Capacity (cu Ft)4.80
Details
Fuel TypeElectric
LP ConvertibleNo
Oven ConfigurationSingle Oven
Power On Indicator LightYes
Range ConfigurationFreestanding
Range TypeFreestanding
Natural Gas ConvertibleNo
Oven SelectionsAudible Signal, Clock, Control Lock, Sabbath Mode, Timer, Warm Hold
Element/burner Details
Cooktop Element StyleSmoothtop
Left Front Element-burner Power3000W/1400W
Left Front Element-burner Size9in./6in.
Left Front Element-burner TypeDual
Left Rear Element-burner Size6in.
Left Rear Element-burner TypeRadiant
Number Of Cooking Element-burners4
Right Front Element-burner Power1200W
Right Front Element-burner Size6in.
Right Front Element-burner TypeRadiant
Right Rear Element-burner Size8in.
Right Rear Element-burner TypeRadiant
Left Rear Element-burner Power1,200W
Right Rear Element-burner Power1,800W
Exterior Details
Door TypeGlass Window
Oven Control LocationBackguard
Oven Control TypeElectronic Touch
Oven Window SizeExtra Large
Handle ColorBlack
Handle TypeTowel Bar
Knob ColorBlack
Oven Cavity Details
Bake Element Power2,400 W
Broiler Element Power3,400 W
Broiler LocationTop of Oven
Convection FunctionsNo
Door RemovableYes
Hidden Bake ElementNo
Interior ColorGrey
Natural Gas ConvertibleNo
Number Of Oven Lights1
Number Of Oven Racks2
Number Of Rack Guides5
Oven Cleaning TypeAdjustable Self Cleaning
Oven Cooking SystemThermal
Oven Light Switch LocationOven Control
Oven Light TypeIncandescent
Oven Rack TypeStandard
