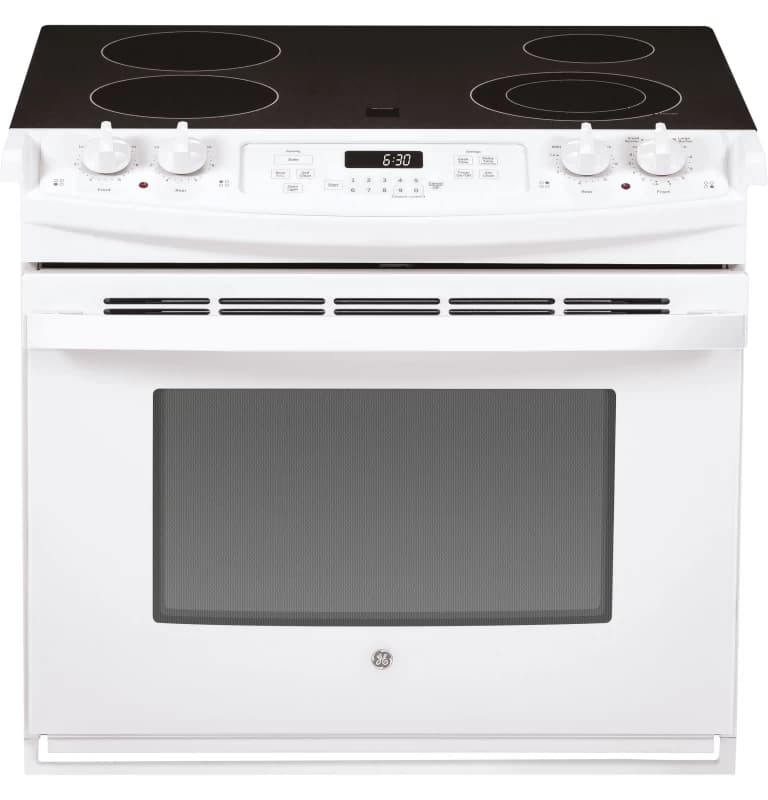

| Brand | GE |
| Model # | JD630DTWW |
| Width | 31.25 in. |
| Height | 27 in. |
| Depth | 28.5 in. |
$1,999.00
$2,099.00Save $100.00 (5%)
Ships When Available— Backorder OK
This item is on backorder and will ship when available.
Stack & Save
Save up to $1,000 on qualifying orders
Dimensions
Overall Width31.25 in
Overall Depth28.5 in
Overall Height27 in
Net Weight152 lb
Depth Without Handle25.75 in
Oven Interior Dimensions (w X H X D) (in.)24 x 17-1/2 x 18-1/4
Cooktop Width31.25 in
Depth With Door Open44.625 in
Cabinet Opening30 in
Cabinet Width30 in
Width31.25 in.
Height27 in.
Length28.5 in.
Weight152 lbs.
Warranty
Parts1 Year
Labor1 Year
Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 1-year entire appliance
Warranty NotesSee written warranty for full details
Power & Ratings
Kw Rating At 240v11.9
Bake Wattage3410W
Electrical Requirements208/240V ; 60Hz ; 40A
Amp Rating At 208v40
Broiler Wattage3420W
Kw Rating At 208v8.9
Amp Rating At 240v40
Hertz60
Features
Element - Right Front9"/6" 3000W Power Boil
Oven Features6-Pass Bake Element
Interior Oven Light1 Incandescent
Fuel TypeElectric
Melt SettingYes
Ou CertifiedNo
Oven Control FeaturesDelay Bake Option With Cook & Hold
Cooktop Burner TypeRadiant
Oven Rack Features2 Oven Racks
Power Boil BurnerYes
Element - Left Front8" 2000W
Oven Cleaning TypeSelf-Clean
Hot Surface Indicator Lights4
Product TypeDrop-In
Heating Element "on" Indicator Light2
Cooktop TypeRadiant Smoothtop
Element - Left Rear8" 2000W
Sabbath ModeYes
Element - Right Rear6" 1200W
Cooktop SurfaceOverhanging Cooktop
Control LocationFront
Oven Rack Positions (single Or Upper/lower)7
Control TypeElectronic
Self-clean Oven Door LockAutomatic
Cooking TechnologyTraditional
Appearance
Oven Door FeaturesBig View Oven Window
HandleDesigner Style
InstallationFlush Appearance
Control KnobsWeighted
Handle ColorWhite
Color AppearanceWhite on White
