| Brand | GE |
| Model # | GE30T08BAM |
| Width | 20 in. |
| Height | 51.38 in. |
| Depth | 20 in. |
$549.00
Ships When Available— Backorder OK
This item is on backorder and will ship when available.
Stack & Save
Save up to $1,000 on qualifying orders

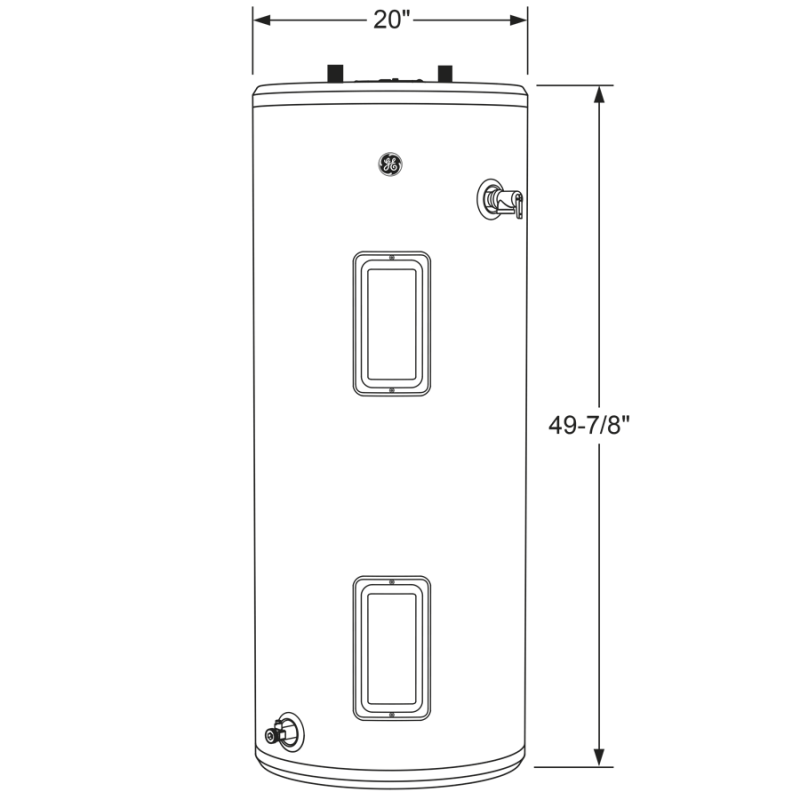

Dimensions
Overall Width20 in
Overall Height51.375 in
Product Height (to Top Of Unit)49.875 in
Overall Depth20 in
Product Height (to Top Of Water Inlet/outlet Connections)51.375 in
Net Weight104 lb
Product Diameter20 in
Connection Sizes - Water Inlet (mnpt)3/4"
Connection Sizes - Hot Water Outlet (mnpt)3/4"
Width20 in.
Height51.38 in.
Length20 in.
Weight104 lbs.
Features

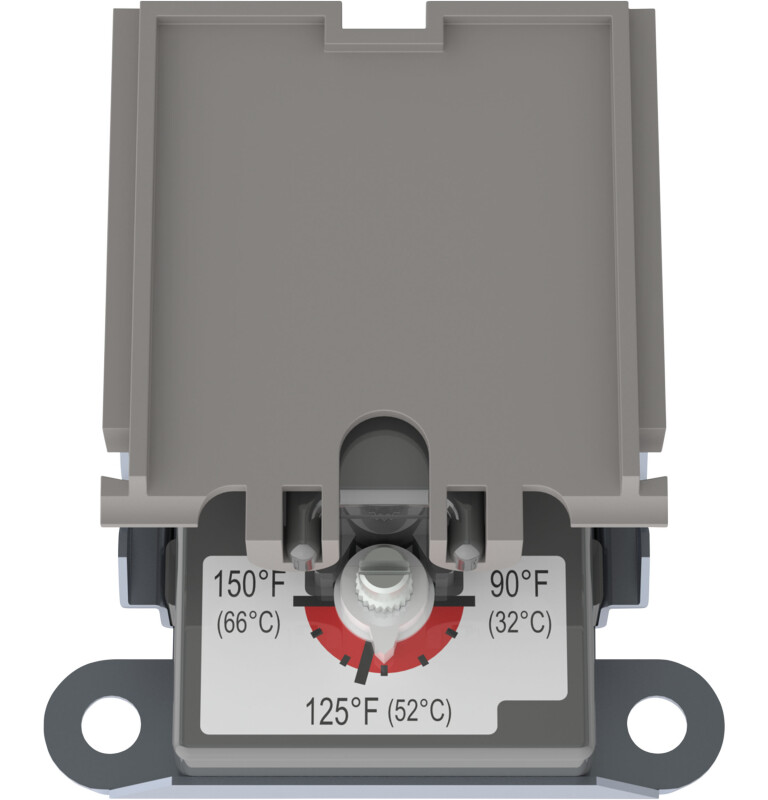

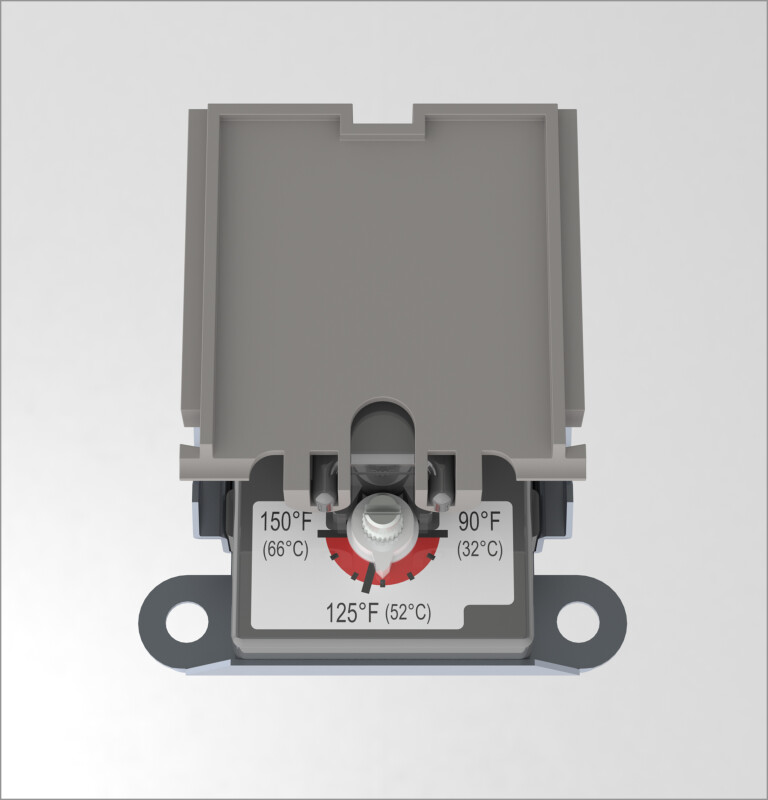

Control TypeThermostat
Temp & Pressure Relief ValveYes
Height DescriptionTall
Heating ElementCopper
Fuel TypeElectric
ConfigurationTall
Installation LocationIndoor
Operating ModesStandard Electric
Rated Storage Capacity30

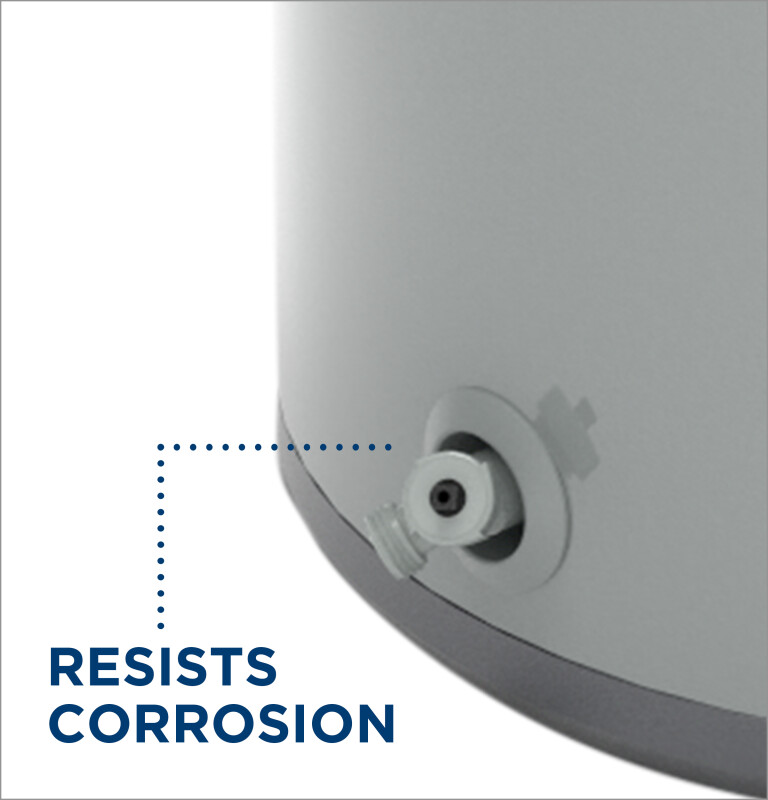

Drain Valve TypePlastic
Gph Recovery @ 90 Degrees F25.1
Mobile Home CompatibleNo
Temperature Setting Factory Default120° F
Product TypeElectric Thermostat
Family Size1-3 People

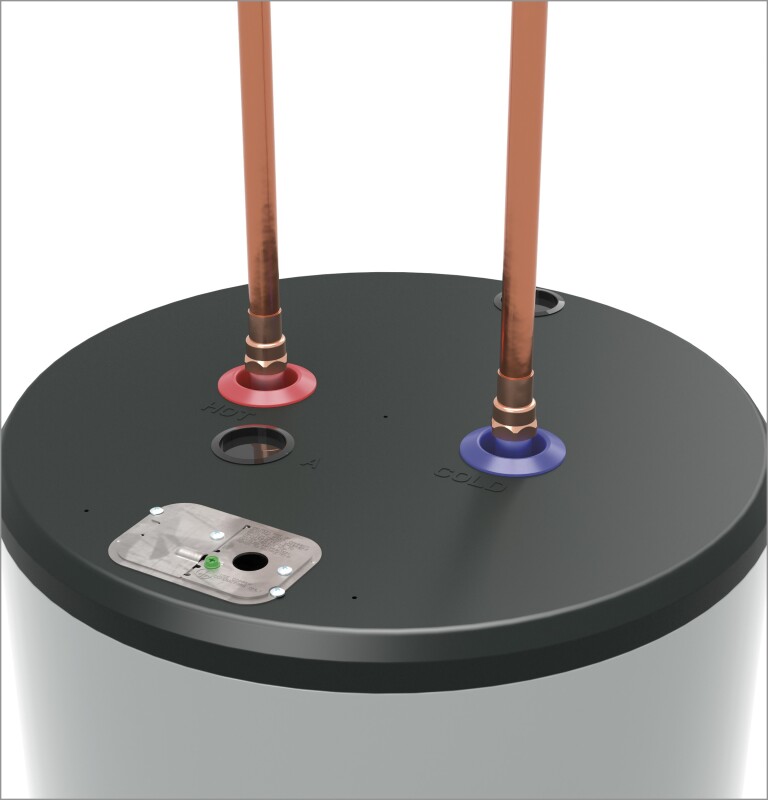

Water Connection LocationTop
Foam InsulationYes
Point Of UseNo

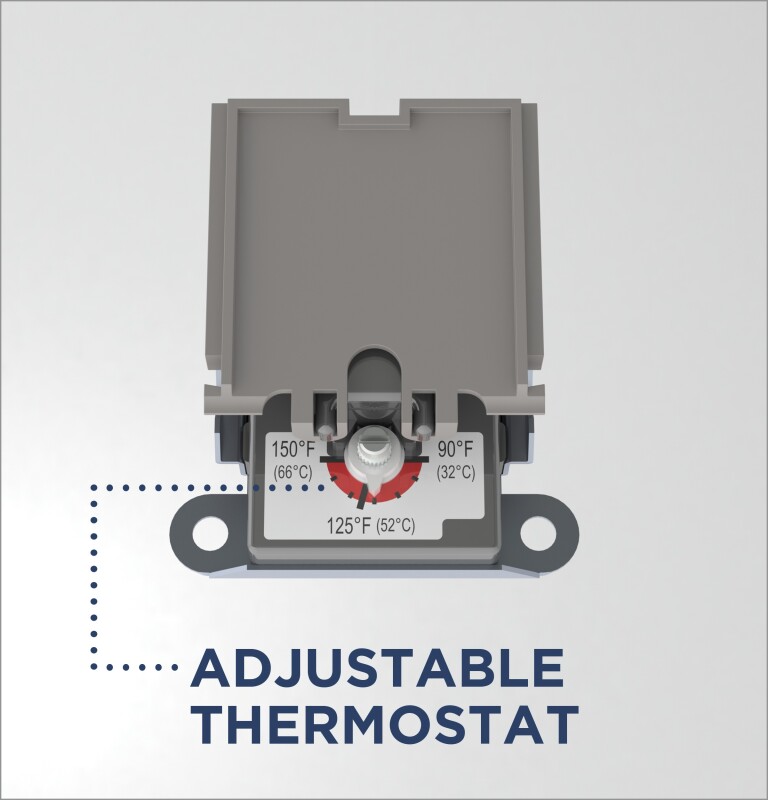

Temperature Setting90-150° F Range
Insulation Thickness2.75 in
Power & Ratings
Integrated Energy Factor0.92
Heating - Electric - Heater Watts5500/5500
Electrical ConnectionDirect-Wire
Operating Water Pressure20-125 PSI
Volts/hertz240V; 60Hz
First Hour Rate (fhr)54 Gallons
Voltage (max)240 V
Electrical Circuit Required208V/240V 60 Hz Dedicated 30 Amp Min.
Energy Consumption (kwh/year)3531
Warranty
Warranty NotesSee written warranty for full details
Parts WarrantyLimited 8-year tank and parts
Labor WarrantyLimited 1-year entire appliance
Capacity
Unit Capacity30 Gallons
Appearance
Color AppearanceGray
