30 Gallon Tall Electric Water Heater
1 / 21
GE

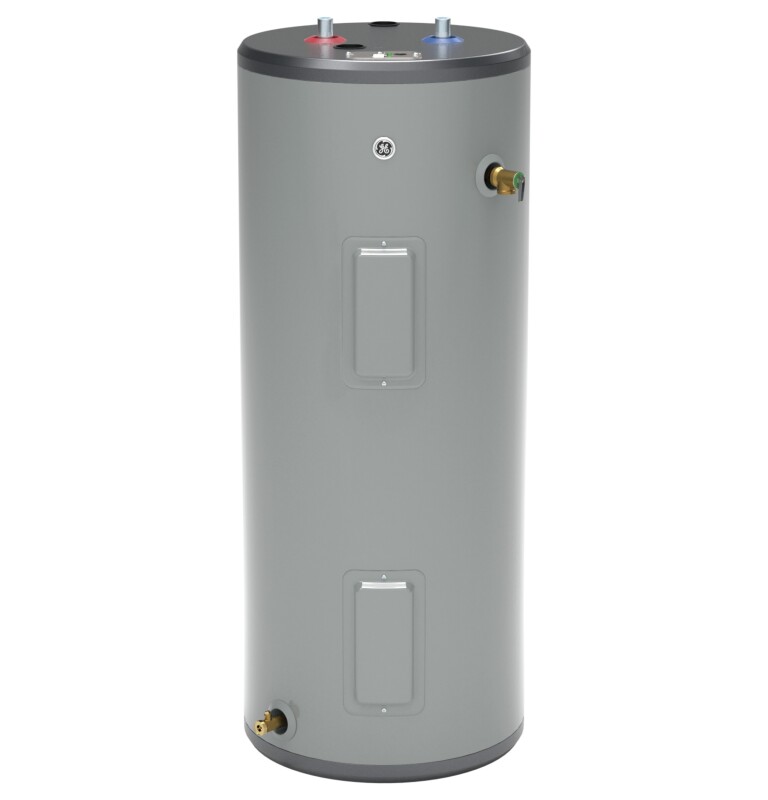

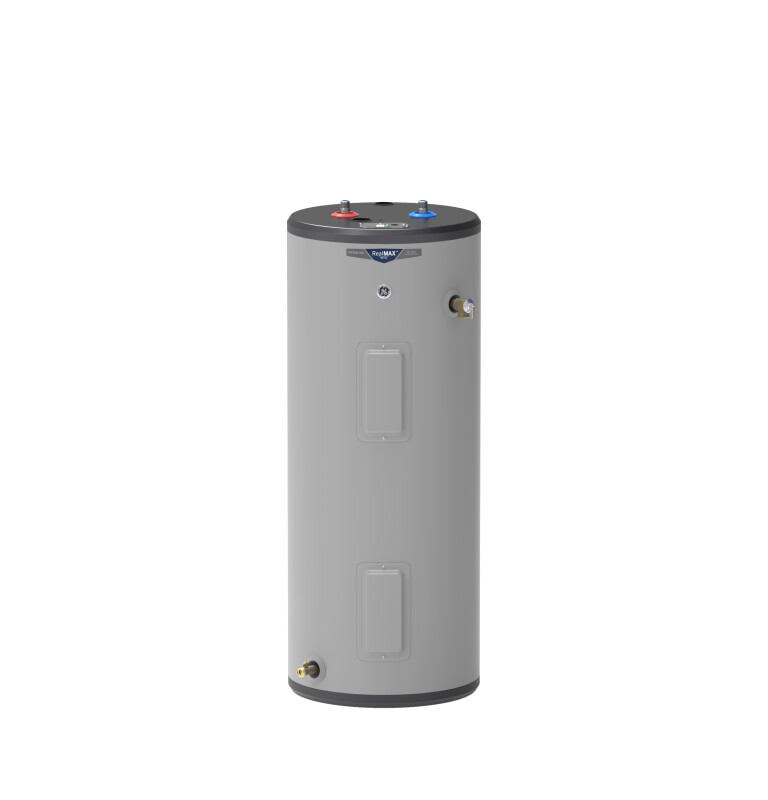

30 Gallon Tall Electric Water Heater

Model: GE30T10BAM

3.9 (7 reviews)
BrandGE
Model #GE30T10BAM
Width20 in.
Height51.38 in.
Depth20 in.

This model is discontinued

The 30 Gallon Tall Electric Water Heater is discontinued and cannot be ordered.

The closest current model we carry is the Smart 30 Gallon Tall Electric Water Heater.

Smart 30 Gallon Tall Electric Water Heater

Now available

Smart 30 Gallon Tall Electric Water Heater

$659.00

  • Same 20" width
  • Same 20" depth
  • Same 51.38" height
See the newer model →

Need help finding a replacement? Call (732) 426-0990

Was $579 when available

At a glance

GE GE30T10BAM is an electric water heater, 20 inches wide. It is listed as a 30 gallon water heater.

Specifications

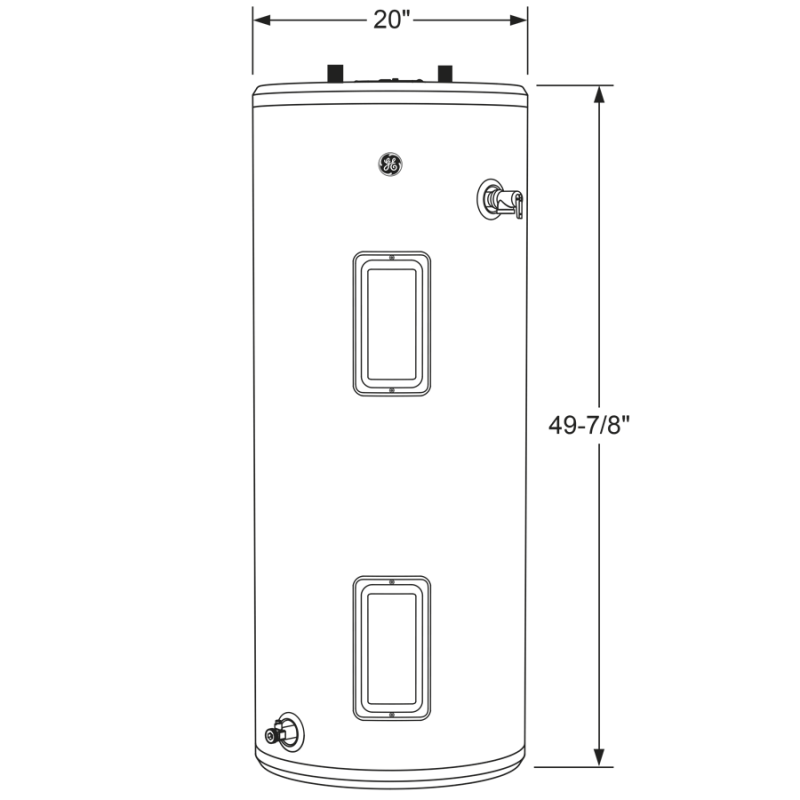

Dimensions

Overall Width20 in
Overall Height51.375 in
Product Height (to Top Of Unit)49.875 in
Overall Depth20 in
Product Height (to Top Of Water Inlet/outlet Connections)51.375 in
Net Weight104 lb
Product Diameter20 in
Connection Sizes - Water Inlet (mnpt)3/4"
Connection Sizes - Hot Water Outlet (mnpt)3/4"
Width20 in.
Height51.38 in.
Length20 in.
Weight104 lbs.

Features

Control TypeThermostat
Temp & Pressure Relief ValveYes
Height DescriptionTall
Heating ElementStainless steel
Fuel TypeElectric
ConfigurationTall
Installation LocationIndoor
Operating ModesStandard Electric
Rated Storage Capacity30
Drain Valve TypeBrass
Gph Recovery @ 90 Degrees F25.1
Mobile Home CompatibleNo
Temperature Setting Factory Default120° F
Product TypeElectric Thermostat
Family Size1-3 People

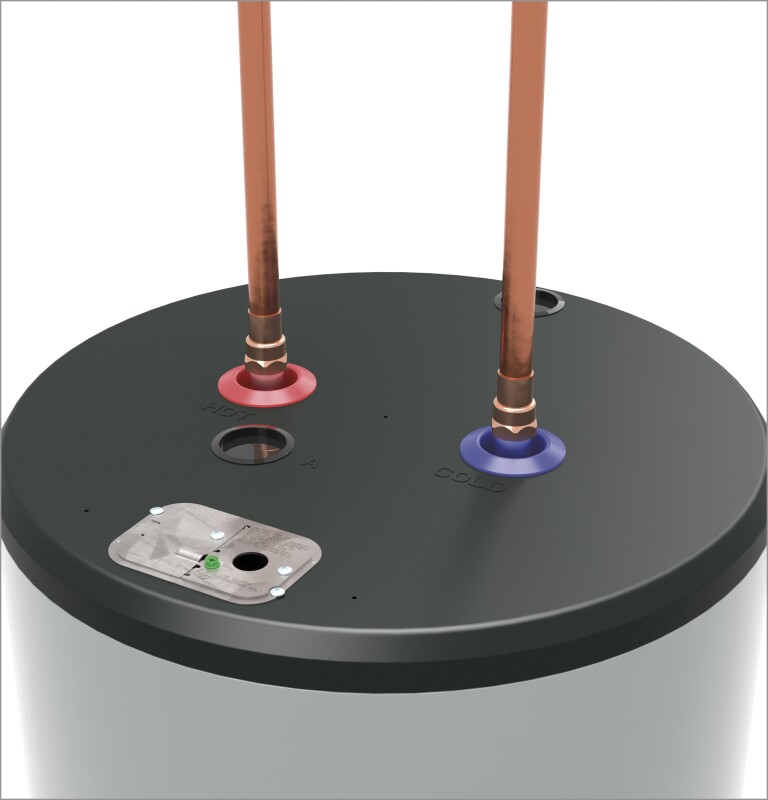

Water Connection LocationTop
Foam InsulationYes
Point Of UseNo
Temperature Setting90-150° F Range
Insulation Thickness2.75 in

Power & Ratings

Integrated Energy Factor0.92
Heating - Electric - Heater Watts5500/5500
Electrical ConnectionDirect-Wire
Operating Water Pressure20-125 PSI
Volts/hertz240V; 60Hz
First Hour Rate (fhr)54 Gallons
Voltage (max)240 V
Electrical Circuit Required208V/240V 60 Hz Dedicated 30 Amp Min.
Energy Consumption (kwh/year)3531

Warranty

Warranty NotesSee written warranty for full details
Parts WarrantyLimited 10-year tank and parts
Labor WarrantyLimited 1-year entire appliance

Capacity

Unit Capacity30 Gallons

Appearance

Color AppearanceGray

Product Features

Real Capacity

Real Capacity

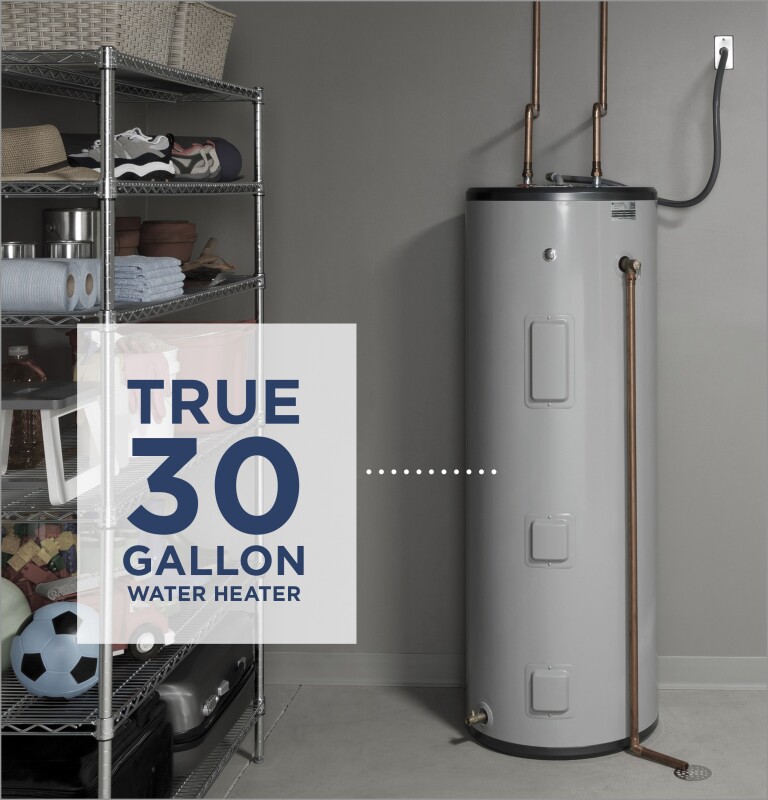

Get the most hot showers from the only water heater that holds a true 30 gallons of water (Compared to 30 gallon electric steel tank water heaters per DOE rated gallon capacity)

Leading Performance

Leading Performance

Live comfortably with this best in class unit that delivers 54 gallons of hot water in the first hour (Measured through DOE First Hour Rating)

Household Size

Household Size

Provide hot water for the whole family of 1 to 3 persons

Quick Recovery

Quick Recovery

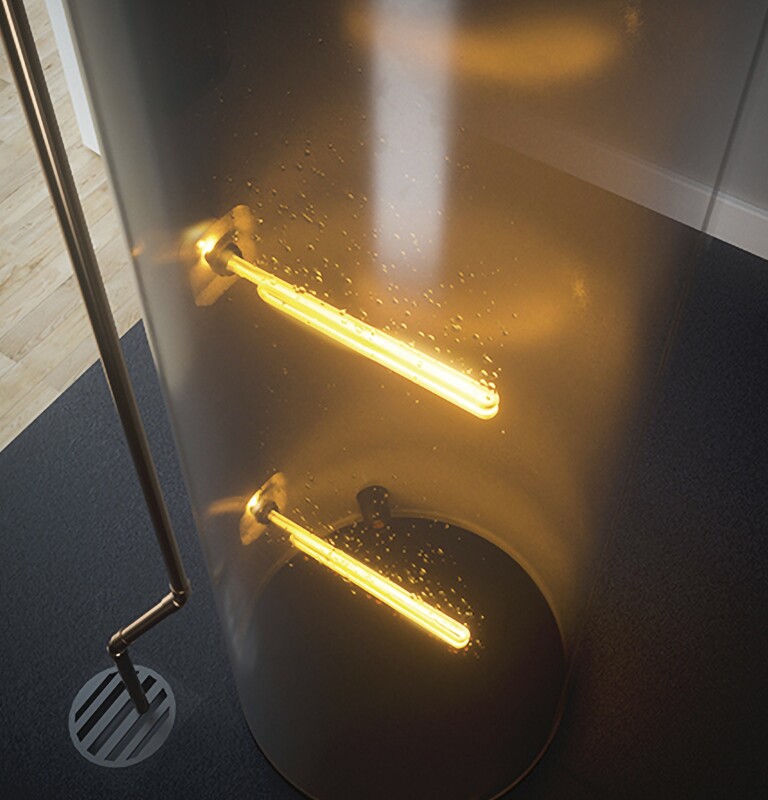

Two 5500W heating elements quickly increase water temperature for hot water when you need it

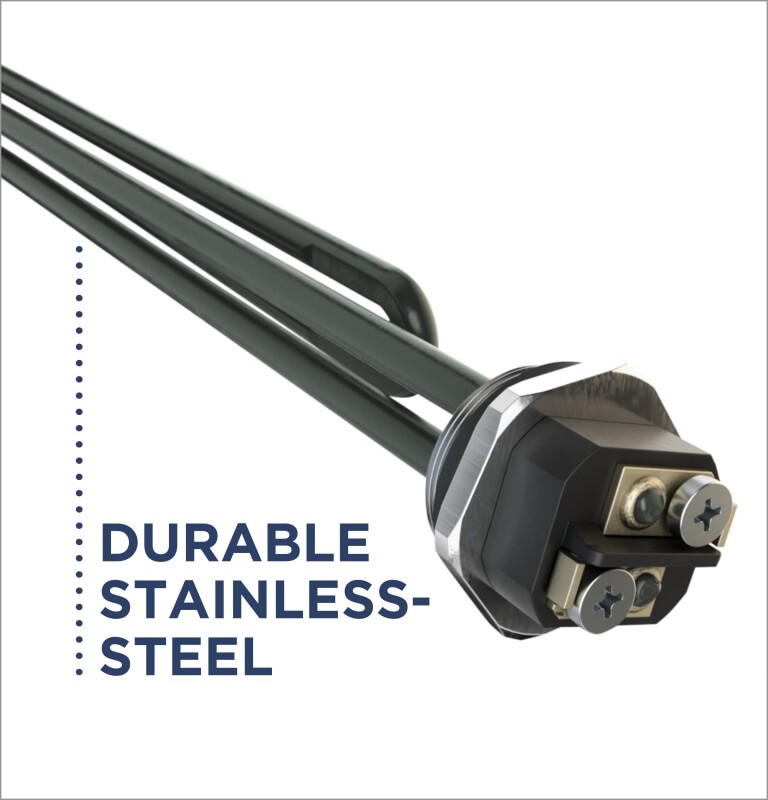

Stainless Steel Heating Elements

Stainless Steel Heating Elements

Ultra-durable stainless-steel heating elements resist rust and corrosion

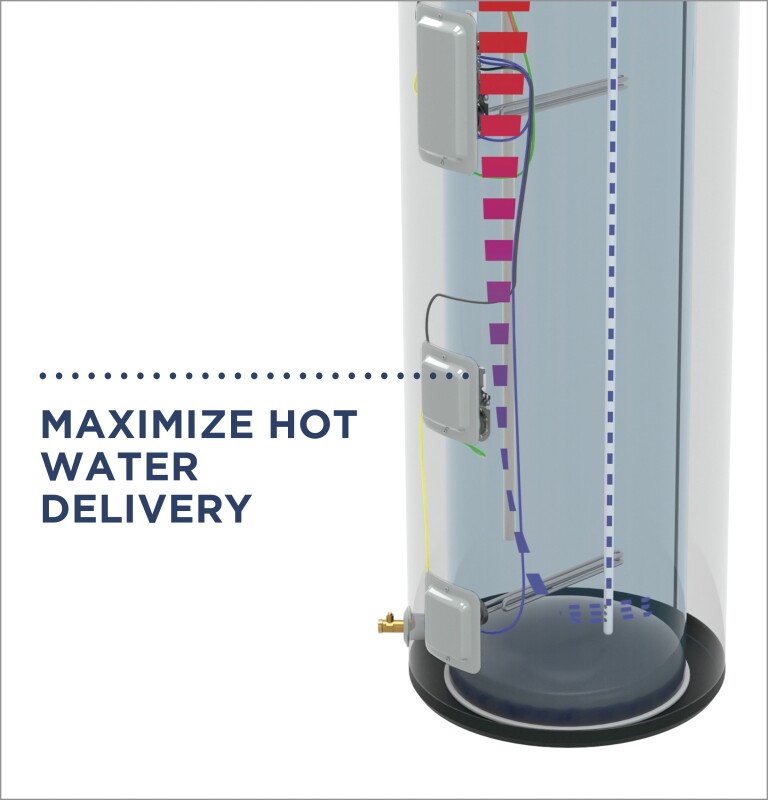

Inlet Tube

Inlet Tube

Replenishes water from the bottom of the tank to maximize hot water delivery

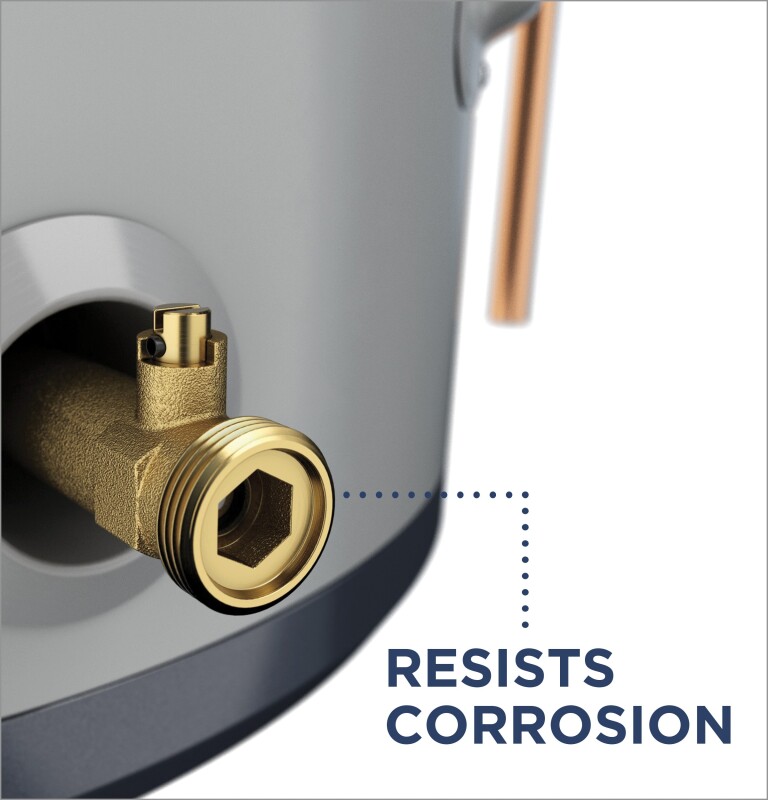

Brass Drain Valve

Brass Drain Valve

Rust-proof construction can be counted on to provide long-lasting service

Easy Set Up

Easy Set Up

Replace your old water heater quickly and easily using standard water and electrical connections

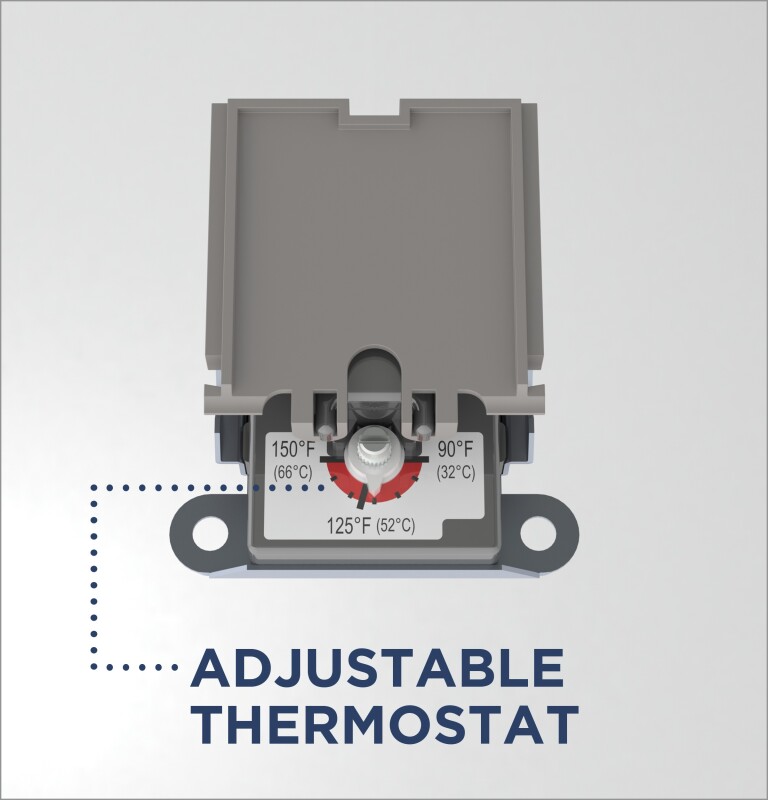

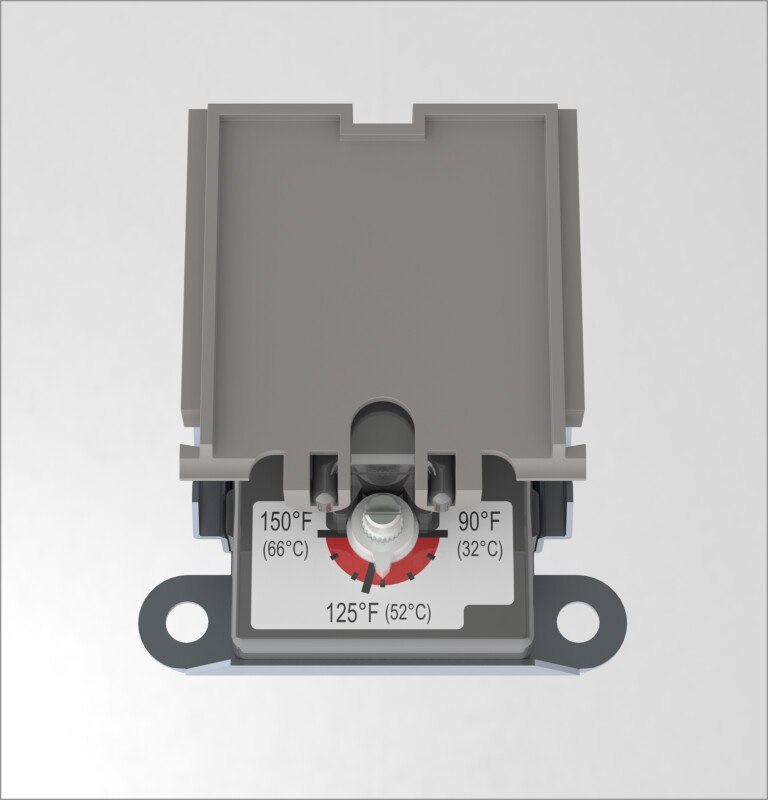

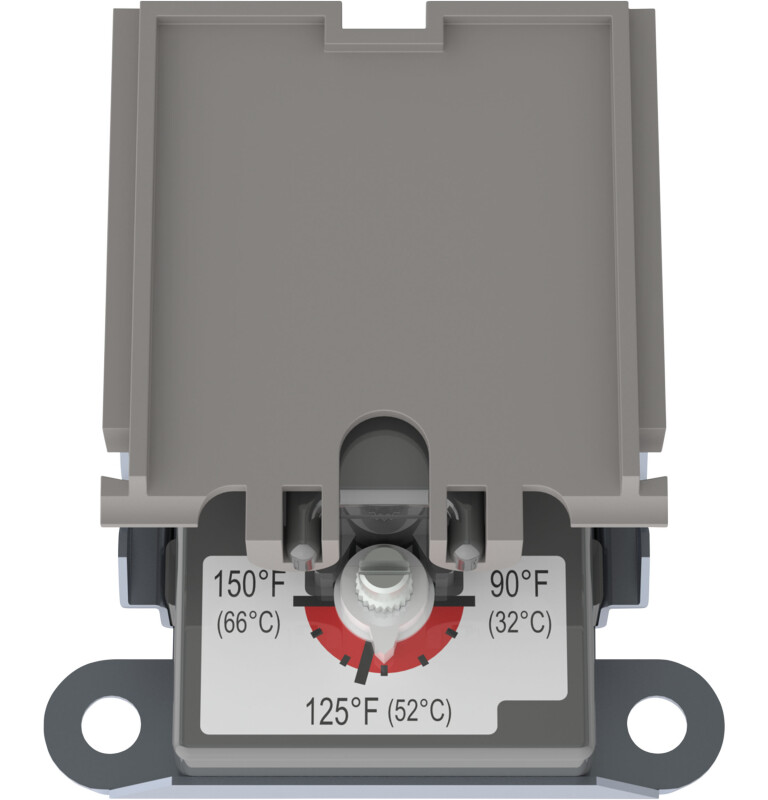

Adjustable Thermostat

Adjustable Thermostat

Change temperature to your desired setting

Product Documents

Customer Reviews

3.9 (7)

Manufacturer reviews · owners of this model, published on the manufacturer’s site

  • When shopping, I reviewed the specs. Decided this unit had superior heating elements. Higher wattage. Acceptable first hour rate and good recovery time. Very important is it's energy efficiency. Good choice!

    Lynn12345678907/02/2024 03:12 PM

  • Purchased from Costco as slightly damaged for less than half what a new in box unit would of cost. It sits in a closet. Who cares?

    hortond200008/13/2021 09:47 PM

  • The price was awesome at $150.. saved a ton of money on this heater!!

    DonnaP62606/19/2021 07:58 PM

  • I had been hovering above some choices that had extra features at higher costs. I paused on the decision for a couple of days as I was not in an immediate need to replace the unit. Costco advertised the next day with this choice. It was offering just what I needed at feature and price. If the years prove the quality, I made the smart move.

    MavrikE05/06/2021 04:15 PM

  • Heats up fast. Installed at our summer house where fast start is important. Product works as described. Replaced a water heater that was installed in 1991!

    Flyboynav04/11/2021 11:32 AM

  • My Hot Water Heater is smelling like rubber is burning. The wire is Hot and the Top Plate on top of Heater is also. Very disappointed.

    MsPNS12/22/2021 08:55 PM

  • bought from individual brand new with provided proof of purchase for warranty. GE refuses to fix it, as it is not heating water at all and IS BRAND NEW!!!

    Anonymous11/18/2021 08:55 PM

Common questions

What warranty comes with the GE GE30T10BAM?
The GE 30 Gallon Tall Electric Water Heater is listed with 1 year of labor coverage from the manufacturer, per this model's published specifications.
