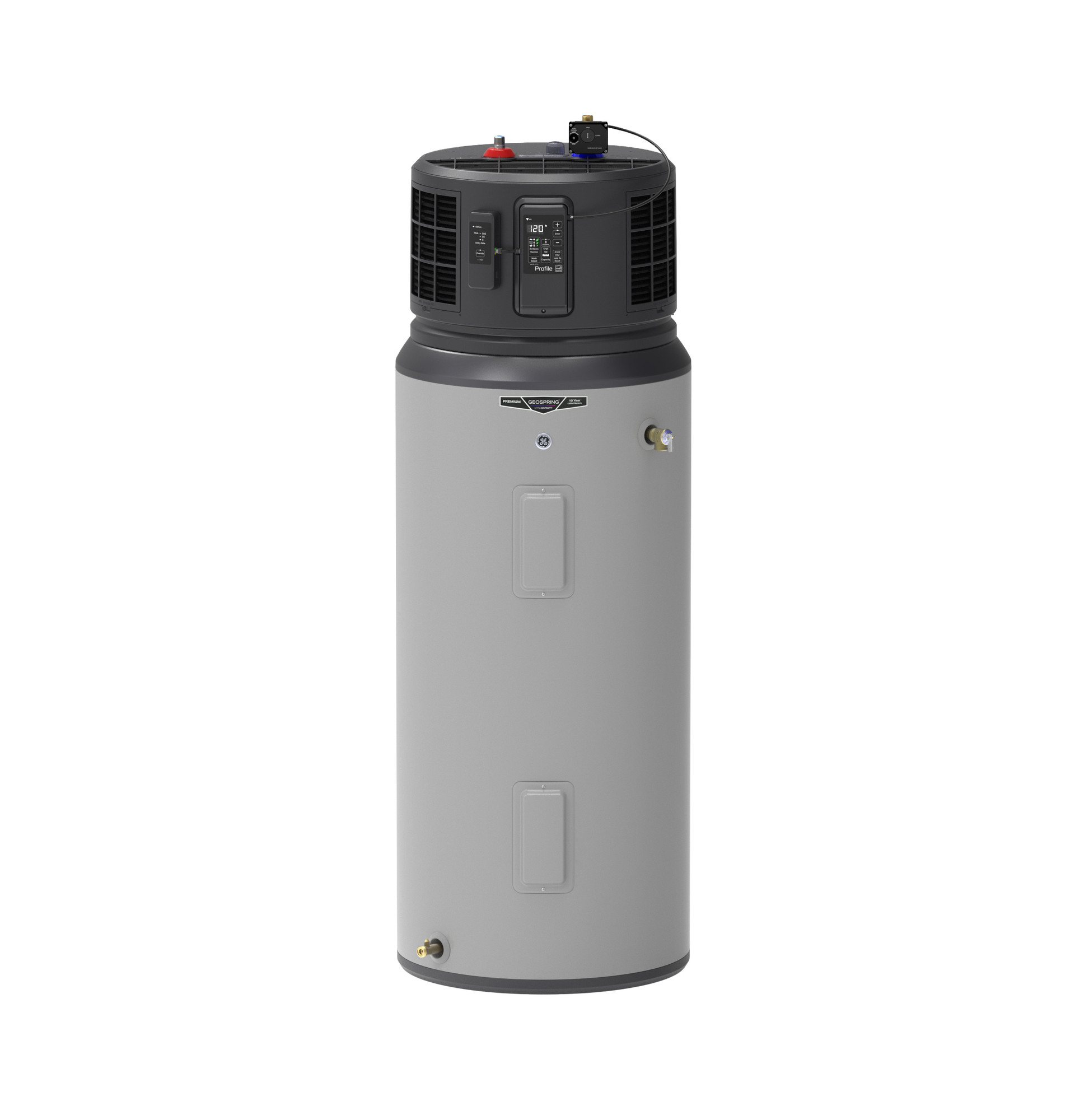

| Brand | GE Profile |
| Model # | PH80S10BPY |
$3,159.00
Ships When Available— Backorder OK
This item is on backorder and will ship when available.
Stack & Save
Save up to $1,000 on qualifying orders
Dimensions
Product Height (to Top Of Water Inlet/outlet Connections)76.375 in
Overall Width27 in
Overall Height76.375 in
Product Height (to Top Of Unit)75 in
Net Weight331 lb
Product Diameter27 in
Overall Depth27 in
Connection Sizes - Water Inlet (mnpt)3/4"
Connection Sizes - Hot Water Outlet (mnpt)3/4"
Features
Control TypeService Diagnostics Integrated
Demand Response CapableYes
Drain ValveLeft Side
Temp & Pressure Relief ValveRight Side
Fuel TypeElectric
Operating ModesStandard Electric
Electronic, Integrated Mixing ValveYes
Drain Valve TypeBrass
Temperature Setting Factory Default120° F
Product TypeElectric
WiFi ConnectBuilt-In
Water Connection LocationTop
SensorLeak Sensor Included (SPLK10N01A)
Diagnostic FeedbackFilter, Lock, Standard Electric
Anode RodMagnesium
Renewable Air FilterTop of Unit
Temperature Setting100-140° F Range
Connected CapabilitiesAmazon Alexa
Appearance
InstallationFree-Standing
Color AppearanceGray
Power & Ratings
Operating Water Pressure20-125 PSI (30-80 PSI recommended)
Electrical Consumption - Lower Element3600W
Electrical Consumption - Upper Element5500W
Electrical Circuit Required240/208VAC 30A, 60Hz
First Hour Rate (fhr)101 Gallons
Hertz60
Voltage (max)240 V
Volts/hertz240V; 60Hz
Energy Consumption (kwh/year)1127
Warranty
Warranty NotesSee written warranty for full details
Parts WarrantyLimited 10-year tank and parts
Labor WarrantyLimited 1-year entire appliance
Capacity
Unit Capacity80 Gallons
Economical / Quiet
Operating Sound Level41 dBA
