GE Profile

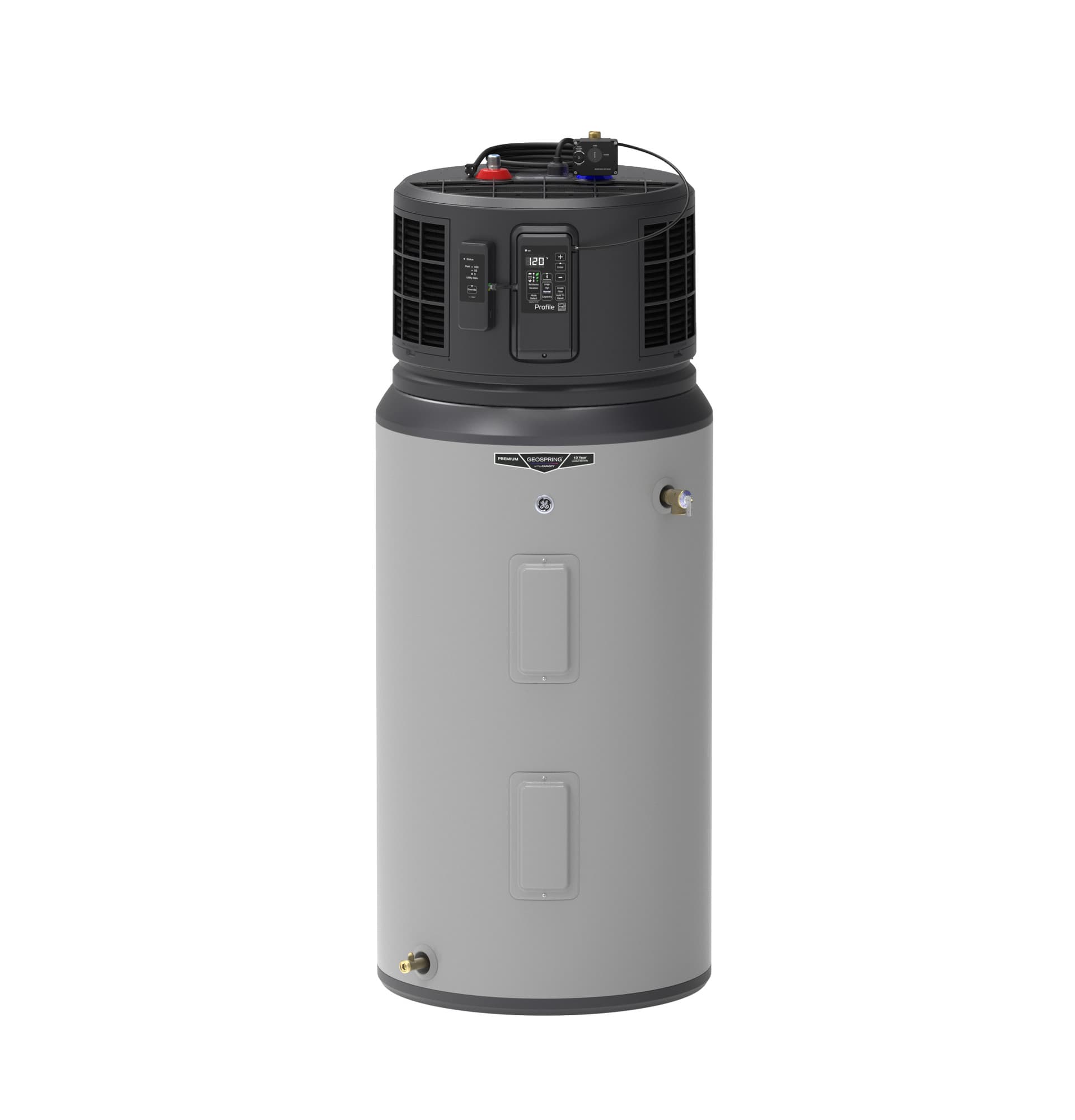

GE Profile™ GEOSPRING™ Smart Hybrid Heat Pump Water Heater 65-gallon - 120V - FlexCapacity
Model: PF65S10FPY
| Brand | GE Profile |
| Model # | PF65S10FPY |
$2,829.00
Ships When Available— Backorder OK
This item is on backorder and will ship when available.
Stack & Save
Save up to $1,000 on qualifying orders
Dimensions
Product Height (to Top Of Water Inlet/outlet Connections)67.125 in
Overall Width27 in
Overall Height67.125 in
Product Height (to Top Of Unit)65.25 in
Net Weight269 lb
Product Diameter27 in
Overall Depth27 in
Connection Sizes - Water Inlet (mnpt)3/4"
Connection Sizes - Hot Water Outlet (mnpt)3/4"
Features
Power Cord Length6' 3-prong
Control TypeService Diagnostics Integrated
Demand Response CapableYes
Drain ValveLeft Side
Temp & Pressure Relief ValveRight Side
Fuel TypeElectric
Operating ModesStandard Electric
Electronic, Integrated Mixing ValveYes
Drain Valve TypeBrass
Temperature Setting Factory Default120° F
Product TypeElectric
WiFi ConnectBuilt-In
Water Connection LocationTop
SensorLeak Sensor Included (SPLK10N01A)
Diagnostic FeedbackFilter, Lock, Standard Electric
Anode RodMagnesium
Renewable Air FilterTop of Unit
Temperature Setting100-140° F Range
Connected CapabilitiesAmazon Alexa
Appearance
InstallationFree-Standing
Color AppearanceGray
Power & Ratings
Operating Water Pressure20-125 PSI (30-80 PSI recommended)
Electrical Consumption - Lower Element3600W at 240VAC
Electrical Consumption - Upper Element3600W at 240VAC
Electrical Circuit Required120/110VAC 15A, 60HZ or 240/208VAC 25A, 60Hz
First Hour Rate (fhr)77 Gallons
Hertz60
Voltage (max)240 V
Volts/hertz120V; 60Hz or 240V; 60Hz
Energy Consumption (kwh/year)1459
Warranty
Warranty NotesSee written warranty for full details
Parts WarrantyLimited 10-year tank and parts
Labor WarrantyLimited 1-year entire appliance
Capacity
Unit Capacity65 Gallons
Economical / Quiet
Operating Sound Level41 dBA
