| Brand | GE |
| Model # | GG40S10BXR |
| Width | 22 in. |
| Height | 52.25 in. |
| Depth | 22 in. |
$749.00
Ships When Available— Backorder OK
This item is on backorder and will ship when available.
Stack & Save
Save up to $1,000 on qualifying orders
Dimensions
Overall Width22 in
Overall Height52.25 in
Product Height (to Top Of Unit)48.875 in
Overall Depth22 in
Product Height (to Top Of Water Inlet/outlet Connections)50.375 in
Height To Gas Control11.25 in
Net Weight133 lb
Product Diameter22 in
Vent Size3" Type B Vent
Connection Sizes - Water Inlet (mnpt)3/4"
Connection Sizes - Hot Water Outlet (mnpt)3/4"
Width22 in.
Height52.25 in.
Length22 in.
Weight133 lbs.
Features

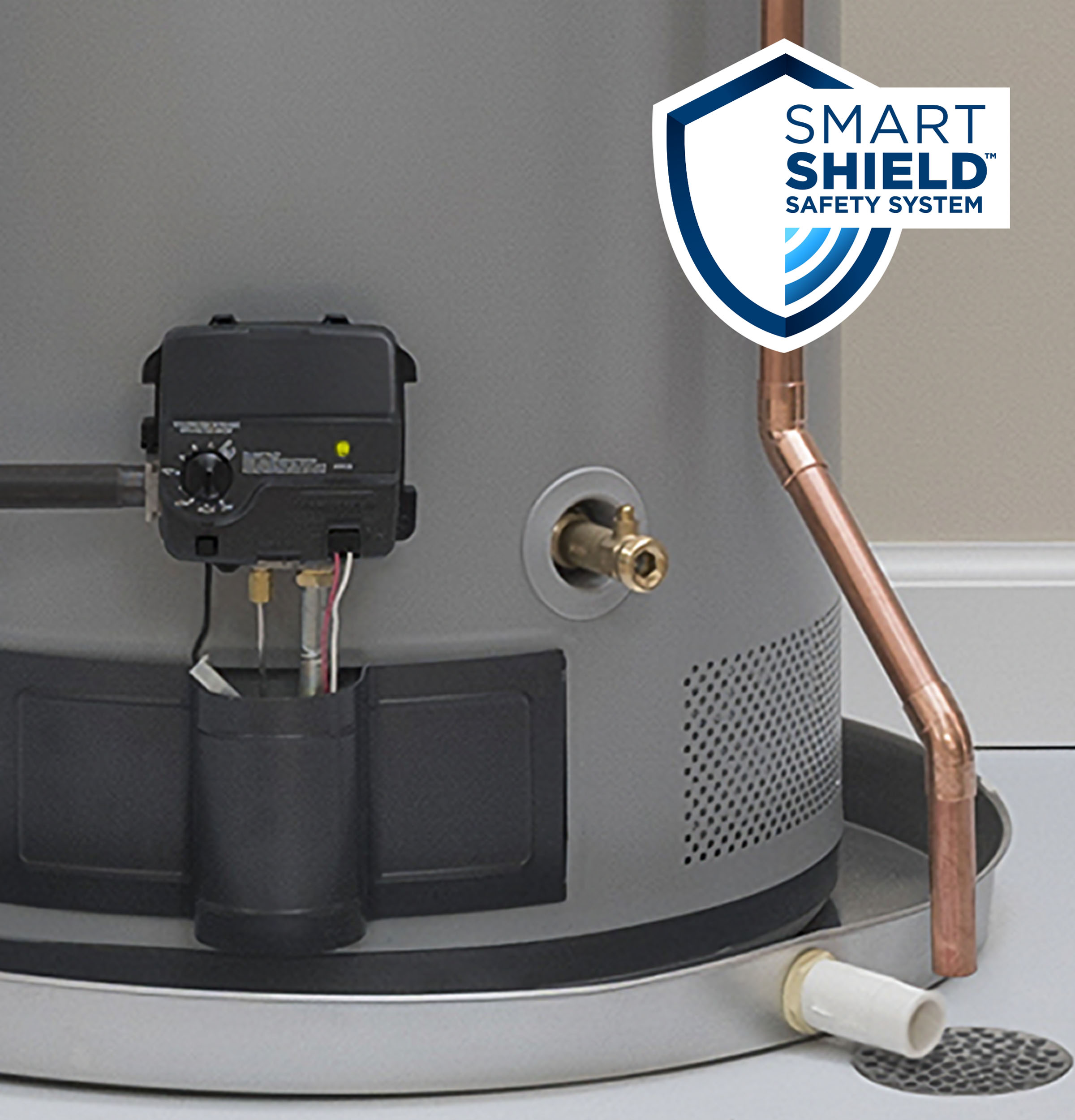

Fvir Safety SystemPrevents accidental ignition of flammable vapors
VentAtmospheric

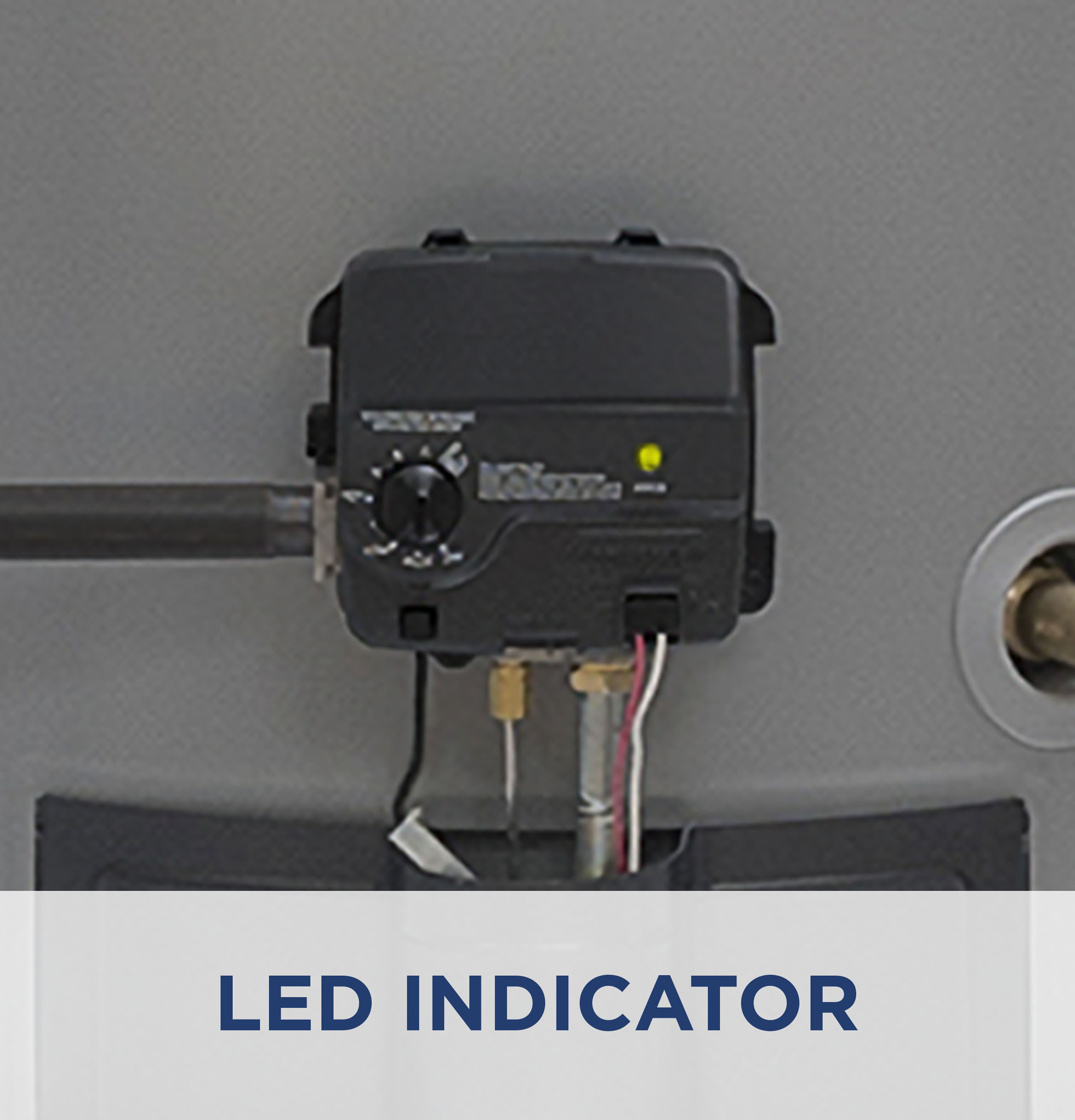

ControlsLED Indicator
Uef.64
Temp & Pressure Relief ValveYes
Height DescriptionShort
Fuel TypeNatural Gas
Pilot Light Window / ButtonYes
ConfigurationShort
Drain Valve TypePlastic
Product TypeAtmospheric Gas
Family Size2-5 People
Bin TestingHigh
Water Connection LocationTop
Overheat ProtectionDry Burning Protection
Gas ValveSelf Powered

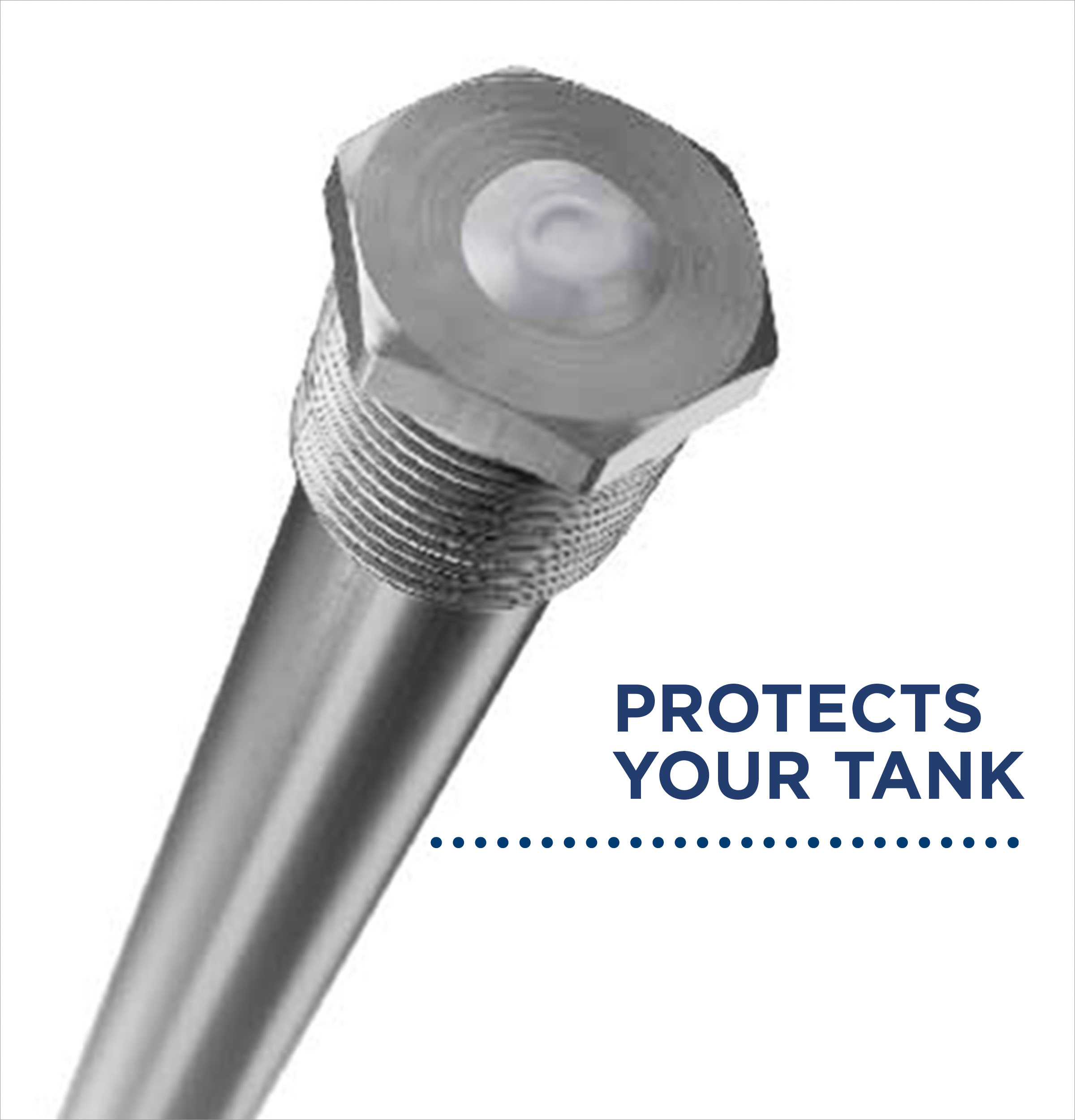

Anode RodMagnesium
Temperature Setting45-160° F Range
Altitude Rating10,100 ft
Warranty
Warranty NotesSee written warranty for full details
Parts10 Year
Labor1 Year
Parts WarrantyLimited 10-year tank and parts
Labor WarrantyLimited 1-year entire appliance
Power & Ratings
Burner BTU Size (k)38
First Hour Delivery Gph78 gal/h
Capacity

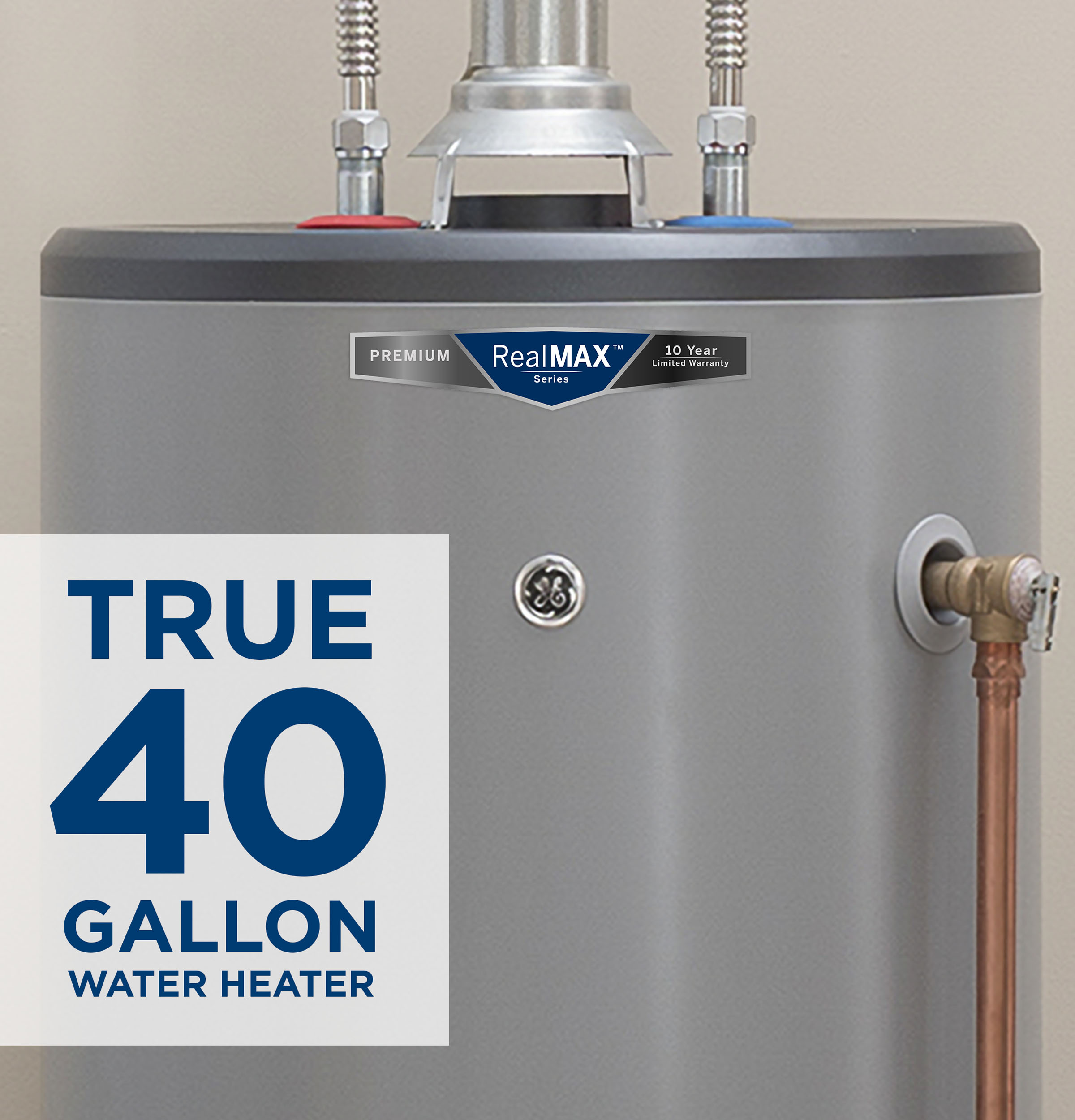

Unit Capacity40 Gallons
Appearance
Color AppearanceGray
