$1,514.00
In Stock
Hover to zoom
1 / 7
| Brand | GE |
| Model # | AZHS15DCXXA |
Stack & Save
Save up to $1,000 on qualifying orders
Dimensions
Net Weight108 lb
Overall Depth20.8125 in
Overall Height16 in
Overall Width42 in
Capacity
CFM Indoor Fan High495
CFM Indoor Fan Low330
Cooling Btuh (max)15100
Cooling Btuh (min)14,700 Btu
Cooling Eer (btuh / Watt)10.4 / 10.4
Dehumidification (pts./hr.)4.1 (High Speed)
Vent CFM (high Fan At Zero Esp)47.5
Features
Central Desk Control CompatibilityYes
Chassis TypeSlide-In

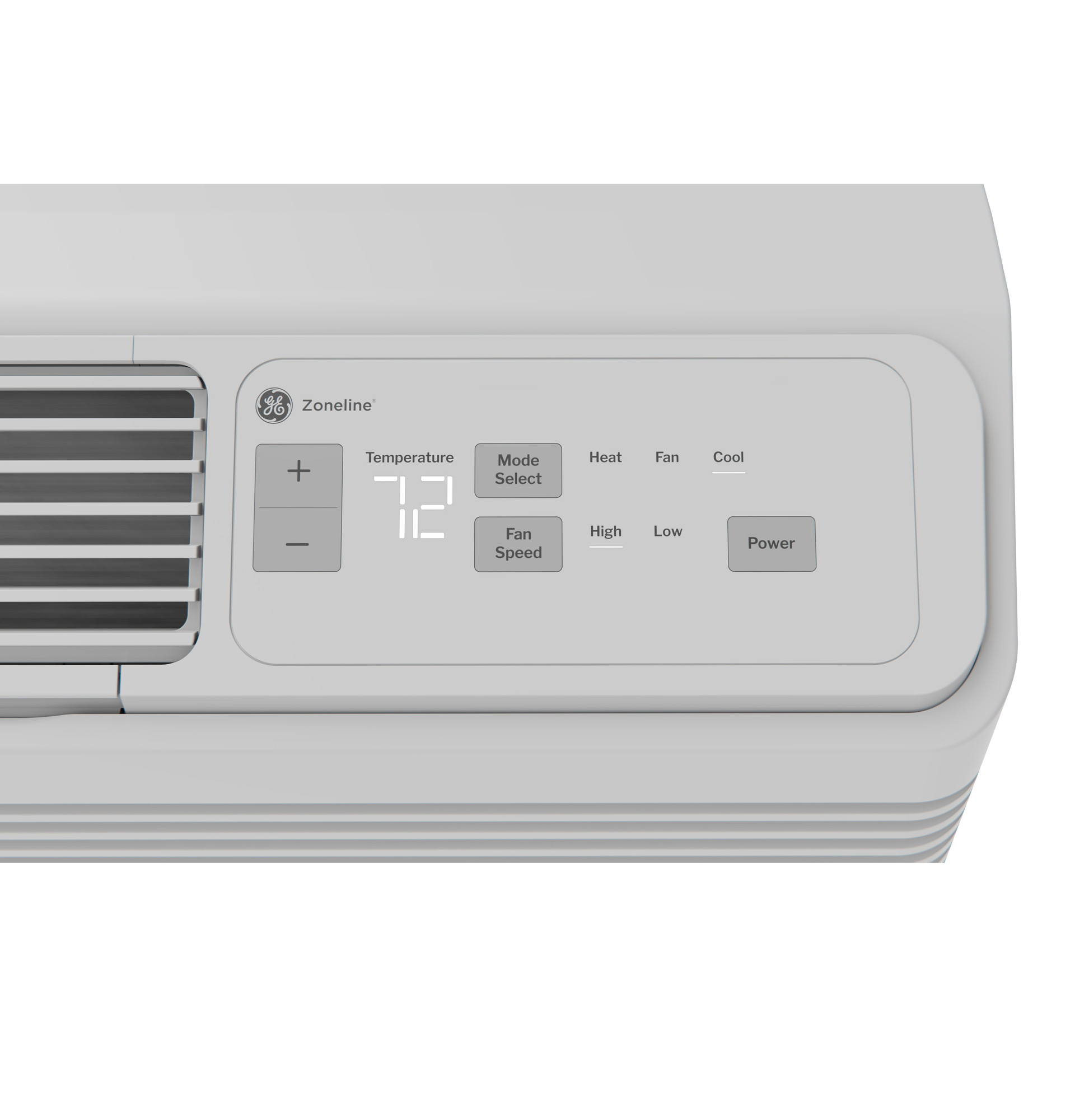

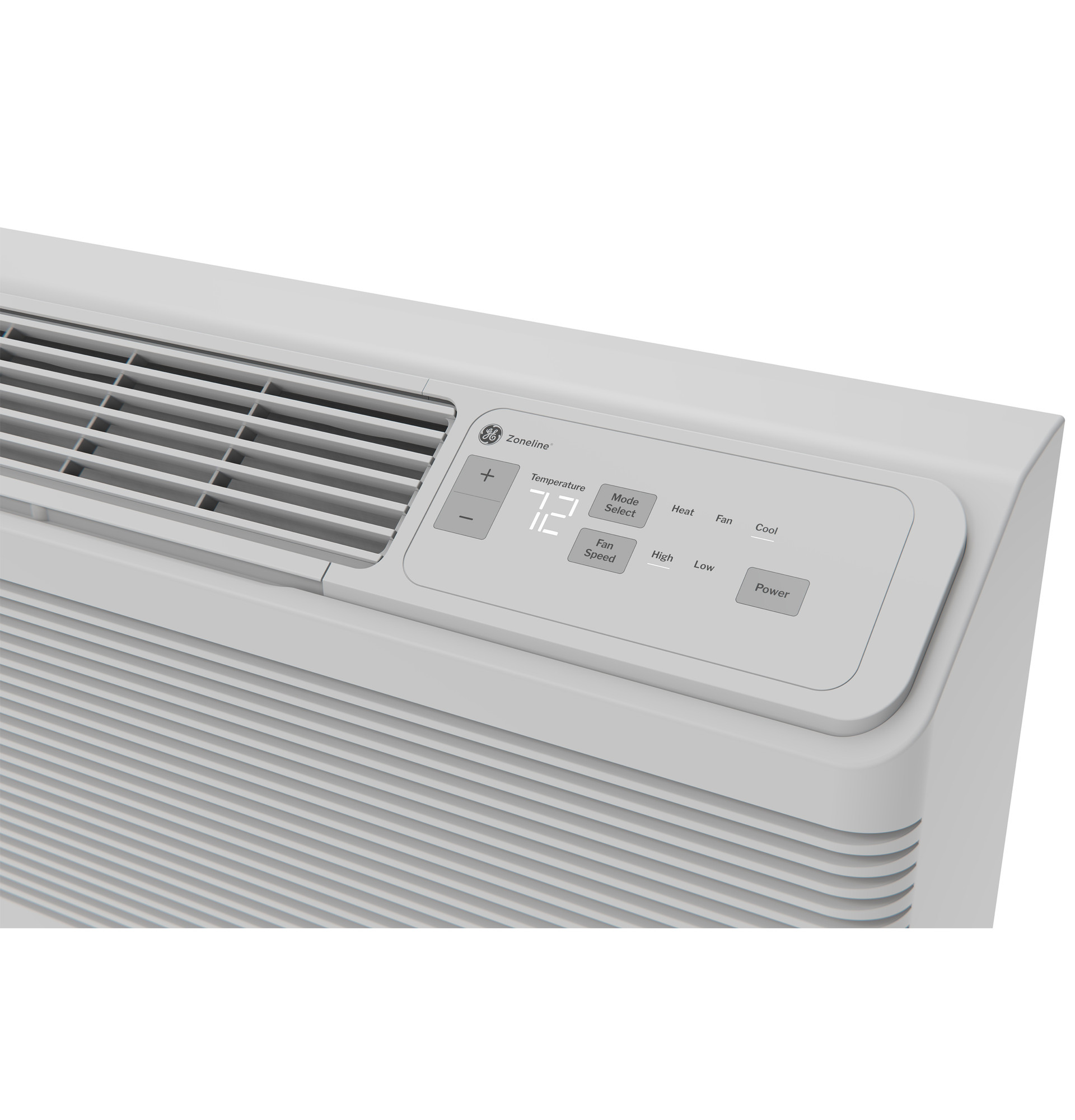

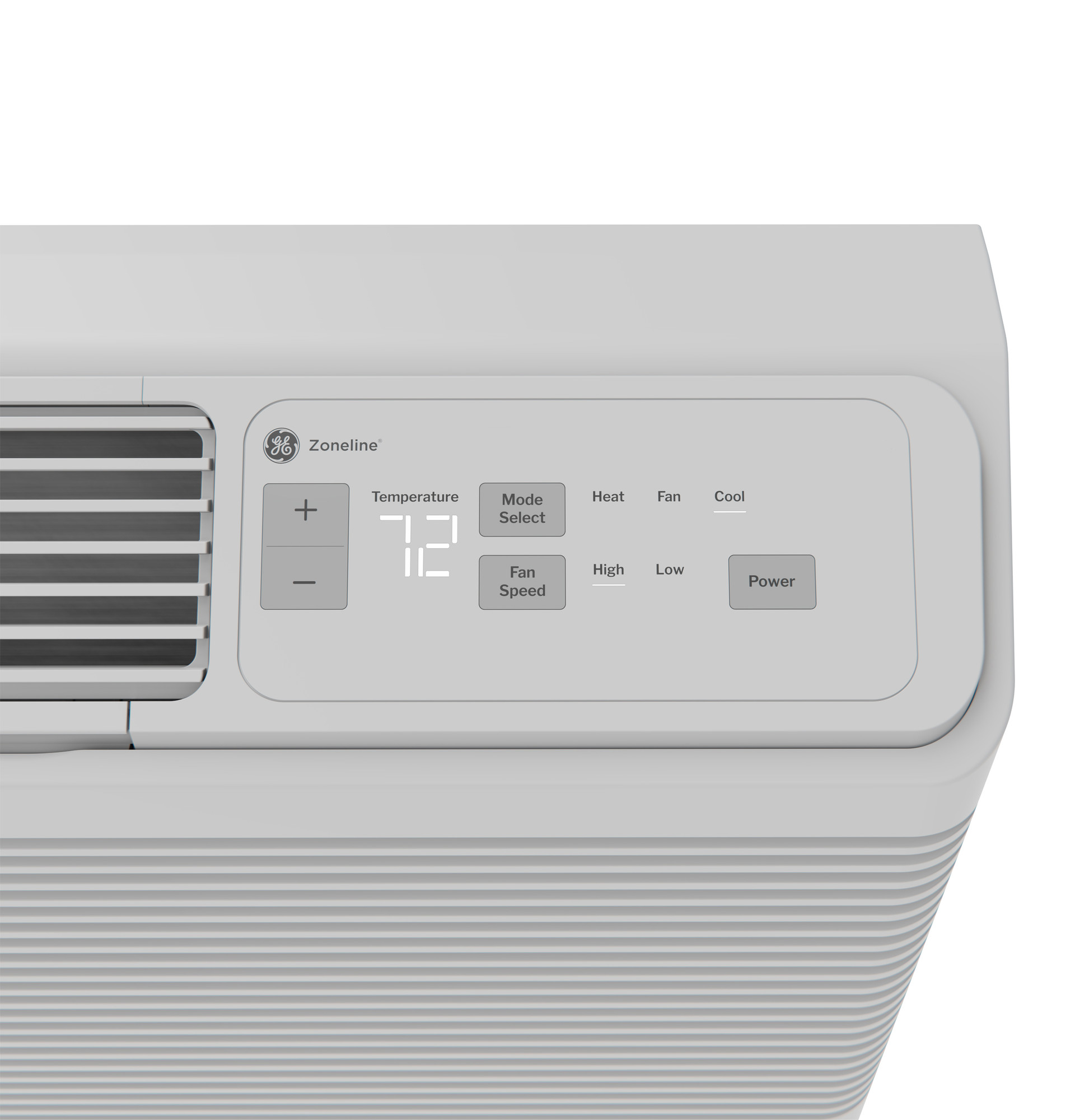

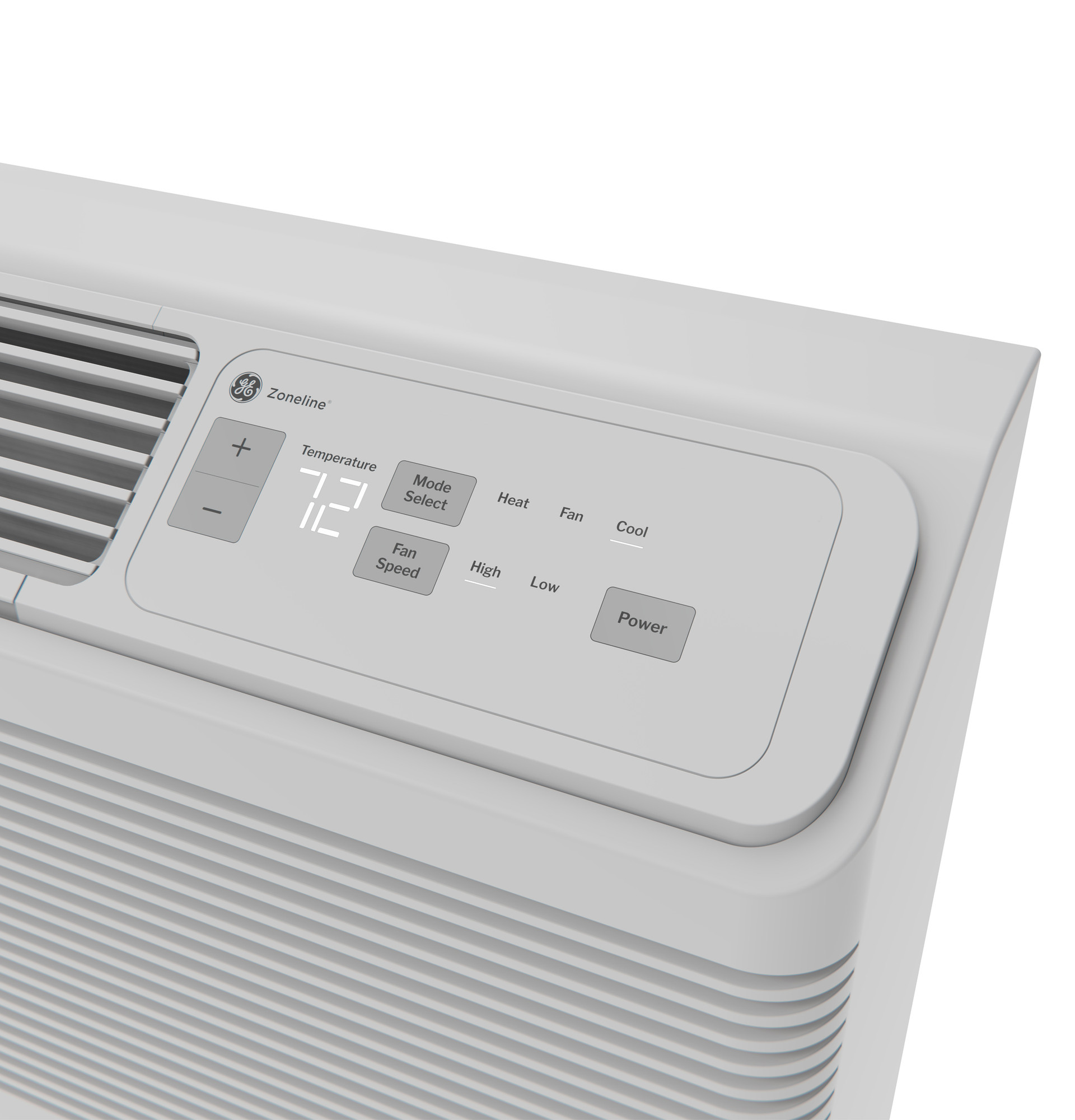

Control TypeTactile touch pad with LED Display
Corrosion TreatedYes
Discharge Grille2-position
Electronic Micro Computer ControlYes
Fan Cycle SwitchYes
Fan Motor2
Fan Speed ControlYes
Fan Speed SelectionsHi/Low Fan Only
Filter TypeSlide-Out
Heat - CoolYes
Heating - Reverse Cycle - Cop3.3/3.4
Heating SystemHeat Pump With Backup Resistance Heat
Louver StyleReversible
Manual Vent ControlHidden
Power Factor95
Product TypePackaged Terminal Air Conditioners (PTAC)
Refrigerant TypeR454B
Rotary CompressorYes
Sensible Heat Ratio0.75
Temperature LimitingElectronic 24-Step
Temperature Range60 - 85 F
Vent Control3-position
Venting FeaturesOutdoor Vent Control - 3 Positions
Zoneline FeaturesRandom Twist/Length Segment Tangential Blower
Refrigerant Charge34
Freeze SentinelYes
Heat SentinelYes
Heat PumpYes
Appearance
Color AppearanceGrey White
Power & Ratings
Cooling - Amperes6.7/7.1
Cooling - Amperes; F.l. - Cooling6.2/6.7
Cooling - Amperes; L.r.31.5
Cooling - Watts1450/1410
Heating Btuh13500 / 13300
Heating - Reverse Cycle - Watts1195/1180
Voltage (max)230 V
Voltage (min)208 V
Heating - Electric - Heater Amps5.6/6.0
Warranty
Labor WarrantyLimited 5-year sealed system
Warranty NotesSee written warranty for full details
Parts WarrantyLimited 2-year entire appliance
Accessories
Accessories Required For InstallationOutdoor Grille
