Zoneline Vertical A Series
1 / 6
GE

Zoneline Vertical A Series

Model: AVVS12DCXWA

BrandGE
Model #AVVS12DCXWA
$2,967.00
In Stock— Ready to Ship
Free Shipping
Lowest Price Guarantee
Need help? (732) 426-0990

Stack & Save

Save up to $1,000 on qualifying orders

Dimensions

Net Weight125 lb

Capacity

Dehumidification (pts./hr.)2.8 Nominal Cooling High Fan

Features

Cop2 @ 47f3.5
Cop2 At 17f Nominal / Max2.2
Control TypeTactile touch pad with LED Display
Corrosion TreatedYes
Eer2 @ 95f (12,000 BTU)12
Hspf2 Rating8.1
Heat Pump With Resistance Heat BackupYes
Heating BTU Hp @ 47f11200
Heating BTU Range @ 47f4500 - 13000
Heating BTU At 17f Max9100
Heating BTU At 17f Nominal6300
Makeup AirNo
Product TypeVertical Air Conditioners
Refrigerant Charge38.5
Refrigerant TypeR454B
Seer217
Sensible Heat Ratio76% ( at 95F Nominal Cool High Fan)
Zoneline FeaturesZoneline with Perfect Control Technology
Heat PumpYes

Power & Ratings

CFM @ 0.1 Esp Dry380 (low fan)
CFM @ 0.3 (high Fan) Nominal Cooling420
Cooling - Amperes4.8
Cooling - Watts1050
Cooling Btuh Range (@95f Outdoor)5200 - 16,200
Cooling Btuh (95f)12500
Cooling Btuh (max - 115f)11200
Volts/amps230 / 208V

Accessories

Accessories Required For InstallationOutdoor Grille

Warranty

Parts WarrantyLimited 2-year entire appliance
Warranty NotesSee written warranty for full details
Labor WarrantyLimited 1-year entire appliance

Appearance

Color AppearanceGray

Similar Air Conditioners

Ships When Available
Zoneline Ptac Fixed Speed – 230/208V With R454B
GE

Zoneline Ptac Fixed Speed – 230/208V With R454B

$1,514.00
Free Shipping
Ships When Available
Zoneline Ptac Fixed Speed – 230/208V With R454B
GE

Zoneline Ptac Fixed Speed – 230/208V With R454B

$1,495.00
Free Shipping
Ships When Available
Zoneline Cooling and Fixed Speed Unit with Corrosion Protection 15,000 BTU, 230/208 Volt
GE

Zoneline Cooling and Fixed Speed Unit with Corrosion Protection 15,000 BTU, 230/208 Volt

$1,414.00
Free Shipping
Ships When Available
Zoneline Cooling and Electric Heat Fixed Speed Unit with Corrosion Protection 12,000 BTU, 230/208 Volt
GE

Zoneline Cooling and Electric Heat Fixed Speed Unit with Corrosion Protection 12,000 BTU, 230/208 Volt

$1,374.00
Free Shipping
Ships When Available
Zoneline Cooling and Fixed Speed Unit with Corrosion Protection 9,000 BTU, 230/208 Volt
GE

Zoneline Cooling and Fixed Speed Unit with Corrosion Protection 9,000 BTU, 230/208 Volt

$1,344.00
Free Shipping
Ships When Available
Zoneline Cooling and Fixed Speed Unit with Corrosion Protection 7,000 BTU, 230/208 Volt
GE

Zoneline Cooling and Fixed Speed Unit with Corrosion Protection 7,000 BTU, 230/208 Volt

$1,320.00
Free Shipping
Ships When Available
230/208 Volt Built-In Heat/Cool Room Air Conditioner
GE

230/208 Volt Built-In Heat/Cool Room Air Conditioner

$885.00
Free Shipping
Ships When Available

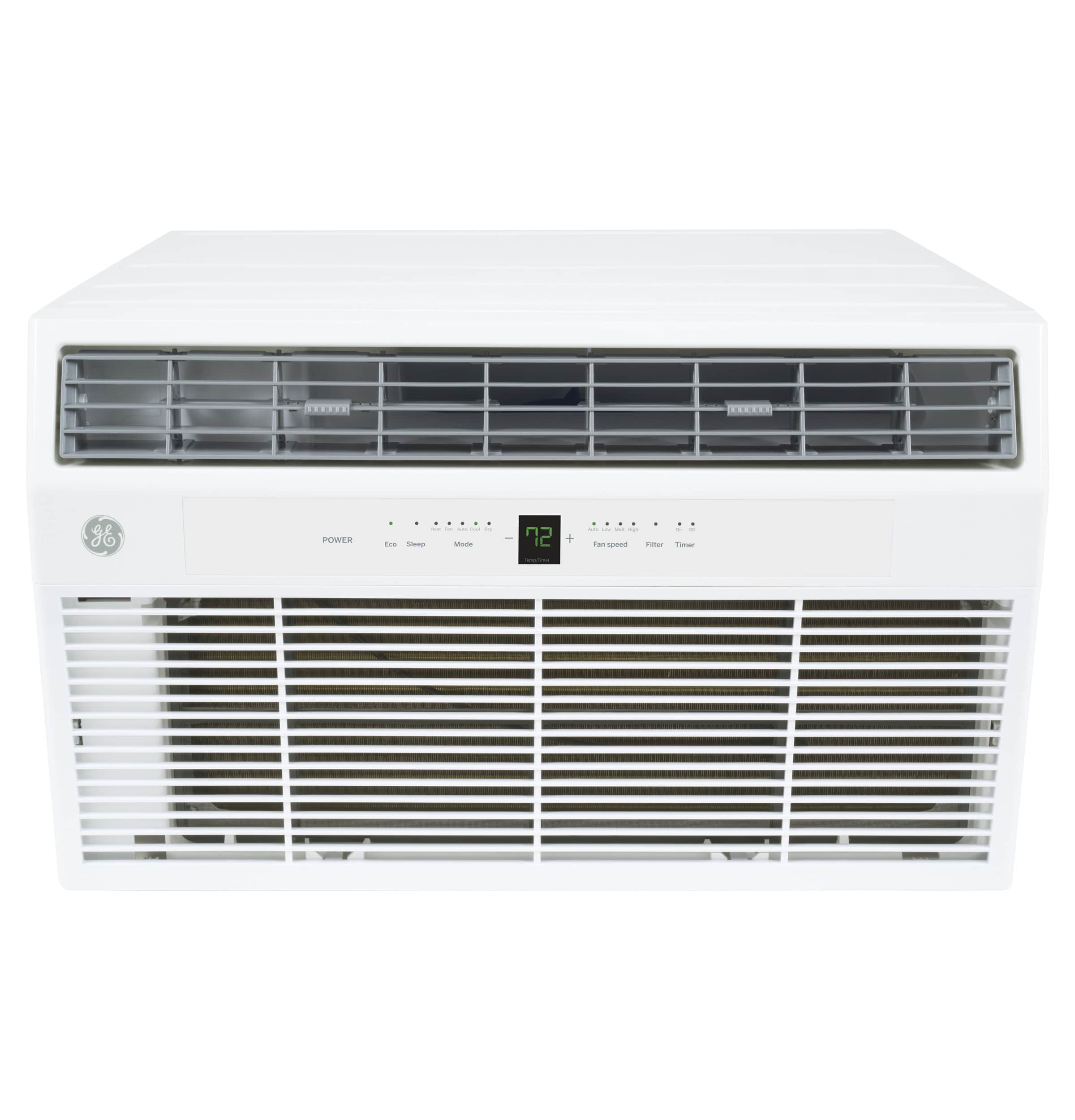

Built In Air Conditioner
