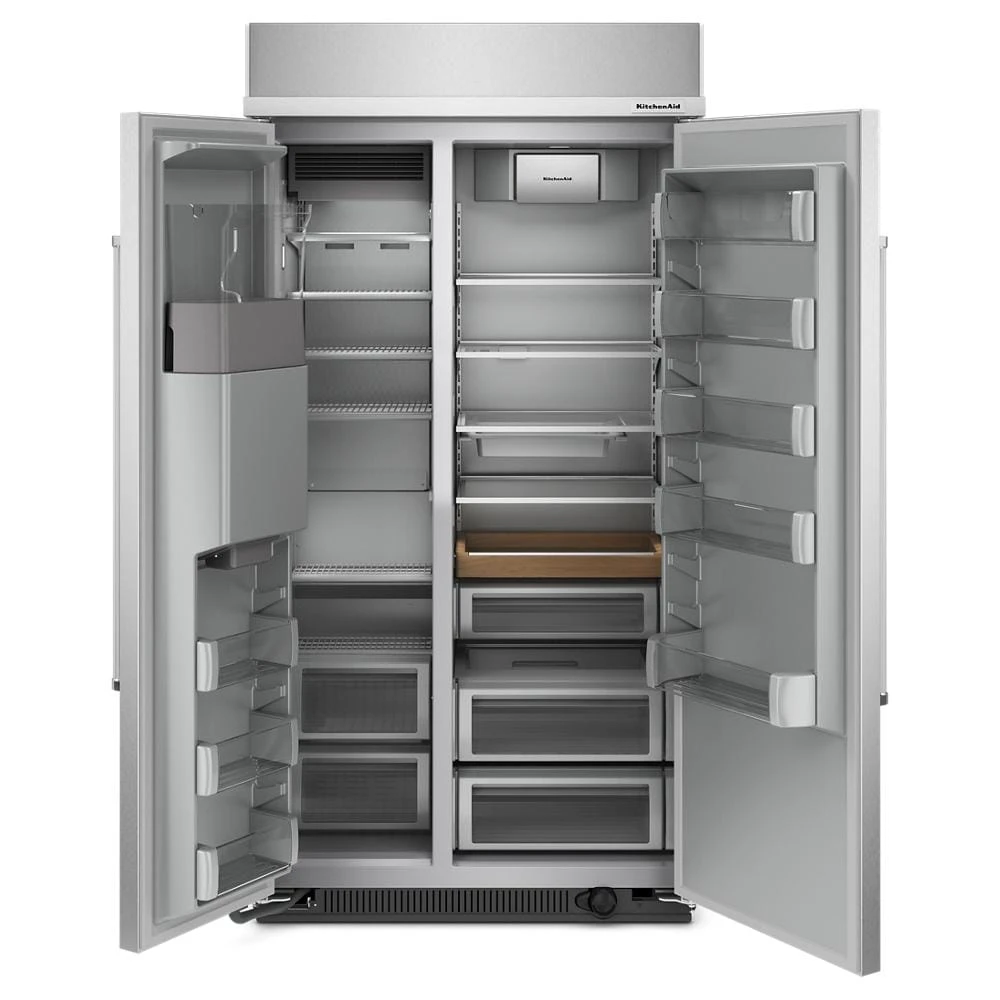

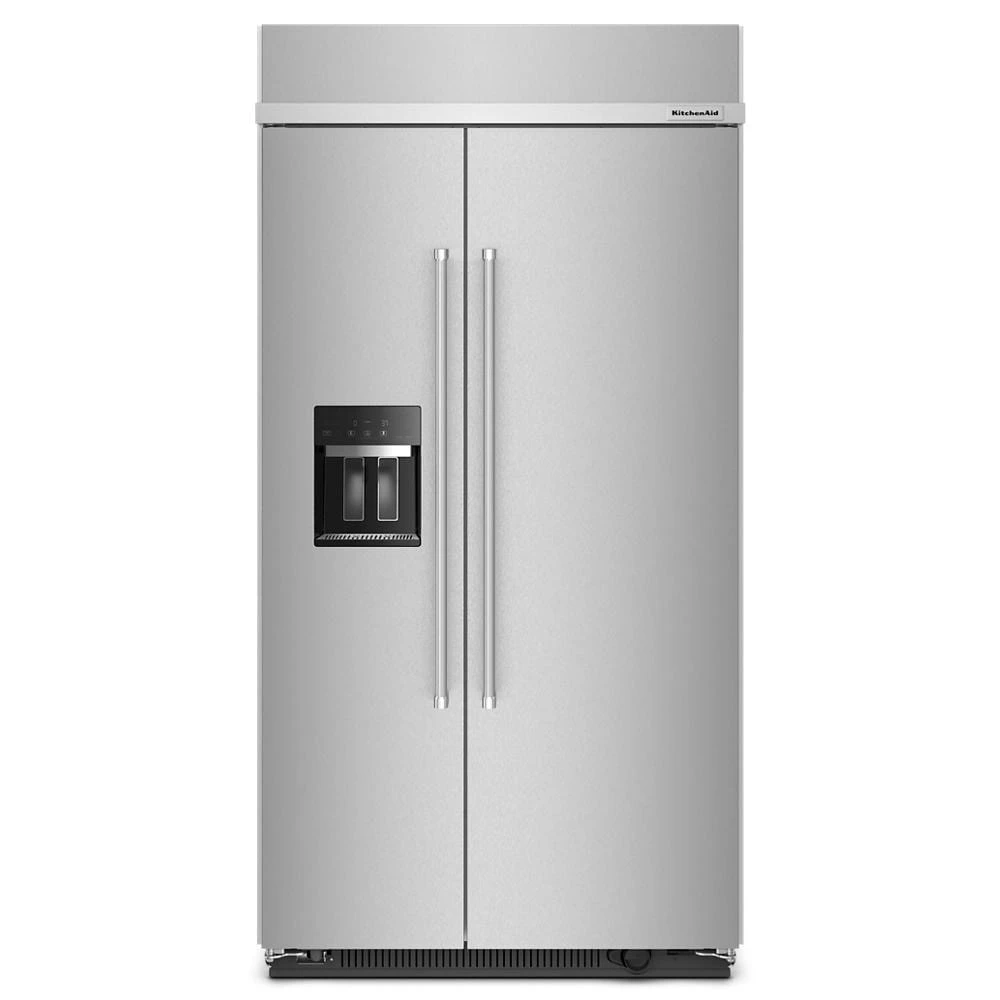

25.1 Cu. Ft. 42" Built-In Side-by-Side Refrigerator with Ice and Water Dispenser
1 / 4
KitchenAid

25.1 Cu. Ft. 42" Built-In Side-by-Side Refrigerator with Ice and Water Dispenser

Model: KBSD702MPS

BrandKitchenAid
Model #KBSD702MPS
Width41.25 in.
Height83.38 in.
Depth27.69 in.

Who it’s for

  • Good for lower running costsENERGY STAR certified — this refrigerator meets the EPA program's efficiency requirements.

  • Good for Sabbath-observant homesA Sabbath mode is listed on this refrigerator's specification.

This model is discontinued

The 25.1 Cu. Ft. 42" Built-In Side-by-Side Refrigerator with Ice and Water Dispenser is discontinued and cannot be ordered.

The closest current model we carry is the 25.1 Cu. Ft. 42-inch Built-in Side-by-side Refrigerator With Exterior Water And Ice Dispenser With Measured Fill In Printshield® Stainless Steel.

25.1 Cu. Ft. 42-inch Built-in Side-by-side Refrigerator With Exterior Water And Ice Dispenser With Measured Fill In Printshield® Stainless Steel

Now available

25.1 Cu. Ft. 42-inch Built-in Side-by-side Refrigerator With Exterior Water And Ice Dispenser With Measured Fill In Printshield® Stainless Steel

$10,348.00

$1,251 less than the model it replaces

  • Same 25.0 cu. ft. capacity
  • Same color: Stainless Steel
See the newer model →

Need help finding a replacement? Call (732) 426-0990

Was $11,599 when available

At a glance

KitchenAid KBSD702MPS is a side by side refrigerator in Stainless Steel, 41.25 inches wide. It has an ice maker, ENERGY STAR certification and a Sabbath mode. It suits lower running costs and Sabbath-observant homes.

Specifications

Dimensions

Width41.25 in.
Height83.38 in.
Length27.69 in.
Weight601 lbs.
Cabinet Width (in)41
Depth Closed Excluding Handles25.0000
Depth Closed Including Handles27.6875
Depth Excluding Doors22.3750
Depth With Door Open 90 Degree47.1875
Gross Weight601
Net Weight548.0
Cabinet Width41.0000
Cutout Depth24.0000
Cutout Height83.5000
Cutout Width41.5000
Height To Top Of Cabinet74.5000
Height To Top Of Door Top Grill83.375
Maximum Height83.3750
Dispenser OptionsFiltered Water; Ice; Ice Dispenser Lock; Light; Measured Fill
Dispenser TypeExterior Ice and Water
Freezer Capacity Volume8.8
Refrigerator Capacity Volume16.3
Total Refrigerator Capacity Volume25.1
Width Doors Open 90 Degrees47.25

Warranty

Parts1 Year
Labor1 Year

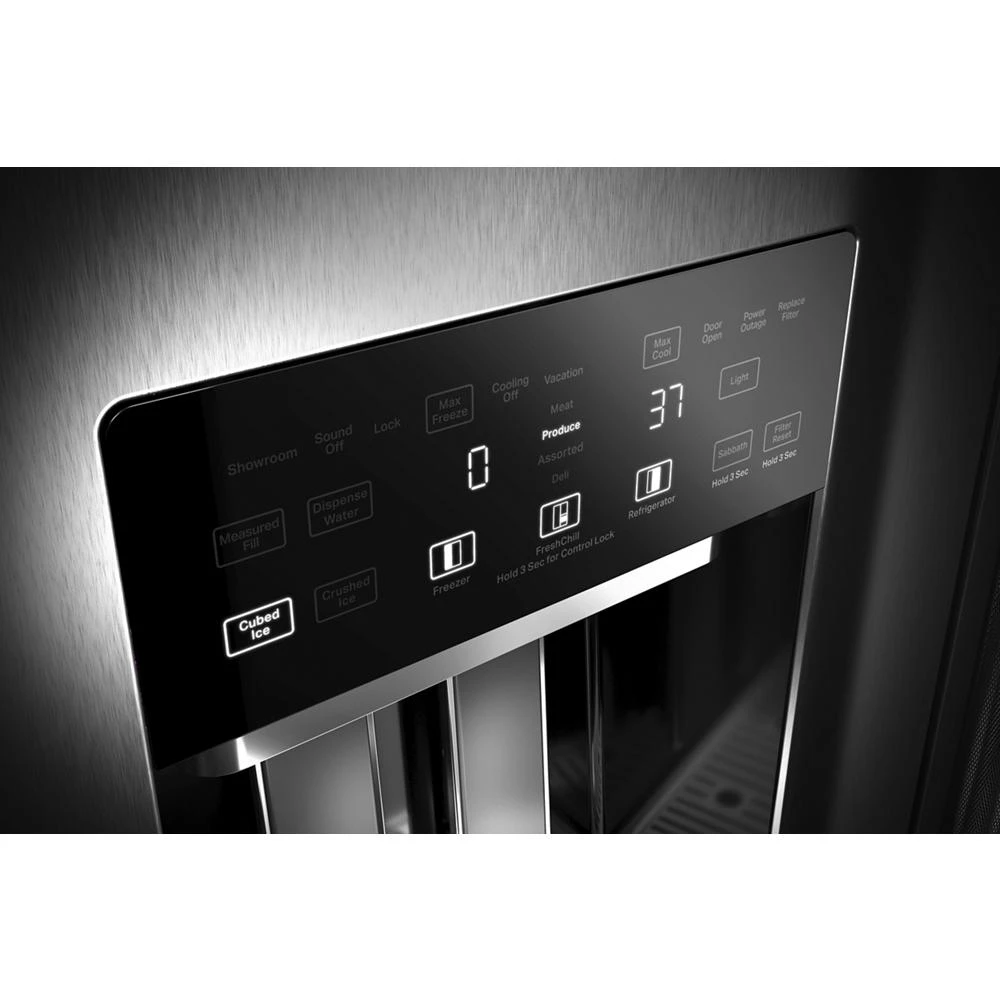

Controls

Automatic DefrostYes
Control LocationExterior
Control OptionsVacation Mode
Control TypeElectronic
Door Ajar/open AlarmYes
Lcd Touch ScreenNo
Max Cool/fast CoolMax Freeze/Max Cool
Sabbath ModeYes

Certifications

ADA CompliantNo
Star K CertifiedYes
Cee Tier RatingTier I
Prop65Standard

Dimension

Depth Closed Excluding Handles25
Depth Excluding Doors22 3/8
Depth With Door Open 90 Degree47 3/16

Details

Refrigerator TypeSide-by-Side

Exterior Details

Cabinet FinishSmooth
Door StyleFlat
Hidden HingeYes

Filter Details

Air Filter Part NumberW10311524
Water Filter Indicator/resetYes
Water Filter LocationExterior
Water Filter Part NumberEDR3RXD1

Freezer Details

Freezer Door Bins3 Adjustable Full-Width
Freezer Drawer/basket2 Full Width Lower
Freezer LightingLED
Freezer Number Of Shelves6
Freezer Shelves2 Fixed Full Width Wire; 4 Adjustable Full Width Wire

Icemaker Details

IcemakerFactory Installed
Icemaker LocationFreezer

Refrigerator Details

Additional StorageFaux Wood Pull Out Tray; Under Shelf Prep Zone
Conventional Shelves1 Slide-Out - Wood Finish
Non Climate Control Drawers2 Full Width
Number Of Interior Shelves4
Refrigerator Door Bins1 Full Width Non Adjustable Gallon; 1 Full Width Non Adjustable Small Item; 3 Adjustable Full-Width
Refrigerator LightingLED
Spill-proof Glass Shelves3 Adjustable Full Width Nano Edge
Supplementary Containers1 9x13 Cake Pan; 1 9x13 Sheet Pan
Temperature-controlled Drawers1 Full Width

Product Details

Energy Star® QualifiedENERGY STAR® Qualified

Product Features

Under-Shelf Prep Zone

utilizes unused space with included 9"x13" baking sheet and cake pan. Go directly from the refrigerator to the oven to the dishwasher. Ideal for storing food prep or leftovers, marinating, chilling desserts, making focaccia and more.

Adjustable Spill-Resistant Glass Shelves

are easy to clean and help prevent messes from spilling over into other parts of the refrigerator. The shelf edges are nano-etched with a finely textured surface that helps contain spills, and lets you use the whole shelf from edge-to-edge.

Platinum-Colored Interior

brings premium style inside the refrigerator to complement the quality ingredients you keep. The sleek platinum-colored interior accents the design details of the refrigerator, and offers a step up from the standard white interior.

LED Lighting System

located throughout the freezer and refrigerator, makes it easy to find items at a glance. Upon opening, lights illuminate gradually to full brightness for easy visibility.

Star-K Certified Sabbath Mode

Meets kosher requirements for use on the Jewish Sabbath and other holidays. Turning on Sabbath Mode disables the refrigerator's automatic lights and alarm tones, while maintaining cold temperatures for freshness.

Measured Water Fill

dispenses the exact amount of filtered water needed for recipes and can be customized to ounces or liters. Forgo your measuring cups and use the convenient presets, with an option to customize settings for frequently used amounts of your own.

Easy Access Bin

keeps small ingredients in sight and at hand. Perfect for storing tomato paste, ginger, horseradish and other small items that can easily get lost on shelves.

Sliding Storage Tray

is a versatile area for storing platters, organizing ingredients and keeping items easily accessible. It comes in a wood-look finish that is moisture- and stain-resistant, and tray removes fully for easy cleaning.

Fit System Limited Guarantee

If new 36”, 42” or 48” built-in refrigerator doesn’t fit, you may get up to $300 for professional modifications. Existing cabinet modifications only. Exclusions apply. See terms.* For Full terms and details Visit https://www.kitchenaid.com/promotions/promotions.html

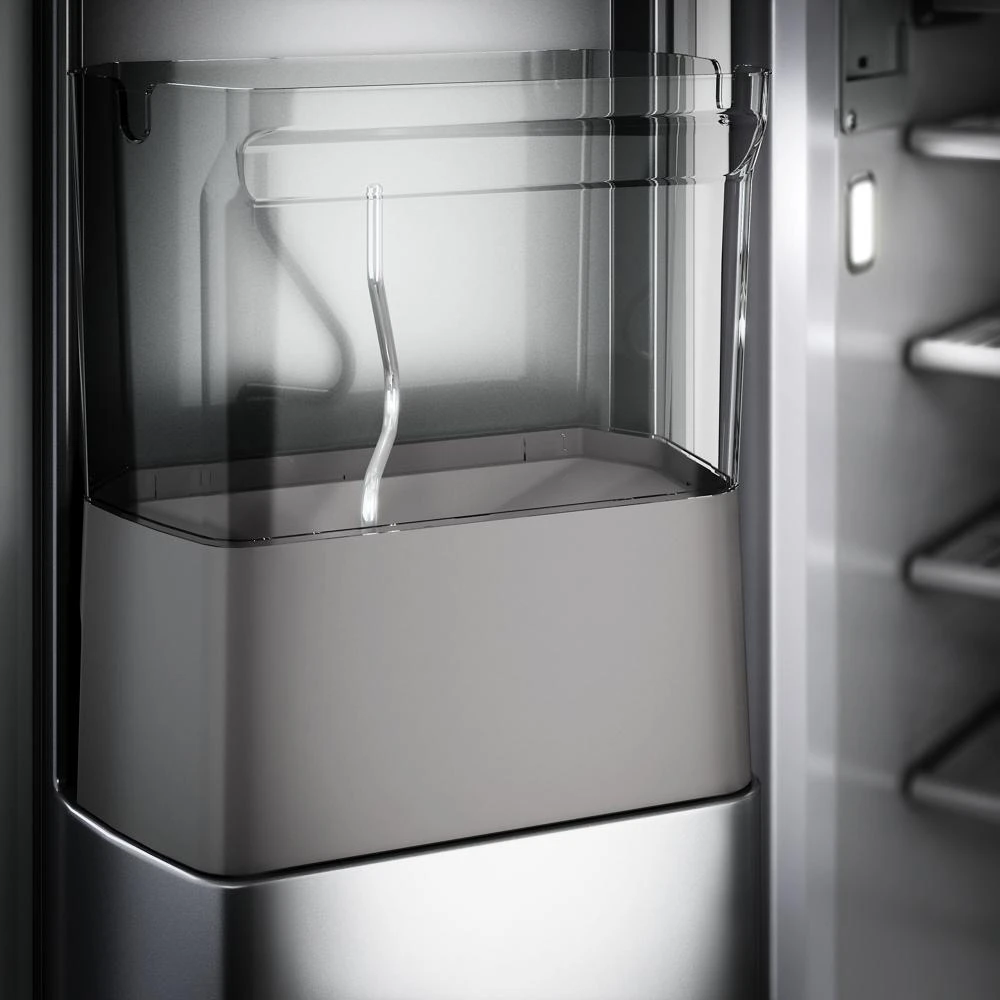

Exterior Ice and Water Dispenser

fits glasses and measuring cups, and dispenses filtered water and ice without having to open the refrigerator door.

Energy Star® Certified

refrigerators exceed government standards for energy efficiency to support sustainability and help save money on utility bills.

ExtendFresh™ Plus Temperature Management System

helps keep ingredients fresh using sensors that continuously adjust temperatures in the refrigerator and freezer by monitoring the airflow between them.

FreshChill™ Temperature Controlled Drawer

has a manual setting so you can customize and maintain the freshness of your ingredients. From a tri-tip to a large rhubarb from the Farmer's Market, you have control over how much cool air enters the drawer.

FreshFlow™ Air Filter

Enjoy an interior refrigerator environment that helps reduce common food odors.

Max Cool

Lets you use the touch of a button to drop refrigerator temperature to the coldest level, helping to chill groceries, beverages or ingredients for serving. After 24 hours, the temperature will automatically be restored to the previous setting.

Max Freeze

lets you use the touch of a button to drop freezer temperature to coldest level (-8F), so frozen goods can reach optimal temperatures. After 48 hours, the temperature will automatically be restored to the previous setting.

PrintShield™ Finish

resists smudges and fingerprints. The specialized coating for stainless steel is easy to clean with just water and a soft cloth, so you can spend more time cooking and less time cleaning up.

SatinGlide® Drawers

add a smooth experience to the crisper drawers. The ball bearing rollers and glides allow effortless in-and-out movement even when drawer is fully loaded.

PrintShield® Finish

resists smudges and fingerprints. The specialized coating for stainless steel is easy to clean with just water and a soft cloth, so you can spend more time cooking and less time cleaning up.

Product Documents

Customer Reviews

No reviews yet

Be the first to review this product.

Common questions

Is the KitchenAid KBSD702MPS good for lower running costs?
Yes — ENERGY STAR certified — this refrigerator meets the EPA program's efficiency requirements.
Is the KitchenAid KBSD702MPS good for Sabbath-observant homes?
Yes — A Sabbath mode is listed on this refrigerator's specification.
What warranty comes with the KitchenAid KBSD702MPS?
The KitchenAid 25.1 Cu. Ft. 42" Built-In Side-by-Side Refrigerator with Ice and Water Dispenser is listed with 1 year of parts and labor coverage from the manufacturer, per this model's published specifications.
Is the KitchenAid KBSD702MPS ENERGY STAR certified?
Yes, the KitchenAid 25.1 Cu. Ft. 42" Built-In Side-by-Side Refrigerator with Ice and Water Dispenser is ENERGY STAR certified for energy efficiency.
