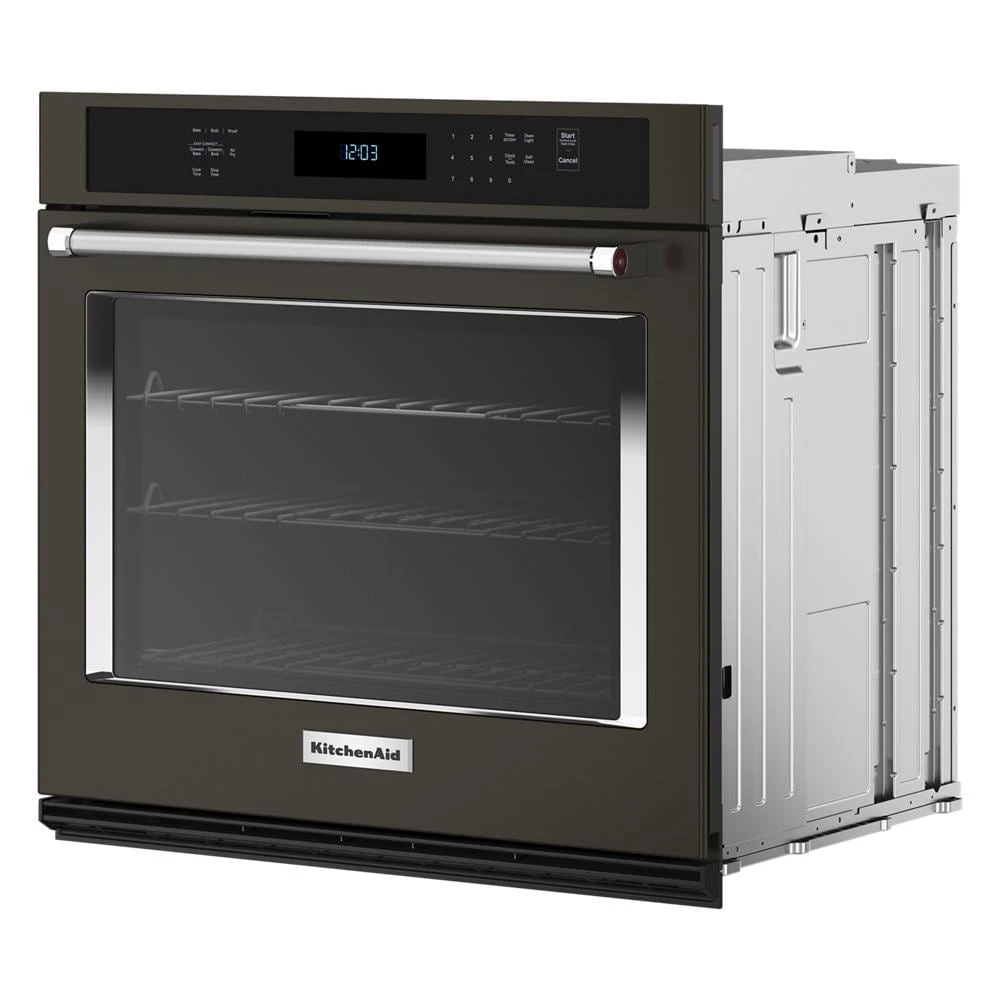

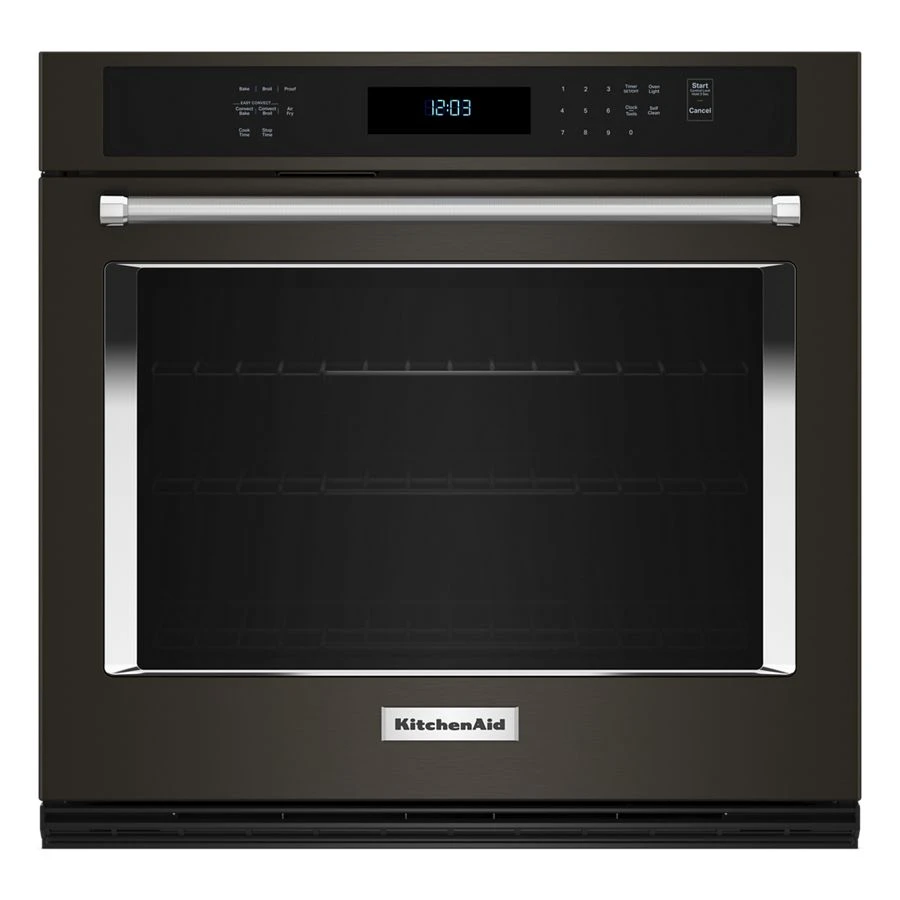

Kitchenaid® 30" Single Wall Ovens With Air Fry Mode
1 / 11

Available in 3 finishes:

BrandKitchenAid
Model #KOES530PBS
Width29.75 in.
Height28.75 in.
Depth27.125 in

Who it’s for

  • Good for even baking and roastingConvection is listed on this wall oven — a fan moves hot air around the cavity.

  • Good for crisping without a countertop fryerBuilt-in air fry mode is listed on this model, so no separate countertop fryer is needed.

  • Good for accessible kitchensListed ADA compliant, so this wall oven suits kitchens built to the 2010 ADA Standards.

  • Good for Sabbath-observant homesA Sabbath mode is listed on this wall oven's specification.

KitchenAid

Kitchenaid® 30" Single Wall Ovens With Air Fry Mode

Model: KOES530PBS

1.7 (6 reviews)

This model is discontinued

The Kitchenaid® 30" Single Wall Ovens With Air Fry Mode is discontinued and cannot be ordered.

The closest current model we carry is the 30-inch Smart Electric Single Wall Oven With Assisted Cooking Modes - Juniper.

30-inch Smart Electric Single Wall Oven With Assisted Cooking Modes - Juniper

Now available

30-inch Smart Electric Single Wall Oven With Assisted Cooking Modes - Juniper

$2,598.97

$700 less than the model it replaces

  • Same 29.75" width
  • Same 28.75" height
See the newer model →

Need help finding a replacement? Call (732) 426-0990

Was $3,299 when available

At a glance

KitchenAid KOES530PBS is a single wall oven in Black Stainless Steel, 29.75 inches wide with 5 cu ft of capacity. It has convection, air fry and a self-clean cycle. It suits even baking and roasting, crisping without a countertop fryer and accessible kitchens. It is listed as a 30 inch wall oven.

Specifications

Dimensions

Width29.75 in.
Height28.75 in.
Length27.13 in.
Weight167 lbs.
Cutout Depth (in)24
Cutout Height (in)28
Cutout Width (in)28 1/2
Depth Closed Excluding Handles24.5000
Depth Closed Including Handles27.1250
Depth With Door Open 90 Degree46.7500
Gross Weight167
Net Weight149.0
Cutout Depth24.0000
Cutout Height28.0000
Cutout Width28.5000
Maximum Height28.7500
Capacity5 cu. ft.
Common Size30 in
Oven Interior Depth19 in
Oven Interior Height18 in
Oven Interior Width25 in
Depth27.125 in

Controls

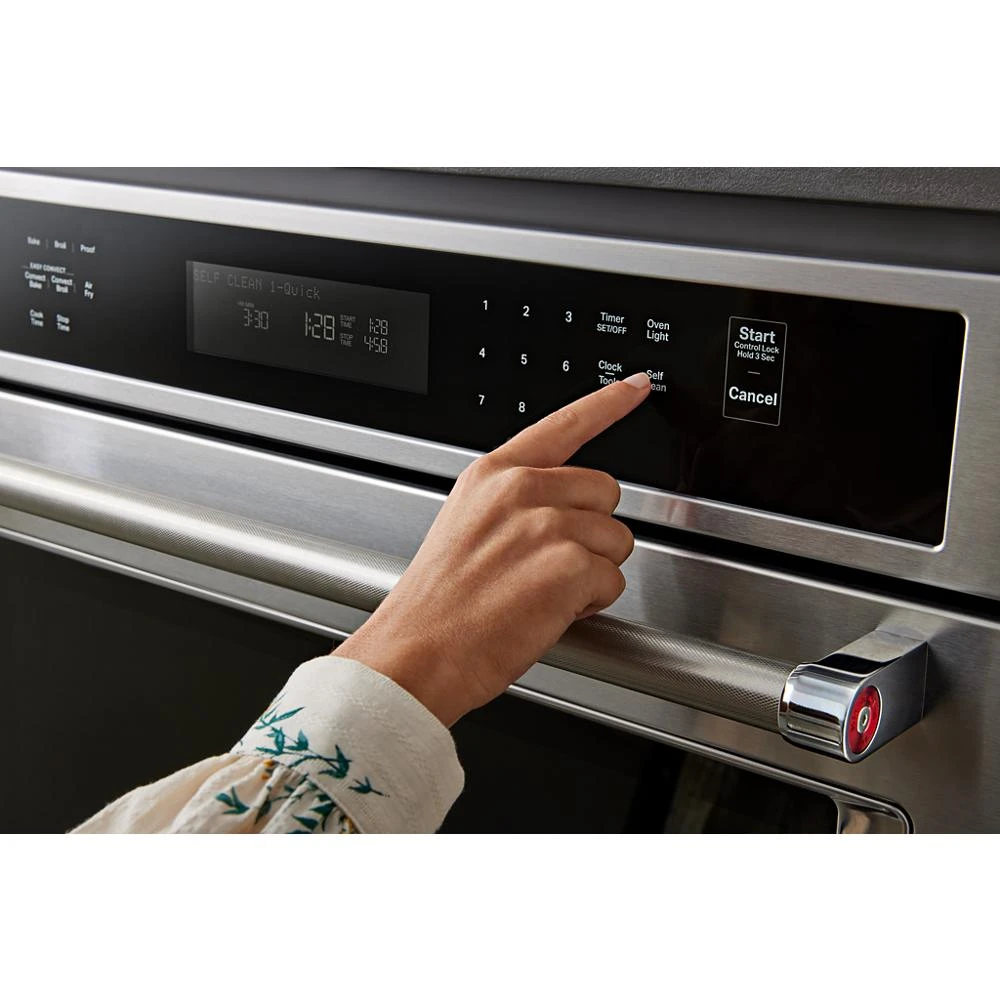

Control TypeElectronic Touch
Display ColorWhite
Electronic Display TypeDigital
Language ConversionEnglish/French/Spanish
Light ControlOven Light Touch Pad

Details

Oven Automatic Shut-offYes
Delay CleanNo
Flush Installation ApprovedYes
Fuel TypeElectric
LP ConvertibleNo
Oven TypeSingle
Power On Indicator LightYes
Cooktop CombinationsKCES550, KCES556, KCES950, KCES956, KCGS350, KCGS356, KCGS550, KCGS556, KCGS950, KCGS956, KCIG550, KCIG556, KECC604, KECC607, KECC664, KECC667, KGCC506, KGCC566, KICU509, KICU569

Certifications

CulYes
UlYes
ADA CompliantYes
Star K CertifiedStar K Certified

Electrical

Amps20
Hz60
Power Cord IncludedNo
Volts240

Exterior Details

Door TypeMetal & Glass
Oven Window SizeExtra Large
Door LockYes
Handle ColorStainless Steel
Handle MaterialMetal

Oven Cavity Details

Bake Element Power2,800 W
Broiler Element Power4,000 W
Broiler LocationTop of Oven

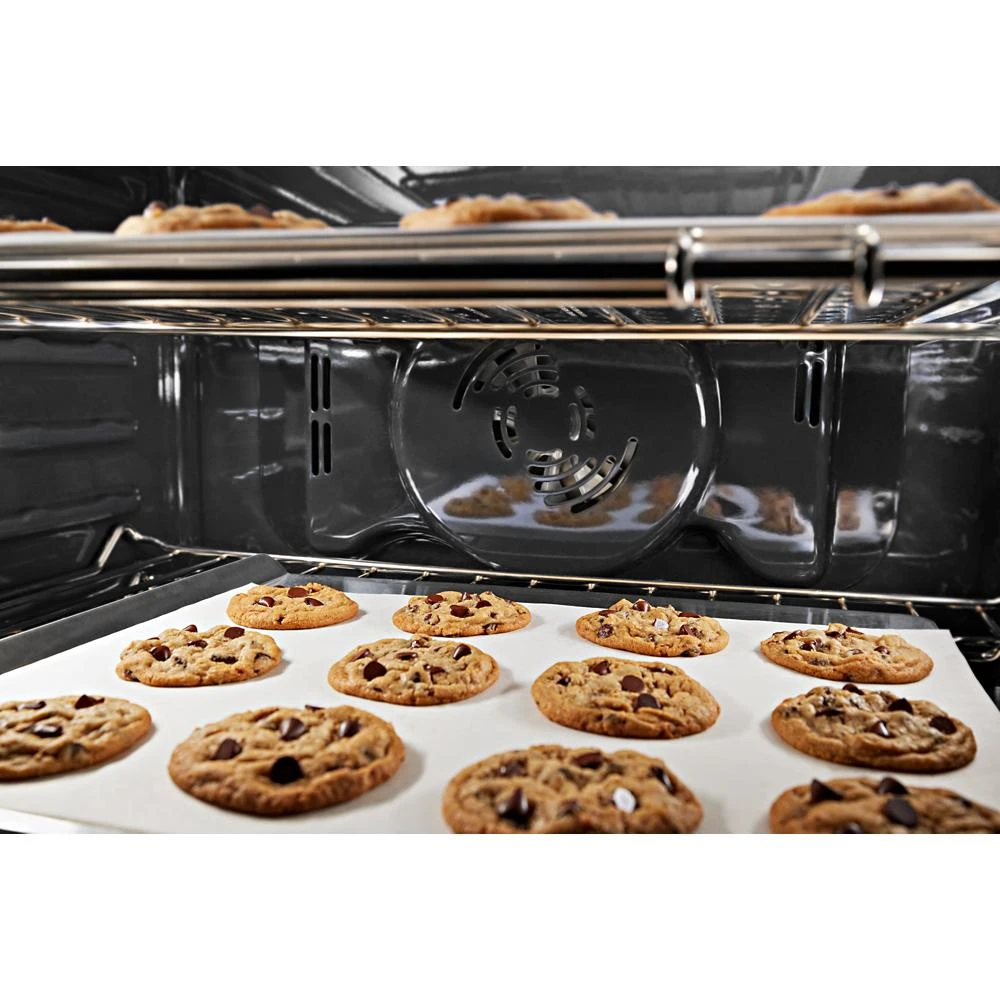

Convection Element TypeTrue Convection
Convection FunctionsBake, Broil, Convection Conversion
Door Broil PositionClosed
Door LockYes
Door RemovableYes
Hidden Bake ElementYes
Installable Under CooktopYes
Installable Under OvenYes
Interior CoatingPorcelain
Interior ColorBlue
Light TypeHalogen
Number Of Bake Elements2
Number Of Broil Elements1
Number Of Oven Lights2

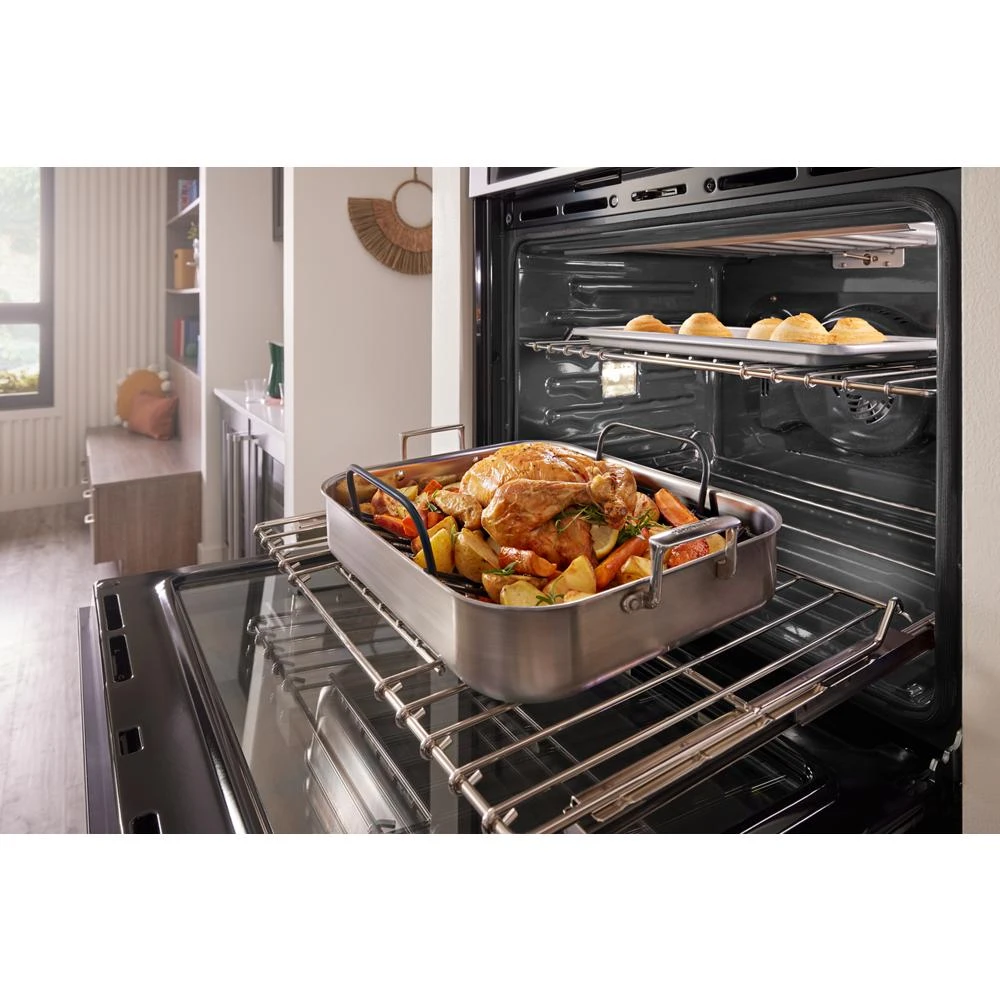

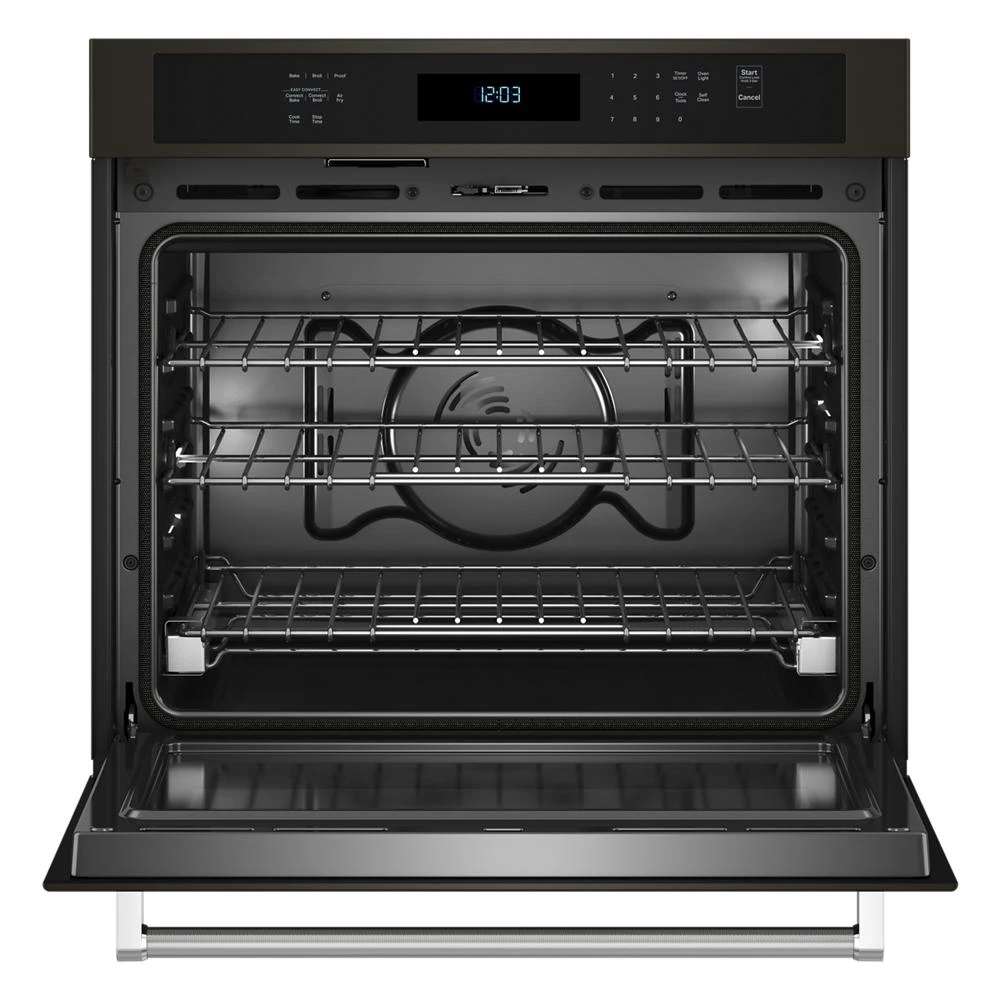

Number Of Oven Racks3
Number Of Rack Guides6
Oven Cleaning TypeSelf-Cleaning
Self-cleaning Oven RacksNo
Convection Element Power3,200 w

Smart Compatibility

ConnectivityAmazon Alexa, Android, Google Assistant, iOS
Works WithApp, Remote Access, Voice Controlled, WiFi

Product Features

Self-Cleaning Cycle

Self-Cleaning Cycle

Uses high temperatures to loosen baked-on food without the need for chemical cleaners. After running this cycle, give the inside of the oven a wipe down with a damp cloth.

Product Documents

Customer Reviews

1.7 (6)

Manufacturer reviews · owners of this model, published on the manufacturer’s site

  • As with other reviews, this oven is beautiful to look at but disappointing to use. After having a local appliance repair service visit twice, they have assured me that there's nothing wrong with the oven, this is just how it performs. Baking is nearly impossible. It seems like the only function that works normally is the broiler. Baking, roasting, and their convection settings, struggle to heat past 375 and maintain a consistent temperature. I used to be a good baker, but now I hardly ever bother. The oven is just too unreliable.

    harderj10/09/2024 05:25 PM

  • Although our new KitchenAid KOES530PBS00 exhibits a refined appearance compared to our previous KEBS107D, its performance is noticeably inferior. Specifically, in either Bake or Convect Bake, it takes longer to Preheat, requires a higher oven temperature plus a longer baking time for recipes we have used successfully for many years. We are very disappointed and we wish we had kept our original oven.

    DailyBaker07/07/2024 04:24 AM

  • Not easy to understand instructions, still struggling on how to use properly. Calling Kitchenaid has proved to be not helpful at all. Oven takes forever to heat up and cooked items seem to never be cooked fully per recipe. Air fryer doesn’t seem to work. If I’m doing something wrong, was hoping calling 800 number would help, but reps not helpful at all.

    H kitchen07/20/2024 02:41 PM

  • Oven doesn't maintain proper temperature and is slow to cook. Technition informs us it is in within 25 degree thresthold and therefore is OK. Tolerance level sure makes it difficult to cook uniformally.

    kentwoody07/12/2025 06:03 PM

  • This oven as supplied by our builder as part of an upgraded “gourmet kitchen” package. It will not hold a consistent temperature. We have had service out twice and both times the main board and probe were replaced. They are no longer accepting repair tickets from KitchenAid as they say there is nothing they can do and it’s a consistent problem with this oven. My wife and arevery avid bakers and cooks. It’s embarrassing to serve guests undercooked desserts.

    Paulq10102/02/2026 01:25 AM

  • We bought this a year ago and just after the 1 year warranty was up, it stopped working. It will show up error codes. We were told to turn off the breaker for 20 minutes and that will reset the oven. Twice we have had company over and it stopped working. I can't get through to talk to anyone on the phone. Very frustrating!

    Mary Ann C02/25/2026 01:15 AM

Common questions

Is the KitchenAid KOES530PBS good for even baking and roasting?
Yes — Convection is listed on this wall oven — a fan moves hot air around the cavity.
Is the KitchenAid KOES530PBS good for crisping without a countertop fryer?
Yes — Built-in air fry mode is listed on this model, so no separate countertop fryer is needed.
Is the KitchenAid KOES530PBS good for accessible kitchens?
Yes — Listed ADA compliant, so this wall oven suits kitchens built to the 2010 ADA Standards.
