Is the KitchenAid KFDC506JPA in stock?

Yes — the KitchenAid KitchenAid® 36'' Smart Commercial-Style Dual Fuel Range with 6 Burners is in stock at All Make Appliance and available to order now.

Is the KitchenAid KFDC506JPA good for serious home cooking?

Yes — 35.88 inches wide — a pro-style range footprint with more surface than a 30-inch model.

Is the KitchenAid KFDC506JPA good for Sabbath-observant homes?

Yes — A Sabbath mode is listed on this range's specification.

Is the KitchenAid KFDC506JPA good for cooking several dishes at once?

Yes — 6 burners — enough surface to run a full meal's pots at the same time.

Does the KitchenAid KFDC506JPA qualify for free shipping?

Yes — at this price, this product qualifies for free delivery in every shipping zone (NJ/NY metro, regional, and nationwide).

$8,999.00

In Stock

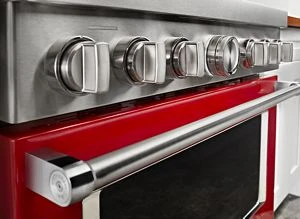

KitchenAid® 36'' Smart Commercial-Style Dual Fuel Range with 6 Burners

Hover to zoom

1 / 5

Brand	KitchenAid
Model #	KFDC506JPA
Width	35.88 in.
Height	36 in.
Depth	30-1/4 in

Who it’s for

Good for serious home cooking — 35.88 inches wide — a pro-style range footprint with more surface than a 30-inch model.
Good for Sabbath-observant homes — A Sabbath mode is listed on this range's specification.
Good for cooking several dishes at once — 6 burners — enough surface to run a full meal's pots at the same time.
Good for even baking and roasting — Convection is listed on this range — a fan moves hot air around the cavity.
Good for homes on propane — LP conversion is listed as "Yes - Kit Included", so this model can run on propane instead of natural gas.
Good for phone control — Wi-Fi connectivity is listed on this range, for control and alerts from a phone app.

KitchenAidAuthorized Dealer

KitchenAid® 36'' Smart Commercial-Style Dual Fuel Range with 6 Burners

Name: KitchenAid KitchenAid® 36'' Smart Commercial-Style Dual Fuel Range with 6 Burners
Brand: KitchenAid
SKU: KFDC506JPA
Price: 8999 USD
Availability: InStock

Model: KFDC506JPA

Discontinued — limited stock remaining

$8,999.00

In Stock— 1 unit ready to ship· Low inventory — hurry!

Free Delivery

You will also need

4' Gas Range Connector Kit with two 1/2" & one 3/4" male/female connectors, and sealant+$48.994 ft. 40 Amp Range Cord with 4 Wire+$32.49

Installation & Removal

Haul away old appliance+$39Range / Cooktop / Oven Installation+$199

Installed by our own team · connection to existing lines only, no modifications

Delivery & installation details →

Call to Order: (732) 426-0990

Questions or ready to buy? Talk to a real appliance expert.

§ On purchases of $199+ with your Synchrony HOME™ Credit Card. See offer details

Family-owned since 2009
·
Jackson, NJ showroom
·
Lowest Price Guarantee

Pay over time with Affirm — available at checkout. Learn more

Dimensions: 35.88" W × 36" H × 30.25" DMeasure your space before ordering

At a glance

KitchenAid KFDC506JPA is a dual fuel range in Red, 35.88 inches wide with 5.09 cu ft of capacity. It has 6 burners, convection and a self-clean cycle. It suits serious home cooking, Sabbath-observant homes and cooking several dishes at once. It is listed as a 36 inch stove.

Specifications

Dimensions

Width35.88 in.

Height36 in.

Length24 in.

Weight444 lbs.

Cutout Depth (in)24

Cutout Height (in)36

Cutout Width (in)36

Depth Closed Excluding Handles27.7500

Depth Closed Including Handles30.2500

Depth With Door Open 90 Degree46.5000

Gross Weight444

Net Weight389

Cutout Depth24.0000

Cutout Height36.0000

Cutout Width36.0000

Maximum Height37.5000

Minimum Height36.0000

Cutout Height Min36.0000

Capacity5.1 cu. ft.

Common Size36 in

Depth30-1/4 in

Oven Interior Depth16-3/10 in

Oven Interior Height14-3/10 in

Oven Interior Width29-9/10 in

Details

Oven Automatic Shut-offYes

Cooktop ConfigurationAll Burners

Fuel TypeDual Fuel

LP ConvertibleYes - Kit Included

Oven ConfigurationSingle Oven

Power On Indicator LightYes

Power Outage CompatibleYes

Range ConfigurationFreestanding

Range TypeFreestanding

Natural Gas ConvertibleYes

Oven SelectionsAudible Signal, Bake, Broil, Cancel/Off, Convect Modes, Easy Convect Baked Goods, Easy Convect Meats, Easy Convect Pizza, Keep Warm Setting, Proofing, Sabbath Mode, Temperature Probe

Cooktop Details

Auto Re-ignitionYes

Cooktop Control Knob ColorStainless Steel

Cooktop Control Knob TypeMetal

Cooktop Control LocationFront

Cooktop Control TypeKnobs

Cooktop Surface ColorBlack

Cooktop Surface MaterialPorcelain Coated Steel

Heating Element On Indicator LightNo

Hot Surface Indicator LightNo

Ignition TypeFlame-Sensing™ Re-ignition

Certifications

ADA CompliantNo

Electrical

Amps40

Hz60

Power Cord IncludedNo

Volts240

Element/burner Details

Center Front Element-burner TypeSealed Burner

Center Rear Element-burner TypeSealed Burner

Cooktop Element StyleSealed Burners

Left Front Element-burner TypeDual-Stacked Burner

Left Rear Element-burner Power15000 BTU/11000 LP

Left Rear Element-burner TypeSealed Burner

Number Of Cooking Element-burners6

Right Front Element-burner TypeDual-Stacked Burner

Right Rear Element-burner TypeSealed Burner

Center Front Element-burner Power15,000 BTU

Center Rear Element-burner Power5,000 BTU

Left Front Element-burner Power20,000 BTU/14,000 LP

Number Of Grates6

Right Front Element-burner Power20,000 BTU/14,000 LP

Right Rear Element-burner Power15,000 BTU/11,000 LP

Exterior Details

Door TypeMetal & Glass

Oven Control Knob TypeMetal

Oven Control LocationFront

Oven Control TypeKnobs

Oven Window SizeLarge

Handle ColorStainless Steel

Handle MaterialMetal

Handle TypeTowel Bar

Oven Control Knob ColorStainless Steel

Grate Details

Number Of Grates6

Grate DetailsDishwasher Safe, Individual, Matte Finish, Porcelain Coated Cast Grates

Smart Compatibility

Smart ApplianceYes

ConnectivityAmazon Alexa, Android, Google Assistant, iOS

Works WithApp, Remote Access, Voice Controlled, WiFi

Oven Cavity Details

Automatic Convection Conversion Temperature AdjustYes

Bake Element Power3,000 W

Broiler Element Power5,500 W

Broiler LocationTop Center

Convection Element TypeTrue Bow Tie

Convection FunctionsBake, Broil, Roast

Door RemovableYes

Hidden Bake ElementYes

Interior ColorBlack

Natural Gas ConvertibleYes

Number Of Oven Lights3

Number Of Oven Racks3

Oven Cleaning TypeSelf-Cleaning

Oven Cooking SystemTrue Convection

Oven Light Switch LocationOven Control

Oven Light TypeHalogen

Oven Rack Guide TypeMolded

Oven Rack TypeGliding Roll-Out, Standard (Both)

Convection Element Power1,600 w

Features

Range FeaturesSmart Appliance

Product Features

Dual Fuel Range

satisfies the needs of the most demanding cooks by combining the precise control of a gas cooking surface with the even baking, roasting and broiling of an electric oven.

Smart Appliance

lets you control the oven with your Google Assistant or an Alexa-enabled device to stay hands on or hands off. Use the KitchenAid™ App to preheat, proof, bake and roast, save custom cooking instructions for favorite recipes and more.

Even-Heat™ True Convection

features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing consistent temperatures for crisp, flaky baked goods, juicy, well-browned roasts and flavorful, caramelized vegetables.

Two 20,000 BTU Ultra Power™ Dual-Flame Burners

give you precise control of powerful highs, steady lows and the wide range of temperatures in between. The versatile, dual-flame design lets you sear, sauté, simmer and sizzle, all on the same burner.

Product Documents

Dimension Guide

Spec Sheet1.27 MB

Installation Instructions

Installation Guide7.45 MB

Temperature Probe Guide

Guide754.41 KB

Ventilation Pairing Guide

Guide484.80 KB

Owner's Manual

User Manual8.99 MB

Warranty

Warranty131.54 KB

Quick Reference Guide

Quick Start Guide796.45 KB

Customer Reviews

No reviews yet

Be the first to review this product.

Common questions

Is the KitchenAid KFDC506JPA in stock?: Yes — the KitchenAid KitchenAid® 36'' Smart Commercial-Style Dual Fuel Range with 6 Burners is in stock at All Make Appliance and available to order now.
Is the KitchenAid KFDC506JPA good for serious home cooking?: Yes — 35.88 inches wide — a pro-style range footprint with more surface than a 30-inch model.
Is the KitchenAid KFDC506JPA good for Sabbath-observant homes?: Yes — A Sabbath mode is listed on this range's specification.
Is the KitchenAid KFDC506JPA good for cooking several dishes at once?: Yes — 6 burners — enough surface to run a full meal's pots at the same time.
Does the KitchenAid KFDC506JPA qualify for free shipping?: Yes — at this price, this product qualifies for free delivery in every shipping zone (NJ/NY metro, regional, and nationwide).
