| Brand | Whirlpool |
| Model # | WCG52424AS |
| Width | 23.25 in. |
| Height | 1.63 in. |
| Depth | 20.13 in. |
$1,009.00
Ships When Available— Backorder OK
This item is on backorder and will ship when available.
Stack & Save
Save up to $1,000 on qualifying orders

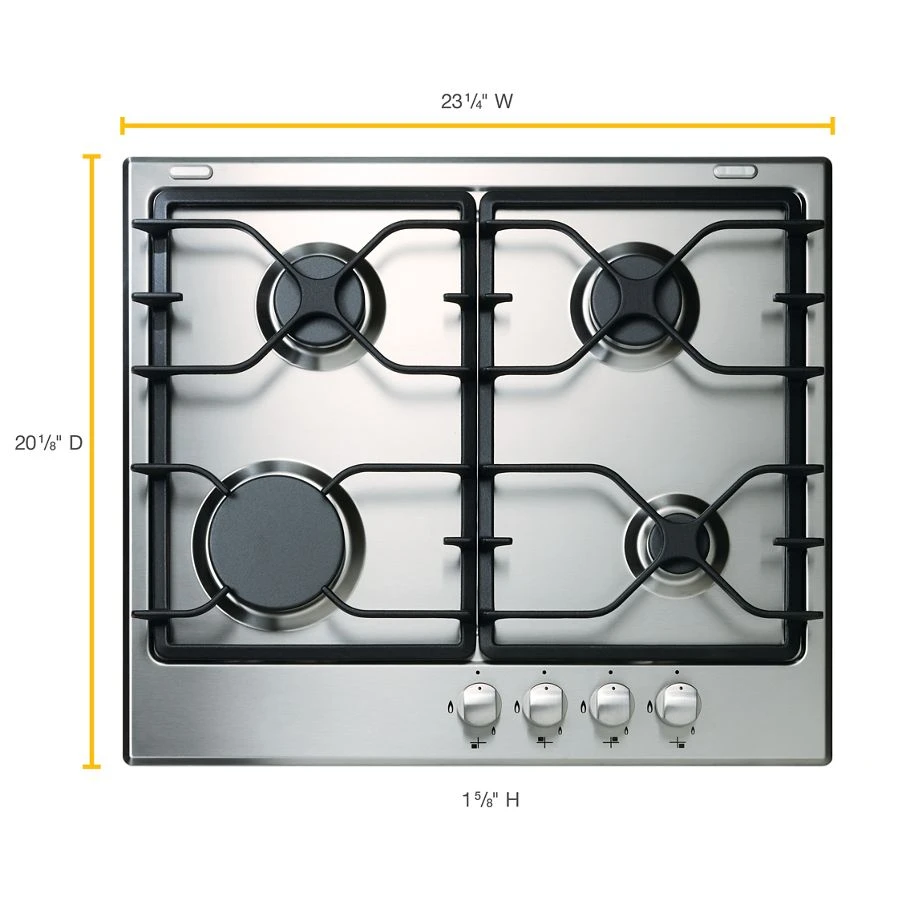

Dimensions
Width23.25 in.
Height1.63 in.
Length20.13 in.
Weight25 lbs.
Gross Weight25 lbs
Cutout Depth Max(in,inches)19.0000
Cutout Depth Min(in,inches)18.8750
Cutout Width Max(in,inches)22.1250
Cutout Width Min(in,inches)22.0000
Gross Weight(lb,pounds)25
Cutout Depth Max19 in
Cutout Depth Min18-7/8 in
Cutout Width Max22-1/8 in

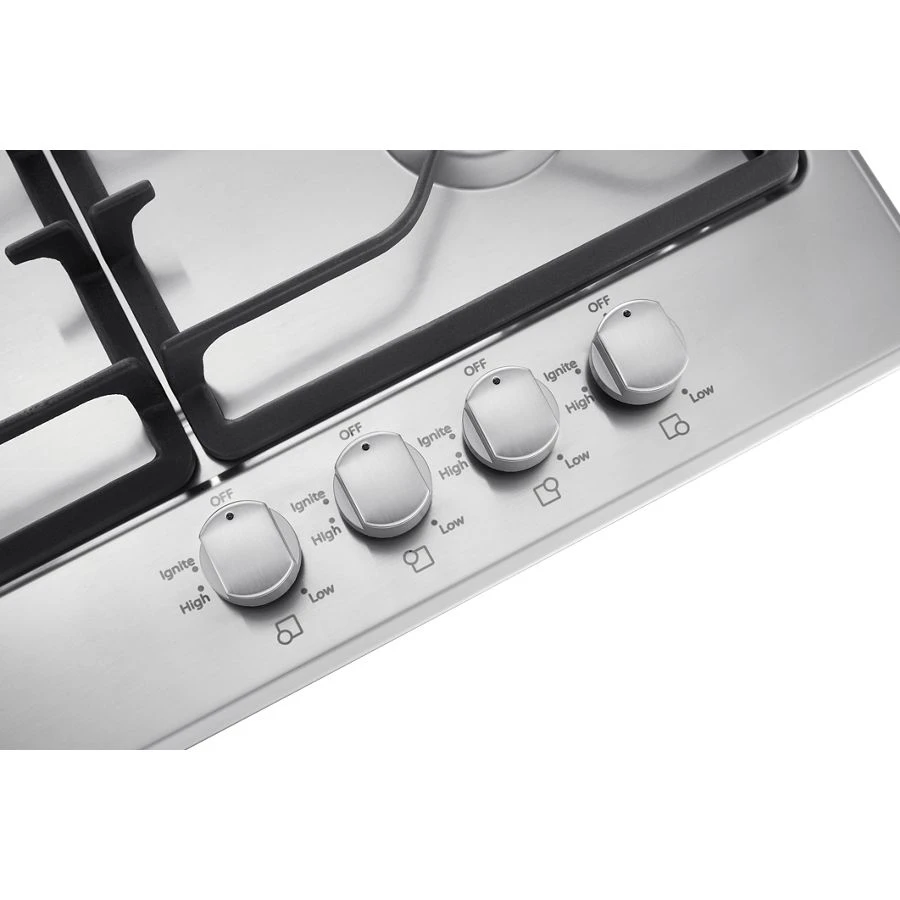

Controls
Control LocationFront
Control TypeKnobs
Certifications
UlYes
Electrical
Power Cord IncludedYes
Cooktop Details
Cooktop Surface MaterialPorcelain Coated Steel
Digital DisplayNo
Heating Element On Indicator LightNo
Hot Surface Indicator LightNo
Combination Match With OvenAWO6313, AWO6317, JJW2424, JJW2427, JJW2430, JJW3430, JJW6024, WOS11EM4, WOS31ES0, WOS31ES7, WOS51EC0, WOS51EC7, WOS51ES4, WOS52EM4, WOS72EC0, WOS72EC7, WOS92EC0, WOS92EC7, WOS97EC0, WOS97ES0
Installs Over Built-in OvenNo
Details
Cooktop ConfigurationAll Burners
Fuel TypeGas
Installs Over Built-in OvenNo
LP ConvertibleYes - Kit Included
Digital DisplayNo

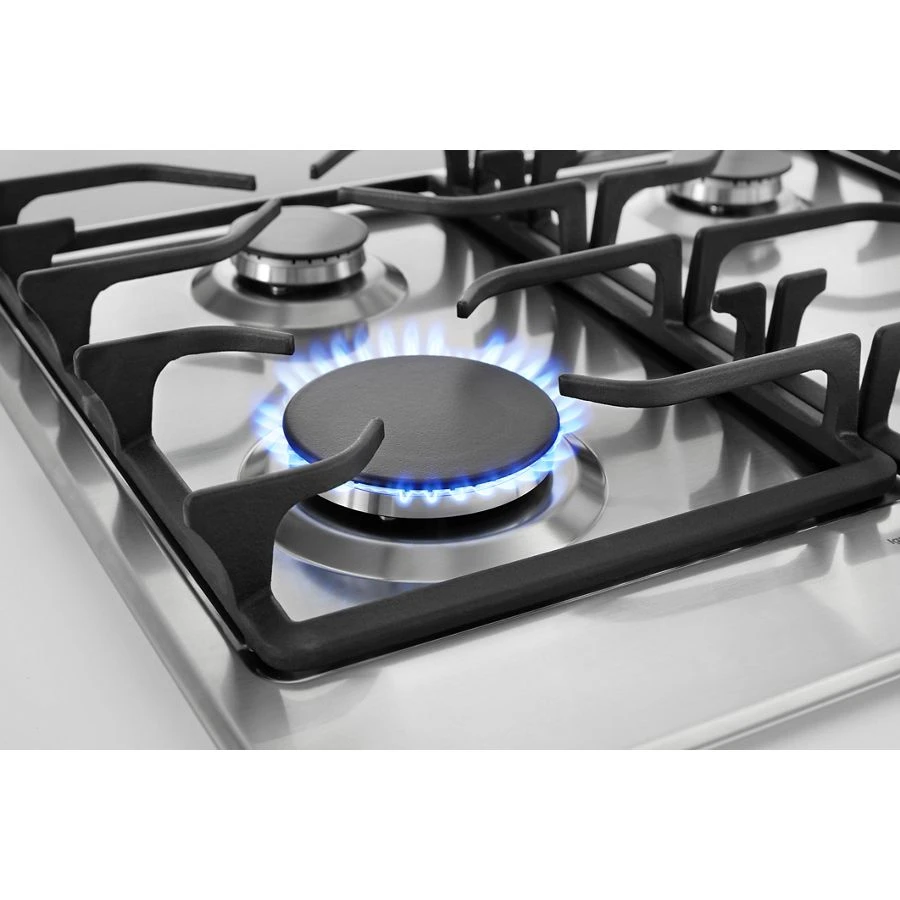

Element/burner Details
Cooktop Element StyleSealed Burner
Cooktop TypeStandard
Left Front Element-burner TypePower™ Burner
Left Rear Element-burner TypeStandard
Number Of Cooking Element-burners4
Power BoostNo
Right Front Element-burner TypeSimmer
Right Rear Element-burner TypeStandard
Automatic Pan DetectionNo
Left Front Element-burner Power11,000 BTU
Left Rear Element-burner Power5,600 BTU
Number Of Grates4
Right Front Element-burner Power3,600 BTU
Right Rear Element-burner Power5,600 BTU
Grate Details
Number Of Grates4
Grate DetailsCast Iron Grates, Individual, Matte Finish
Ventilation Details
Downdraft VentNo
Exterior Details
Knob ColorStainless Steel
Knob TypePlastic
