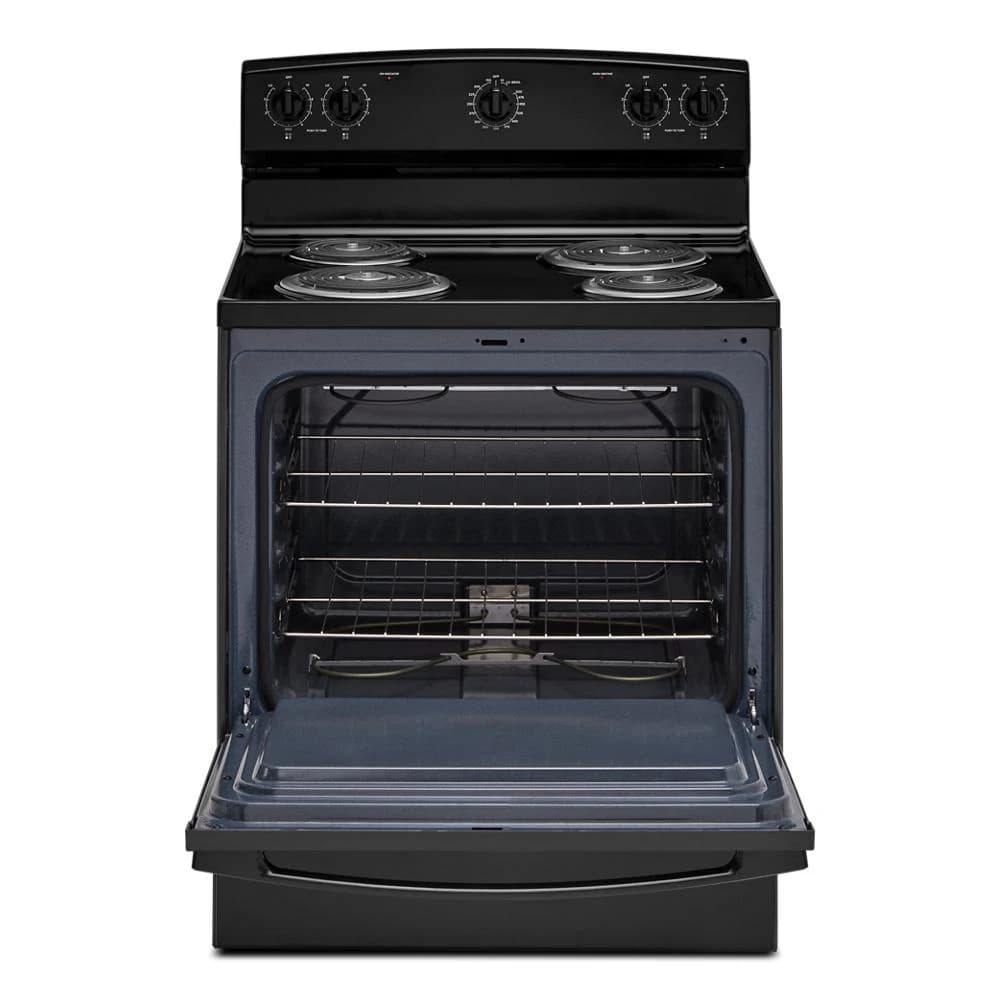

30-inch Electric Range with Easy-Clean Glass Door

Model: ACR4203MNB

Brand	Amana
Model #	ACR4203MNB
Width	29.88 in.
Height	46.88 in.
Depth	27-3/4 in

This model is discontinued

The 30-inch Electric Range with Easy-Clean Glass Door is discontinued and cannot be ordered.

The closest current model we carry is the 30-Inch Electric Range with Extra-Large Oven Window.

Now available

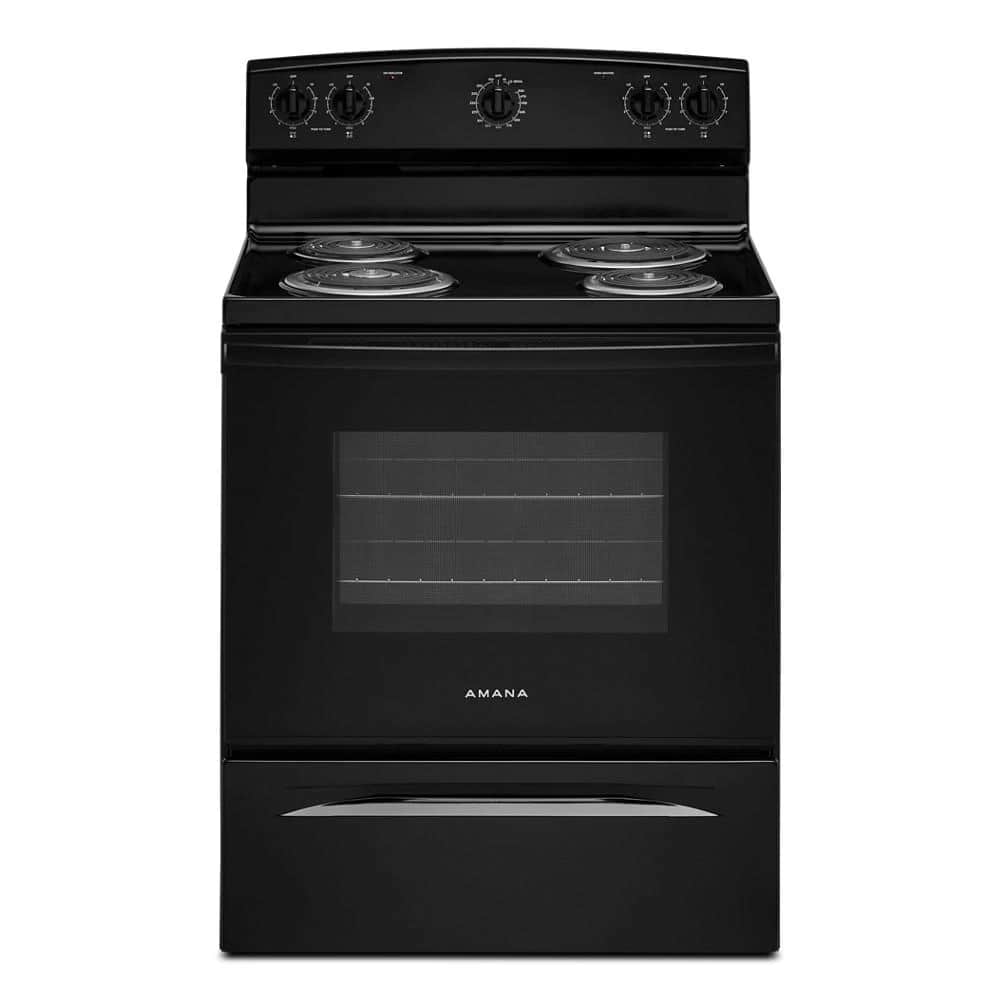

30-Inch Electric Range with Extra-Large Oven Window

$518.00

$59 less than the model it replaces

Same fuel: Electric
Same color: Black

Need help finding a replacement? Call (732) 426-0990

Was $577 when available

At a glance

Amana ACR4203MNB is an electric stove in Black, 29.88 inches wide with 4.8 cu ft of capacity. It has 4 burners. It is listed as a 30 inch stove.

Specifications

Dimensions

Width29.88 in.

Height46.88 in.

Length27.75 in.

Weight122 lbs.

Cutout Depth (in)24

Cutout Height (in)36

Cutout Width (in)30

Depth Closed Excluding Handles25.3125

Depth Closed Including Handles27.7500

Depth With Door Open 90 Degree46.6875

Gross Weight136

Maximum Height47.8750

Minimum Height46.8750

Net Weight122.0

Cutout Depth24.0000

Cutout Height36.0000

Cutout Width30.0000

Cutout Depth Max24.0000

Cutout Height Min36.0000

Cutout Width Max30.0000

Capacity4.8 cu. ft.

Common Size30 in

Depth27-3/4 in

Oven Interior Depth18-1/2 in

Oven Interior Width24-1/2 in

Details

Oven Automatic Shut-offNo

Cooktop ConfigurationAll Burners

Fuel TypeElectric

LP ConvertibleNo

Power On Indicator LightYes

Power Outage CompatibleNo

Range TypeFreestanding

Natural Gas ConvertibleNo

Oven SelectionsBake, Broil, Keep Warm/Warm Hold

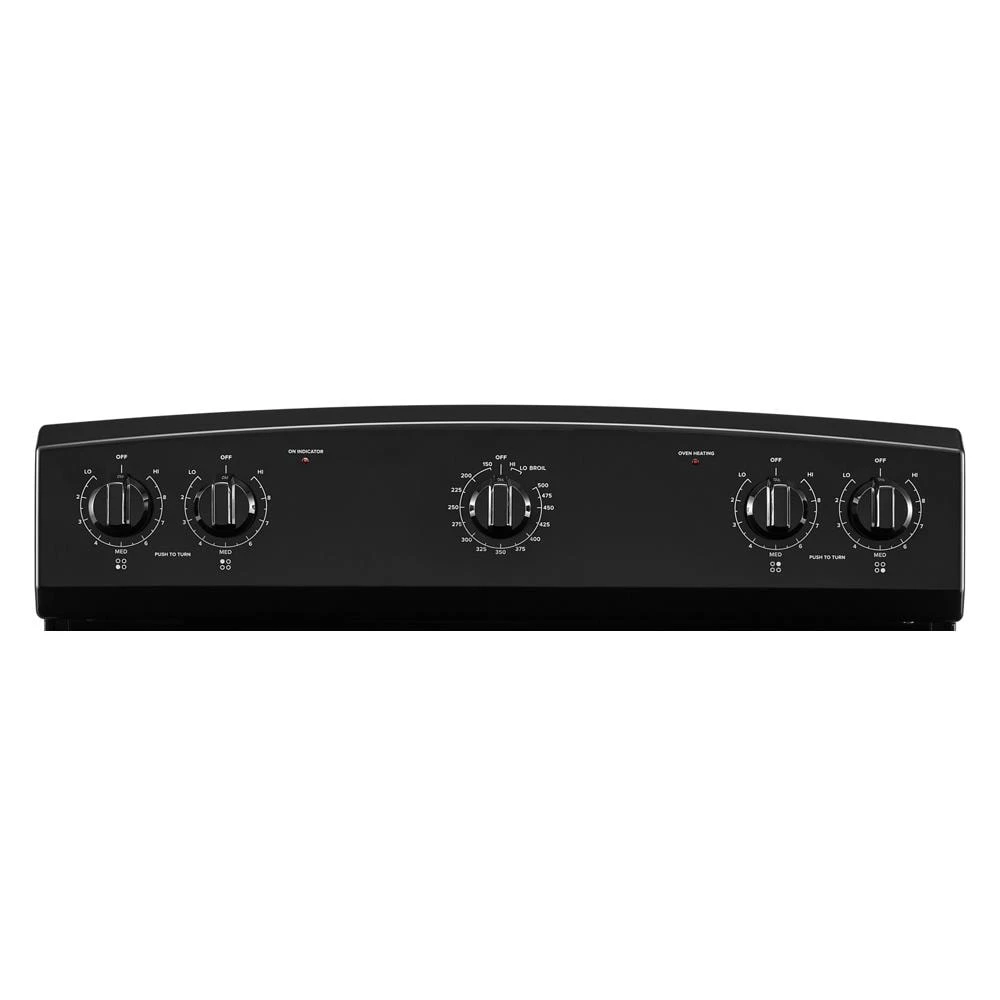

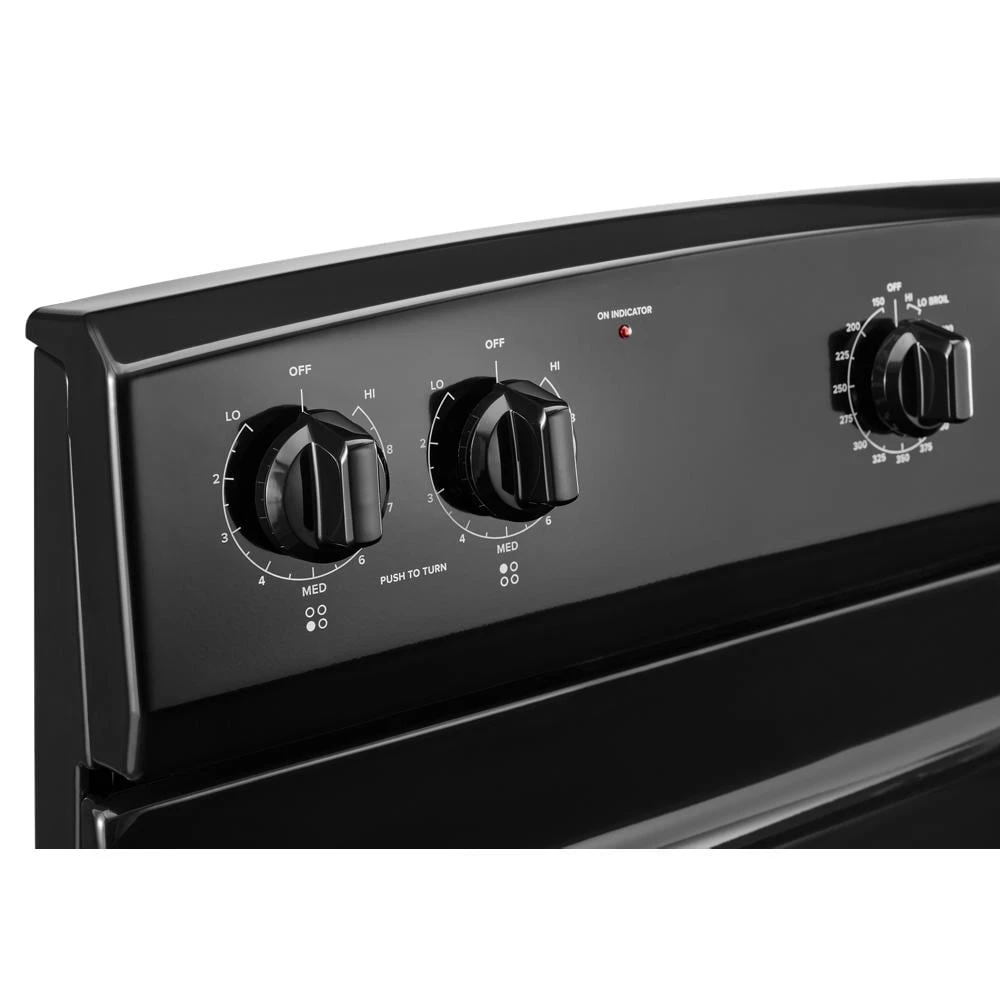

Cooktop Details

Cooktop Control Knob ColorBlack

Cooktop Control Knob TypeDishwasher Safe Plastic

Cooktop Control LocationBackguard

Cooktop Control TypeKnobs

Cooktop Surface ColorBlack

Cooktop Surface MaterialPorcelain Coated Steel

Griddle IncludedNo

Heating Element On Indicator LightYes

Hot Surface Indicator LightNo

Certifications

UlYes

Prop 65Yes

Electrical

Amps40

Hz60

Power Cord IncludedNo

Volts208

Element/burner Details

Cooktop Element StyleCoil

Left Front Element-burner Size8in.

Left Front Element-burner TypeStandard

Left Rear Element-burner Size6in.

Left Rear Element-burner TypeStandard

Number Of Cooking Element-burners4

Right Front Element-burner Power1250W

Right Front Element-burner Size6in.

Right Front Element-burner TypeStandard

Right Rear Element-burner Size8in.

Right Rear Element-burner TypeStandard

Left Front Element-burner Power2,100W

Left Rear Element-burner Power1,250W

Right Rear Element-burner Power2,100W

Exterior Details

Door TypeMetal & Glass

Oven Control Knob TypeDishwasher-Safe Plastic

Oven Control LocationBackguard

Oven Control TypeKnobs

Handle ColorBlack

Handle MaterialPlastic

Handle TypeReach Through Handle

Knob ColorBlack

Knob TypeDishwasher-Safe Plastic

Oven Control Knob ColorBlack

Oven Cavity Details

Automatic Convection Conversion Temperature AdjustNo

Bake Element Power2,400 W

Broiler Element Power3,400 W

Broiler LocationTop of Oven

Door RemovableYes

Hidden Bake ElementNo

Interior ColorGrey

Natural Gas ConvertibleNo

Number Of Oven Racks2

Number Of Rack Guides5

Oven Cleaning TypeManual Clean

Oven Cooking SystemThermal

Oven Rack Type2 Standard

Product Features

Easy-Clean Glass Door

The Easy-Clean Glass Door is smooth and flat so messes, spills and smudges just wipe away. Crumbs won't catch and splatters won't matter.

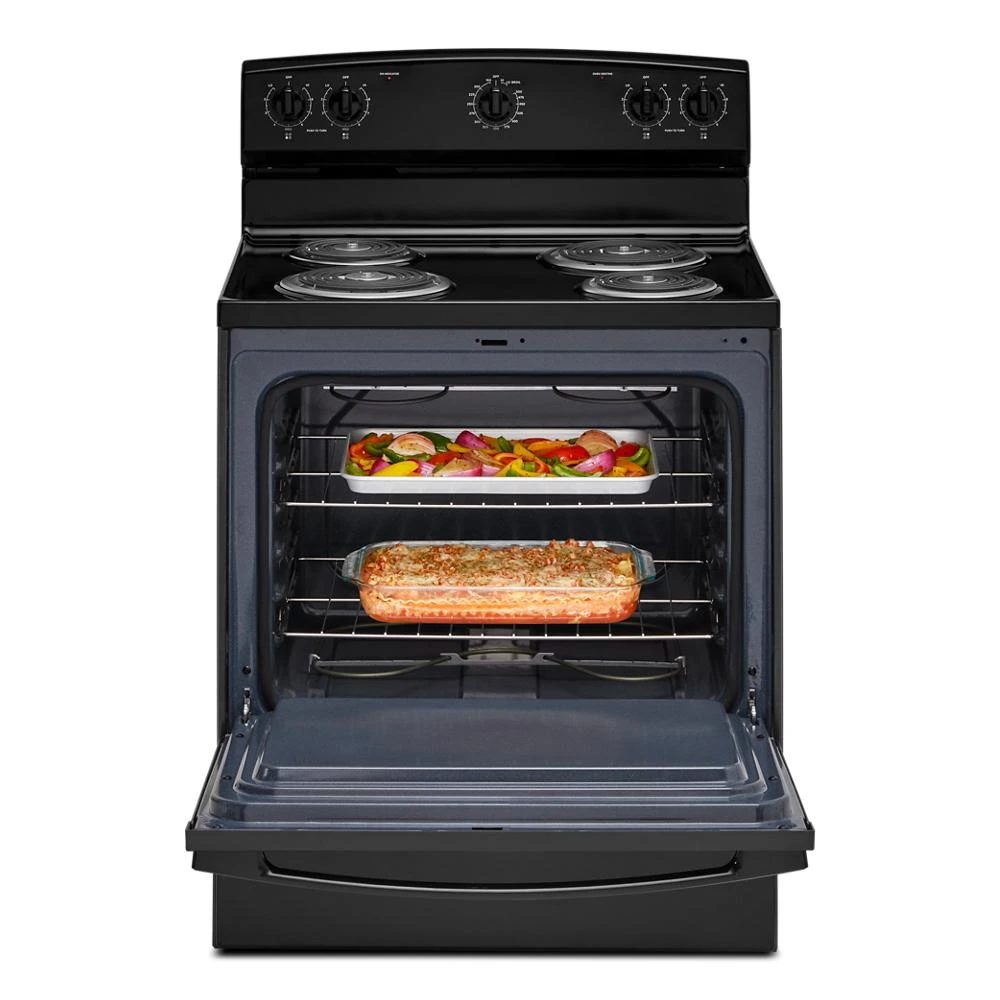

Large Oven Capacity (4.8 cu. ft.)

4.8 cu. ft. oven capacity gives you the space you need to make dinner and dessert at the same time.

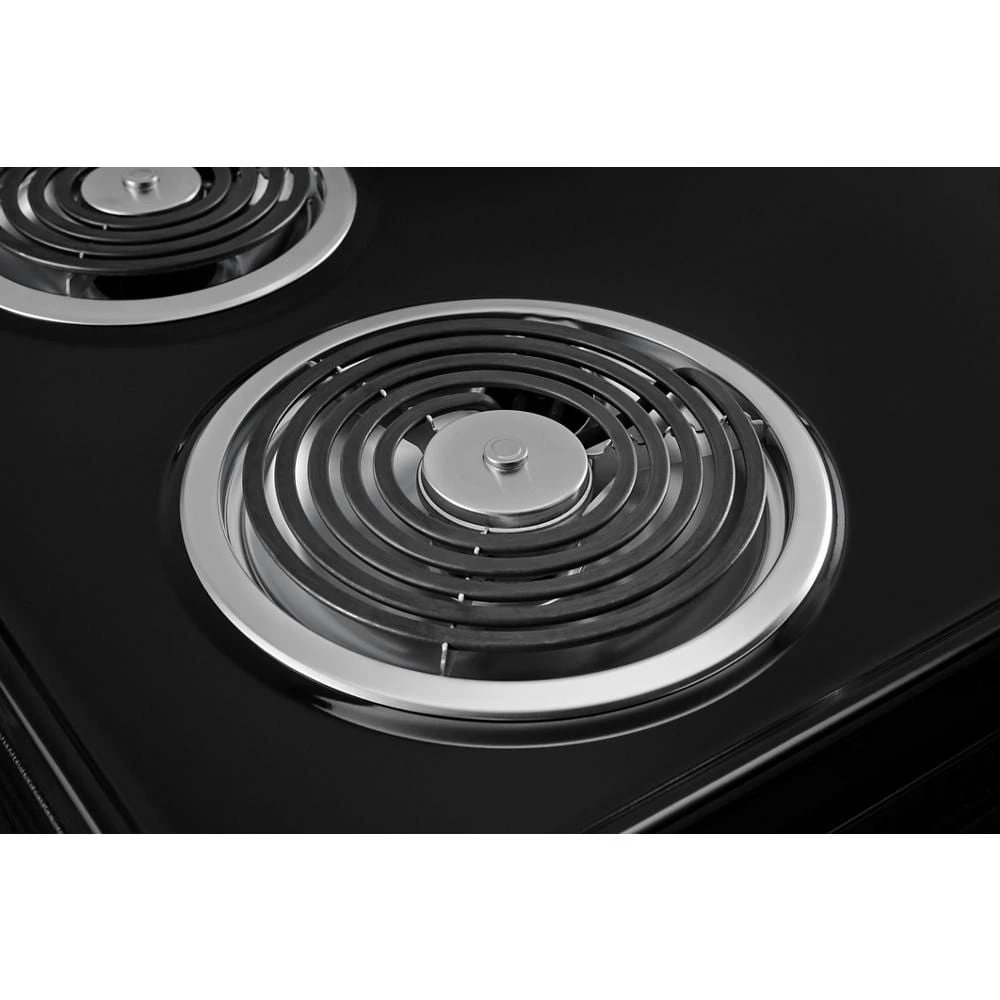

Versatile Cooktop

Our Versatile Cooktop features multiple element options and provides up to 2,400 watts on the largest burner to help you cook more of your favorites at the same time.
