30 Gallon Short Electric Water Heater
1 / 20
GE· Authorized Dealer

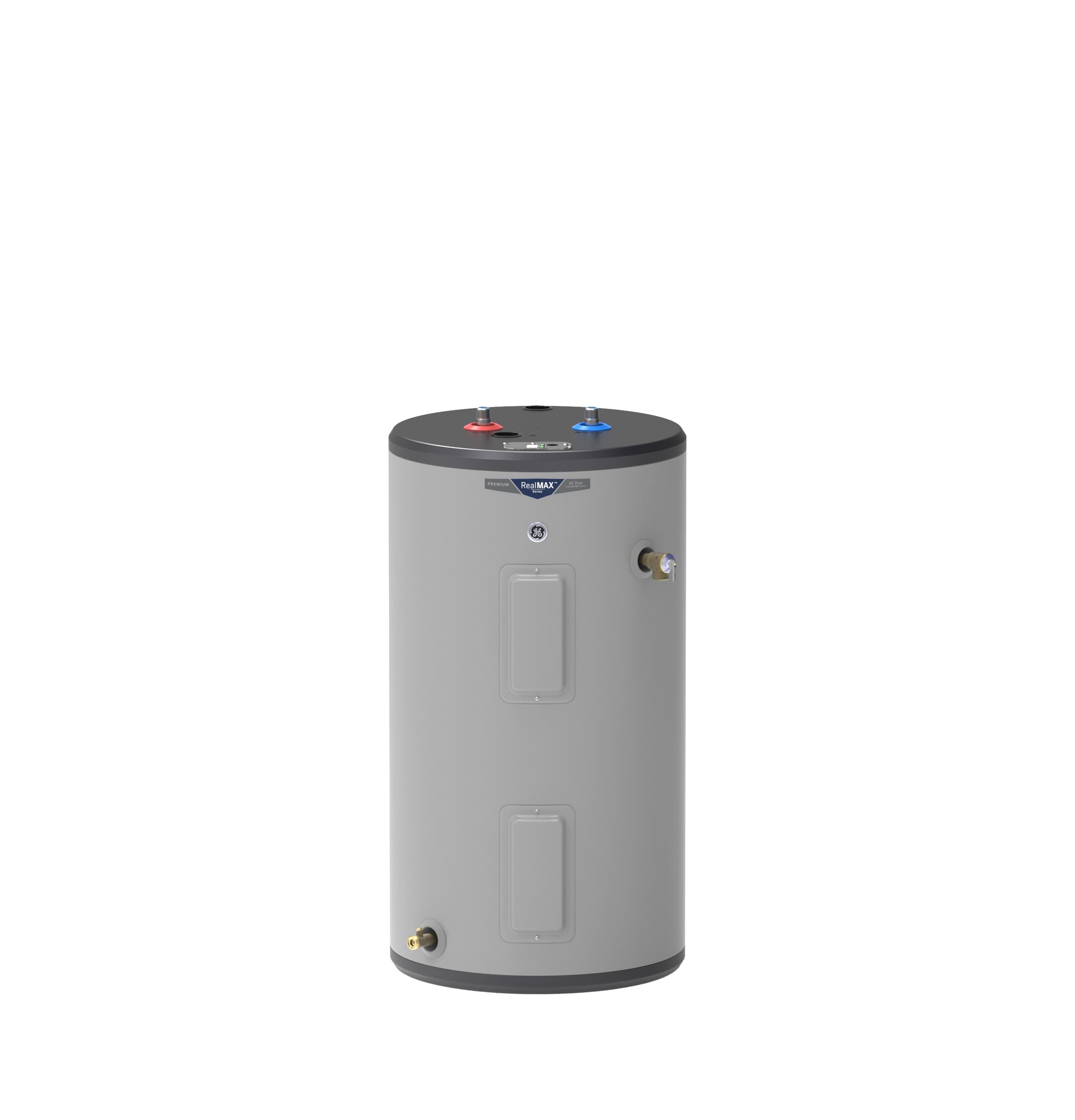

GE 30 Gallon Short Electric Water Heater

Model # GE30S10BAM

5.0 (5 reviews)
$559.00
Pay over time with Affirm — available at checkout. Learn more
Our price
$559.00

Available to order · ships by Fri, Nov 27

In stock now— A comparable model
30 Gallon Short Electric Water Heater

30 Gallon Short Electric Water Heater

Ships next business day · $529.00 · only 2 left

See if this qualifies for free shipping

1
Protection planTerms & coverage

Allstate plans start on the date of purchase and run concurrently with the manufacturer warranty.

Installation & parts

Installation Guide

Secure checkout · Prefer to order by phone? (732) 426-0990

Quick specs

View all specs
Width:
22 in.
Height:
41.88 in.
Depth:
22 in.
Unit Capacity:
30 Gallons
Fuel Type:
Electric
Product Type:
Electric Thermostat
First Hour Rate (fhr):
53 Gallons
Family Size:
1-3 People
Installation Location:
Indoor
Voltage (max):
240 V
Water Connection Location:
Top
Color Appearance:
Gray

At a glance

GE GE30S10BAM is an electric water heater in Gray, 22 inches wide. It is listed as a 30 gallon water heater.

Product Features

Real Capacity

Real Capacity

Get the most hot showers from the only water heater that holds a true 30 gallons of water (Compared to 30 gallon electric steel tank water heaters per DOE rated gallon capacity)

Leading Performance

Leading Performance

Live comfortably with this best in class unit that delivers 53 gallons of hot water in the first hour (Measured through DOE First Hour Rating)

Household Size

Household Size

Provide hot water for the whole family of 1 to 3 persons

Quick Recovery

Quick Recovery

Two 5500W heating elements quickly increase water temperature for hot water when you need it

Stainless Steel Heating Elements

Stainless Steel Heating Elements

Ultra-durable stainless-steel heating elements resist rust and corrosion

Inlet Tube

Inlet Tube

Replenishes water from the bottom of the tank to maximize hot water delivery

Brass Drain Valve

Brass Drain Valve

Rust-proof construction can be counted on to provide long-lasting service

Easy Set Up

Easy Set Up

Replace your old water heater quickly and easily using standard water and electrical connections

Adjustable Thermostat

Adjustable Thermostat

Change temperature to your desired setting

Product Videos

Specifications

Dimensions

Overall Width22 in
Overall Height41.875 in
Product Height (to Top Of Unit)40.375 in
Overall Depth22 in
Product Height (to Top Of Water Inlet/outlet Connections)41.875 in
Net Weight101 lb
Product Diameter22 in
Connection Sizes - Water Inlet (mnpt)3/4"
Connection Sizes - Hot Water Outlet (mnpt)3/4"
Width22 in.
Height41.88 in.
Length22 in.
Weight101 lbs.

Features

Control TypeThermostat
Temp & Pressure Relief ValveYes
Height DescriptionShort
Heating ElementStainless steel
Fuel TypeElectric
ConfigurationShort
Installation LocationIndoor
Operating ModesStandard Electric
Rated Storage Capacity30
Drain Valve TypeBrass
Gph Recovery @ 90 Degrees F25.1
Mobile Home CompatibleNo
Product TypeElectric Thermostat
Family Size1-3 People
Water Connection LocationTop
Foam InsulationYes
Point Of UseNo
Temperature SettingFactory Default 120° F
Insulation Thickness2.75 in
Mounting TypeFloor

Power & Ratings

Integrated Energy Factor0.92
Heating - Electric - Heater Watts5500/5500
Electrical ConnectionDirect-Wire
Operating Water Pressure20-125 PSI
Volts/hertz240V; 60Hz
First Hour Rate (fhr)53 Gallons
Voltage (max)240 V
Electrical Circuit Required208V/240V 60 Hz Dedicated 30 Amp Min.
Energy Consumption (kwh/year)3531

Capacity

Unit Capacity30 Gallons

Appearance

Color AppearanceGray

Warranty

Parts (tank)10 Year
Labor (entire Appliance)1 Year

Product Documents

Warranty & Returns

Manufacturer warranty

1-year labor warranty from the manufacturer, per the manufacturer’s specifications.

Warranty document

Protection plans

Optional Allstate protection plans, where offered for this item, start on the date of purchase and run concurrently with the manufacturer’s warranty.

Terms & coverage

Returns

Returns are accepted within 30 days of delivery. A 25% restocking fee applies.

Return policy

Customer Reviews

5.0 (5)

Manufacturer reviews · owners of this model, published on the manufacturer’s site

  • Works great and reliable! Easy to install and works fast!

    JACOB112607/18/2024 06:11 AM

  • easy installation. works so far been a few months in.

    heaterdog101004/06/2024 09:41 PM

  • Just installed it was easy installation quite.. size is perfect..

    Anonymous11/21/2023 11:16 PM

  • Easy to install and appears to have quality materials

    Tdub 1106/02/2021 12:53 AM

  • GE appliance and heating between uses was the best selling feature.

    RK5204/10/2021 01:22 AM

Common questions

Is the GE GE30S10BAM in stock?
The GE 30 Gallon Short Electric Water Heater is available to order — estimated to ship by Fri, Nov 27.
Does the GE GE30S10BAM qualify for free shipping?
It depends on your delivery ZIP and order total. Enter your ZIP on this page to see the shipping cost and how much more would qualify for free shipping.
What warranty comes with the GE GE30S10BAM?
The GE 30 Gallon Short Electric Water Heater is listed with 1 year of labor coverage from the manufacturer, per this model's published specifications.
