Is the GE AZHS12DRXXA in stock?

The GE Zoneline Heat Pump Fixed Speed Unit with ICR 12,000 BTU, 230/208 Volt is available to order — estimated to ship by Fri, Oct 23.

Is the GE AZHS12DRXXA sized for a specific room?

Yes — 12,000 BTU — ENERGY STAR's sizing table puts that at rooms up to about 550 sq ft.

Does the GE AZHS12DRXXA qualify for free shipping?

Yes in the NJ/NY metro area (free over $499) and our regional zone (CT, PA, DE, MD, the NY capital region — free over $899). Nationwide delivery is free on orders over $1,999.

What warranty comes with the GE AZHS12DRXXA?

The GE Zoneline Heat Pump Fixed Speed Unit with ICR 12,000 BTU, 230/208 Volt is listed with 1 year of parts and labor coverage from the manufacturer, per this model's published specifications.

$1,538.00

Available to order

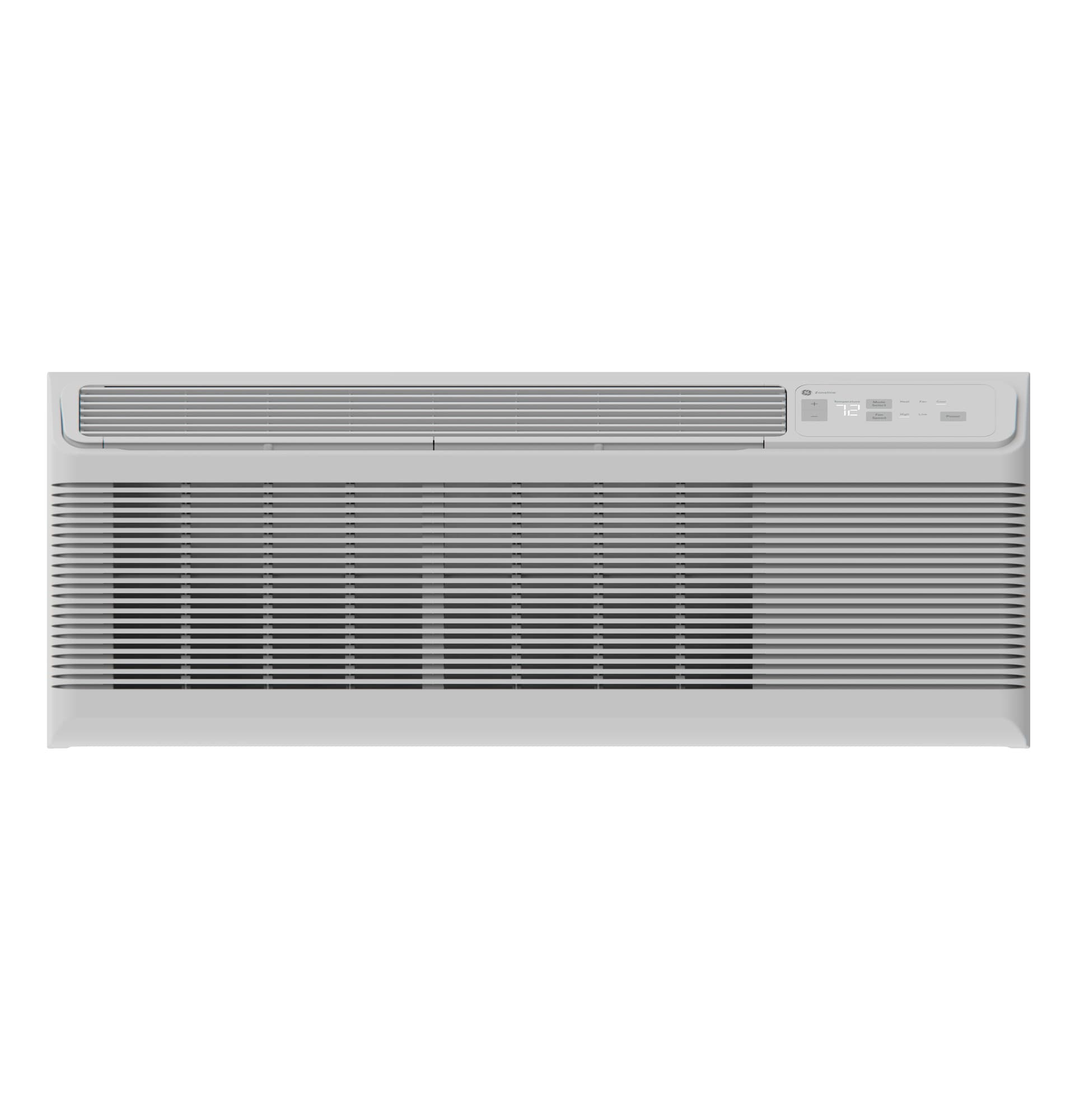

Zoneline Heat Pump Fixed Speed Unit with ICR 12,000 BTU, 230/208 Volt

Hover to zoom

1 / 7

Brand	GE
Model #	AZHS12DRXXA

Who it’s for

Sized for a specific room — 12,000 BTU — ENERGY STAR's sizing table puts that at rooms up to about 550 sq ft.

GEAuthorized Dealer

Zoneline Heat Pump Fixed Speed Unit with ICR 12,000 BTU, 230/208 Volt

Name: GE Zoneline Heat Pump Fixed Speed Unit with ICR 12,000 BTU, 230/208 Volt
Brand: GE
SKU: AZHS12DRXXA
Price: 1538 USD
Availability: BackOrder

Model: AZHS12DRXXA

$1,538.00

Estimated to ship by Fri, Oct 23.

Available to order · estimated to ship by Fri, Oct 23

Free Delivery in NJ/NY Metro

In stock now— A comparable model

Zoneline Heat Pump Unit with Variable Speed Inverter Technology and Makeup Air 15,000 BTU, 230/208 Volt

Ships next business day · $2,213.00

View in-stock model →

Installation & Removal

Haul away old appliance+$39

Installed by our own team · connection to existing lines only, no modifications

Delivery & installation details →

Call to Order: (732) 426-0990

Questions or ready to buy? Talk to a real appliance expert.

§ On purchases of $199+ with your Synchrony HOME™ Credit Card. See offer details

Family-owned since 2009
·
Jackson, NJ showroom
·
Lowest Price Guarantee

Pay over time with Affirm — available at checkout. Learn more

At a glance

GE AZHS12DRXXA is an air conditioner in Grey White. It suits a specific room.

Specifications

Dimensions

Net Weight106 lb

Overall Depth20.8125 in

Overall Height16 in

Overall Width42 in

Capacity

CFM Indoor Fan High440

CFM Indoor Fan Low305

Cooling Btuh (max)12100

Cooling Btuh (min)11,900 Btu

Cooling Eer (btuh / Watt)11.6/11.6

Dehumidification (pts./hr.)3.1 (High Speed)

Vent CFM (high Fan At Zero Esp)43.2

Features

Central Desk Control CompatibilityYes

Chassis TypeSlide-In

Control TypeTactile touch pad with LED Display

Corrosion TreatedYes

Discharge Grille2-position

Electronic Micro Computer ControlYes

Fan Cycle SwitchYes

Fan Motor2

Fan Speed ControlYes

Fan Speed SelectionsHi/Low Fan Only

Filter TypeSlide-Out

Heat - CoolYes

Heating - Reverse Cycle - Cop3.7/3.8

Heating SystemHeat Pump With Backup Resistance Heat

Internal Condensate Removal (icr)Yes

Louver StyleReversible

Manual Vent ControlHidden

Power Factor95

Product TypePackaged Terminal Air Conditioners (PTAC)

Refrigerant TypeR454B

Rotary CompressorYes

Sensible Heat Ratio0.75

Temperature LimitingElectronic 24-Step

Temperature Range60 - 85 F

Vent Control3-position

Venting FeaturesOutdoor Vent Control - 3 Positions

Zoneline FeaturesRandom Twist/Length Segment Tangential Blower

Refrigerant Charge30.5

Freeze SentinelYes

Heat SentinelYes

Heat PumpYes

Appearance

Color AppearanceGrey White

Power & Ratings

Cooling - Amperes4.7/5.1

Cooling - Amperes; F.l. - Cooling4.6/4.9

Cooling - Amperes; L.r.29.5

Cooling - Watts1035/1020

Heating Btuh11000 / 10900

Heating - Reverse Cycle - Watts870/850

Voltage (max)230 V

Voltage (min)208 V

Heating - Electric - Heater Amps3.7/3.5

Accessories

Accessories Required For InstallationOutdoor Grille

Warranty

Labor (entire Appliance)1 Year

Labor (sealed System)5 Year

Parts (entire Appliance)2 Year

Product Features

R454B - Most environmentally friendly refrigerant on the market

ICR (Internal condensate removal)

Heat pump down to 25°F

Boost heat option

Electronic touch controls with LED display

Quiet Operation - baked on mastic sound barrier

Corrosion protection package

SMC basepan and bulkhead

Electronic temperature limiting

Fresh air vent

Designed & Assembled in America

Date of Manufacture – 2025 or later

Product Documents

Accessory Guide

Guide6.85 MB

Architect And Engineering Manual

Document9.56 MB

Installation Instructions

Installation Guide11.96 MB

Quick Reference Guide

Quick Start Guide723.56 KB

Quick Specs

Spec Sheet86.64 KB
