GE Profile

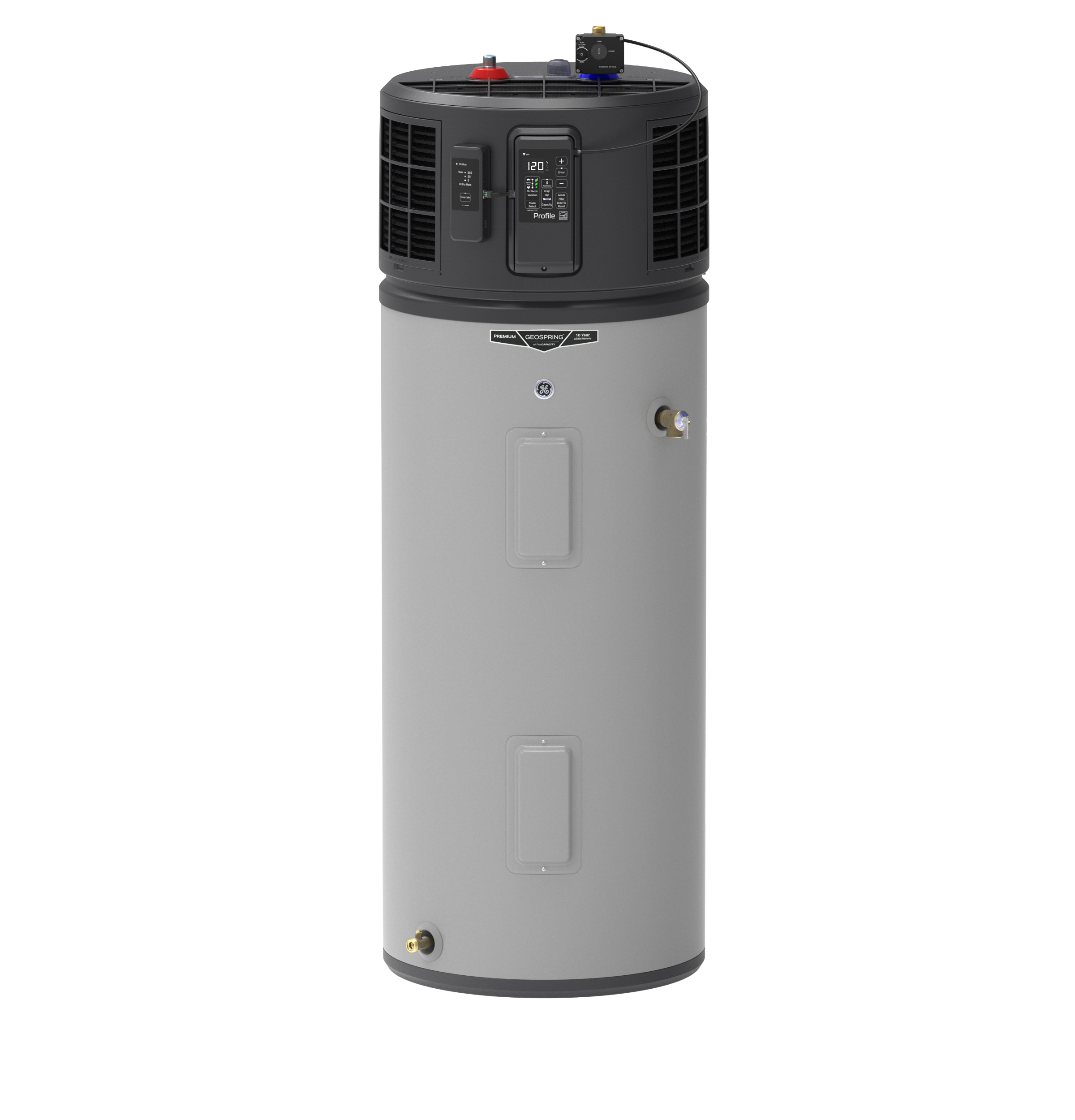

GEOSPRING Smart Hybrid Heat Pump Water Heater 50-gallon - 240V - FlexCapacity
Model: PH50S10BPY
| Brand | GE Profile |
| Model # | PH50S10BPY |
$2,529.00
Ships When Available— Backorder OK
This item is on backorder and will ship when available.
Stack & Save
Save up to $1,000 on qualifying orders
Dimensions

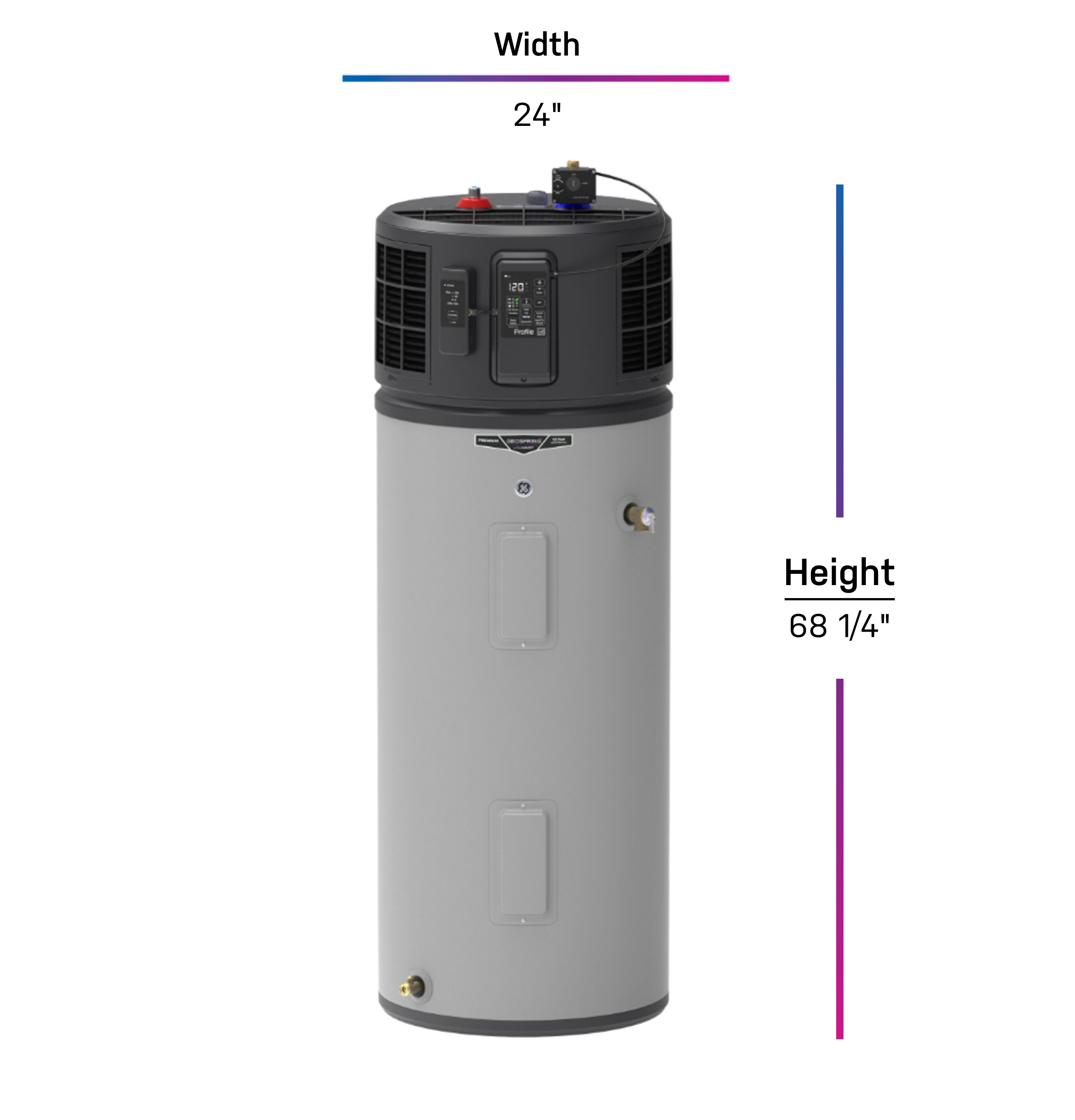

Product Height (to Top Of Water Inlet/outlet Connections)68.25 in
Overall Width24 in
Overall Height68.25 in
Product Height (to Top Of Unit)66.5 in
Net Weight179 lb
Product Diameter24 in
Overall Depth24 in
Connection Sizes - Water Inlet (mnpt)3/4"
Connection Sizes - Hot Water Outlet (mnpt)3/4"
Features

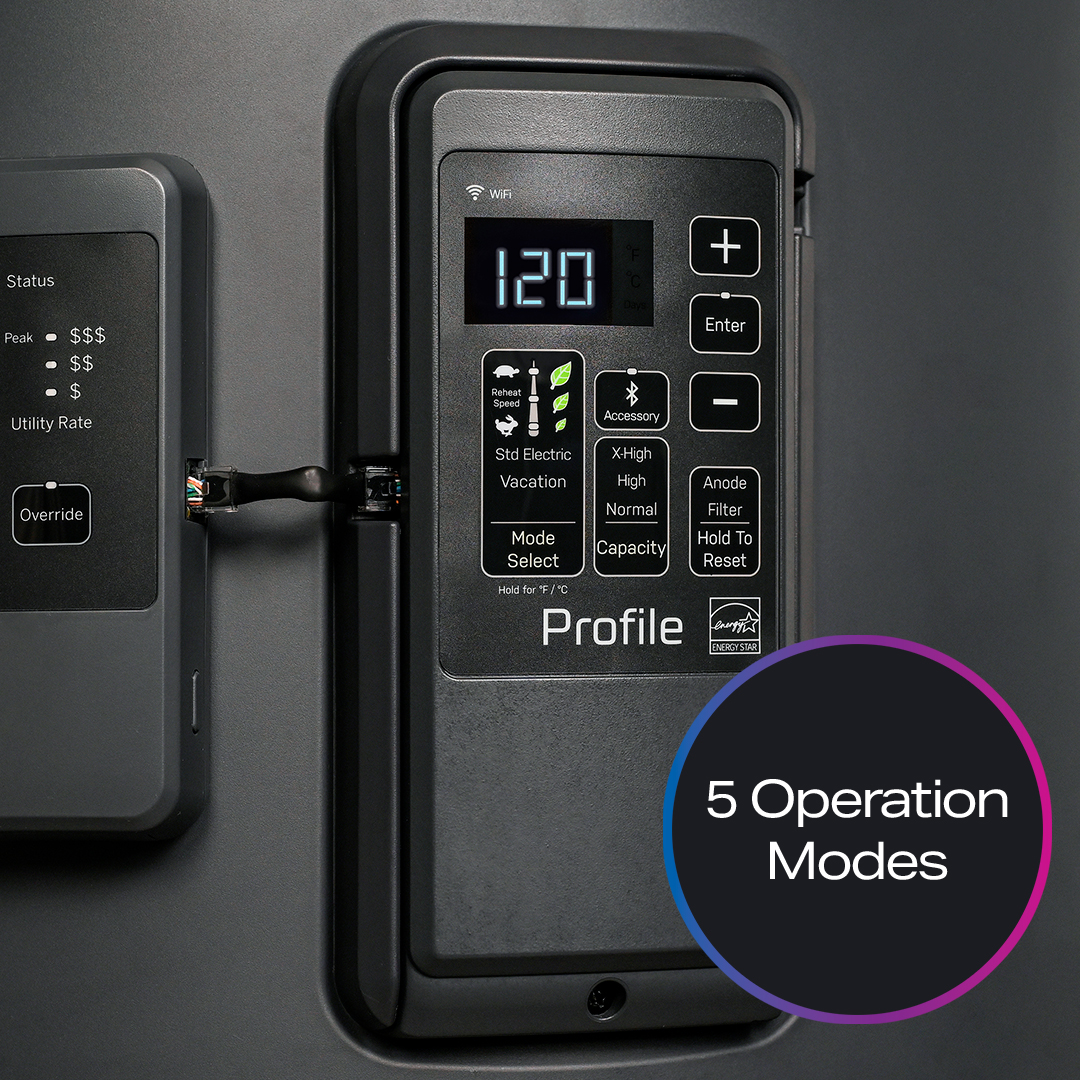

Control TypeElectronic

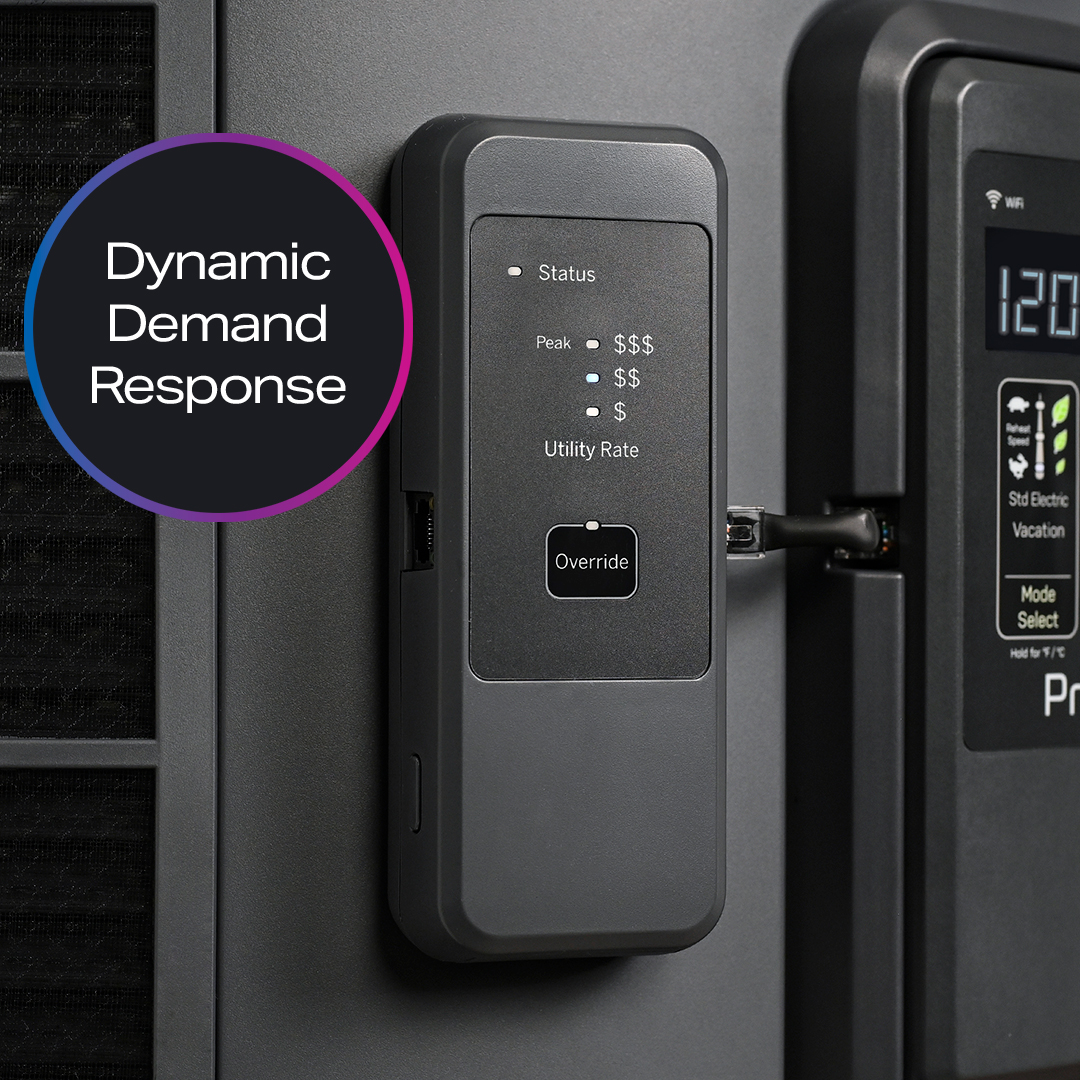

Demand Response CapableYes
Drain ValveLeft Side
Temp & Pressure Relief ValveRight Side
Fuel TypeElectric
Operating ModesHeat Pump
Electronic, Integrated Mixing ValveYes
Drain Valve TypeBrass
Temperature Setting Factory Default120° F
Product TypeElectric Heat Pump
WiFi ConnectBuilt-In
Water Connection LocationTop

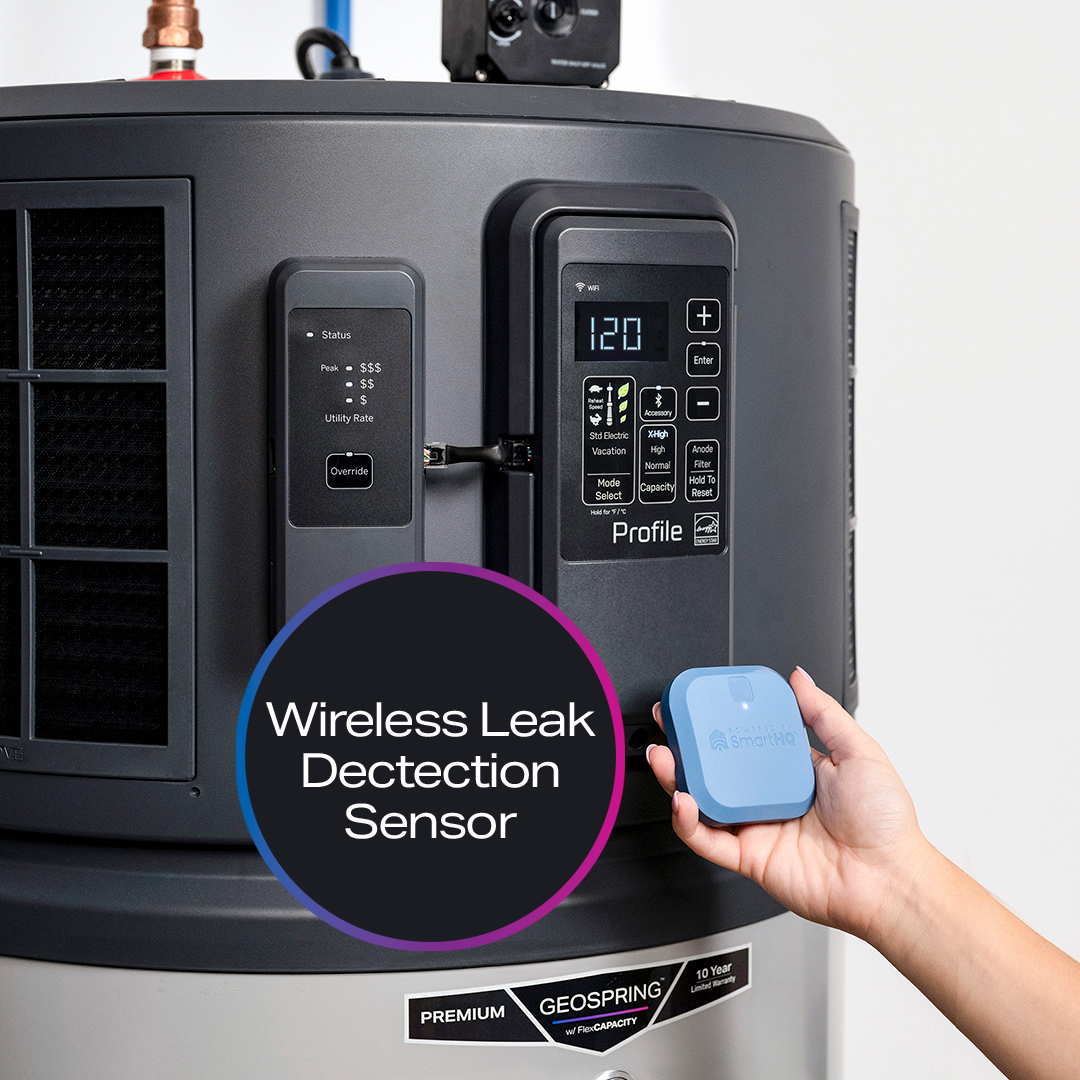

SensorLeak Sensor Included (SPLK10N01A)
Communicationyes
Diagnostic FeedbackFilter, Lock, Standard Electric
Anode RodMagnesium

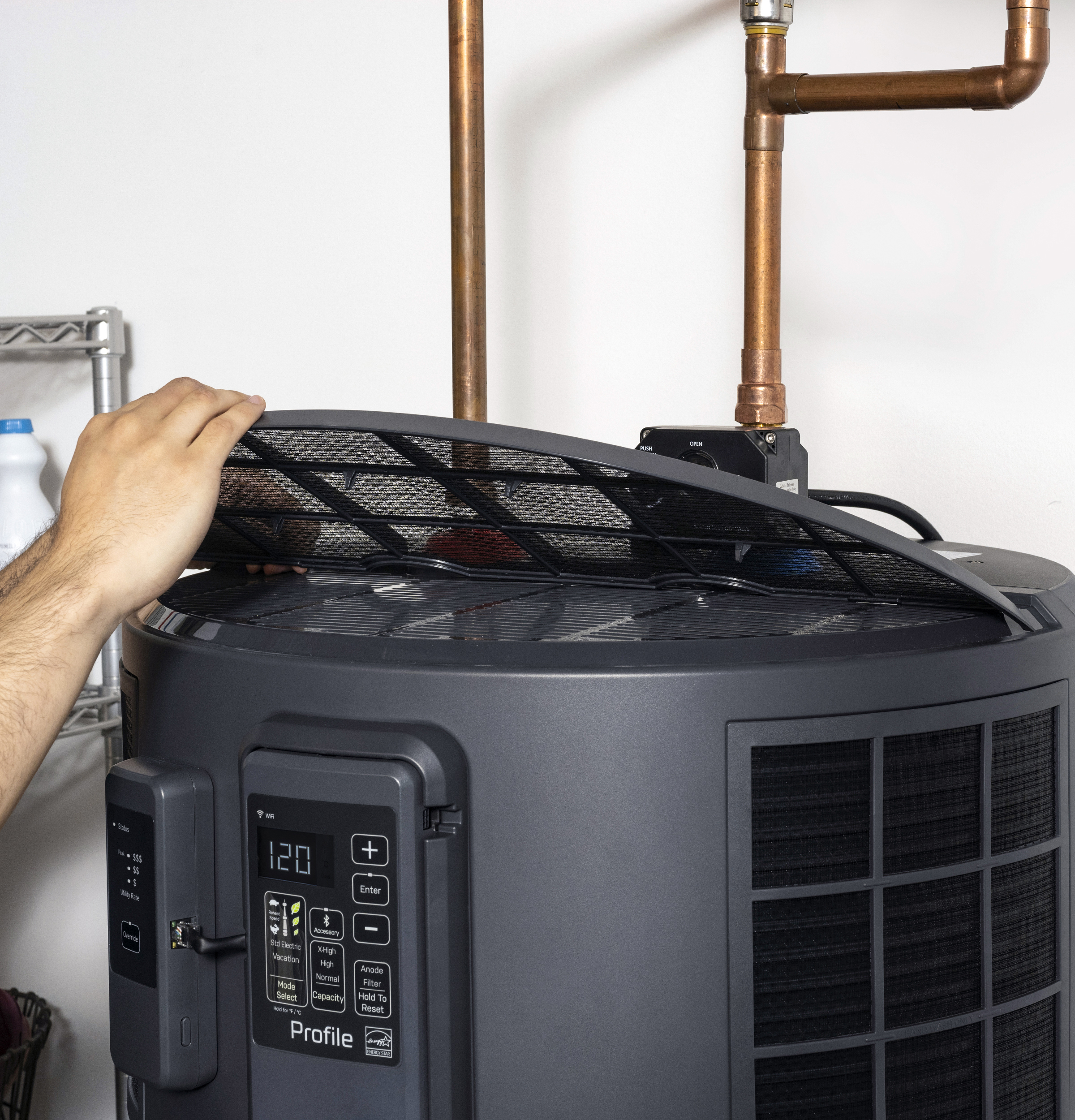

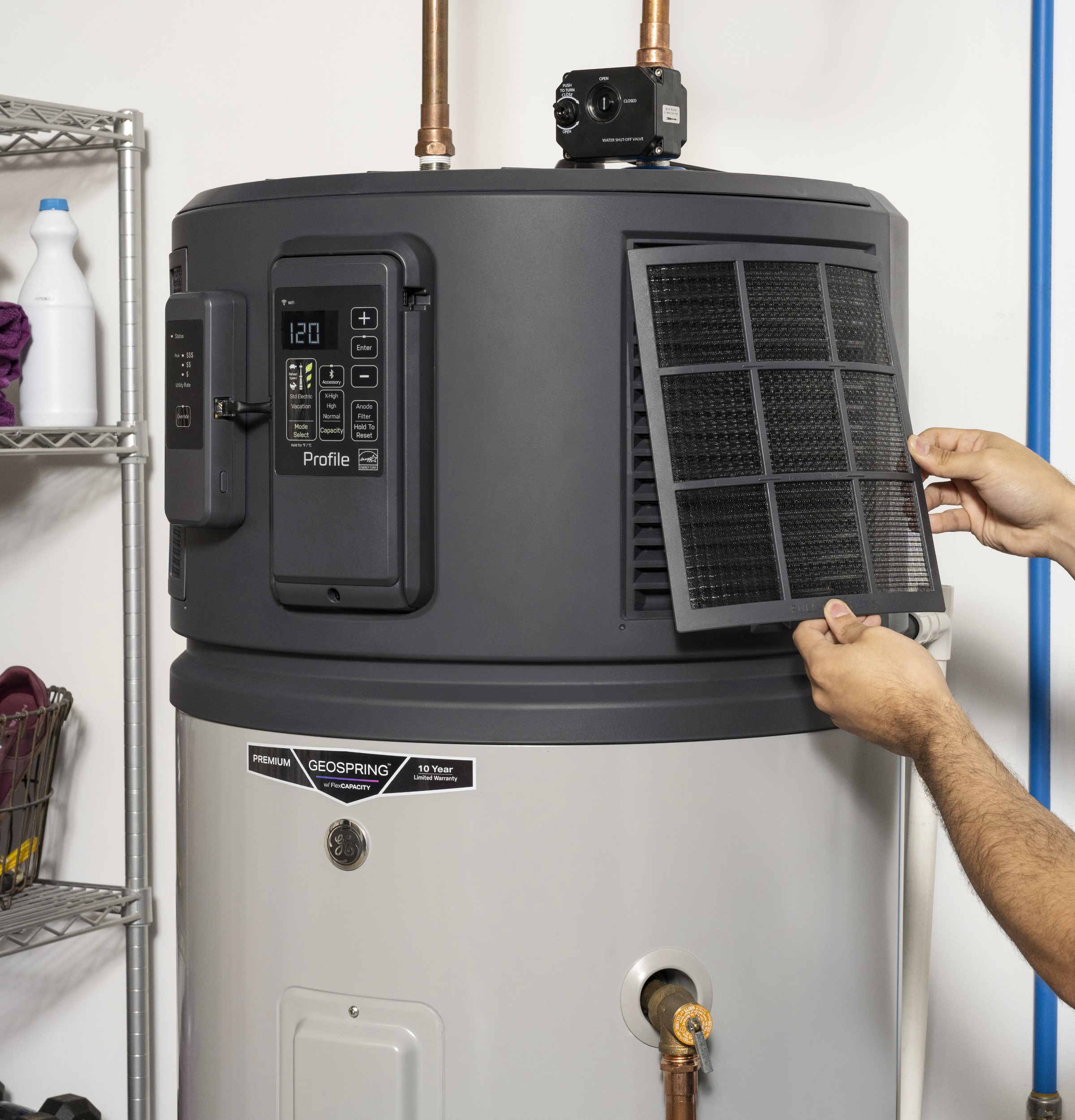

Renewable Air FilterTop of Unit
Temperature Setting100-140° F Range
Connected CapabilitiesAmazon Alexa
Uef4.3
Appearance
InstallationFree-Standing
Color AppearanceGray
Power & Ratings
Operating Water Pressure20-125 PSI (30-80 PSI recommended)
Hertz60
Electrical Consumption - Lower Element3600W
Electrical Consumption - Upper Element5500W
Electrical Circuit Required240/208VAC 30A, 60Hz
First Hour Rate (fhr)77 Gallons
Energy Consumption (kwh/year)1154
Voltage (max)240 V
Volts/amps240V; 60Hz

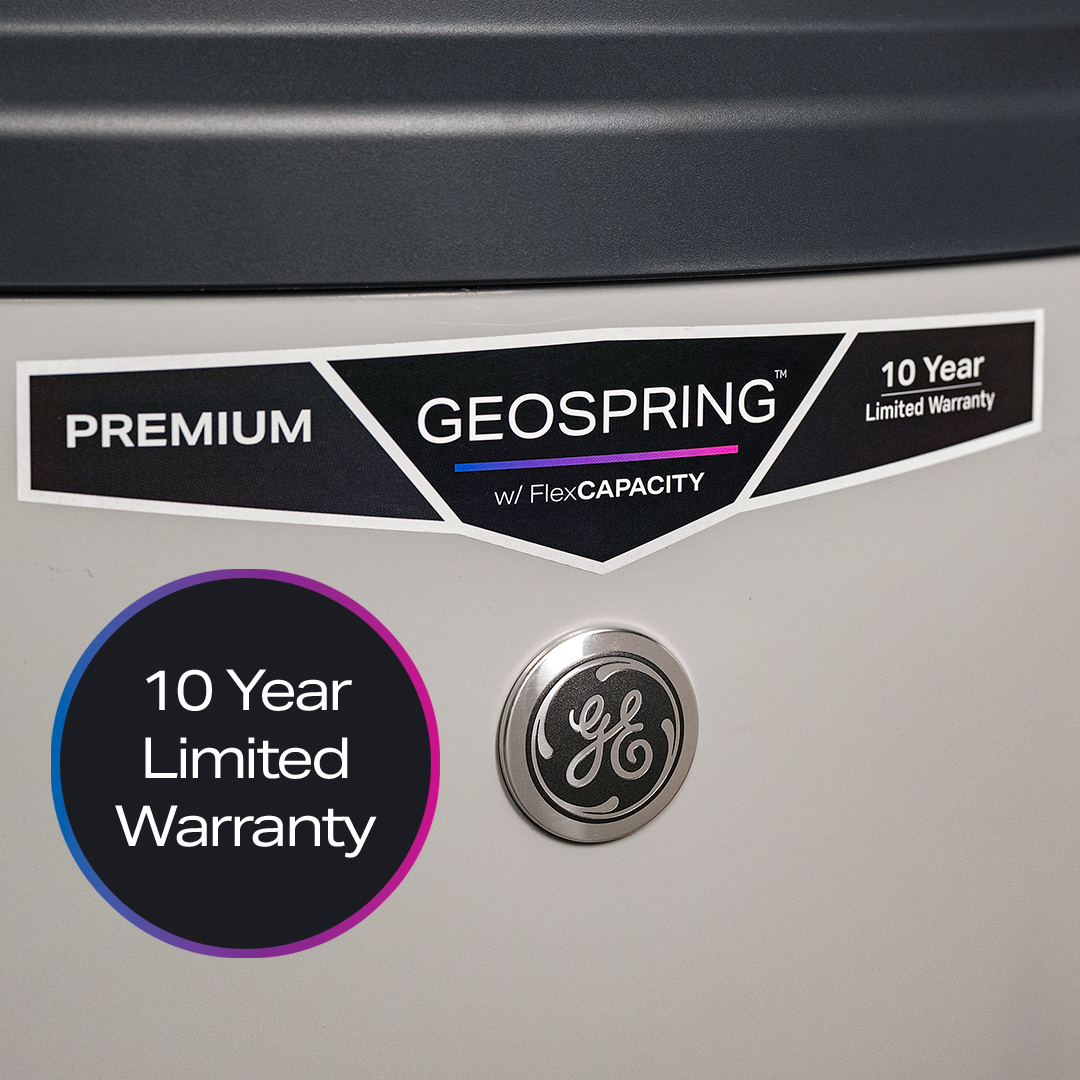

Warranty
Warranty NotesSee written warranty for full details
Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 10-year tank and parts
Capacity
Unit Capacity50 Gallons
Economical / Quiet

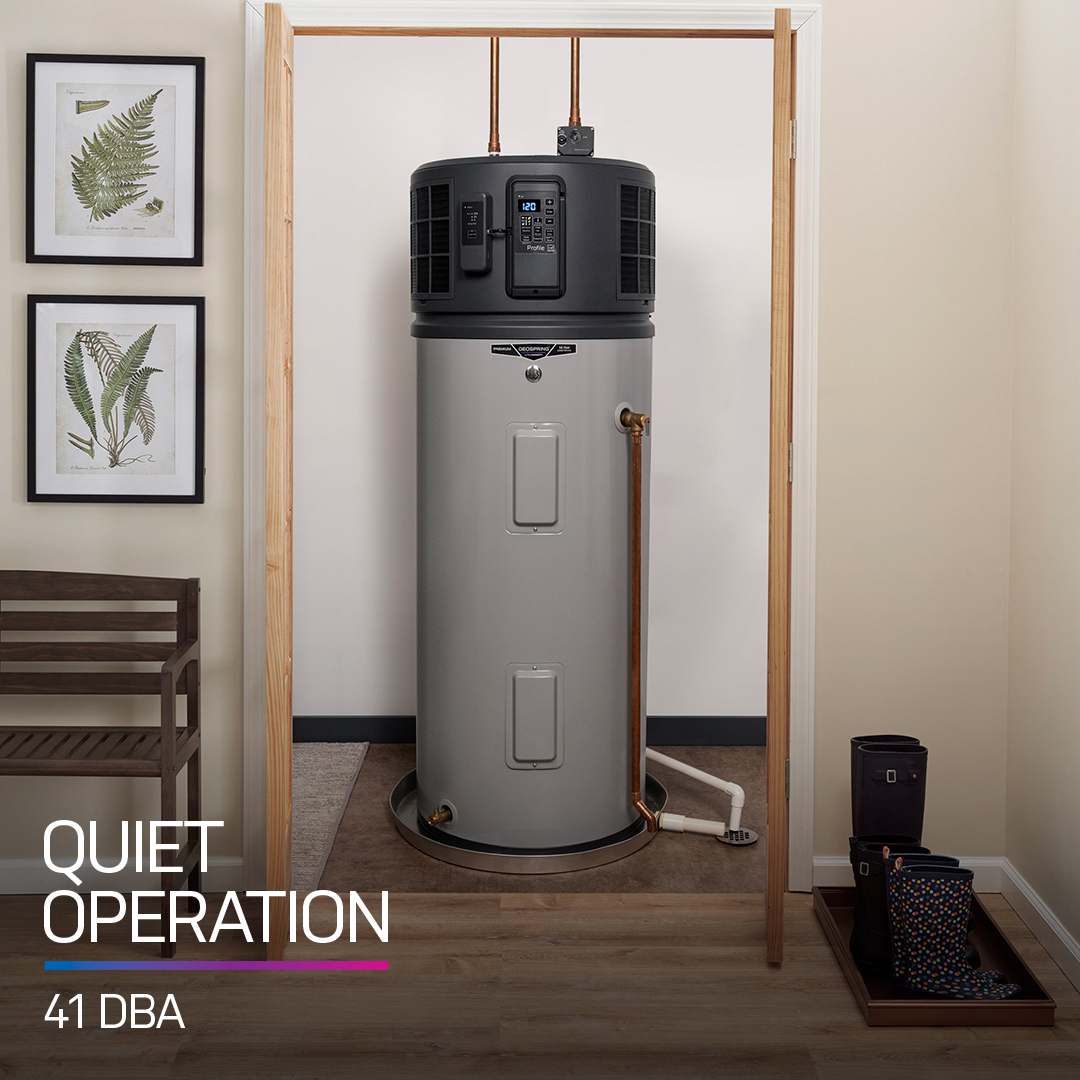

Operating Sound Level41 dBA
