| Brand | GE |
| Model # | GE15SNHPDG |
| Width | 8.5 in. |
| Height | 14.2 in. |
| Depth | 2.4 in. |
$339.00
Ships When Available— Backorder OK
This item is on backorder and will ship when available.
Lowest Price Guarantee
Need help? (732) 426-0990
Stack & Save
Save up to $1,000 on qualifying orders
Dimensions
Overall Width8.5 in
Overall Height14.2 in
Product Height (to Top Of Unit)14.2 in
Net Weight9.7 lb
Overall Depth2.40 in
Product Diameter8 1/2 in
Width8.5 in.
Height14.2 in.
Length2.4 in.
Weight9.7 lbs.
Features
Uniform Energy Factor (uef)>0.91

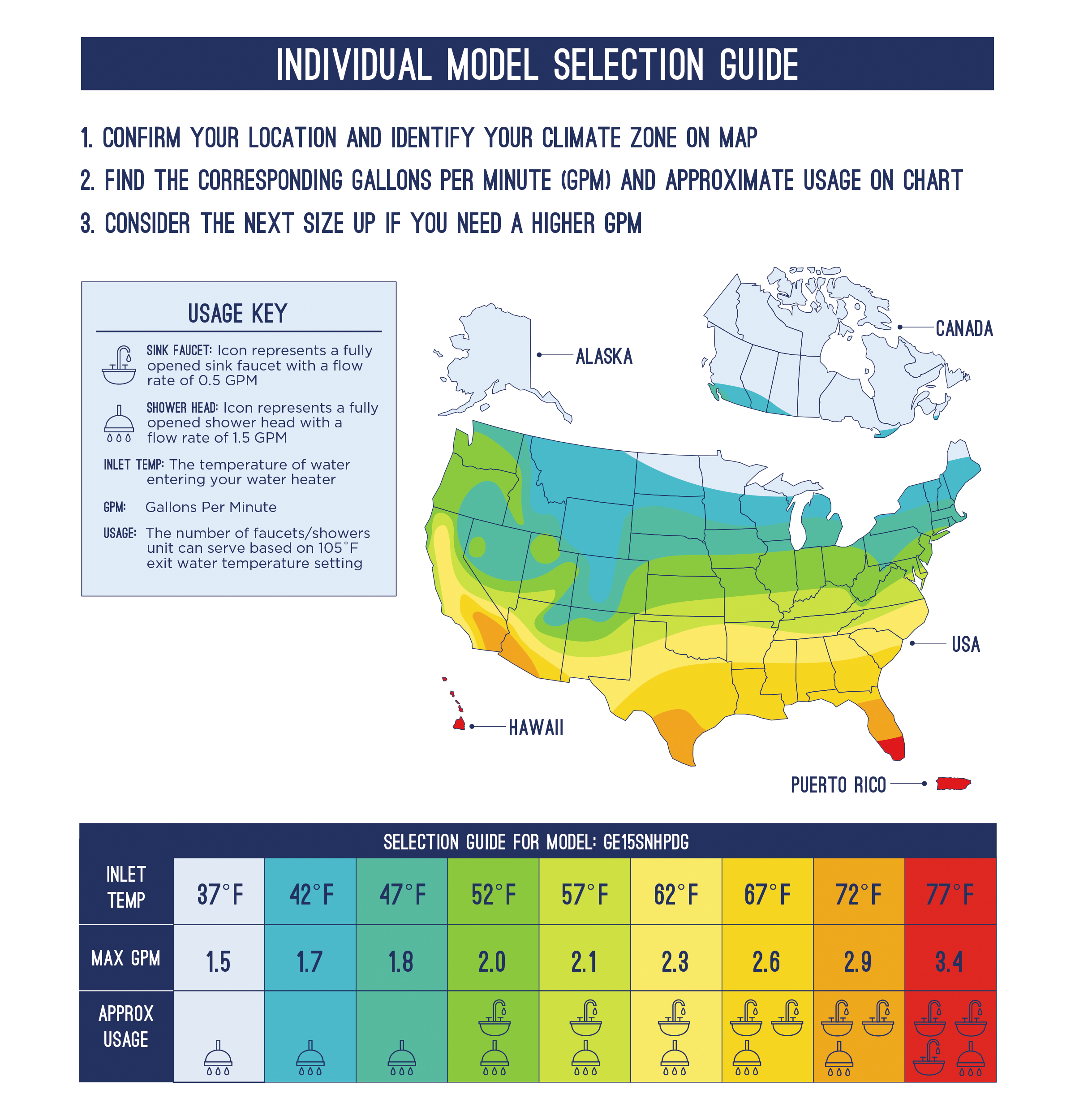

Flowrate (gpm) @ 47 F Inlet1.79
Flowrate (gpm) @ 37 F Inlet1.5
Flowrate (gpm) @ 77 F Inlet3.4
Flowrate (gpm) @ 62 F Inlet2.29
Min. Operating Pressure (psi)25
ControlsAdjust degree Fahrenheit/Celsius
Max. Operating Pressure (psi)150
Max: Operating Pressure (psi)150
Fuel TypeElectric
Flowrate (gpm) @ 57 F Inlet2.09

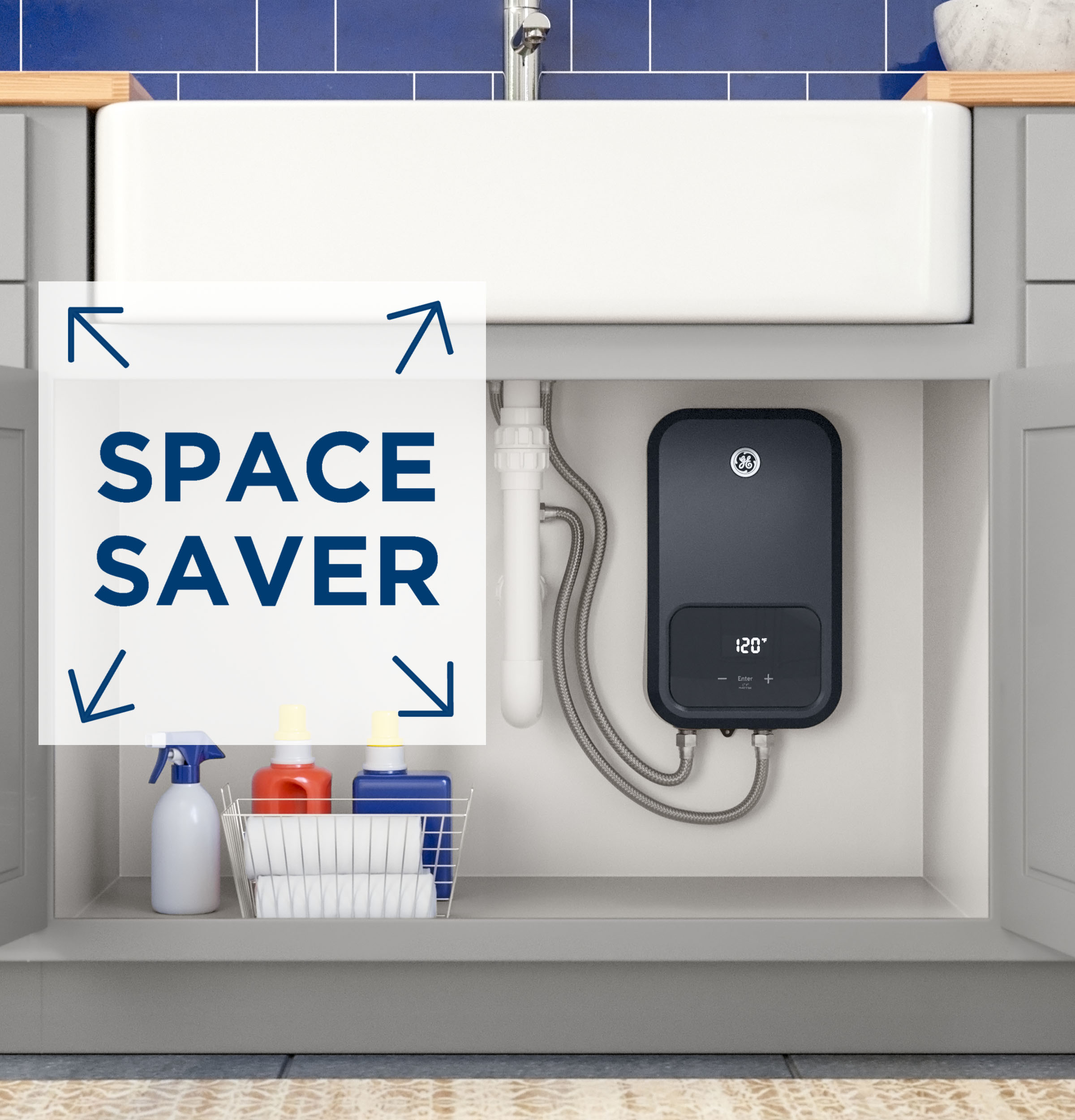

ConfigurationSpace Saver
Installation LocationIndoor
Flowrate (gpm) @ 72 F Inlet2.9
Temperature Adjustment Amount (degree)1
Activation Flowrate (gpm)≤ 0.4
Temperature Setting Factory Default105° F
Product TypeElectric Tankless
Flowrate (gpm) @ 52 F Inlet2
Integrated Safety DevicesFlow sensor. High limit thermostat (on each heating element). Inlet Temperature Sensor. Material Rated for Ignition Containment. Outlet Temperature Sensor.
Maximum Outlet Temperature (f)140
Water Connection LocationBottom
Point Of UseYes
Cold/hot Water Connections (inches)1/2" Cold Water Inlet; 1/2" Hot Water Outlet

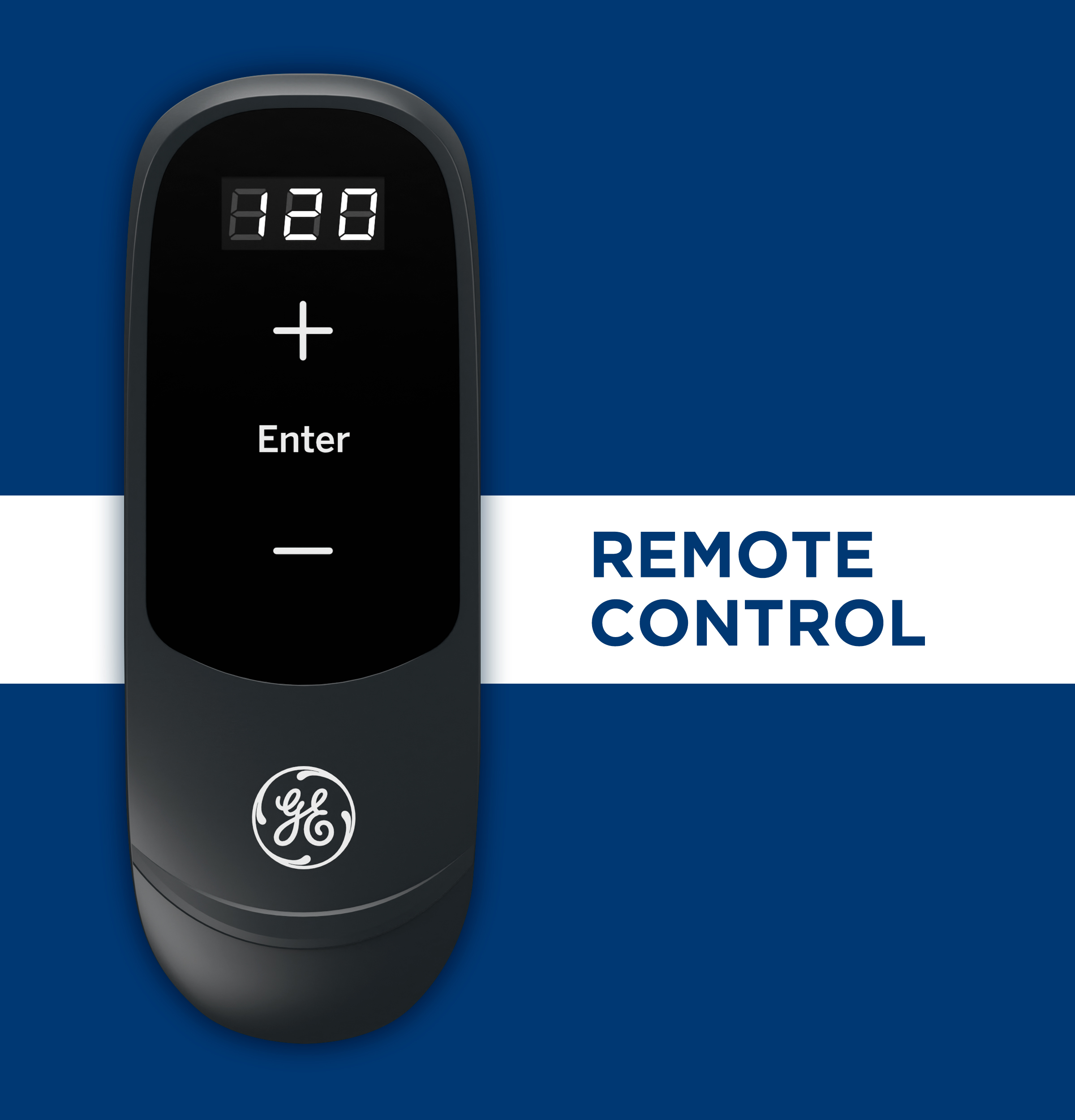

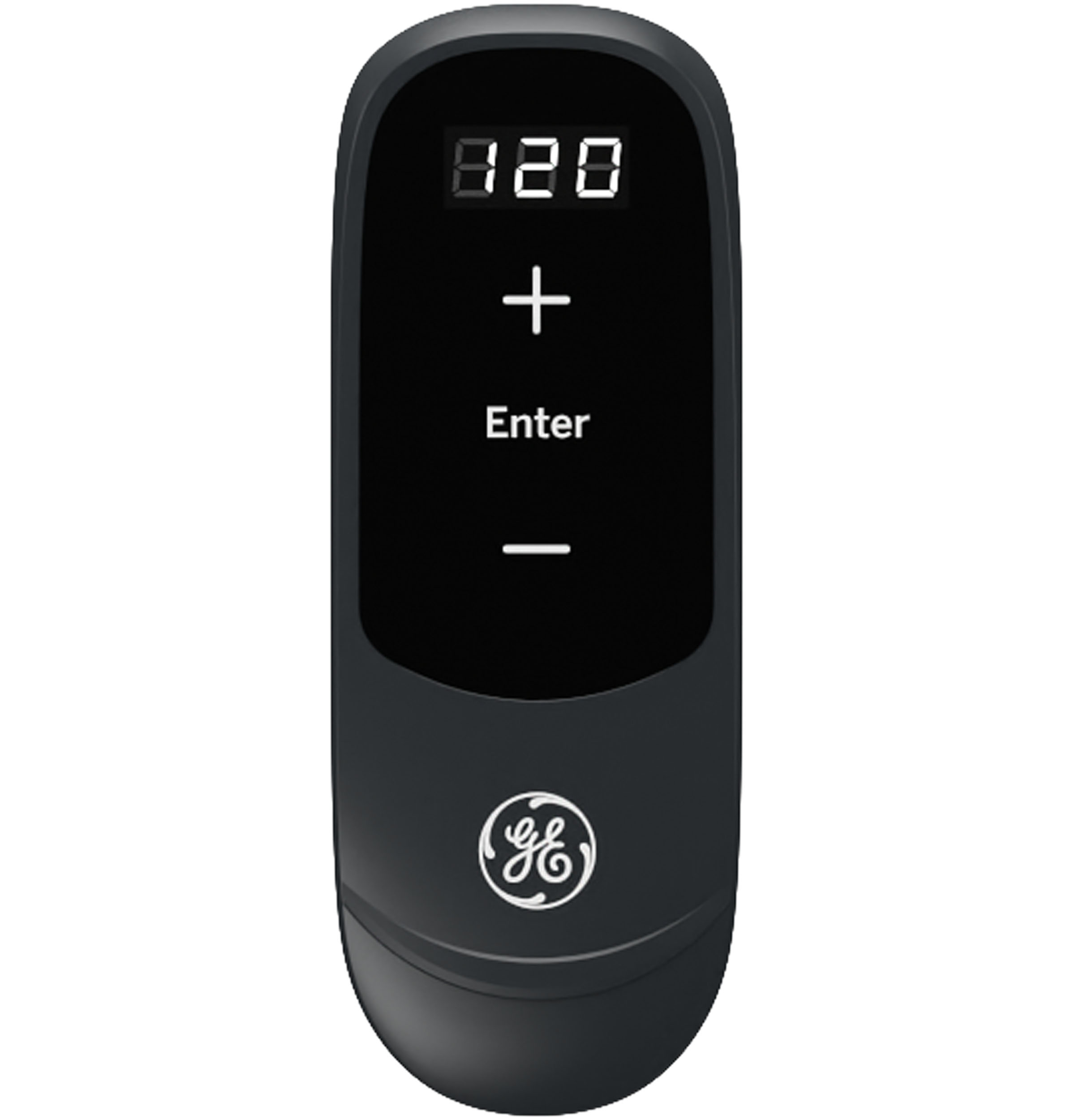

Remote ControlYes
Flowrate (gpm) @ 67 F Inlet2.59
Temperature Setting86-140° F Range
Flowrate (gpm) @ 42 F Inlet1.7
Appearance

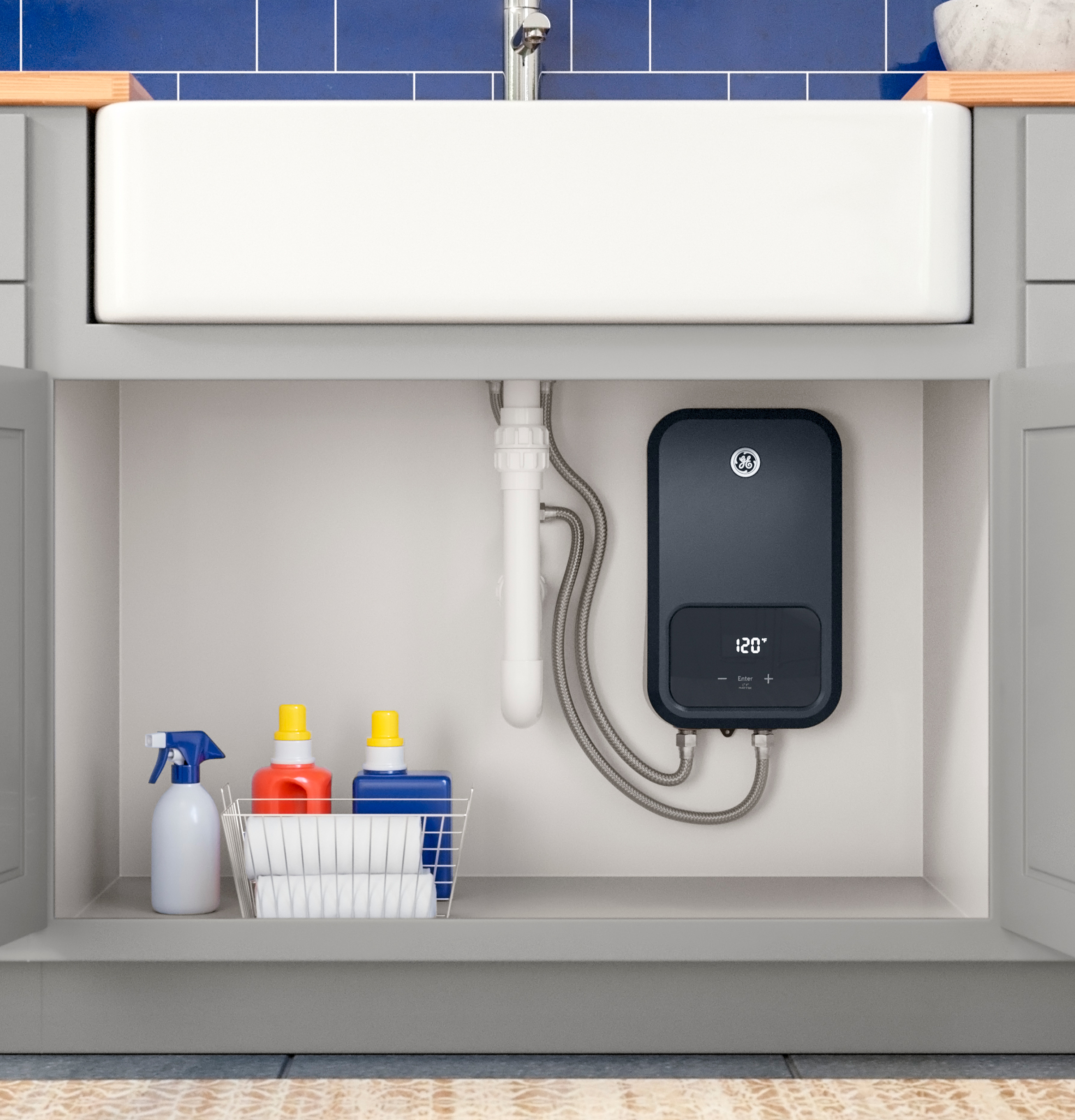

InstallationWall Mounted
Color AppearanceDiamond Gray
Power & Ratings

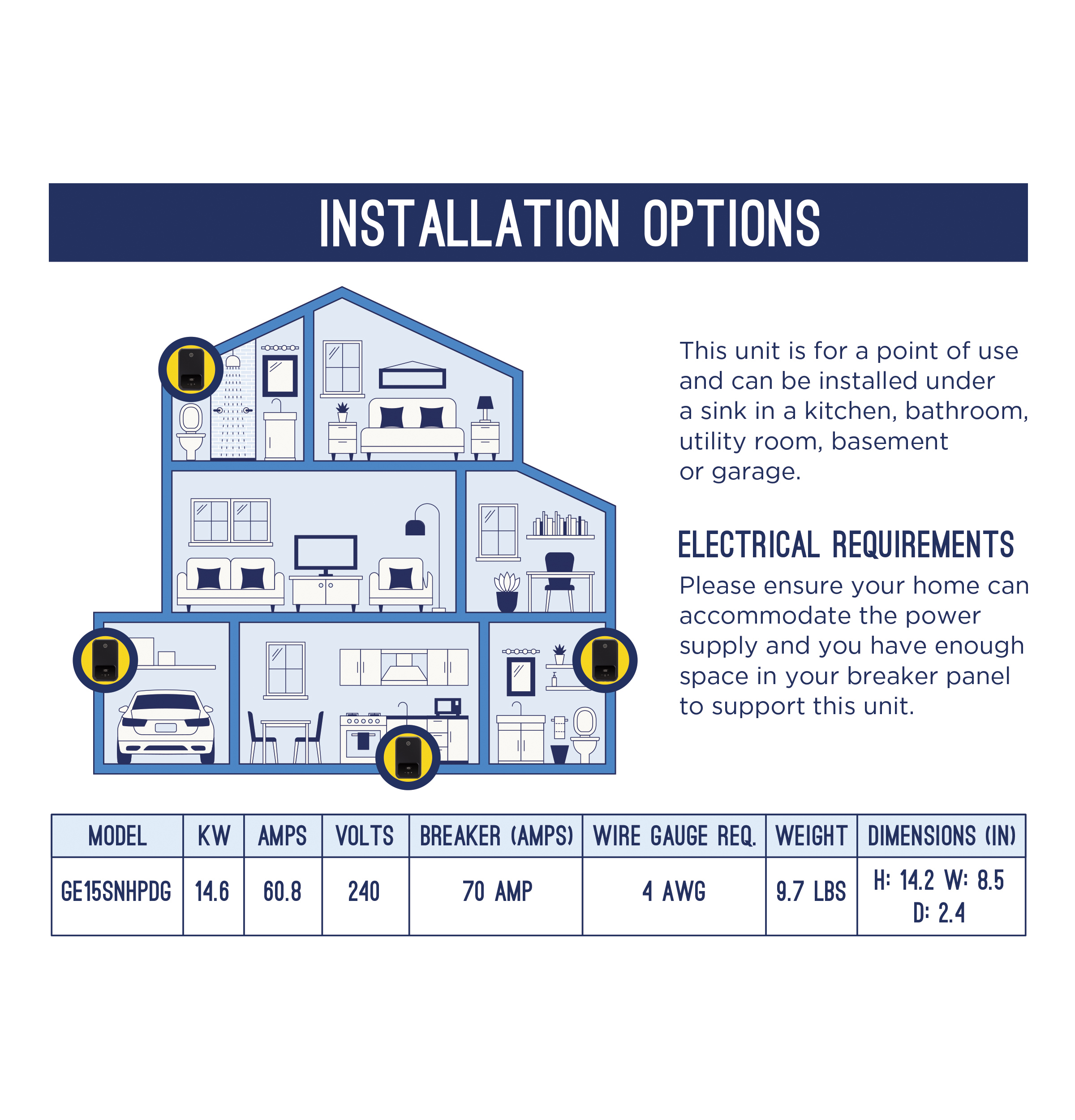

Electrical Requirements240V ; 70A
Power Rating-kw14.6
Amps60.8
Hertz60
Voltage (max)240 V
Electrical Circuit Required70 Amp
Warranty
Warranty NotesSee written warranty for full details
Parts Warranty5-Year Replacement
Labor WarrantyNo Warranty
Capacity
Capacity2.9 Gallons Per Minute (GPM)
