GE

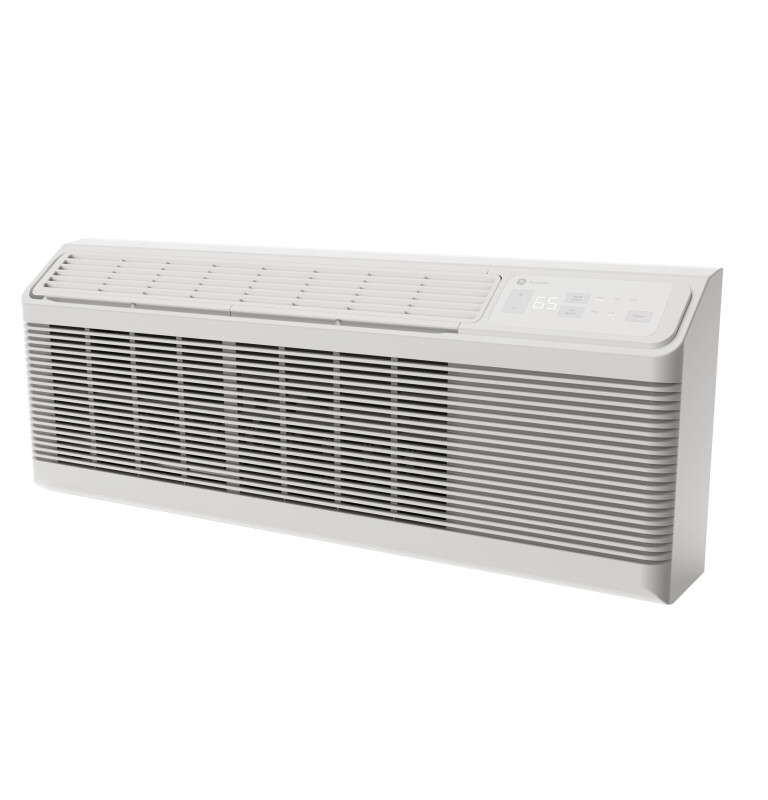

Zoneline Cooling and Electric Heat Fixed Speed Unit with Corrosion Protection 12,000 BTU, 230/208 Volt
Model: AZES12DCXXA
| Brand | GE |
| Model # | AZES12DCXXA |
| Width | 42 in. |
| Height | 16 in. |
| Depth | 20.81 in. |
$1,374.00
Ships When Available— Backorder OK
This item is on backorder and will ship when available.
Stack & Save
Save up to $1,000 on qualifying orders
Dimensions
Overall Width42 in
Overall Height16 in
Overall Depth20.8125 in
Net Weight106 lb
Width42 in.
Height16 in.
Length20.81 in.
Weight106 lbs.
Features
Zoneline FeaturesRandom Twist/Length Segment Tangential Blower
Louver StyleReversible
Control TypeStandard Microcomputer
Refrigerant Charge (oz.)32
Fan Speed SelectionsHi/Low Cooling
Discharge Grille2-position
Sensible Heat Ratio0.75
Power Factor95
Product TypePackaged Terminal Air Conditioners (PTAC)
Refrigerant TypeR454B
Filter TypeRigid Frame
Manual Vent ControlHidden
Chassis TypeSlide-In
Fan Motor2
Temperature LimitingElectronic 24-Step
Fan Speed ControlYes
Temperature Range60 - 85 F
Corrosion TreatedYes
Heat - CoolYes
Fan Cycle SwitchYes
Electronic Micro Computer ControlYes
Central Desk Control CompatibilityYes
Rotary CompressorYes
Vent Control3-position
Venting FeaturesConcealed Manual Vent Control
Heating SystemResistance only
Heat SentinelYes
Freeze SentinelYes
Power & Ratings
Cooling - Amperes; L.r.29.5
Cooling - Amperes; F.l. - Cooling4.4/4.7
Cooling - Amperes4.7/5.1
Cooling - Watts1035/1020
Voltage (min)208 V
Voltage (max)230 V
Hertz60
Capacity
CFM Indoor Fan Low275
CFM Indoor Fan High410
Cooling Eer (btuh / Watt)11.6/11.7
Dehumidification (pts./hr.)3.3 (High Speed)
Vent CFM (high Fan At Zero Esp)41.5
Cooling Btuh (max)12100
Cooling Btuh (min)12,000 Btu
Warranty
Warranty NotesSee written warranty for full details
Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 2-year entire appliance
Accessories
Accessories Required For InstallationOutdoor Grille
Appearance
Color AppearanceGrey White
