What warranty comes with the GE AZ45E09DBM?

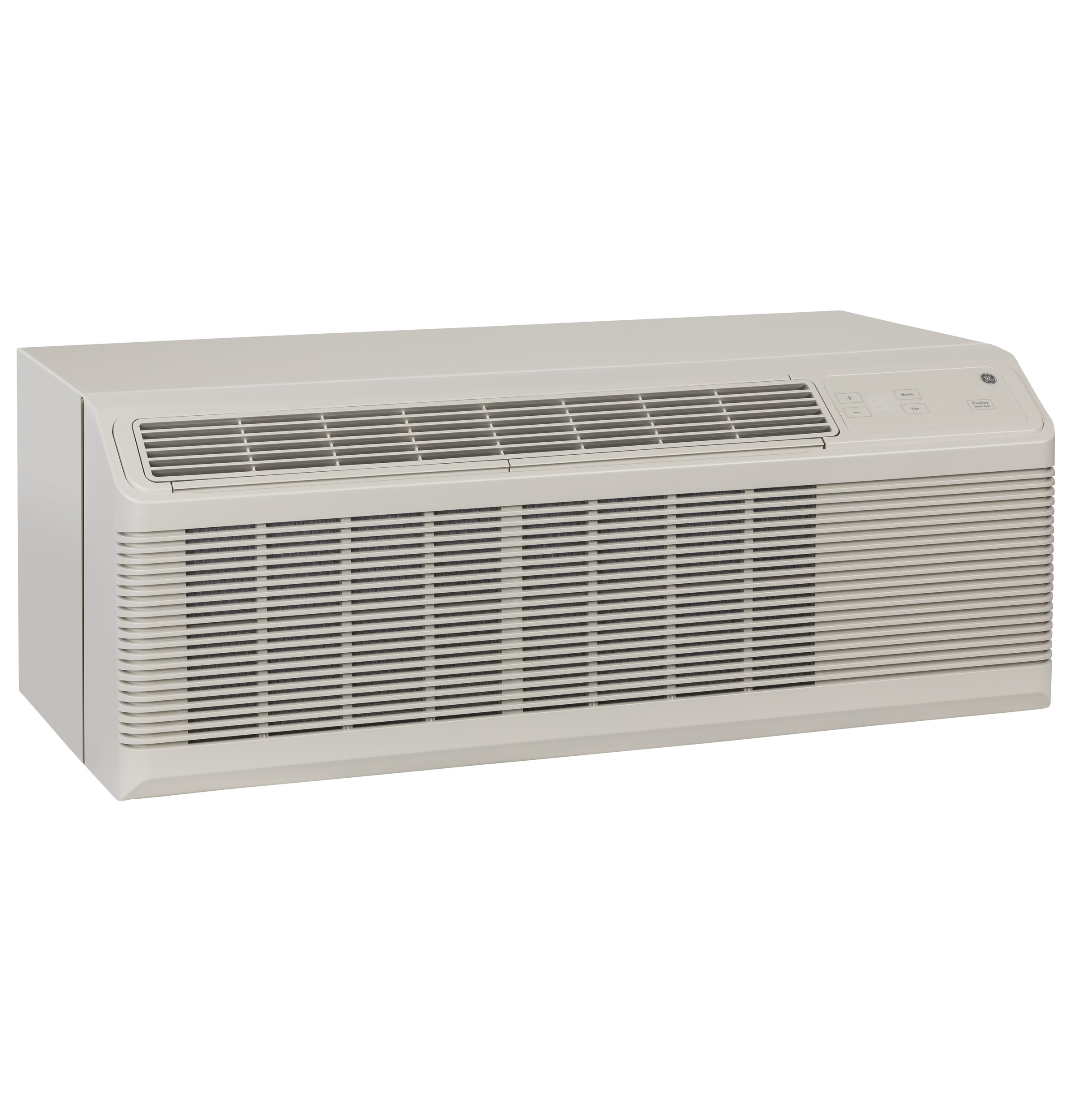

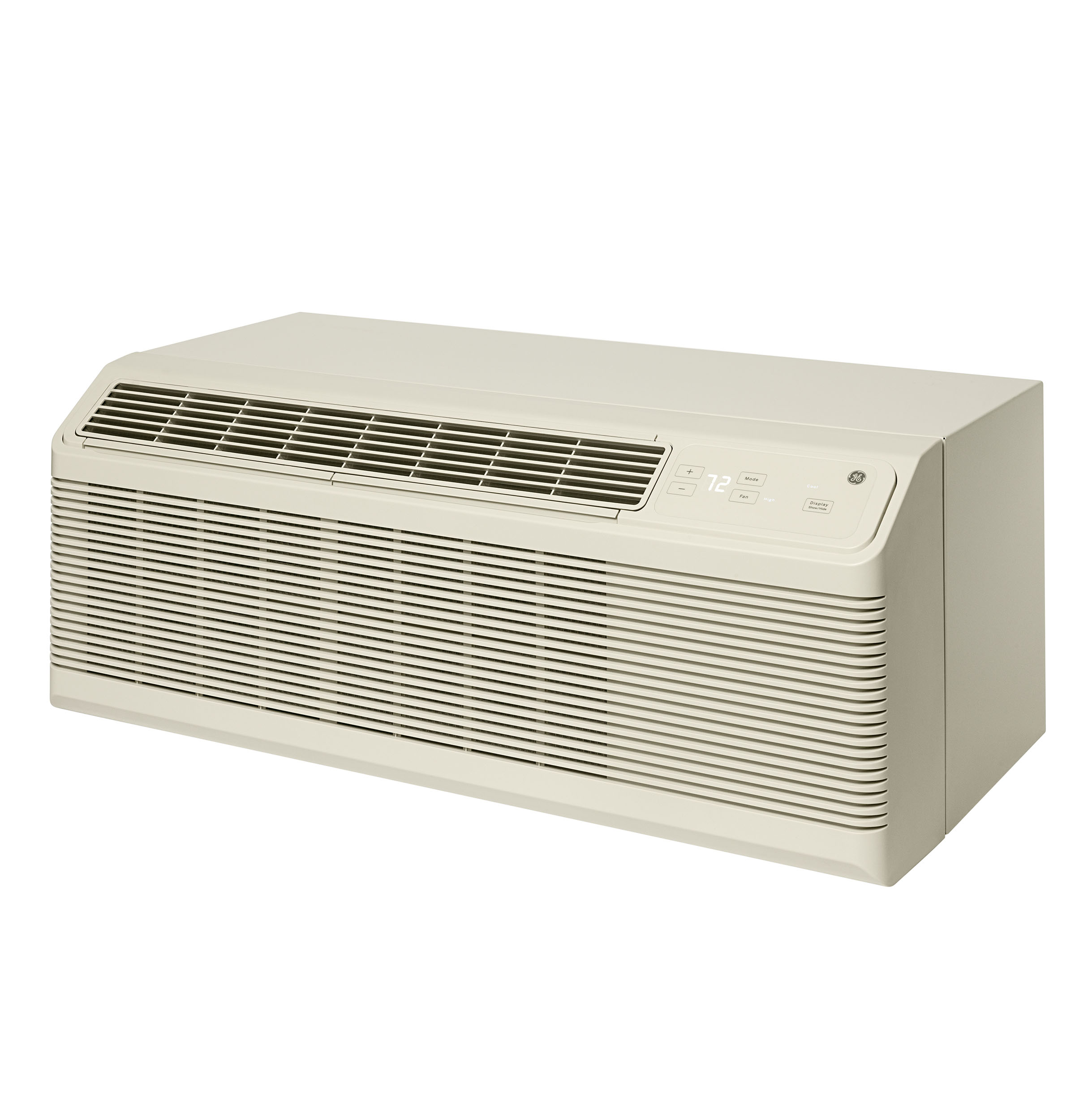

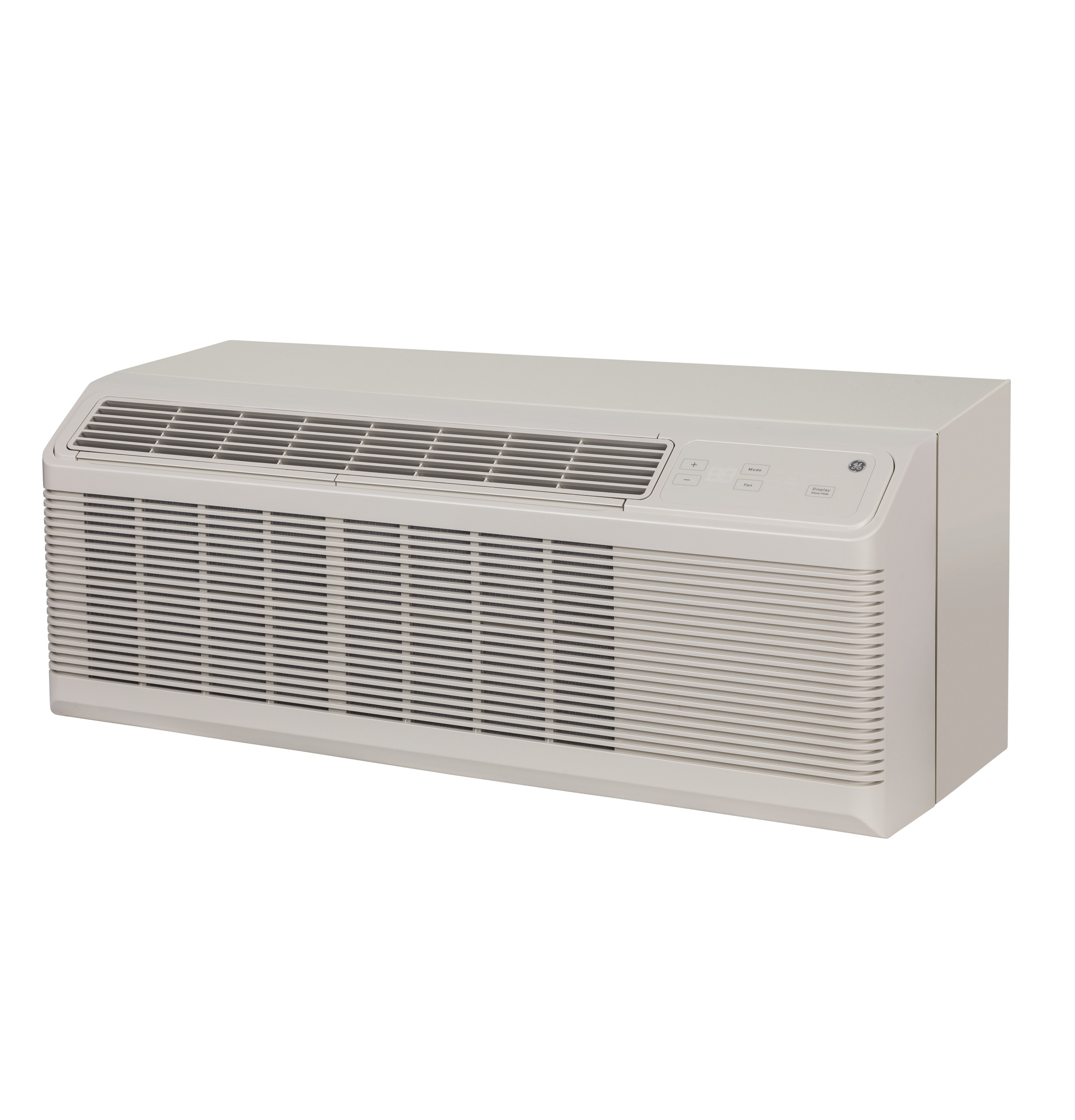

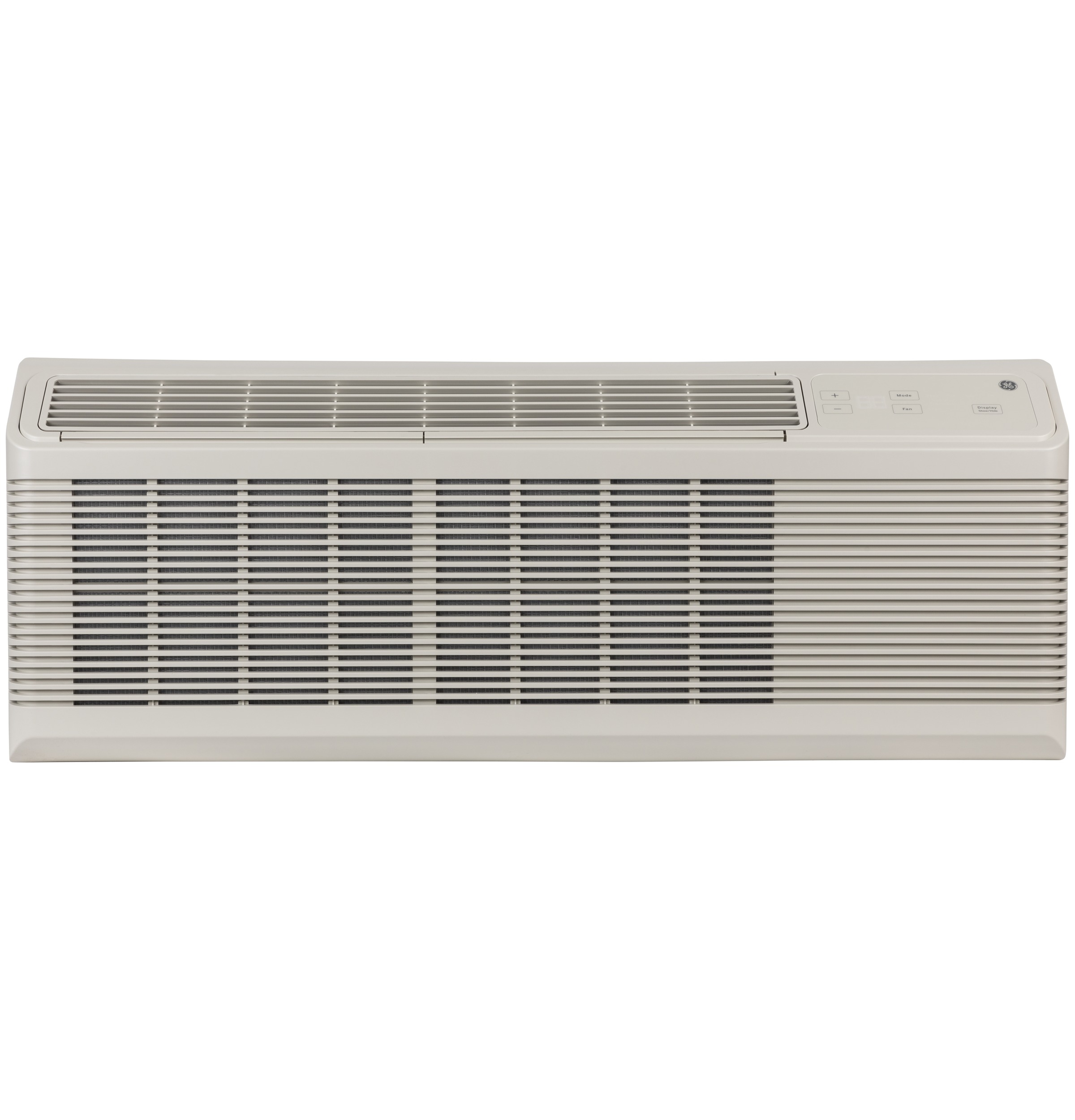

Name: GE Zoneline Cooling and Electric Heat Unit with Makeup Air, 230/208 Volt
Brand: GE
SKU: AZ45E09DBM
Price: 1341.25 USD
Availability: Discontinued

The GE Zoneline Cooling and Electric Heat Unit with Makeup Air, 230/208 Volt is listed with 5 years of parts coverage from the manufacturer, per this model's published specifications.

Hover to zoom

1 / 16

Brand	GE
Model #	AZ45E09DBM
Width	42 in.
Height	16 in.
Depth	20.81 in.

GEAuthorized Dealer

Zoneline Cooling and Electric Heat Unit with Makeup Air, 230/208 Volt

Model: AZ45E09DBM

This model is discontinued

The Zoneline Cooling and Electric Heat Unit with Makeup Air, 230/208 Volt is discontinued and cannot be ordered.

GE replaced this model with the Zoneline Heat Pump Unit with Variable Speed Inverter Technology and Makeup Air 15,000 BTU, 230/208 Volt.

Now available

Zoneline Heat Pump Unit with Variable Speed Inverter Technology and Makeup Air 15,000 BTU, 230/208 Volt

$2,213.00

Same 42" width
Same 20.81" depth
Same 16" height

In Stock— 8 units ready to ship

See the newer model →

Equivalent replacement — ships as the current model

Need help finding a replacement? Call (732) 426-0990

Was $1,341 when available

At a glance

GE AZ45E09DBM is an air conditioner, 42 inches wide.

Specifications

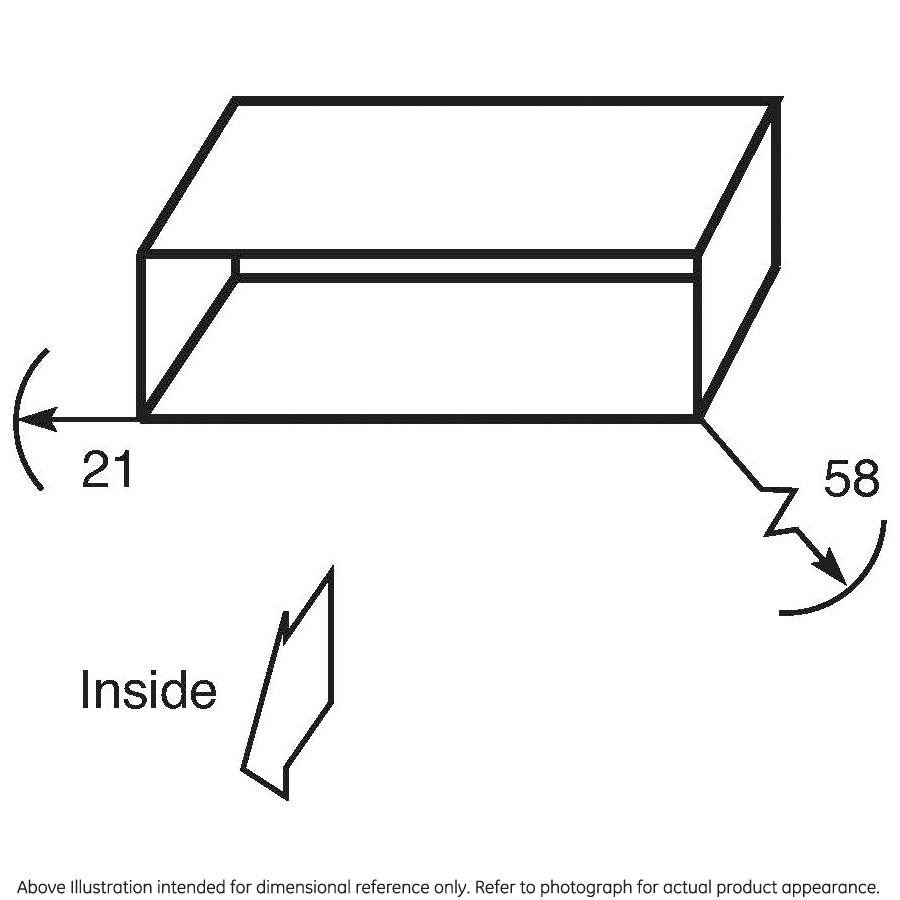

Dimensions

Width42 in.

Height16 in.

Length20.81 in.

Weight135 lbs.

Net Weight135 lb

Overall Depth20.8125 in

Overall Height16 in

Overall Width42 in

Capacity

Vent CFM (high Fan At Zero Esp)25-50

Dehumidification (pts./hr.)2.4

CFM Indoor Fan High409

CFM Indoor Fan Low280

Cooling Eer (btuh / Watt)11.5/11.5

Cooling Btuh (max)9,100 Btu

Cooling Btuh (min)9,100 Btu

Features

Fan Cycle SwitchYes

Discharge Grille2-position

Heat - CoolYes

Rotary CompressorYes

Fan Motor2

Temperature LimitingElectronic 7-Step

Power Factor98

Heating SystemElectric Resistance

Louver StyleReversible

Fan Speed ControlYes

Filter TypeSlide-Out

Temperature Range60 - 85 F

Product TypePackaged Terminal Air Conditioners (PTAC)

Refrigerant TypeR410A

Electronic Micro Computer ControlYes

Zoneline FeaturesWeather Protected Electrical Components

Sensible Heat Ratio75%

Chassis TypeSlide-In

Makeup AirYes

Control TypeCoverless Backlit White LED Touch Controls

Fan Speed SelectionsHi/Low Heating

Power & Ratings

Cooling - Amperes; F.l. - Cooling5.1/5.2

Cooling - Amperes5.1/5.2

Cooling - Watts790/790

Cooling - Amperes; L.r.21.0

Voltage (max)230 V

Voltage (min)208 V

Warranty

Warranty NotesSee written warranty for full details

Labor WarrantyLimited 5-year sealed system

Parts Warranty5 year limited parts warranty

Appearance

Color AppearanceGray

Product Features

Product built to order, lead times may vary

Makeup air

Delivers 25-50 CFM of continuous makeup air whenever the room is occupied

Energy efficiency

When paired with occupancy sensing hardware, ventilation can be halted during vacancy

Dehumidification

Dehumidifies at a rate of 5-6 pints per 24 hours (based on CFM level)

Heat & Freeze Sentinels

Keeps the room from overheating or freezing

Electronic temperature limiting

Prevents expensive over-cooling or over-heating of the room

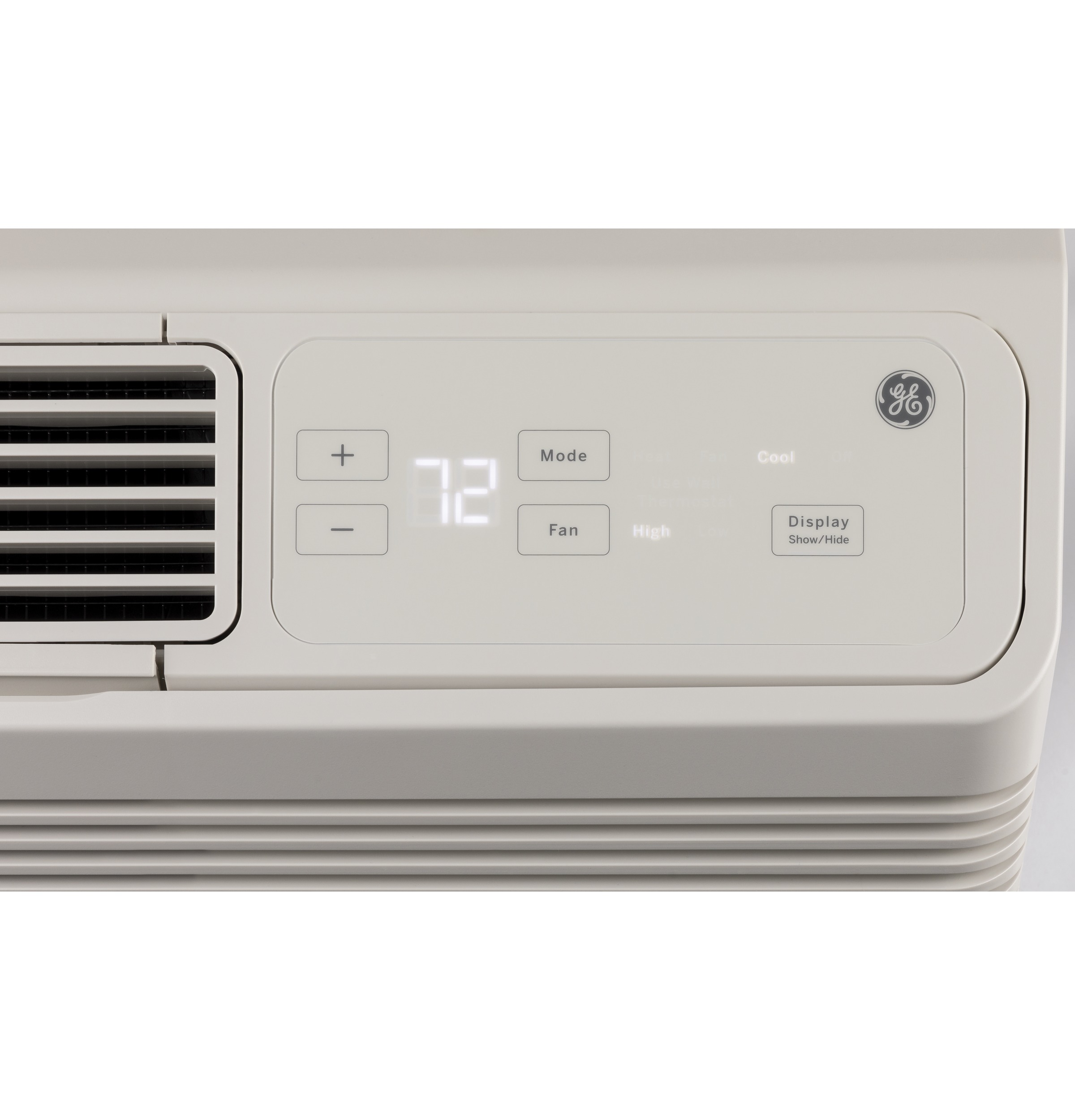

Electronic touch controls with LED display

May reduce the need for individually ducted rooftop systems

Because makeup air increases room BTU load requirements and requires additional PTAC cooling or heating, the building’s electrical needs may be impacted

Makeup air models are not recommended for installation within two miles of coastal areas

It is strongly recommended to install makeup air with wall thermostats

SMC base pan

Simplified structure

Easy to maintain and service

Designed & Assembled in America

Product Documents

Accessory Guide For AZ45E09DBM

Guide11.1 mb

Architect And Engineering Manual For AZ45E09DBM

Document7.2 mb

Installation Instructions For AZ45E09DBM

Installation Guide13.5 mb

Literature For AZ45E09DBM

Document254 kb

Quick Reference Guide For AZ45E09DBM

Quick Start Guide11.6 mb

Quick Specs For AZ45E09DBM

Spec Sheet137 kb

Sales Guide For AZ45E09DBM

Guide1.7 mb

Customer Reviews

No reviews yet

Be the first to review this product.

Common questions

What warranty comes with the GE AZ45E09DBM?: The GE Zoneline Cooling and Electric Heat Unit with Makeup Air, 230/208 Volt is listed with 5 years of parts coverage from the manufacturer, per this model's published specifications.
