KitchenAid

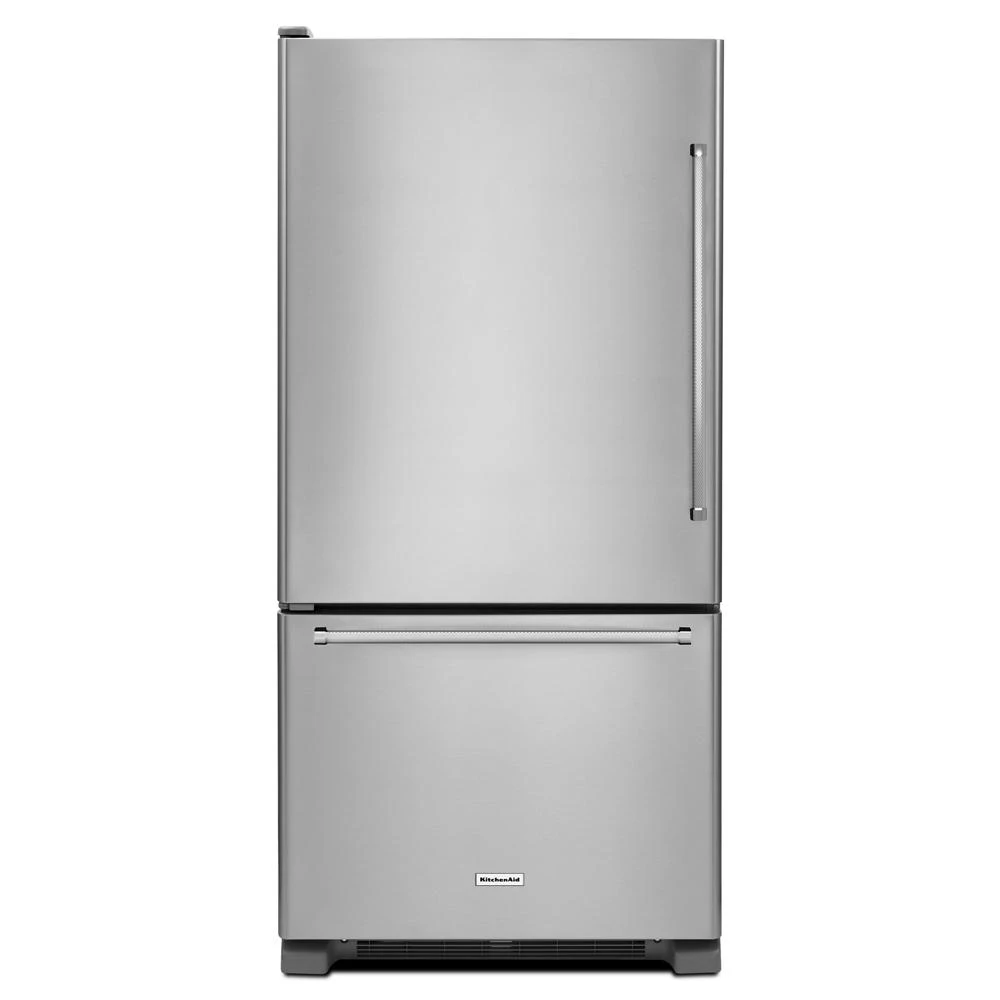

22 cu. ft. 33-Inch Width Full Depth Non Dispense Bottom Mount Refrigerator
Model: KRBL102ESS
| Brand | KitchenAid |
| Model # | KRBL102ESS |
| Width | 32.63 in. |
| Height | 70 in. |
| Depth | 33-3/4 in |
$2,068.00
$2,299.00Save $231.00 (10%)
Ships When Available— Backorder OK
This item is on backorder and will ship when available.
Stack & Save
Save up to $1,000 on qualifying orders

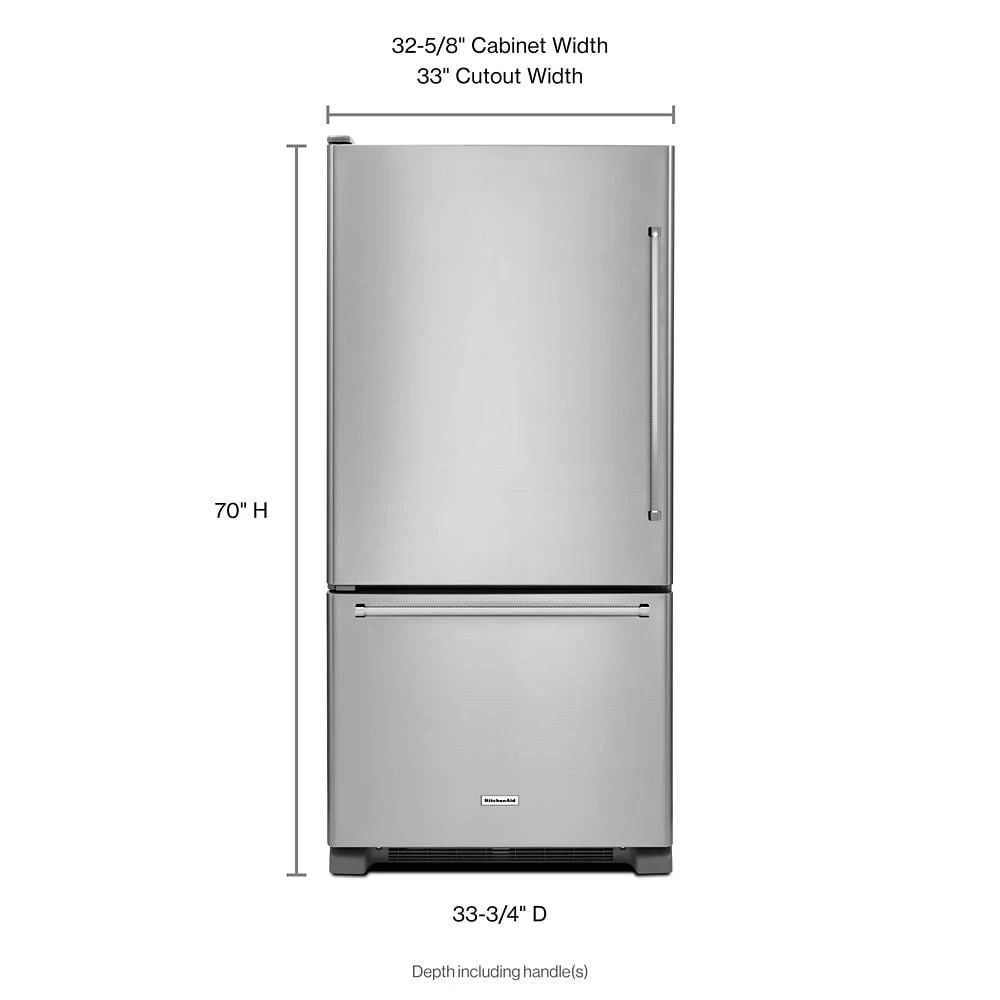

Dimensions
Width32.63 in.
Height70 in.
Length33.75 in.
Weight298 lbs.
Cabinet Width (in)32 5/8
Cutout Height (in)69
Cutout Width (in)33
Depth Closed Excluding Handles31 1/4
Depth Closed Including Handles33 3/4
Depth Excluding Doors28 1/8
Depth With Door Open 90 Degree62
Gross Weight298
Height To Top Of Cabinet68 7/8
Height To Top Of Door Hinge70
Cabinet Width (in,inches)32.6250
Cutout Height(in,inches)69.0000
Cutout Width(in,inches)33.0000
Depth Closed Excluding Handles(in,inches)31.2500
Depth Closed Including Handles(in,inches)33.7500
Depth Excluding Doors(in,inches)28.1250
Depth With Door Open 90 Degree(in,inches)62.0000
Height To Top Of Cabinet(in,inches)68.8750
Height To Top Of Door Hinge(in,inches)70.0000
Cutout Height Min(in,inches)69.0000
Gross Weight(lb,pounds)298
Refrigerator Capacity Volume15-31/50
Cabinet Width32-5/8 in
Capacity22.07 cu. ft.
Cutout Height69 in
Cutout Width33 in
Depth33-3/4 in
Freezer Capacity Volume6.45 cu. ft.
Maximum Height70 in
Minimum Height68-7/8 in
Controls
Automatic DefrostYes
Control LocationInterior Up Front
Control LockoutNo
Door Ajar/open AlarmNo
Lcd Touch ScreenNo
Max Cool/fast CoolNo
Cooling TypeSingle Evaporator
Certifications
ADA CompliantNo
Prop 65Standard
UlYes
Ule Environmentally Preferred CertifiedPassed 60 point AHAM (Association of Home Appliance Manufacturers) Sustainability Standards
Cee Tier RatingTier I
Electrical
Amps15
Hz60
Volts120
Dimension
Capacity (cu Ft)22.07
Depth Closed Excluding Handles31 1/4
Depth Excluding Doors28 1/8
Depth With Door Open 90 Degree62
Height To Top Of Cabinet68 7/8
Details
Installation ConfigurationFreestanding
Refrigeration ConfigurationRefrigerator
Refrigerator TypeBottom Freezer
Door Style ConfigurationBottom Freezer
Exterior Details
Cabinet FinishTextured
Counter DepthNo
Door StyleFlat
Hidden HingeNo
Reversible DoorNo
Base Grille ColorGrey
Cabinet ColorGrey
Door ColorStainless Steel
Door FinishSmooth
Door Opening DirectionLeft
Handle ColorStainless Steel
Handle MaterialMetal
Handle TypeReach Through Handle
Filter Details
Air Filter Indicator/resetNo
Fresh Flow Air Filter IncludedNo
Water Filter Indicator/resetNo
Freezer Details
Freezer Door BinsNo
Freezer Door TypePull-Out
Freezer LightingLED
Freezer Drawer/basket1 Full Width Lower Wire, 1 Full Width Upper Wire
Icemaker Details
IcemakerOptional
Icemaker LocationFreezer
Types Of IceNo
Icemaker Kit Part NumberW11762633
Refrigerator Details
Conventional ShelvesNo
Deli DrawerNo
Humidity-controlled Crispers2 Half-Width
Number Of Interior Shelves5
Pantry DrawerYes
Refrigerator LightingLED
Supplementary ContainersYes
Temperature-controlled Drawers1 Full Width
Refrigerator Door Bins1 Dairy, 1 Fixed Full-Width, 4 Adjustable Half-Width
Spill-proof Glass Shelves1 Fixed Full Width, 4 Adjustable Half Width
Dispenser Details
Dispenser TypeNo Dispenser
Features
Refrigerator FeaturesExtendFresh Temperature Management System, LED Lighting, Produce Preserver
