Is the KitchenAid KOES530PPS good for even baking and roasting?

Yes — Convection is listed on this wall oven — a fan moves hot air around the cavity.

Is the KitchenAid KOES530PPS good for crisping without a countertop fryer?

Yes — Built-in air fry mode is listed on this model, so no separate countertop fryer is needed.

Is the KitchenAid KOES530PPS good for accessible kitchens?

Yes — Listed ADA compliant, so this wall oven suits kitchens built to the 2010 ADA Standards.

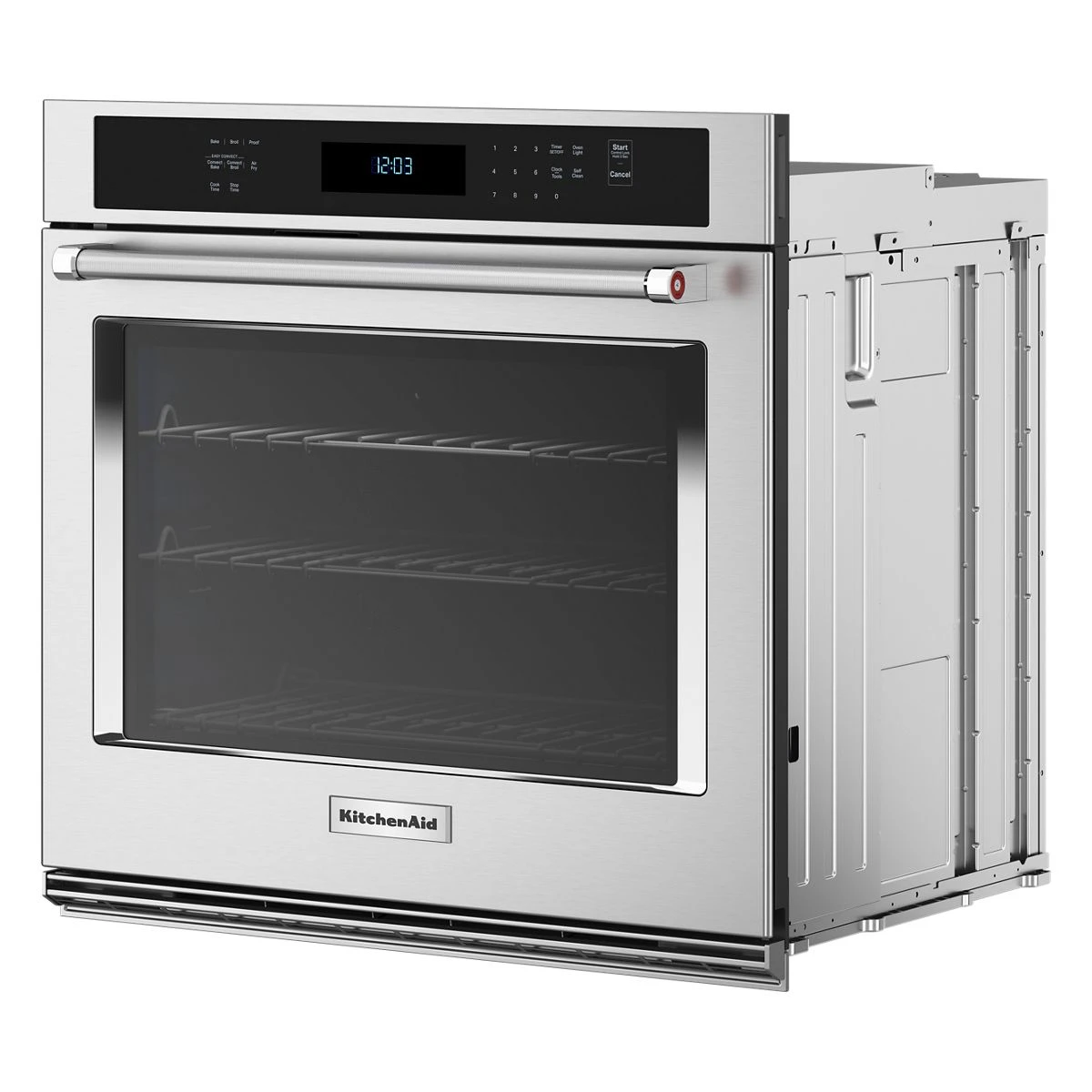

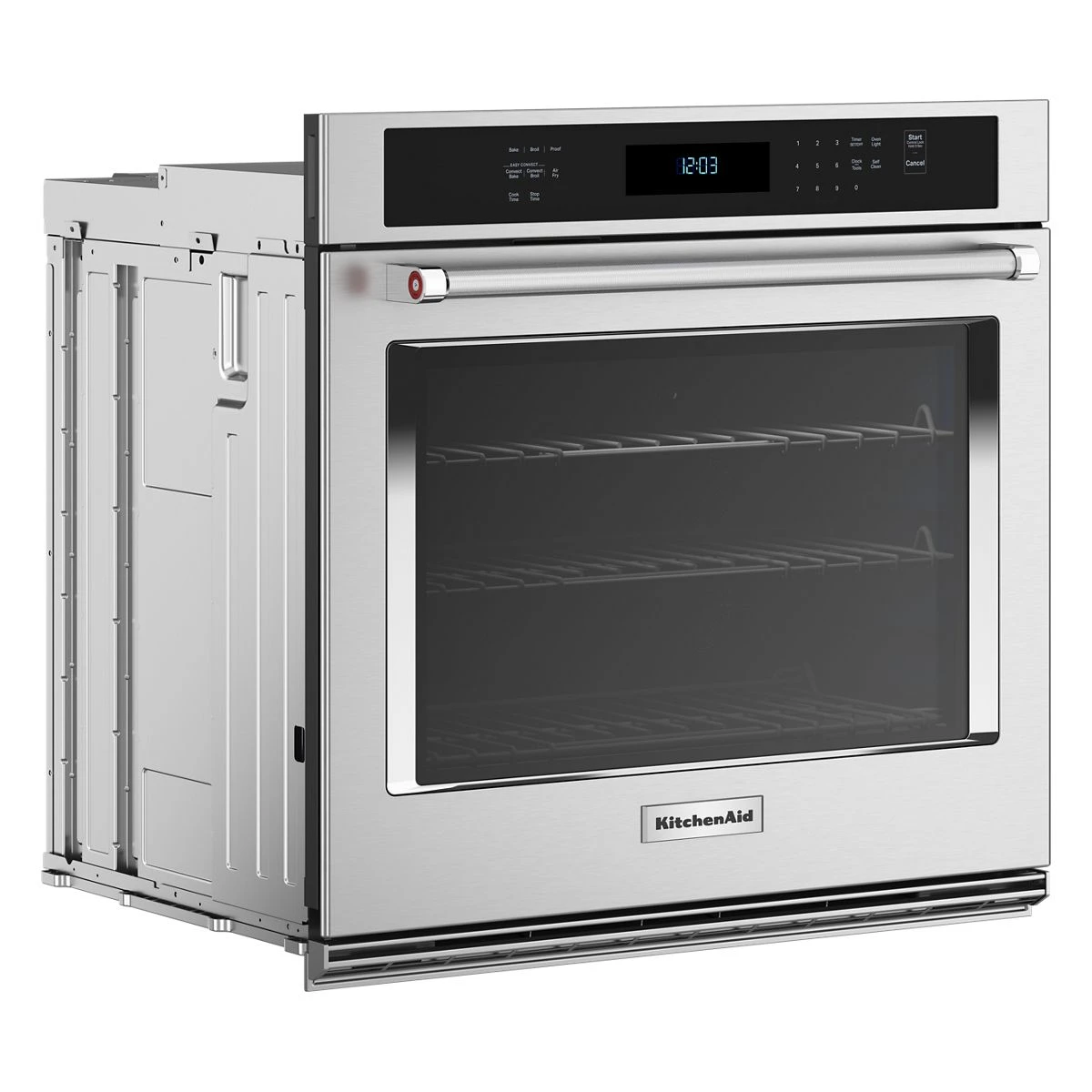

KitchenAid® 30" Single Wall Ovens with Air Fry Mode

Hover to zoom

Available in 3 finishes:

KitchenAid

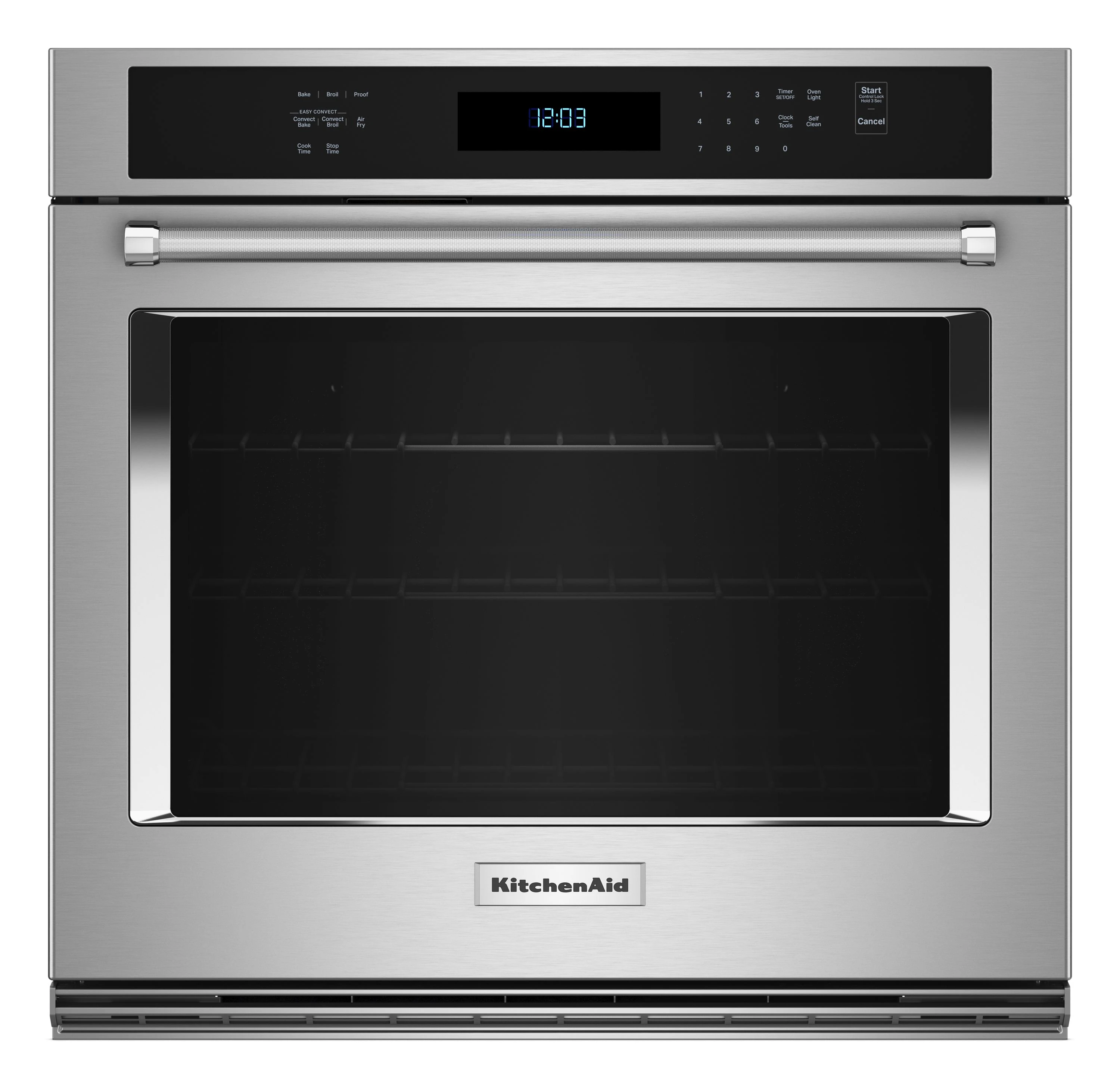

KitchenAid® 30" Single Wall Ovens with Air Fry Mode

Model: KOES530PPS

Brand	KitchenAid
Model #	KOES530PPS
Width	29.75 in.
Height	28.75 in.
Depth	27-1/8 in, 27-1/8 in, 27-1/8 in, 27-1/8 in

Who it’s for

Good for even baking and roasting — Convection is listed on this wall oven — a fan moves hot air around the cavity.
Good for crisping without a countertop fryer — Built-in air fry mode is listed on this model, so no separate countertop fryer is needed.
Good for accessible kitchens — Listed ADA compliant, so this wall oven suits kitchens built to the 2010 ADA Standards.

This model is discontinued

The KitchenAid® 30" Single Wall Ovens with Air Fry Mode is discontinued and cannot be ordered.

KitchenAid replaced this model with the 30-inch Smart Electric Single Wall Oven with Assisted Cooking Modes - PrintShield™ Finish.

Now available

30-inch Smart Electric Single Wall Oven with Assisted Cooking Modes - PrintShield™ Finish

$2,498.00

$801 less than the model it replaces

Same 29.75" width
Same color: Stainless Steel
Same 28.75" height
Adds Sabbath Mode

See the newer model →

Need help finding a replacement? Call (732) 426-0990

Was $3,299 when available

At a glance

KitchenAid KOES530PPS is a single wall oven in Stainless Steel, 29.75 inches wide with 5 cu ft of capacity. It has convection, air fry and a self-clean cycle. It suits even baking and roasting, crisping without a countertop fryer and accessible kitchens. It is listed as a 30 inch wall oven.

Specifications

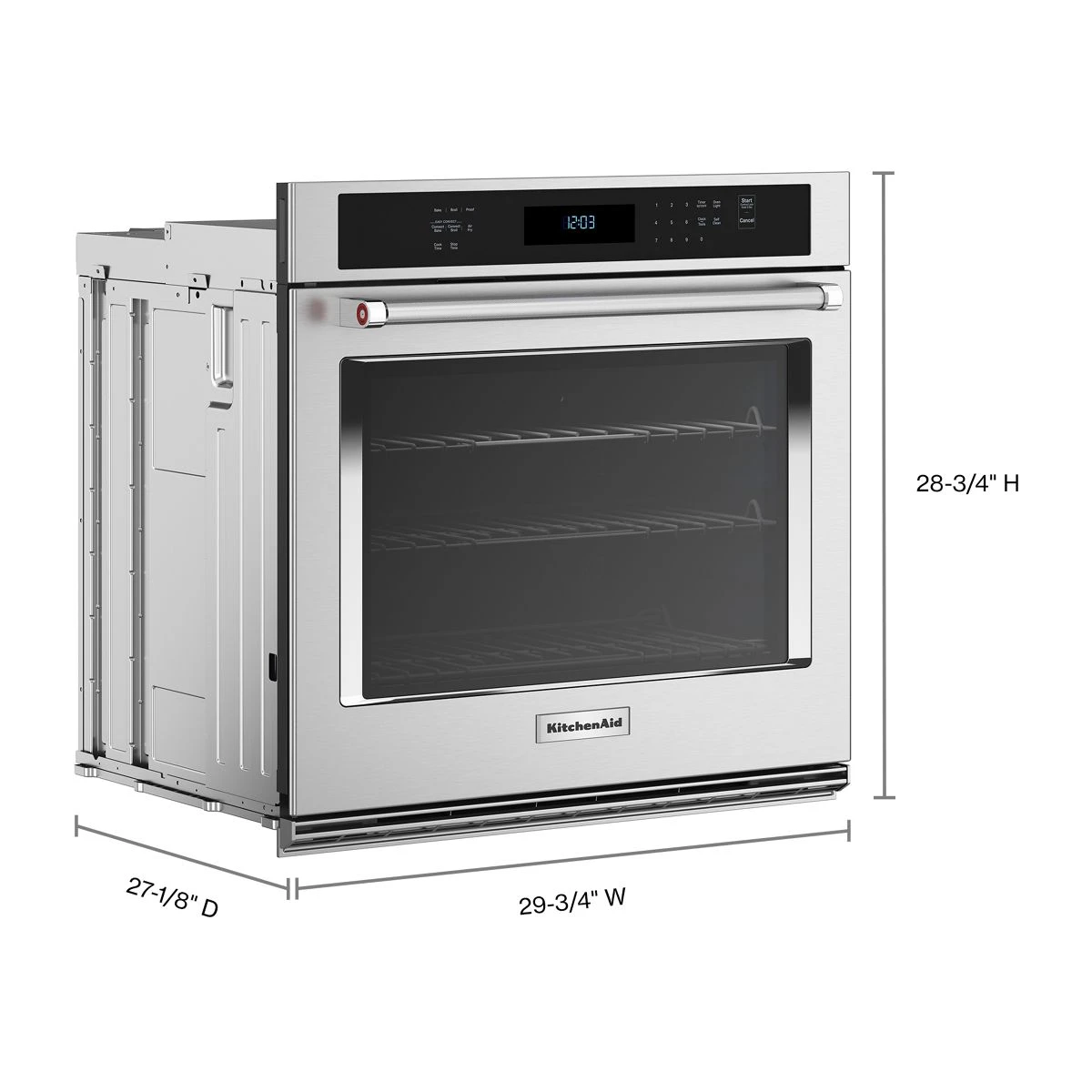

Dimensions

Width29.75 in.

Height28.75 in.

Length27.13 in.

Weight161 lbs.

Cutout Depth (in)24

Cutout Height (in)28

Cutout Width (in)28 1/2

Depth Closed Excluding Handles24.5000

Depth Closed Including Handles27.1250

Depth With Door Open 90 Degree46.7500

Gross Weight161

Net Weight143.0

Cutout Depth24.0000

Cutout Height28.0000

Cutout Width28.5000

Maximum Height28.7500

Capacity5 cu. ft.

Common Size30 in

Depth27-1/8 in, 27-1/8 in, 27-1/8 in, 27-1/8 in

Oven Interior Depth19 in, 19 in

Oven Interior Height18 in, 18 in

Oven Interior Width25 in, 25 in

Controls

Control TypeElectronic Touch

Display ColorWhite

Electronic Display TypeDigital

Language ConversionEnglish/French/Spanish

Light ControlOven Light Touch Pad

Details

Oven Automatic Shut-offYes

Delay CleanNo

Cooktop CombinationsKCES550, KCES556, KCES950, KCES956, KCGS350, KCGS356, KCGS550, KCGS556, KCGS950, KCGS956, KCIG550, KCIG556, KECC604, KECC607, KECC664, KECC667, KGCC506, KGCC566, KICU509, KICU569

Flush Installation ApprovedYes

Fuel TypeElectric

LP ConvertibleNo

Oven TypeSingle

Power On Indicator LightYes

Electrical

Amps20

Hz60

Power Cord IncludedNo

Volts240

Exterior Details

Door LockYes

Door TypeMetal & Glass

Handle ColorStainless Steel

Handle MaterialStainless Steel

Oven Window SizeExtra Large

Oven Cavity Details

Bake Element Power2,800 W

Broiler Element Power4,000 W

Broiler LocationTop of Oven

Convection Element TypeTrue Convection

Convection FunctionsBake, Broil, Convection Conversion

Door Broil PositionClosed

Door LockYes

Door RemovableYes

Hidden Bake ElementYes

Installable Under CooktopYes

Installable Under OvenYes

Interior CoatingPorcelain

Interior ColorBlue

Light TypeHalogen

Number Of Bake Elements2

Number Of Broil Elements1

Number Of Oven Lights2

Number Of Oven Racks3

Number Of Rack Guides6

Oven Cleaning TypeSelf-Cleaning

Self-cleaning Oven RacksNo

Convection Element Power3,200 w, 3,200 w

Smart Compatibility

ConnectivityAmazon Alexa, Android, Google Assistant, iOS

Works WithApp, Remote Access, Voice Controlled, WiFi

Product Features

Air Fry Mode

Uses triple heating elements and a fan to circulate hot air around the included air fry basket, crisping and browning food with less oil.**When compared to deep frying.

Even-Heat™ True Convection

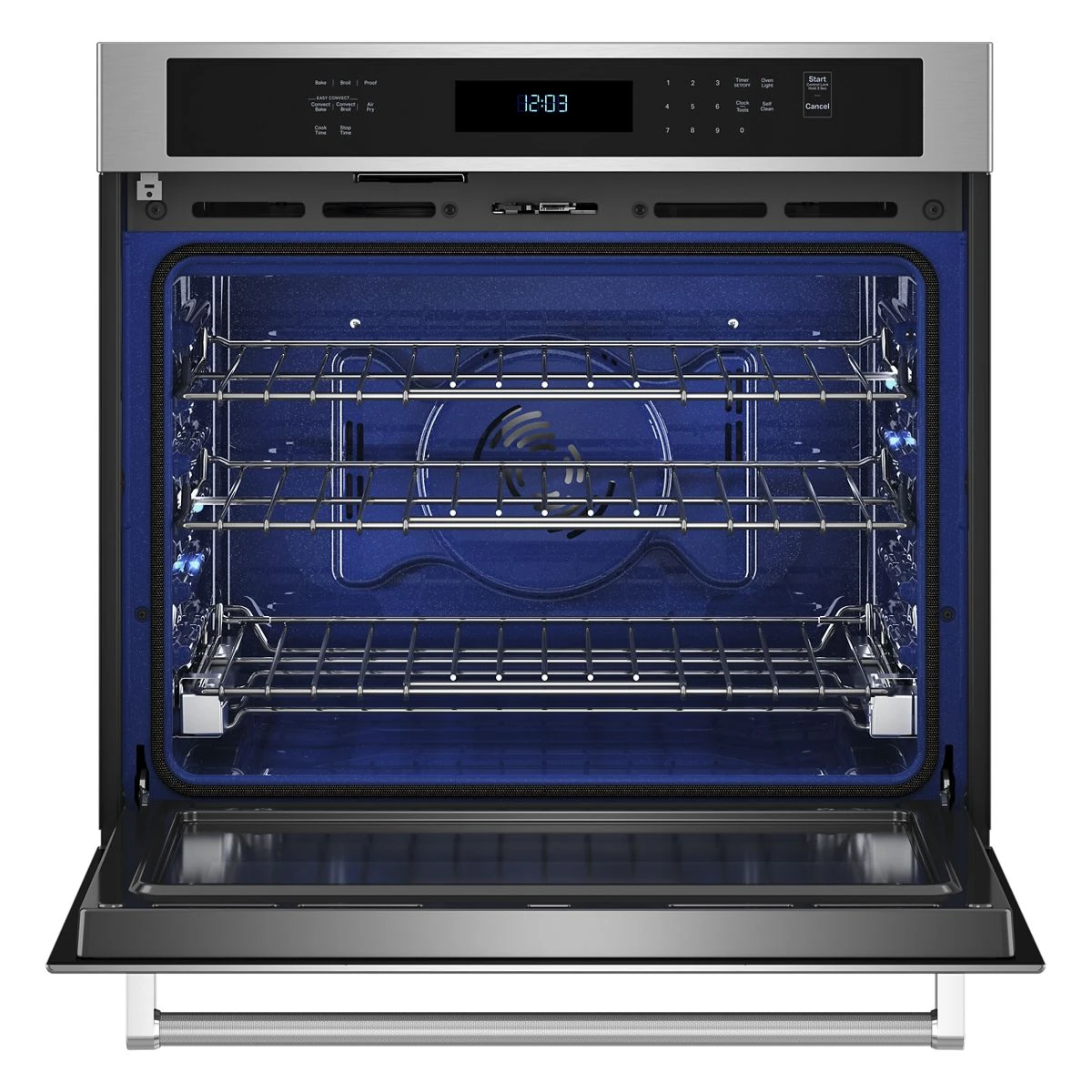

Features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing optimal temperatures for delicious baked goods, juicy roasts and flavorful vegetables.

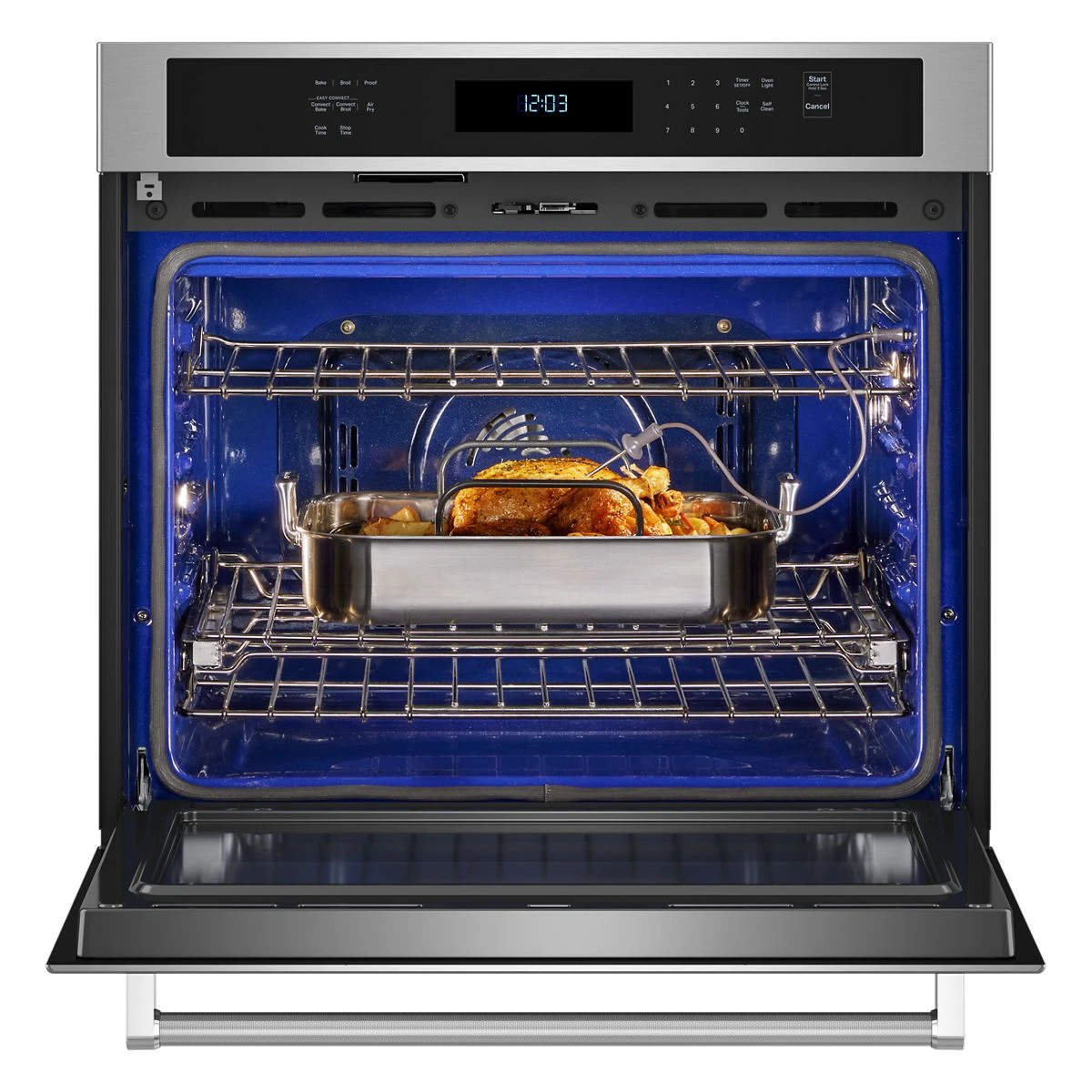

Integrated Meat Thermometer

Takes the guesswork out of roasting meat just the way you like, from rare to well done. It continuously monitors cooking progress and automatically turns the oven off when your desired temperature is reached.

PrintShield™ Finish

Resists smudges and fingerprints. The specialized coating for stainless steel is easy to clean with just water and a soft cloth, so you can spend more time cooking and less time cleaning up.

Product Documents

Quick Start Guide

Quick Start Guide937.64 KB

Warranty

Warranty144.08 KB

Dimension Guide

Spec Sheet2.16 MB

Fit System Limited Guarantee

Warranty163.59 KB

Air Fry Quick Reference Guide

Quick Start Guide168.70 KB

Owner's Manual

User Manual6.50 MB

Customer Reviews

No reviews yet

Be the first to review this product.

Common questions

Is the KitchenAid KOES530PPS good for even baking and roasting?: Yes — Convection is listed on this wall oven — a fan moves hot air around the cavity.
Is the KitchenAid KOES530PPS good for crisping without a countertop fryer?: Yes — Built-in air fry mode is listed on this model, so no separate countertop fryer is needed.
Is the KitchenAid KOES530PPS good for accessible kitchens?: Yes — Listed ADA compliant, so this wall oven suits kitchens built to the 2010 ADA Standards.
