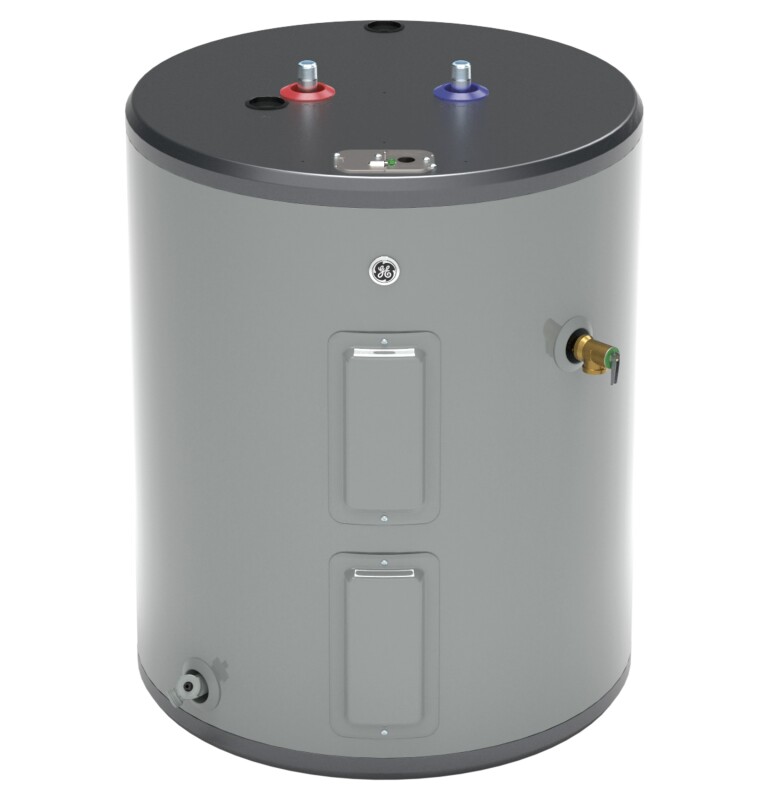

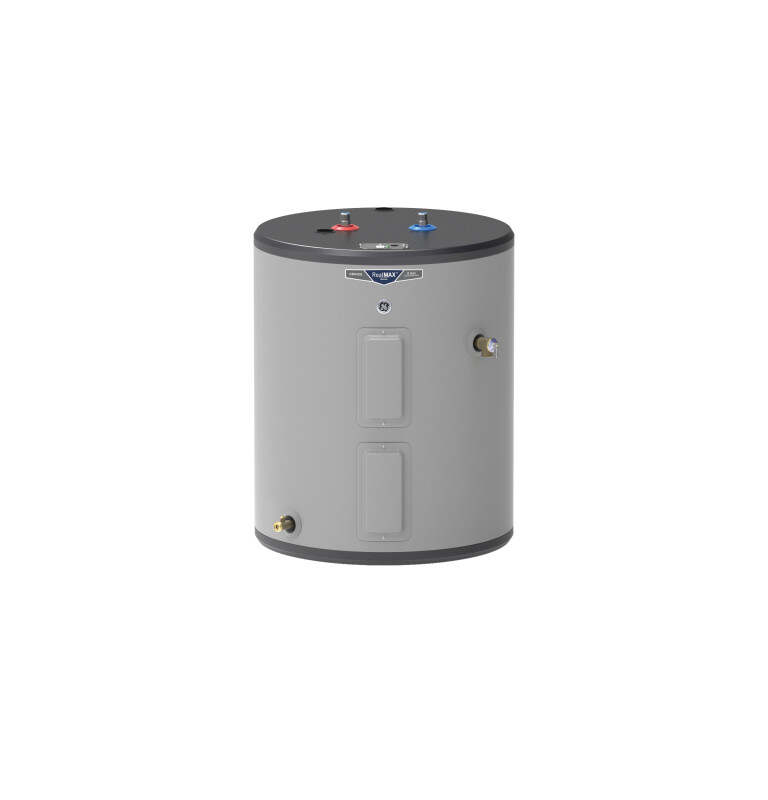

| Brand | GE |
| Model # | GE40L08BAM |
| Width | 27 in. |
| Height | 32.75 in. |
| Depth | 27 in. |
$579.00
Ships When Available— Backorder OK
This item is on backorder and will ship when available.
Stack & Save
Save up to $1,000 on qualifying orders

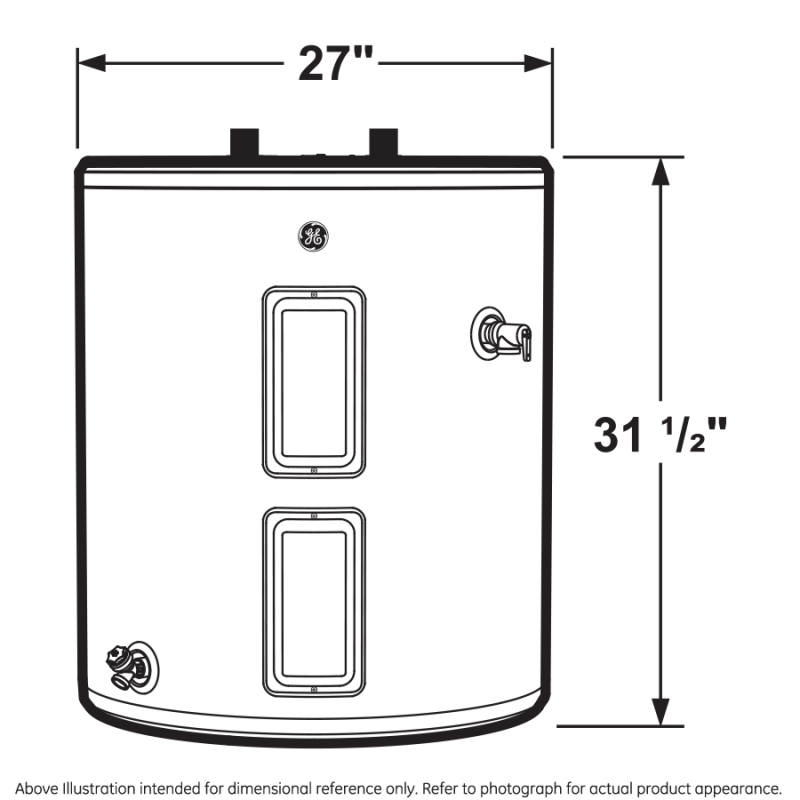

Dimensions
Overall Width27 in
Overall Height32.75 in
Product Height (to Top Of Unit)32.75 in
Overall Depth27 in
Product Height (to Top Of Water Inlet/outlet Connections)34.25 in
Net Weight135 lb
Product Diameter27 in
Connection Sizes - Water Inlet (mnpt)3/4"
Connection Sizes - Hot Water Outlet (mnpt)3/4"
Width27 in.
Height32.75 in.
Length27 in.
Weight135 lbs.
Features
Control TypeThermostat
Temp & Pressure Relief ValveYes
Height DescriptionLow Boy with Top Port
Fuel TypeElectric
ConfigurationLowboy

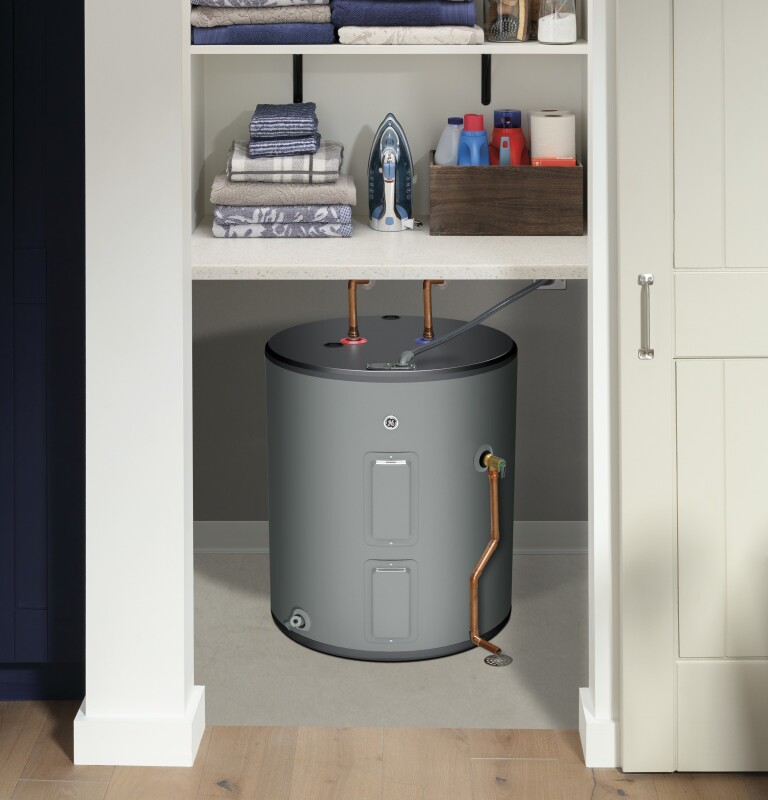

Installation LocationIndoor
Operating ModesStandard Electric
Rated Storage Capacity36
Gph Recovery @ 90 Degrees F25.1
Mobile Home CompatibleNo
Temperature Setting Factory Default120° F
Product TypeElectric Thermostat
Family Size2-4 People

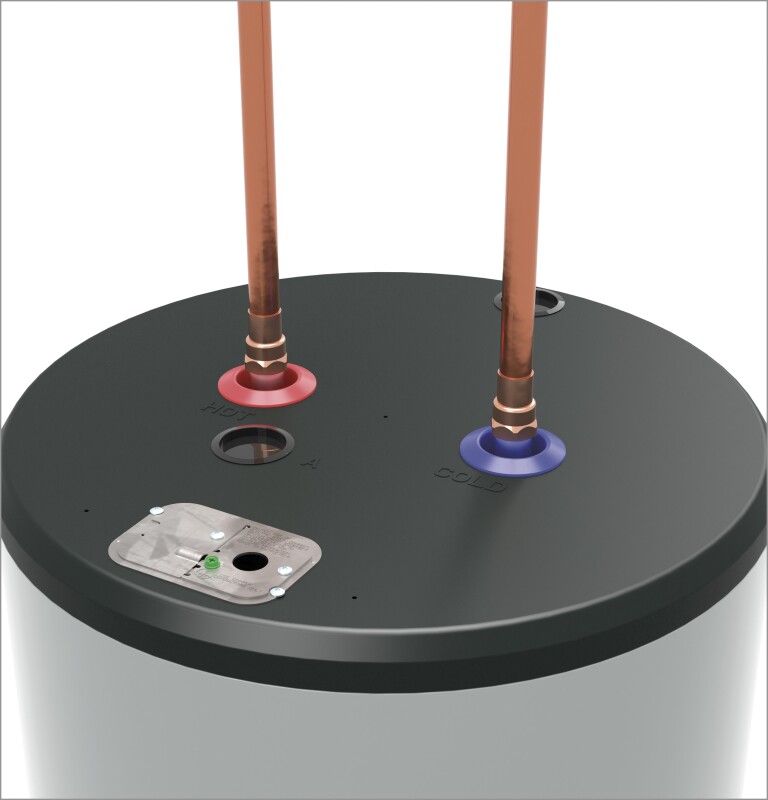

Water Connection LocationTop
Foam InsulationYes
Point Of UseNo

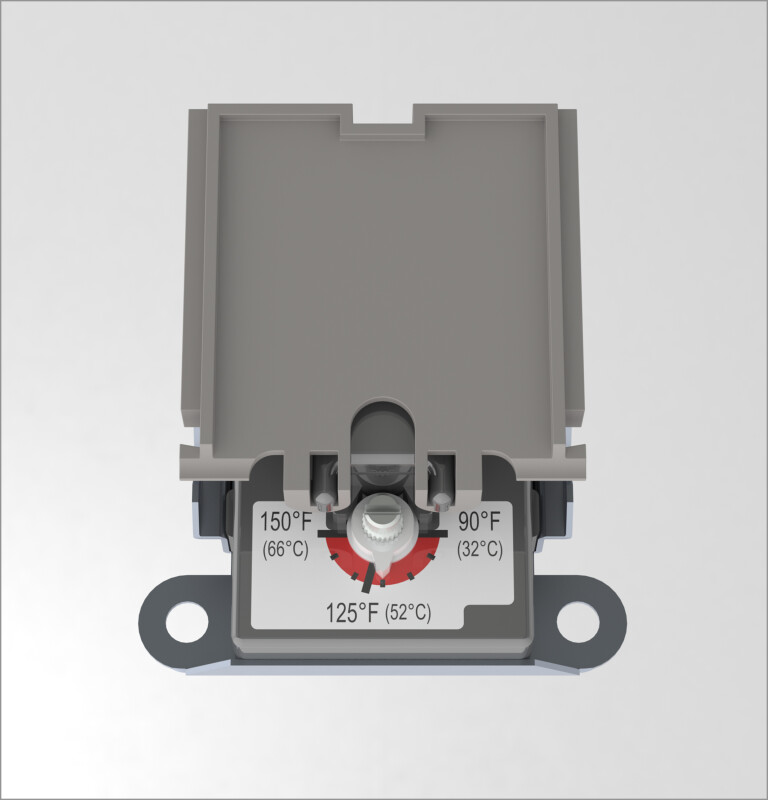

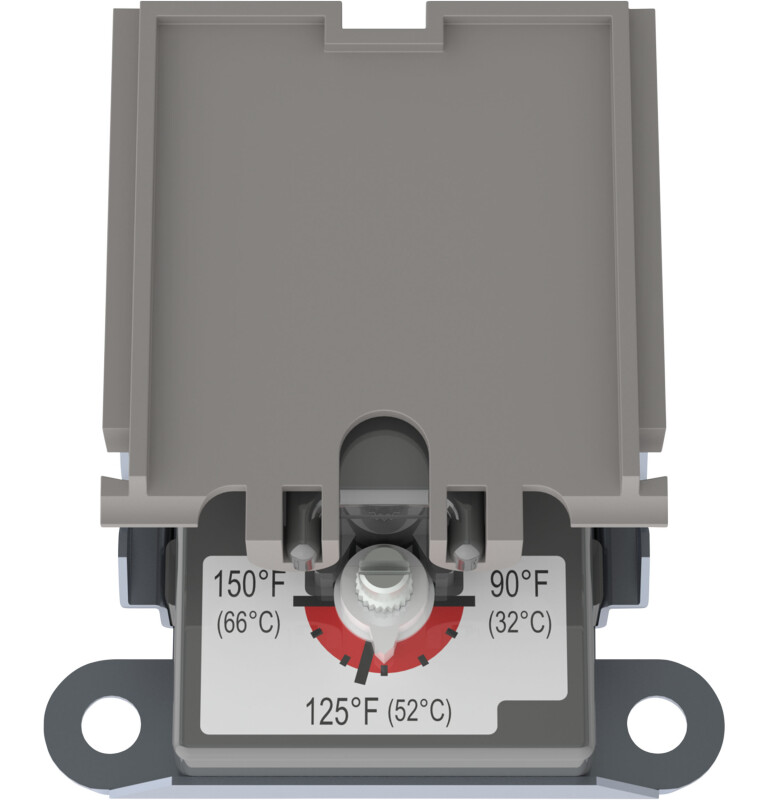

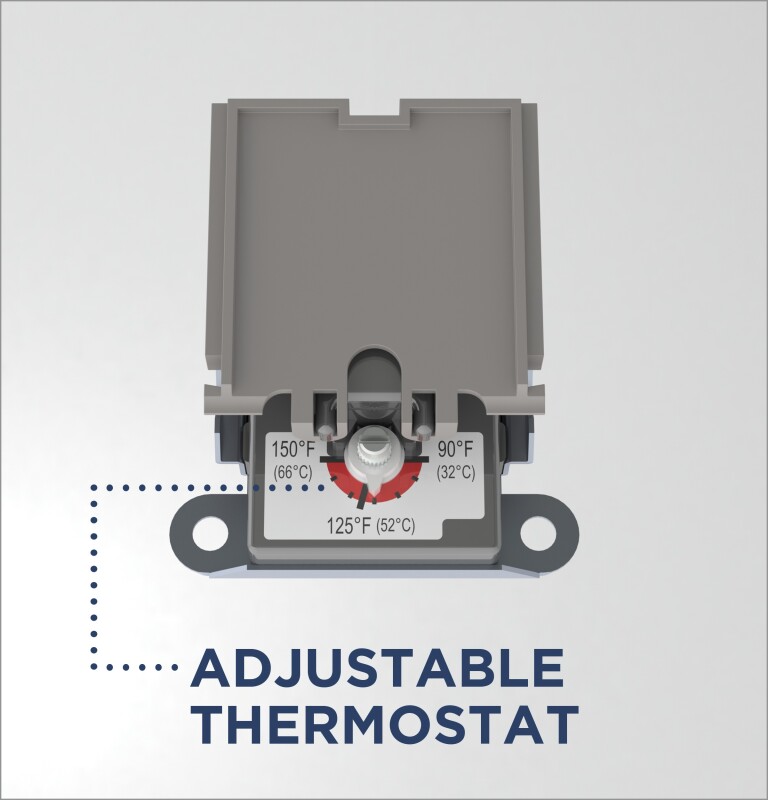

Temperature Setting90-150° F Range
Insulation Thickness2.75 in

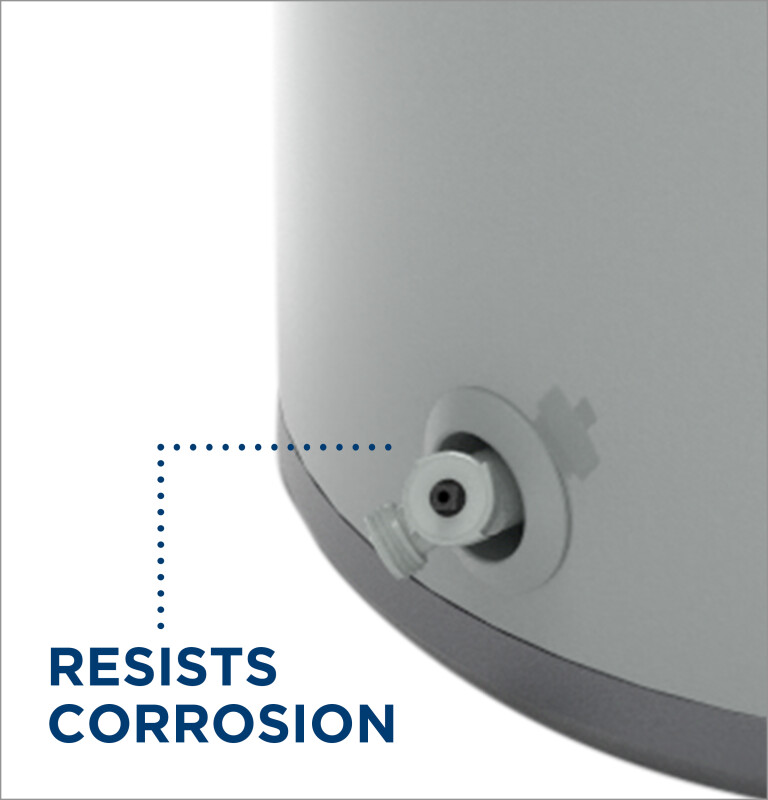

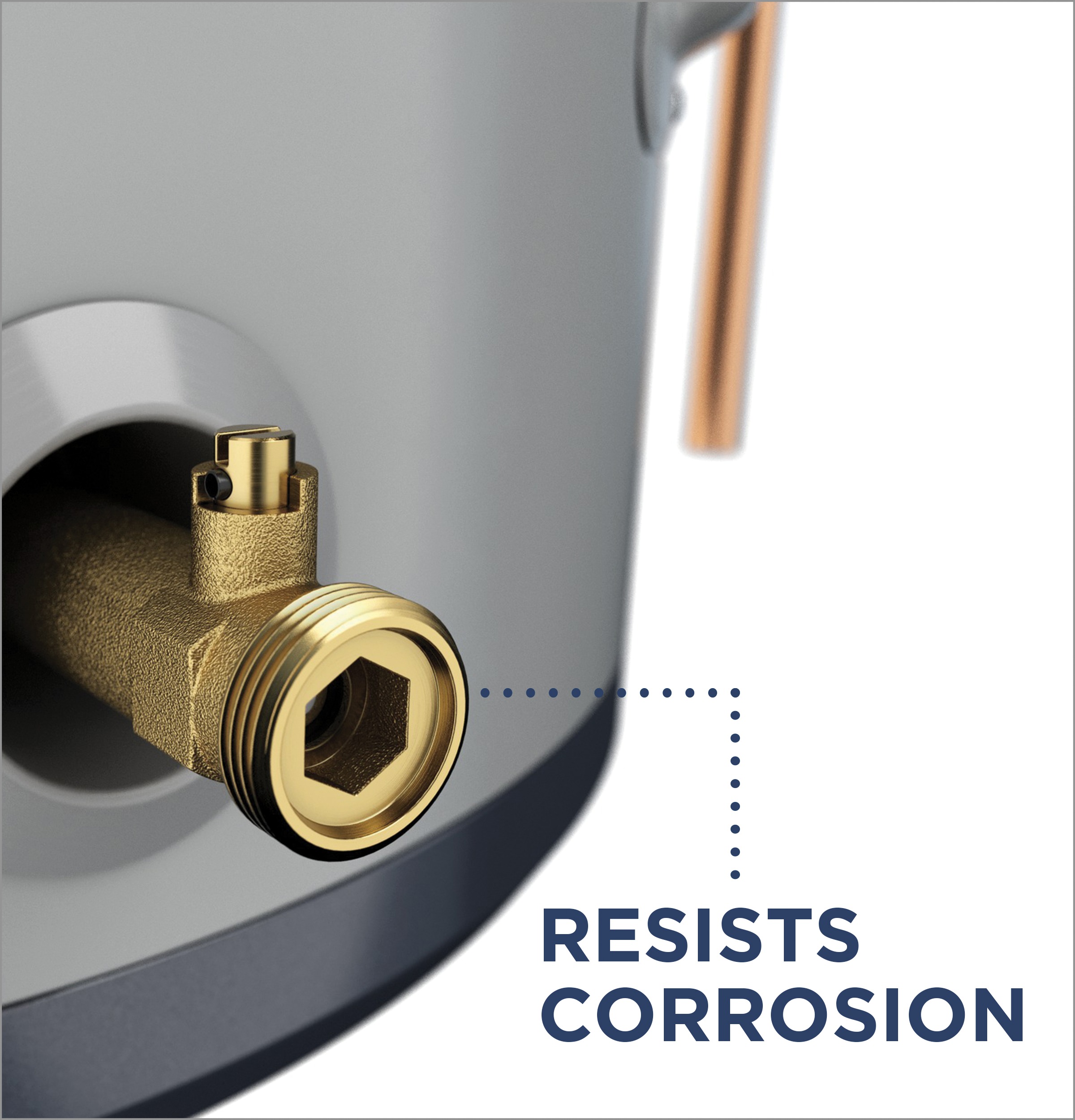

Drain Valve TypeBrass
Rated Capacity36.0 gal
Power & Ratings
Integrated Energy Factor0.92

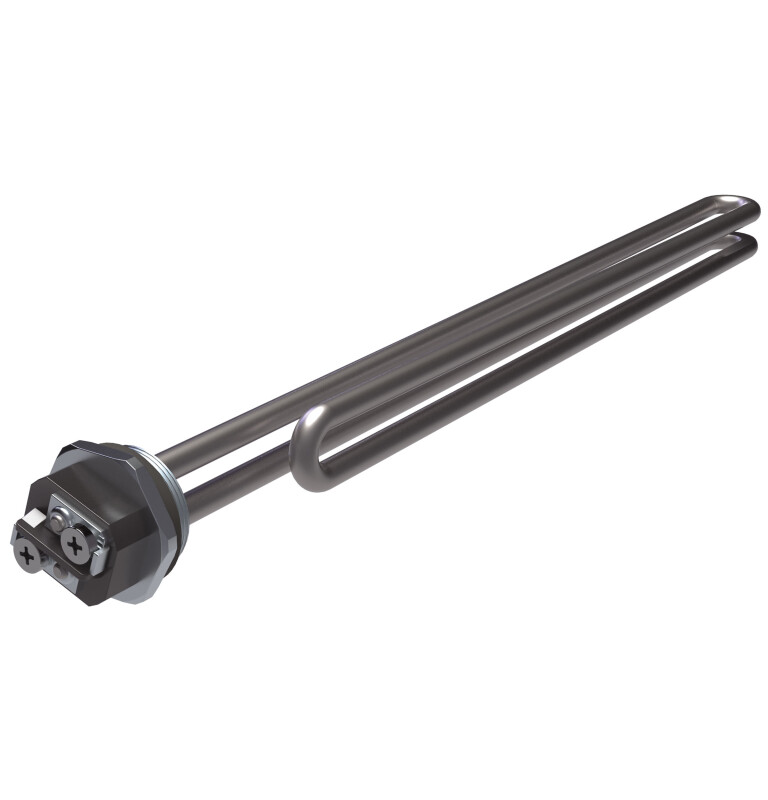

Heating - Electric - Heater Watts5500/5500
Electrical ConnectionDirect-Wire
Operating Water Pressure20-125 PSI
Volts/hertz240V; 60Hz
First Hour Rate (fhr)61 Gallons
Voltage (max)240 V
Electrical Circuit Required208V/240V 60 Hz Dedicated 30 Amp Min.
Energy Consumption (kwh/year)3531
Warranty
Warranty NotesSee written warranty for full details
Parts WarrantyLimited 8-year tank and parts
Labor WarrantyLimited 1-year entire appliance
Capacity
Unit Capacity40 Gallons
Appearance
Color AppearanceGray
