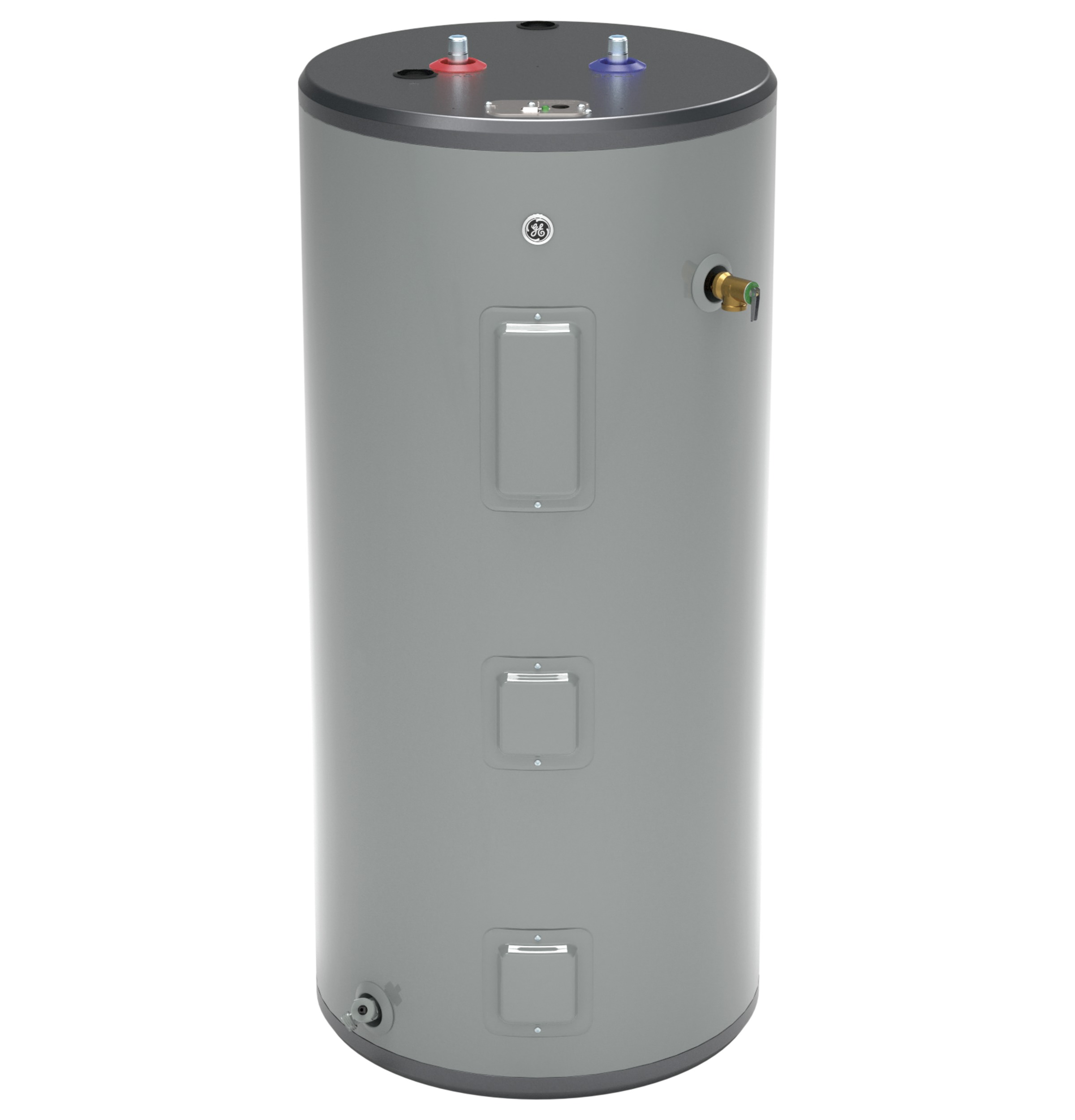

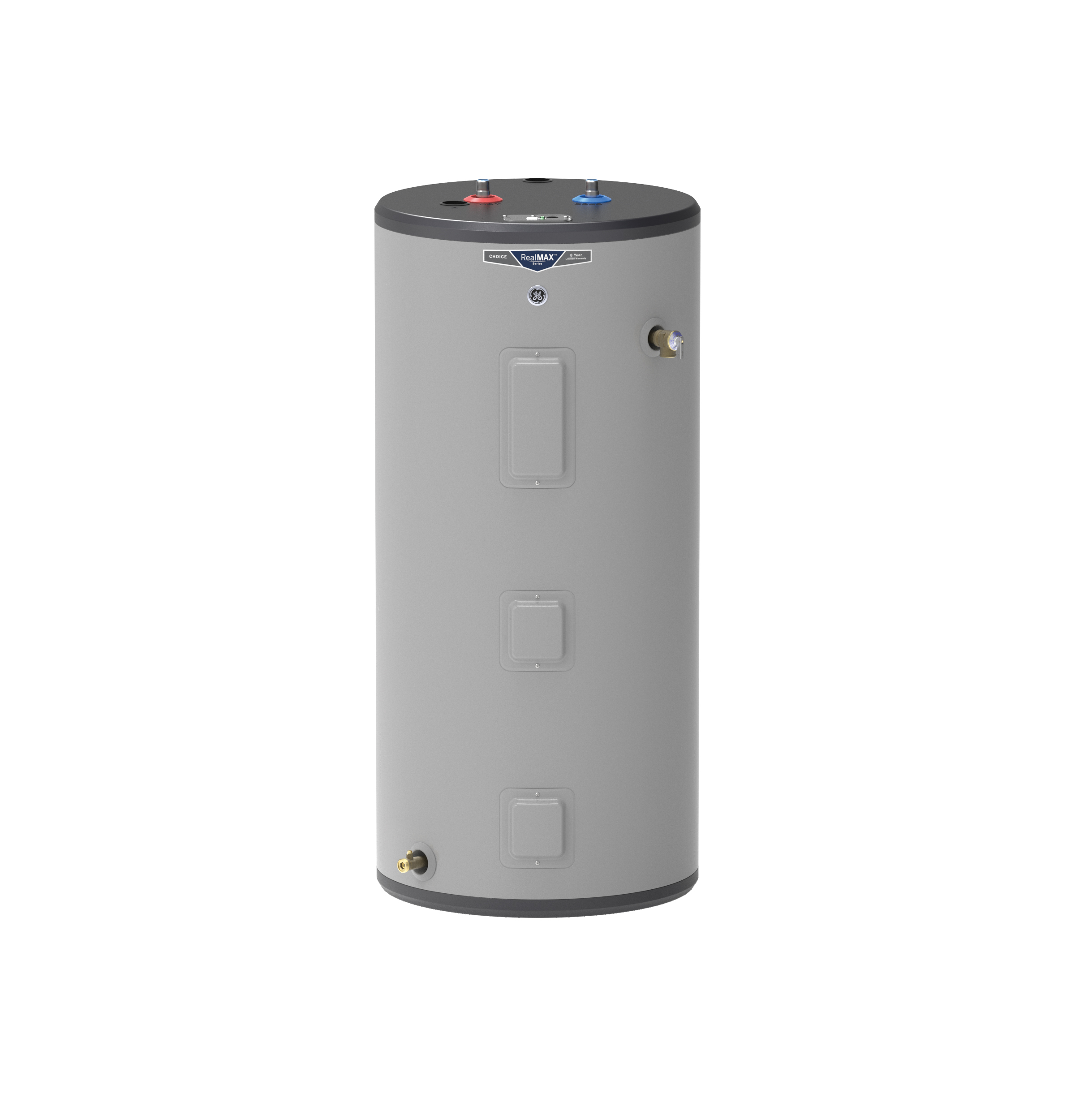

| Brand | GE |
| Model # | GE50S08BAM |
| Width | 24 in. |
| Height | 53 in. |
| Depth | 24 in. |
$629.00
Ships When Available— Backorder OK
This item is on backorder and will ship when available.
Stack & Save
Save up to $1,000 on qualifying orders

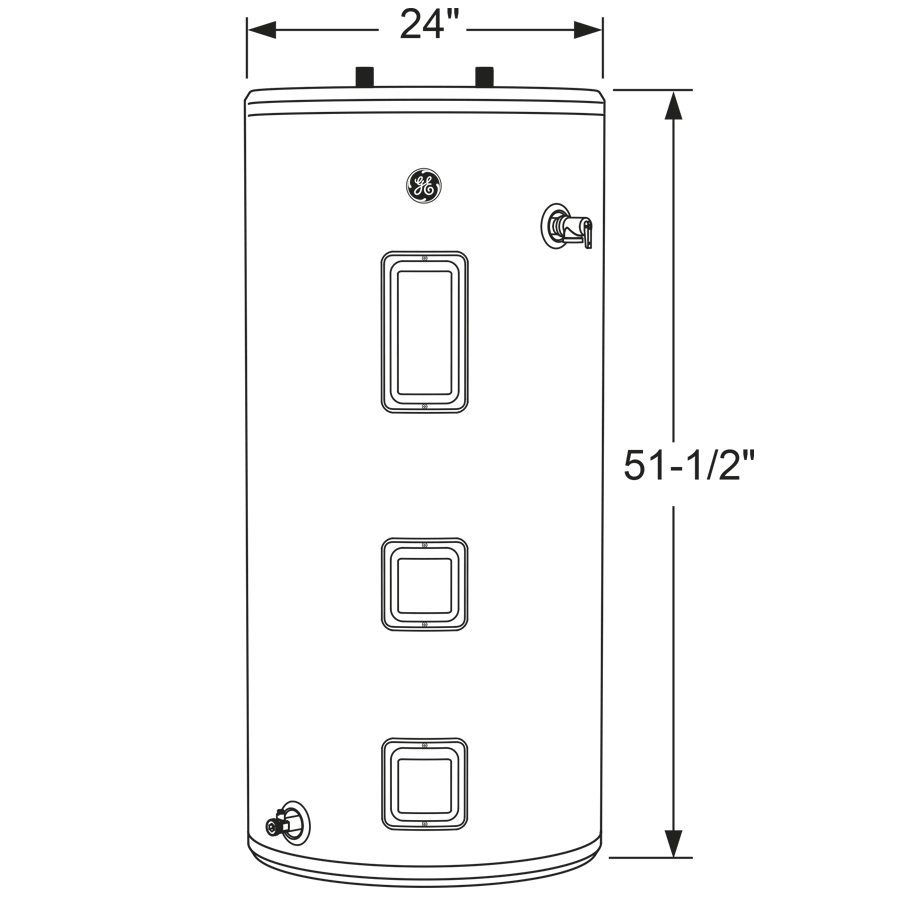

Dimensions
Overall Width24 in
Overall Height53 in
Product Height (to Top Of Unit)51.5 in
Overall Depth24 in
Product Height (to Top Of Water Inlet/outlet Connections)53 in
Net Weight150 lb
Product Diameter24 in
Connection Sizes - Water Inlet (mnpt)3/4"
Connection Sizes - Hot Water Outlet (mnpt)3/4"
Width24 in.
Height53 in.
Length24 in.
Weight150 lbs.
Features

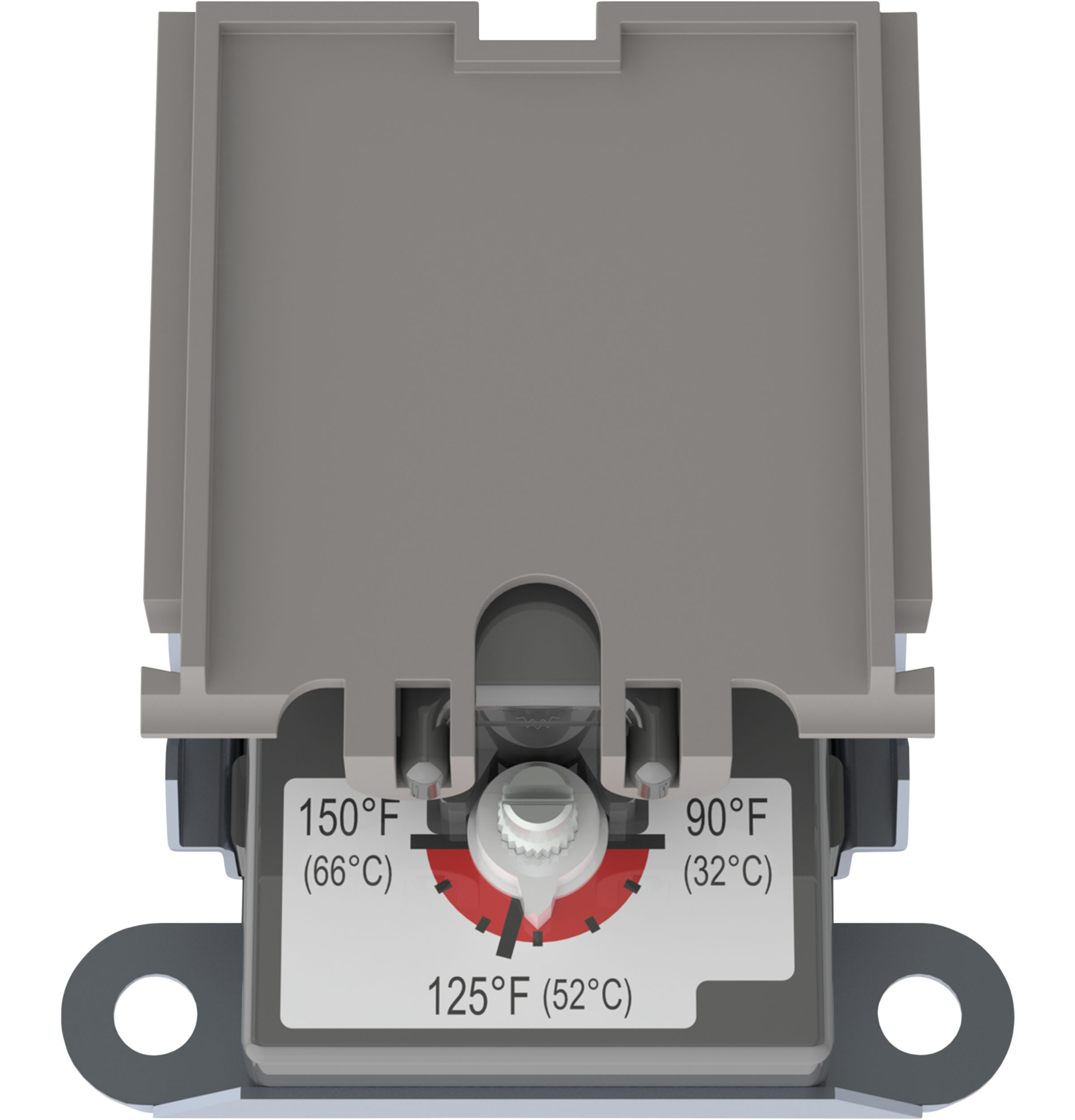

Control TypeThermostat
Temp & Pressure Relief ValveYes
Height DescriptionShort

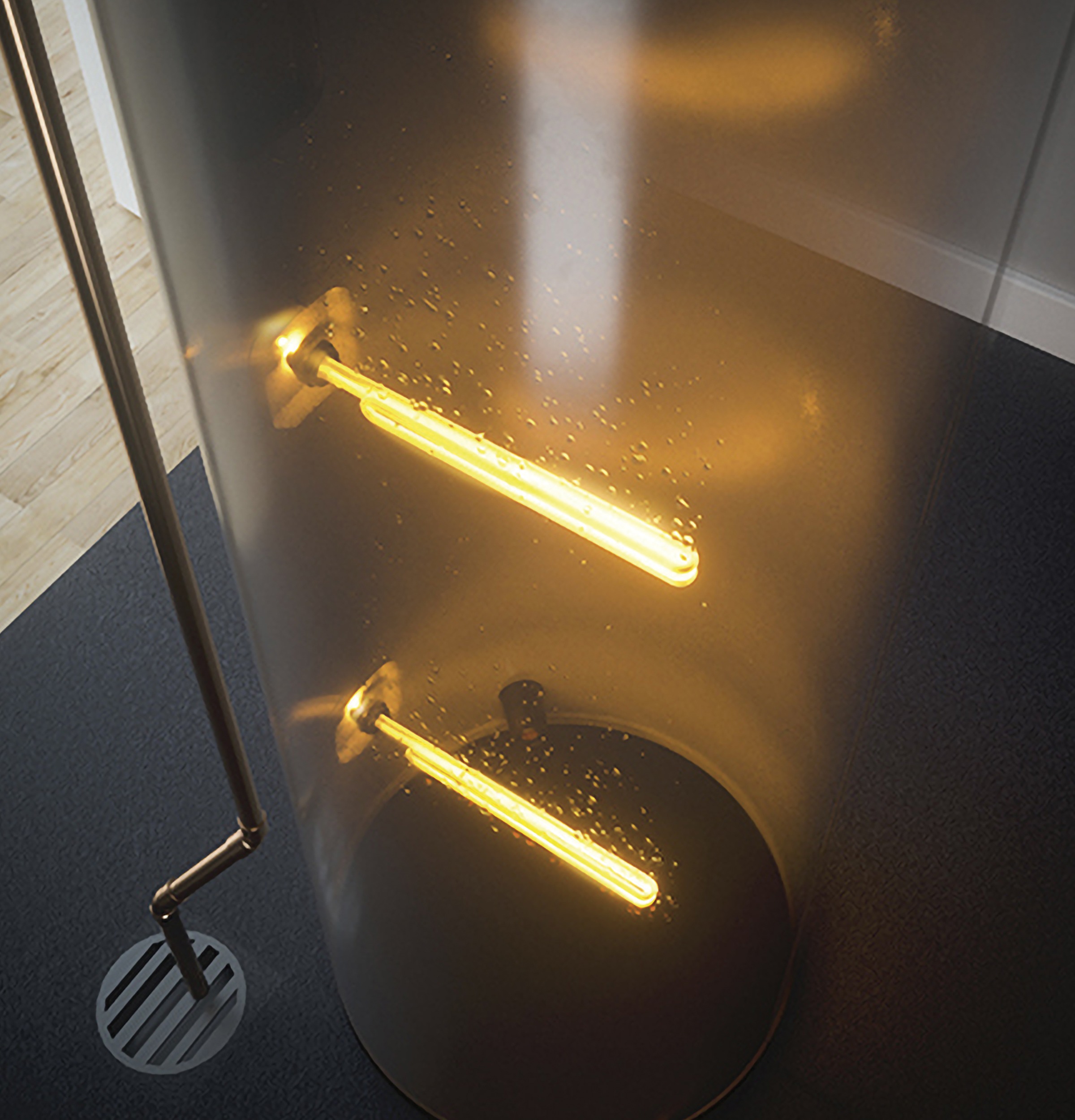

Heating ElementCopper
Fuel TypeElectric
ConfigurationShort
Installation LocationIndoor
Operating ModesStandard Electric
Rated Storage Capacity50

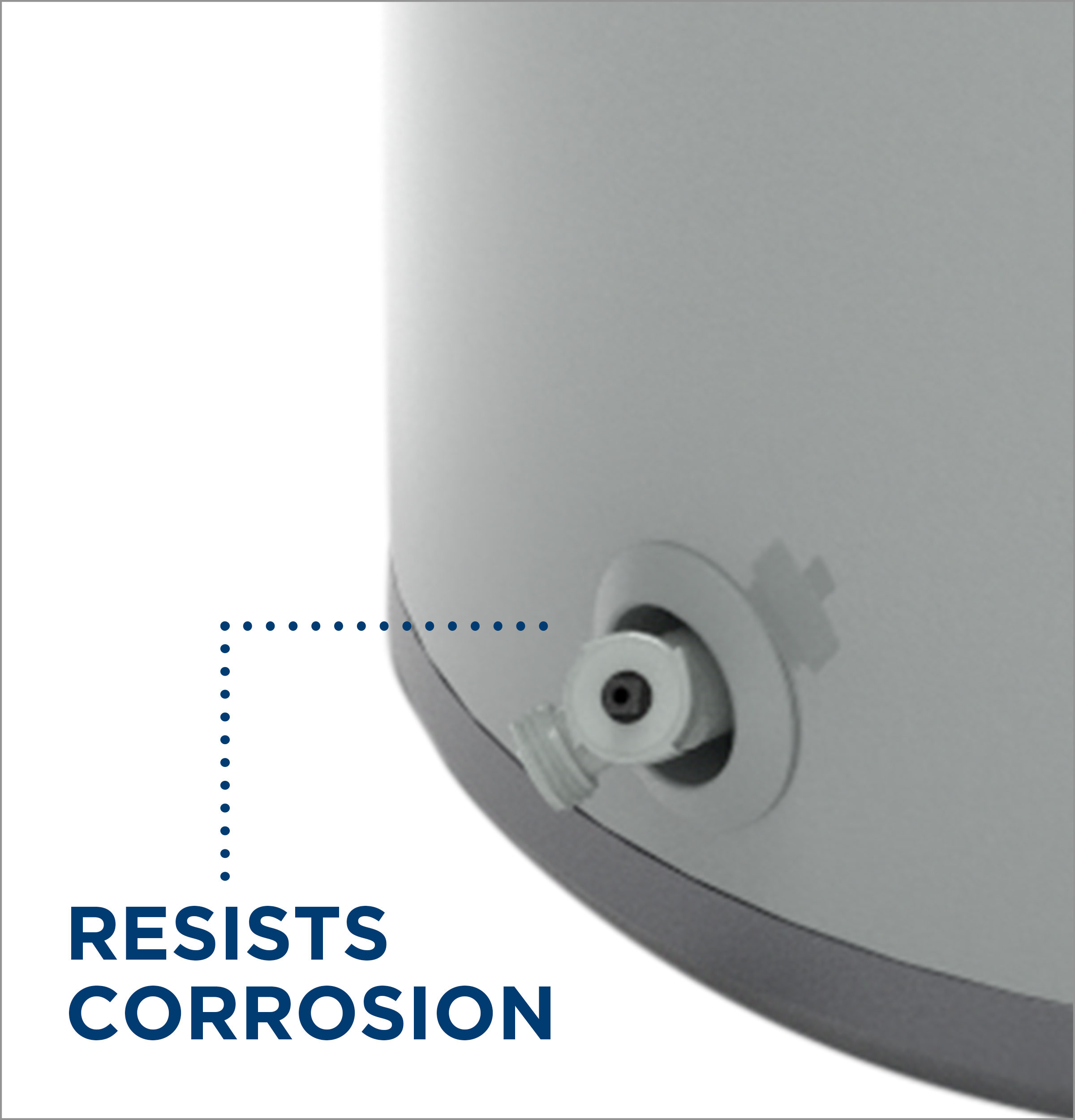

Drain Valve TypePlastic
Gph Recovery @ 90 Degrees F25.1
Mobile Home CompatibleNo
Temperature Setting Factory Default120° F
Product TypeElectric Thermostat
Family Size3-5 People

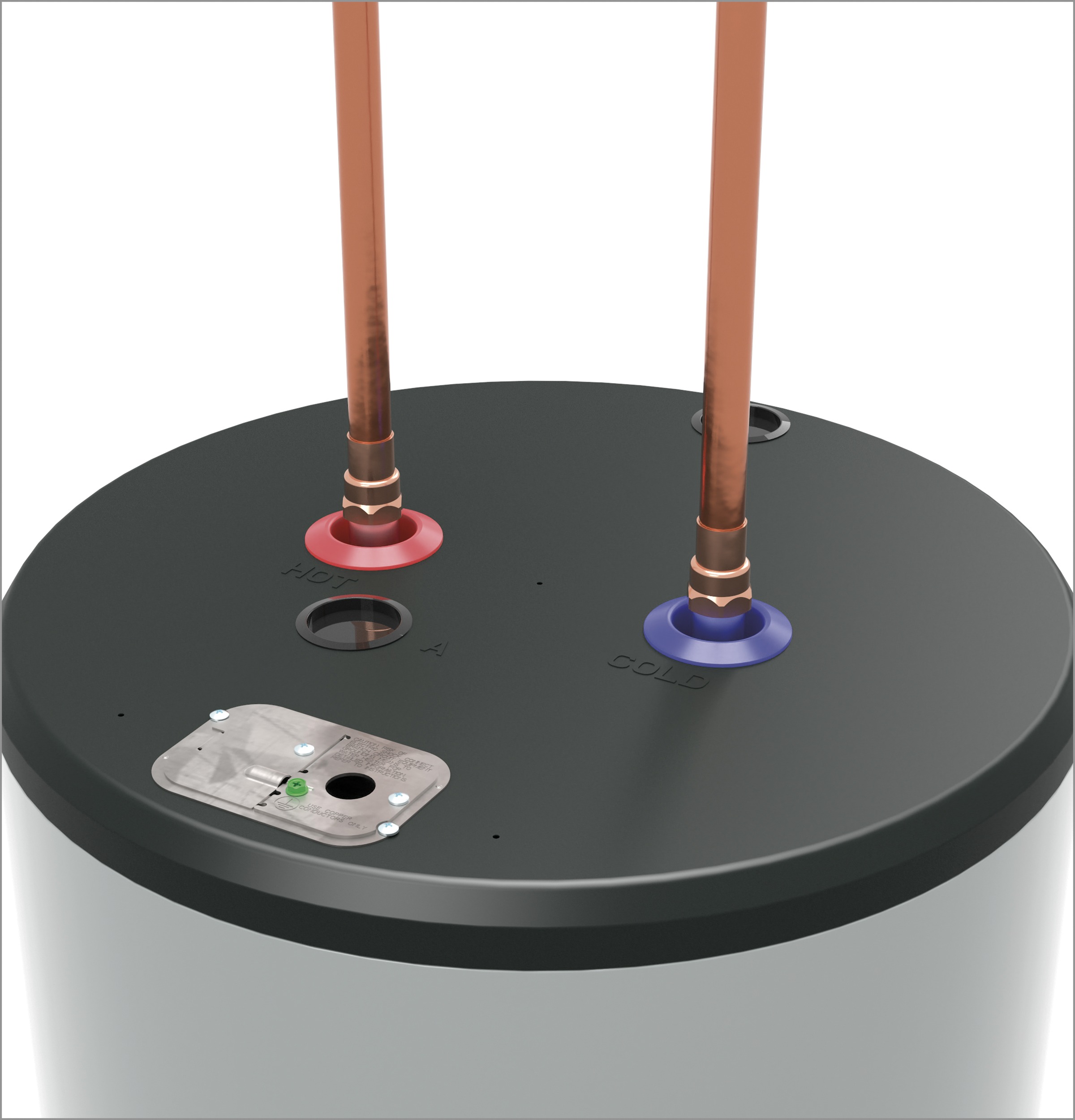

Water Connection LocationTop
Foam InsulationYes
Point Of UseNo

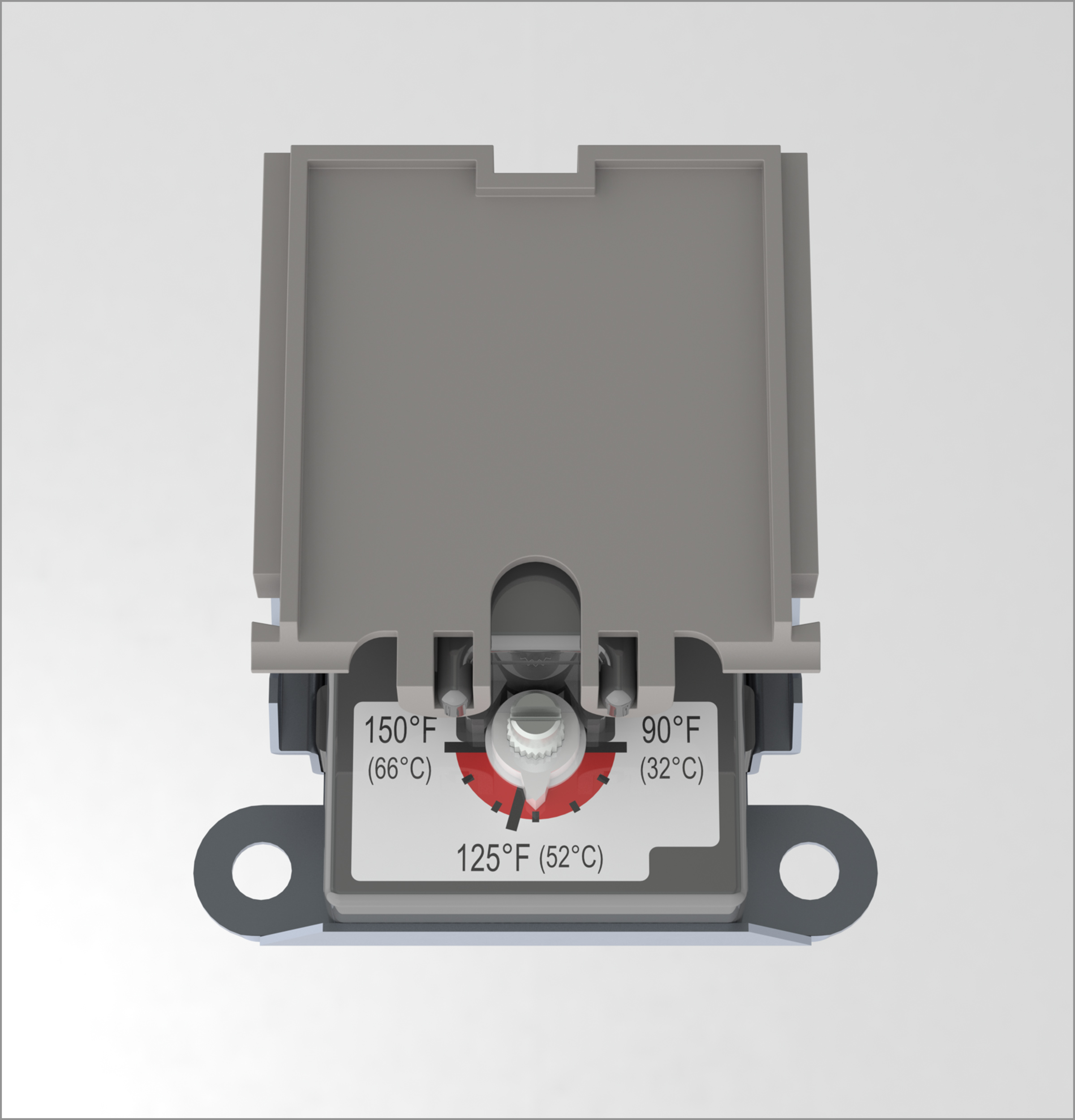

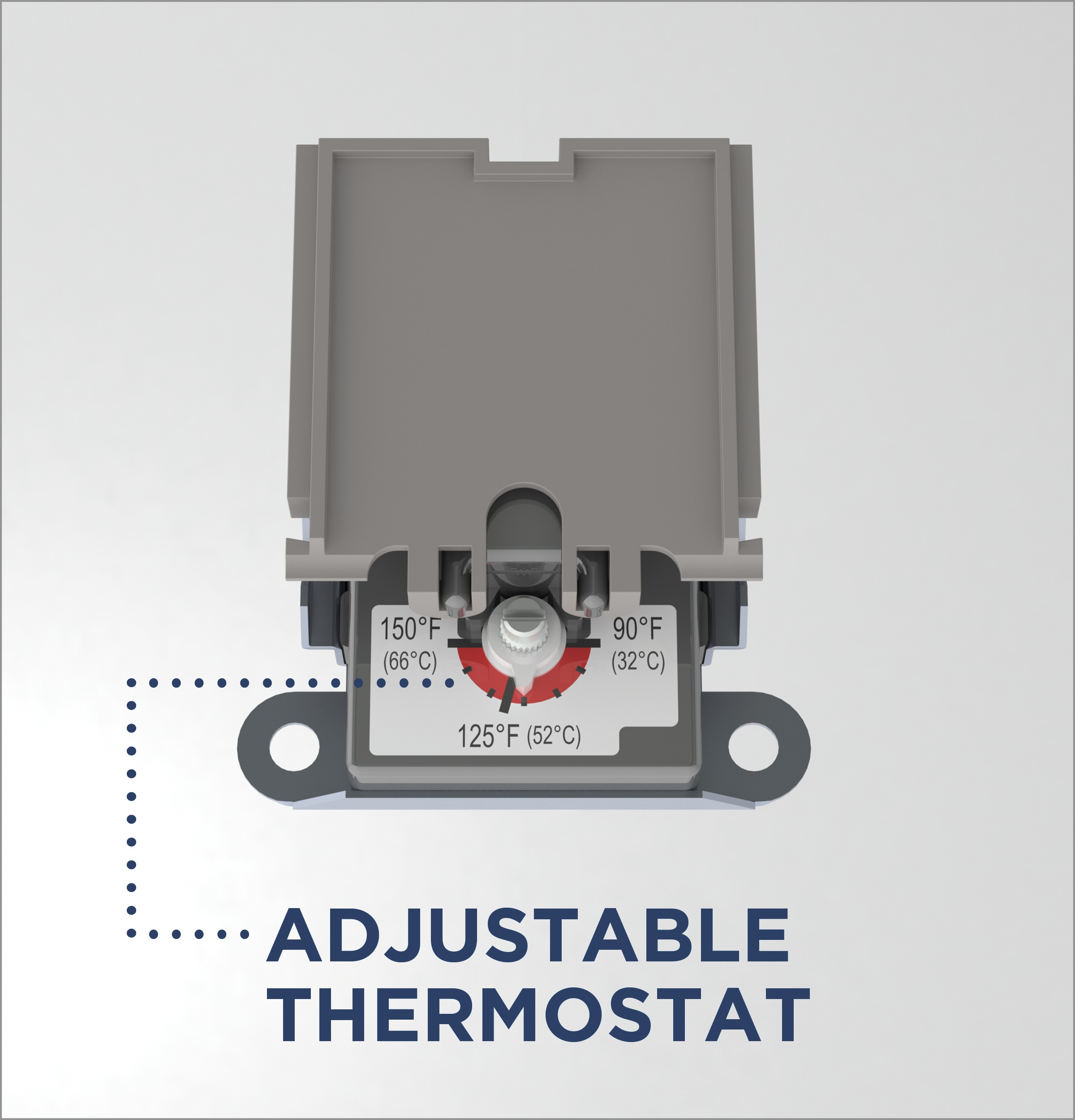

Temperature Setting90-150° F Range
Insulation Thickness2.75 in
Power & Ratings
Integrated Energy Factor0.93
Heating - Electric - Heater Watts5500/5500
Electrical ConnectionDirect-Wire
Operating Water Pressure20-125 PSI
Volts/hertz240V; 60Hz
First Hour Rate (fhr)76 Gallons
Voltage (max)240 V
Electrical Circuit Required208V/240V 60 Hz Dedicated 30 Amp Min.
Energy Consumption (kwh/year)5334
Warranty
Warranty NotesSee written warranty for full details
Parts WarrantyLimited 8-year tank and parts
Labor WarrantyLimited 1-year entire appliance
Capacity
Unit Capacity50 Gallons
Appearance
Color AppearanceGray
