GE Profile

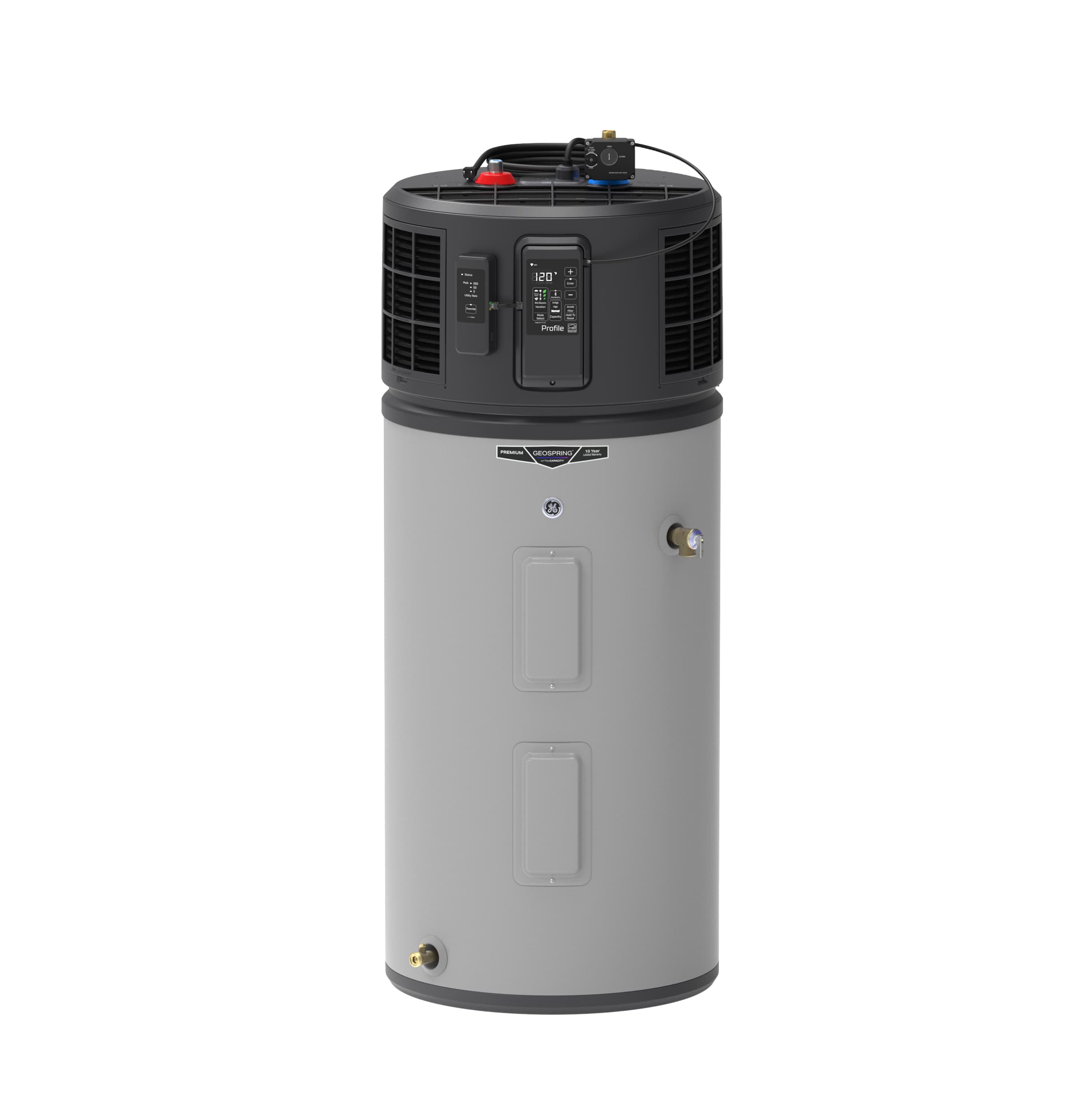

GEOSPRING Smart Hybrid Heat Pump Water Heater 40-gallon - 120V - FlexCapacity
Model: PF40S10FPY
| Brand | GE Profile |
| Model # | PF40S10FPY |
$2,529.00
Ships When Available— Backorder OK
This item is on backorder and will ship when available.
Stack & Save
Save up to $1,000 on qualifying orders
Dimensions
Product Height (to Top Of Water Inlet/outlet Connections)59.5 in
Overall Width24 in
Overall Height59.5 in
Product Height (to Top Of Unit)57.75 in
Net Weight165 lb
Product Diameter24 in
Overall Depth24 in
Connection Sizes - Water Inlet (mnpt)3/4"
Connection Sizes - Hot Water Outlet (mnpt)3/4"
Features
Power Cord Length6' 3-prong
Control TypeElectronic
Demand Response CapableYes
Drain ValveLeft Side
Temp & Pressure Relief ValveRight Side
Fuel TypeElectric
Operating ModesHeat Pump
Electronic, Integrated Mixing ValveYes
Drain Valve TypeBrass
Temperature Setting Factory Default120° F
Product TypeElectric Heat Pump
WiFi ConnectBuilt-In
Water Connection LocationTop
SensorLeak Sensor Included (SPLK10N01A)
CommunicationYes
Diagnostic FeedbackFilter, Lock, Standard Electric
Anode RodMagnesium
Renewable Air FilterTop of Unit
Temperature Setting100-140° F Range
Connected CapabilitiesAmazon Alexa
Uef3.1
Appearance
InstallationFree-Standing
Color AppearanceGray
Power & Ratings
Operating Water Pressure20-125 PSI (30-80 PSI recommended)
Hertz60
Electrical Consumption - Lower Element3600W at 240VAC
Electrical Consumption - Upper Element3600W at 240VAC
First Hour Rate (fhr)46 Gallons
Energy Consumption (kwh/year)724
Electrical Circuit Required120/110VAC 15A, 60HZ or 240/208VAC 25A, 60Hz
Voltage (max)240 V
Volts/hertz120V; 60Hz or 240V; 60Hz
Warranty
Warranty NotesSee written warranty for full details
Labor WarrantyLimited 1-year entire appliance
Parts WarrantyLimited 10-year tank and parts
Capacity
Unit Capacity40 Gallons
Economical / Quiet
Operating Sound Level41 dBA
